线束端子压接成形过程与接触电阻的仿真分析

doi:10.16628/j.cnki.2095-8188.2026.03.002

摘要/Abstract

摘要：

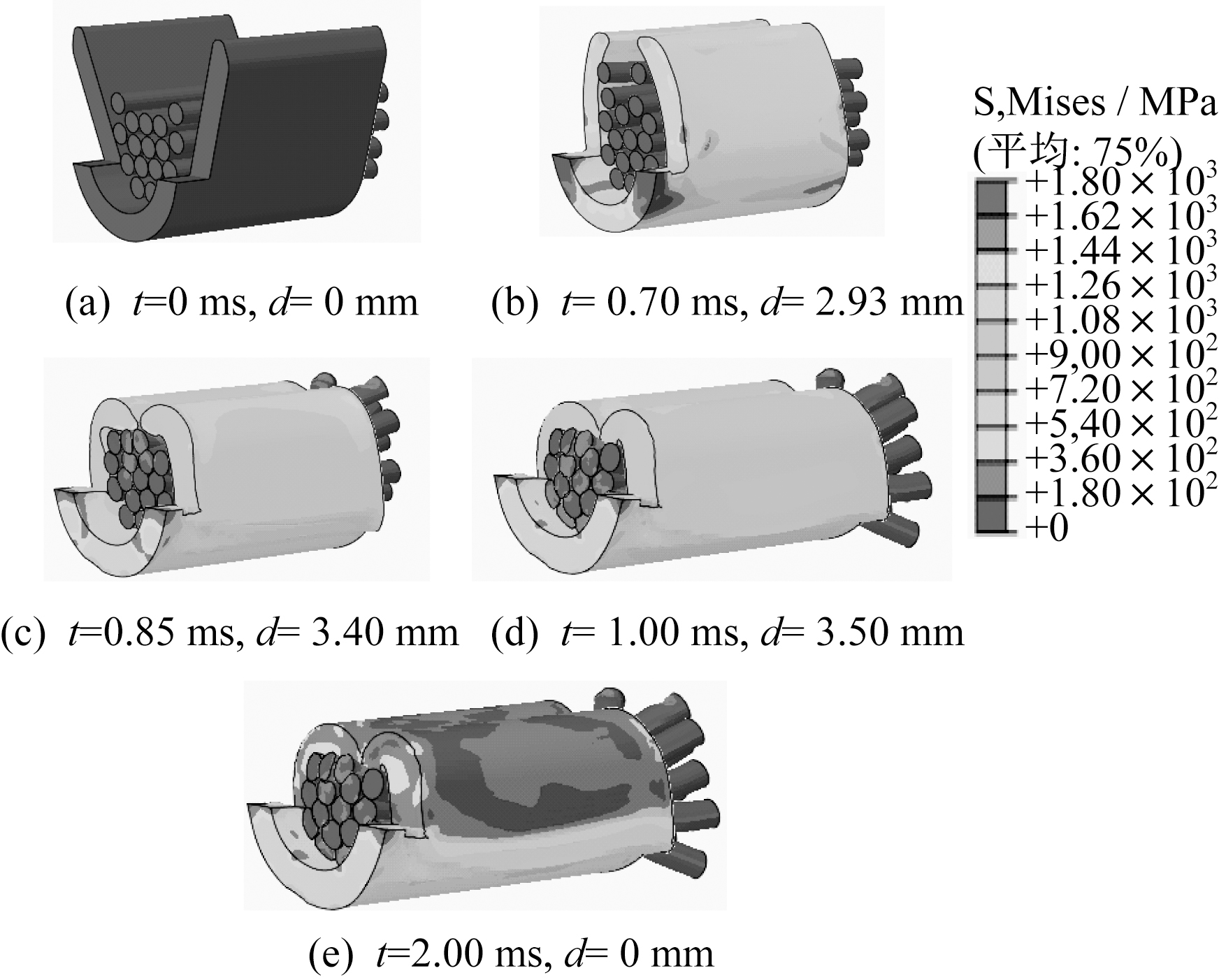

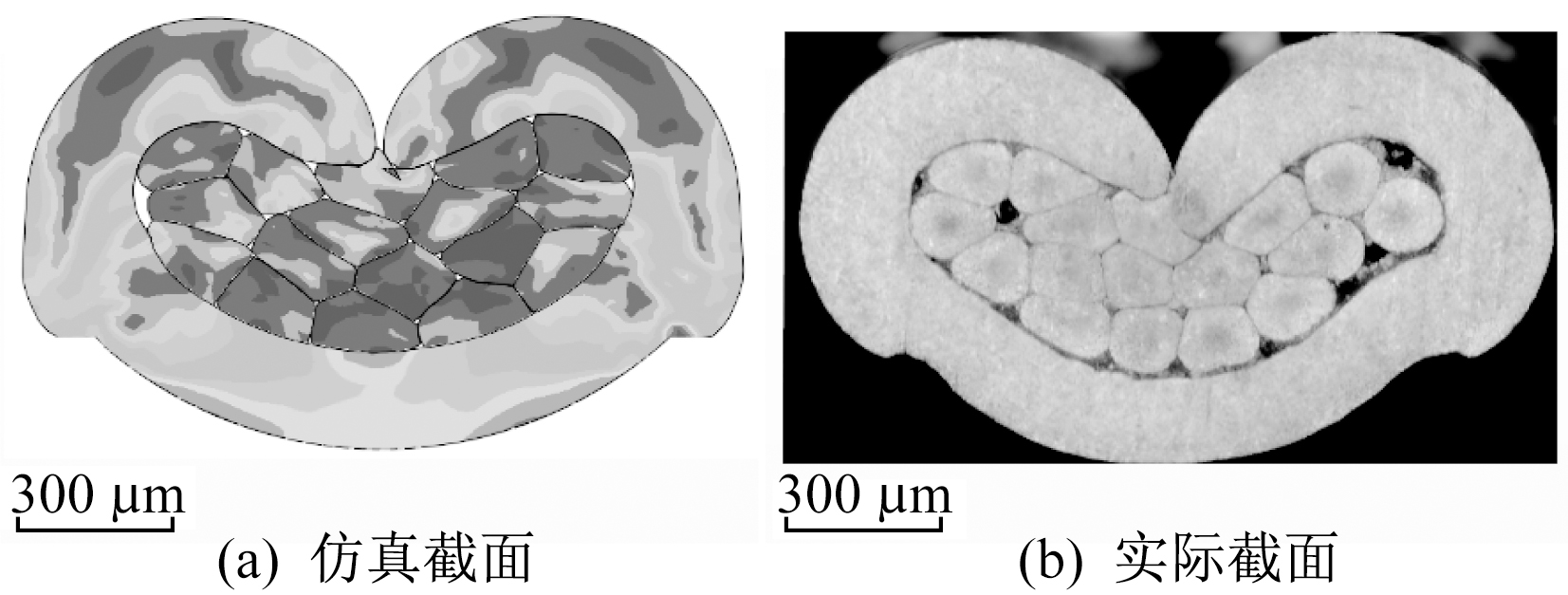

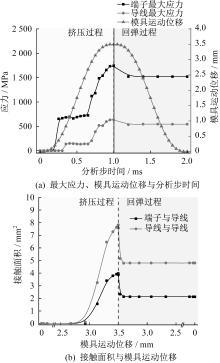

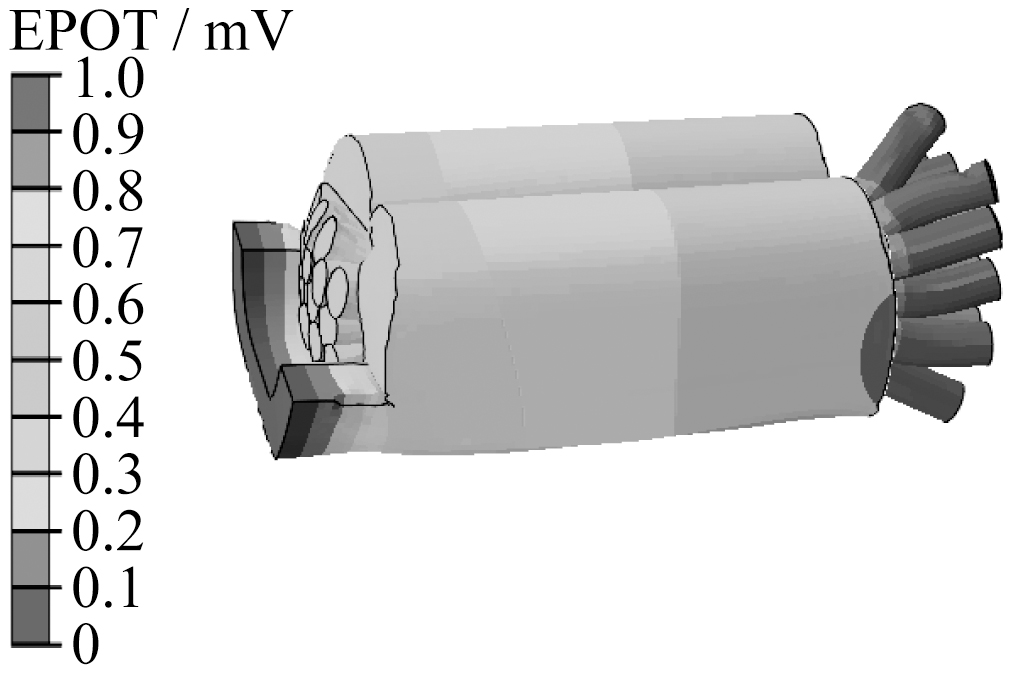

线束端子的压接成形质量直接决定了其电连接可靠性。提出了一种基于ABAQUS有限元软件的线束端子压接成形过程与接触电阻的仿真分析方法,获得了挤压过程与回弹过程中线束端子的应力、接触面积与模具运动位移的关系,以及压接完成后的电势云图和接触电阻。对比有限元仿真结果与实验获得的线束端子剖切截面的形状、尺寸及接触电阻数据,验证了所提仿真分析方法的可行性与准确性。

关键词: 线束端子, 压接成形, 接触电阻, 有限元仿真, 接触面积

Abstract:

The electrical connection reliability of wire terminals is directly determined by their crimping quality.A simulation analysis method for the crimping formation process and contact resistance of the wire terminal is presented based on the commercial finite element software ABAQUS.The relationship among stress,contact area and die moving displacement during crimping and springback processes is obtained, as well as the potential distribution and contact resistance data after crimping completion.The feasibility and accuracy of the proposed simulation analysis method are verified by comparing the finite element simulation results with the shape, size and contact resistance of the cross-section of wire terminals obtained from experiments.

Key words: wire terminals, crimping formation, contact resistance, finite element simulation, contact area

中图分类号:

TM743

孙立志, 张超, 任万滨. 线束端子压接成形过程与接触电阻的仿真分析[J]. 电器与能效管理技术, 2026, 0(3): 10-16.

SUN Lizhi, ZHANG Chao, REN Wanbin. Simulation Analysis of Crimping Formation Process and Contact Resistance of Wire Terminals[J]. LOW VOLTAGE APPARATUS, 2026, 0(3): 10-16.

图/表 15

图1

表1

表2

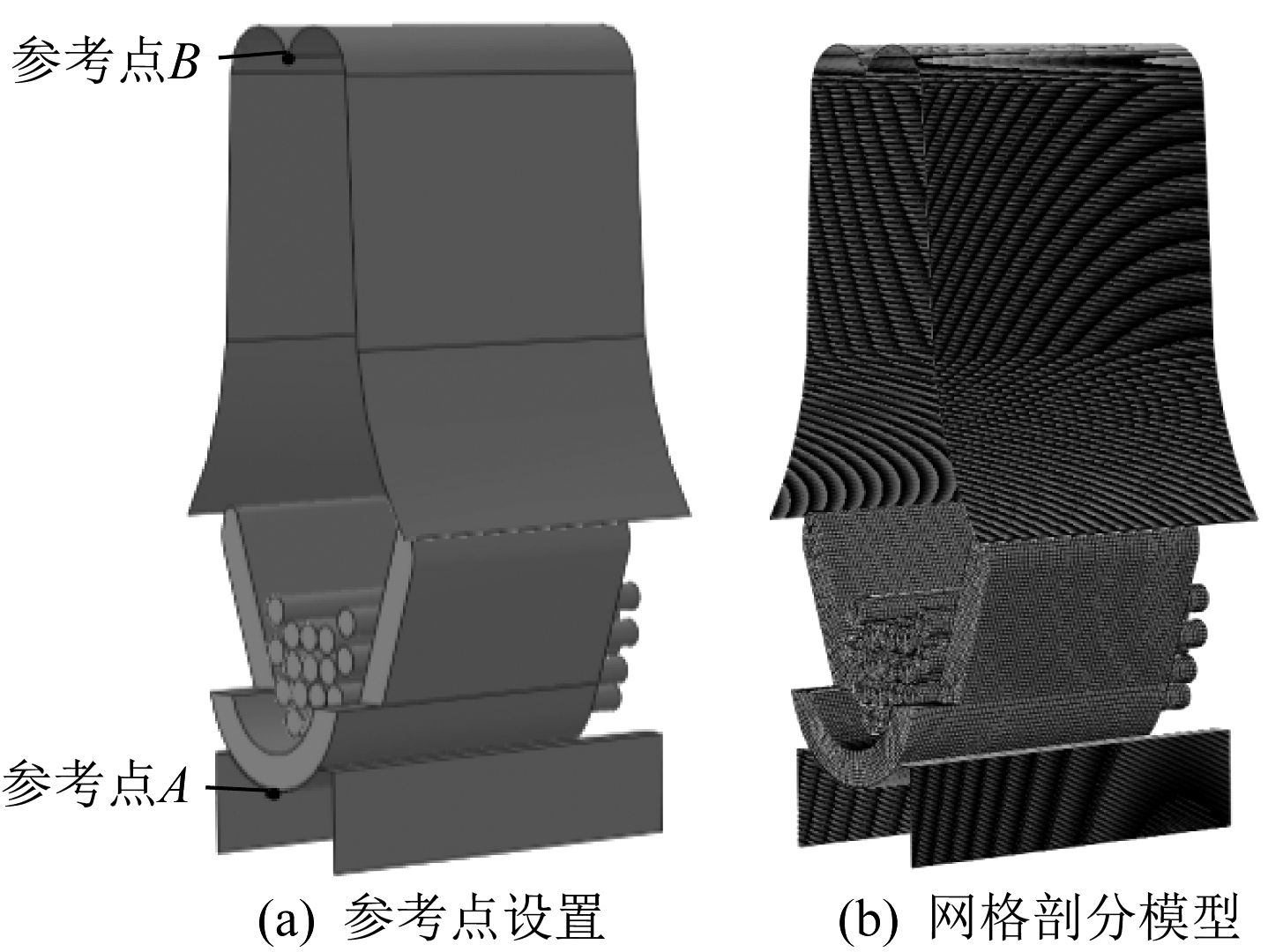

图2

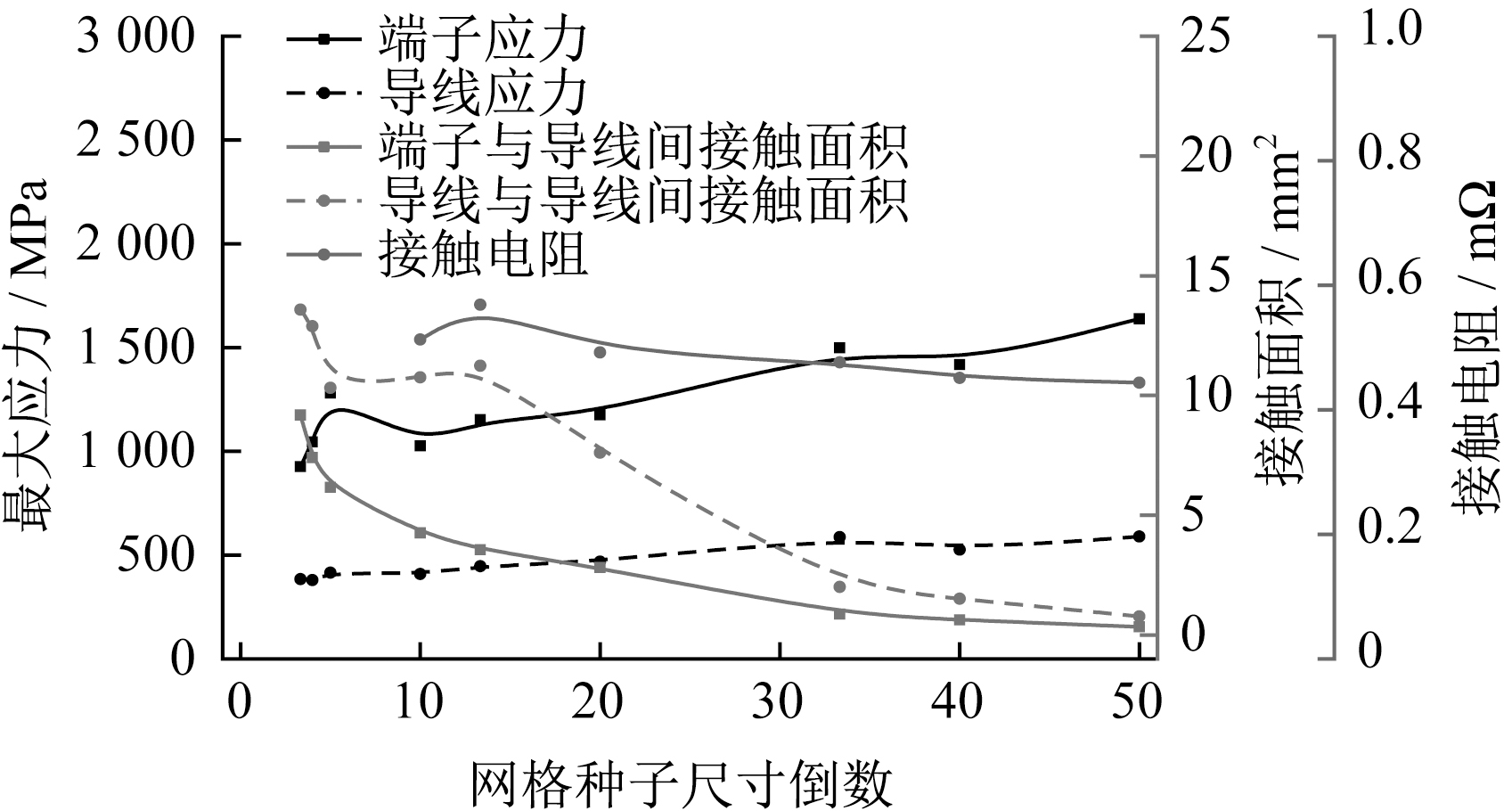

图3

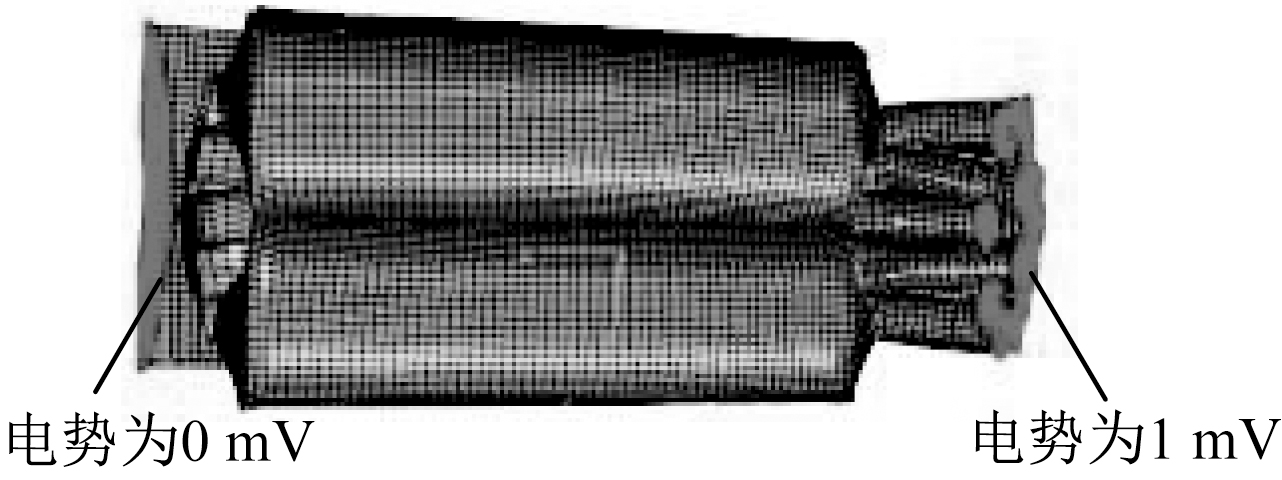

图4

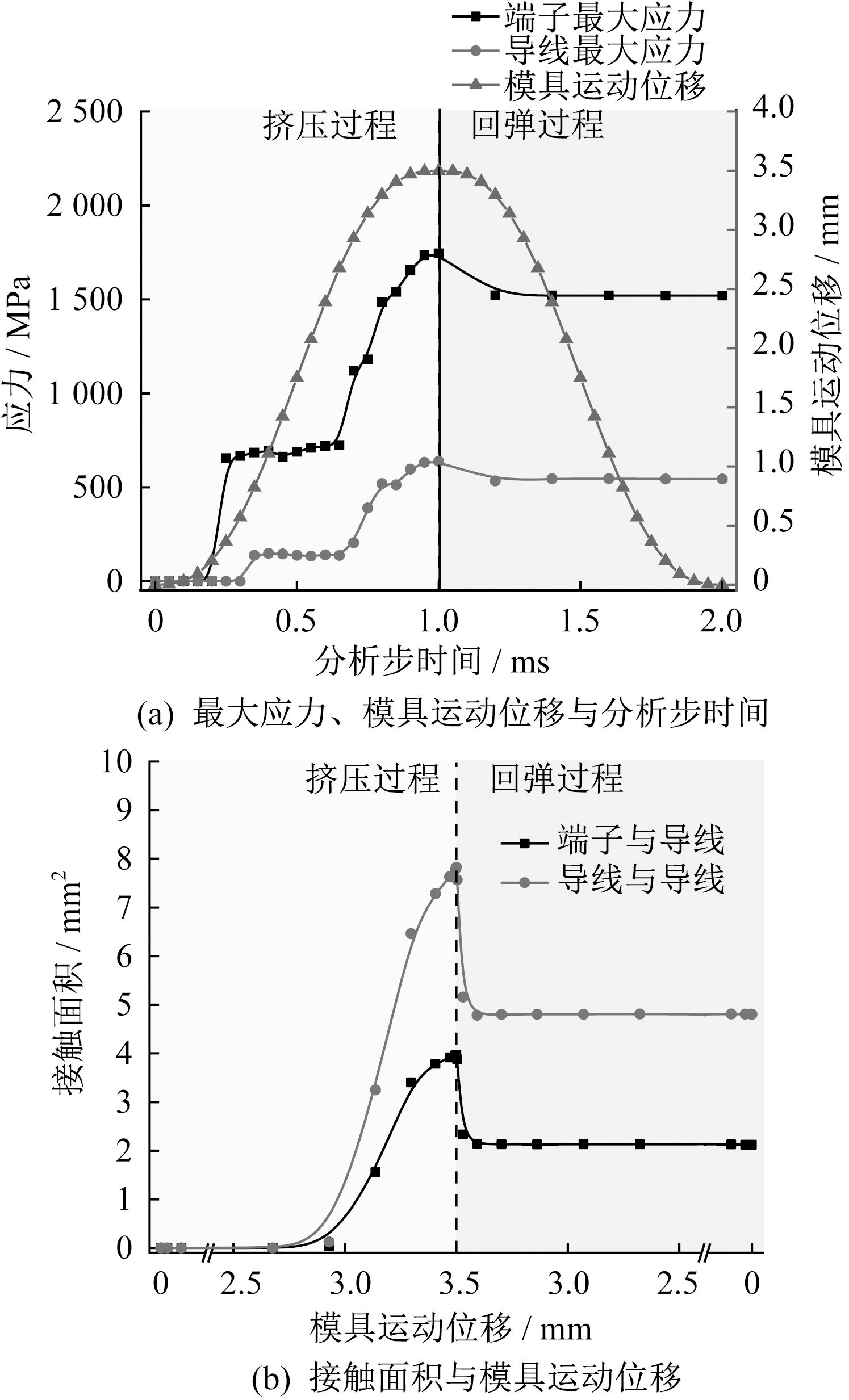

图5

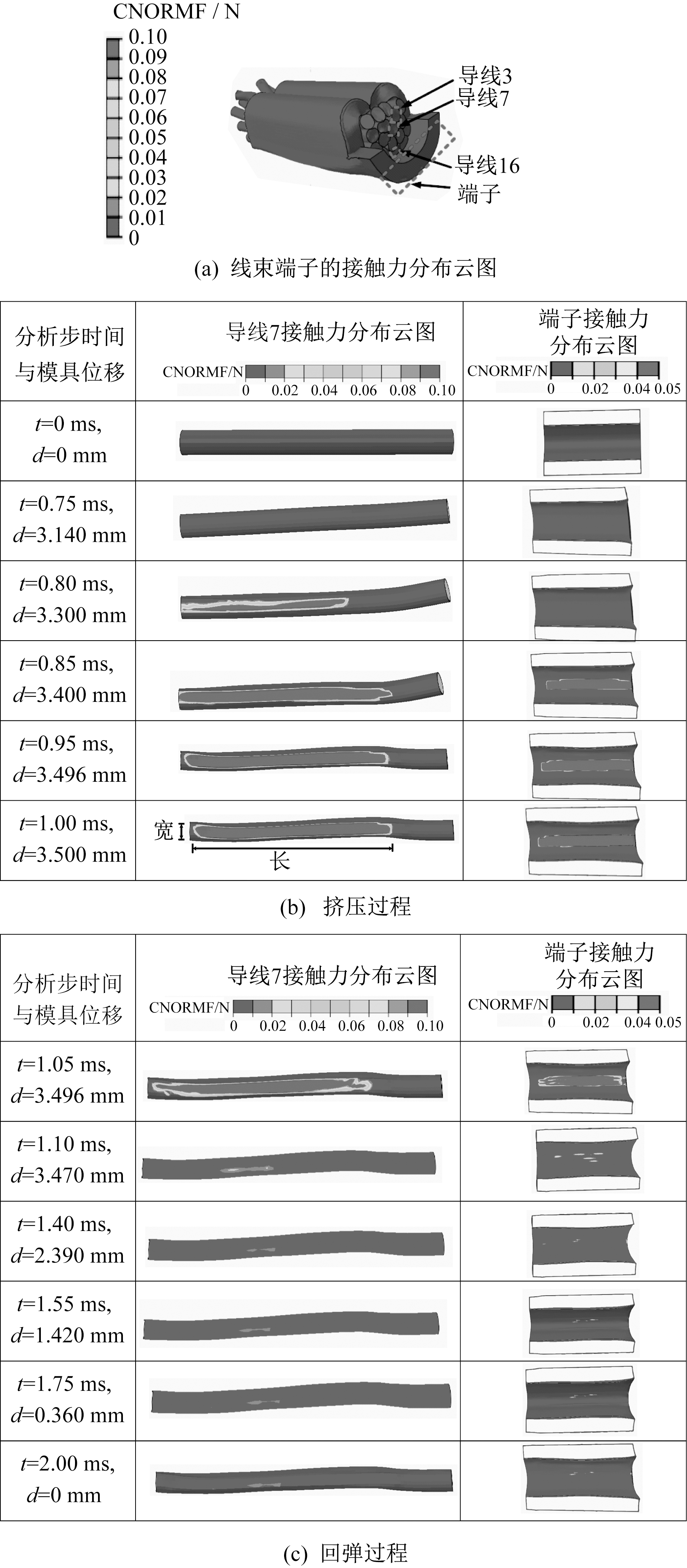

图6

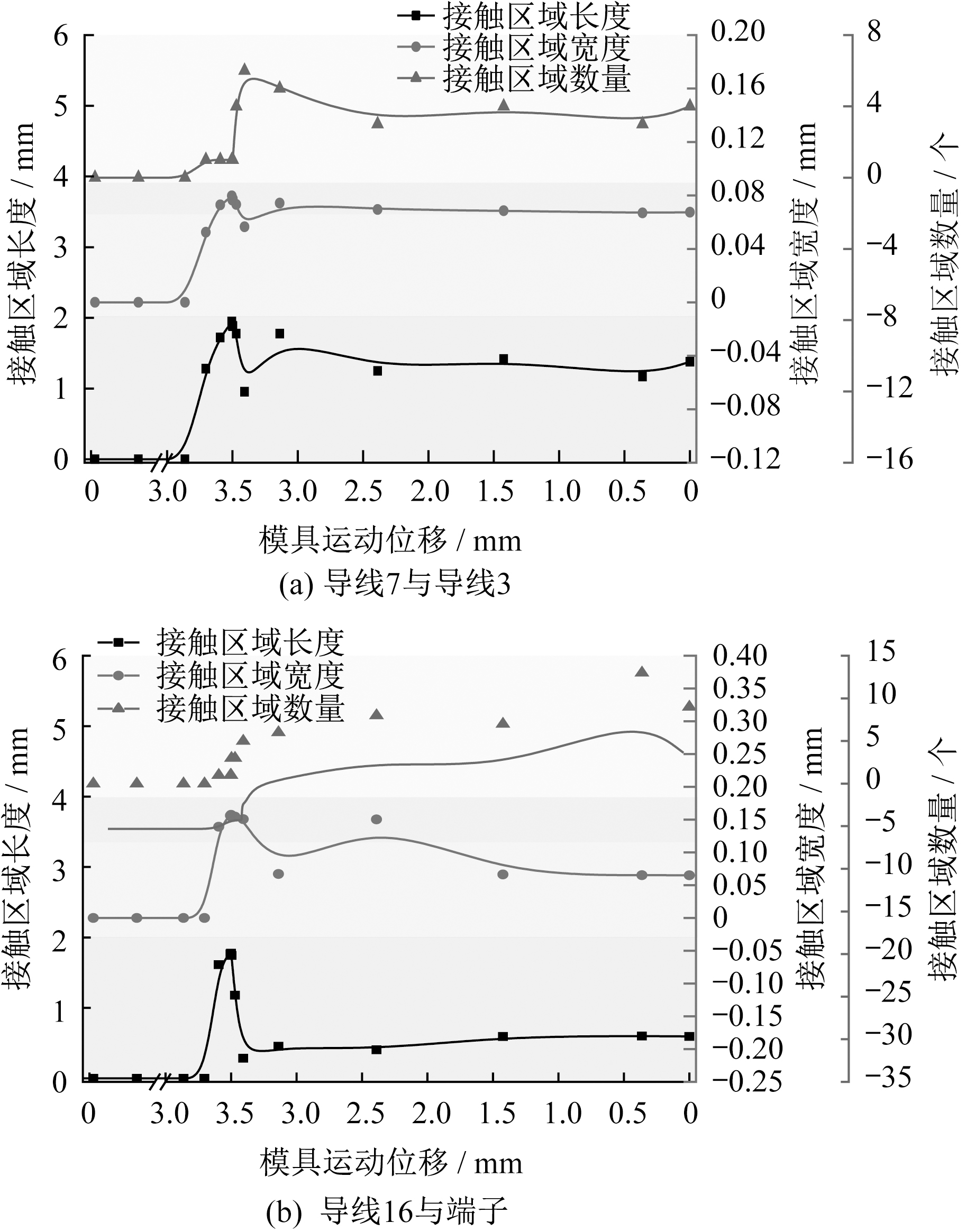

图7

图8

图9

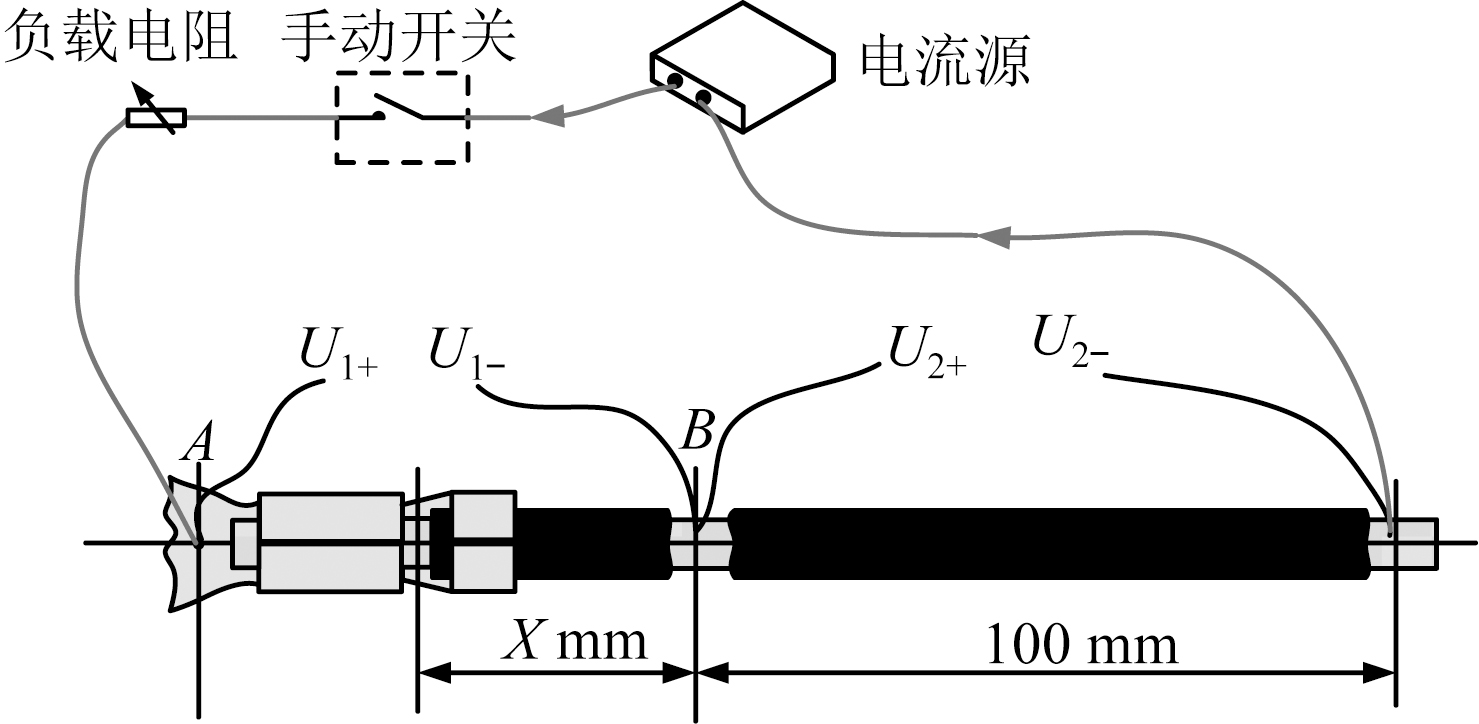

图10

图11

图12

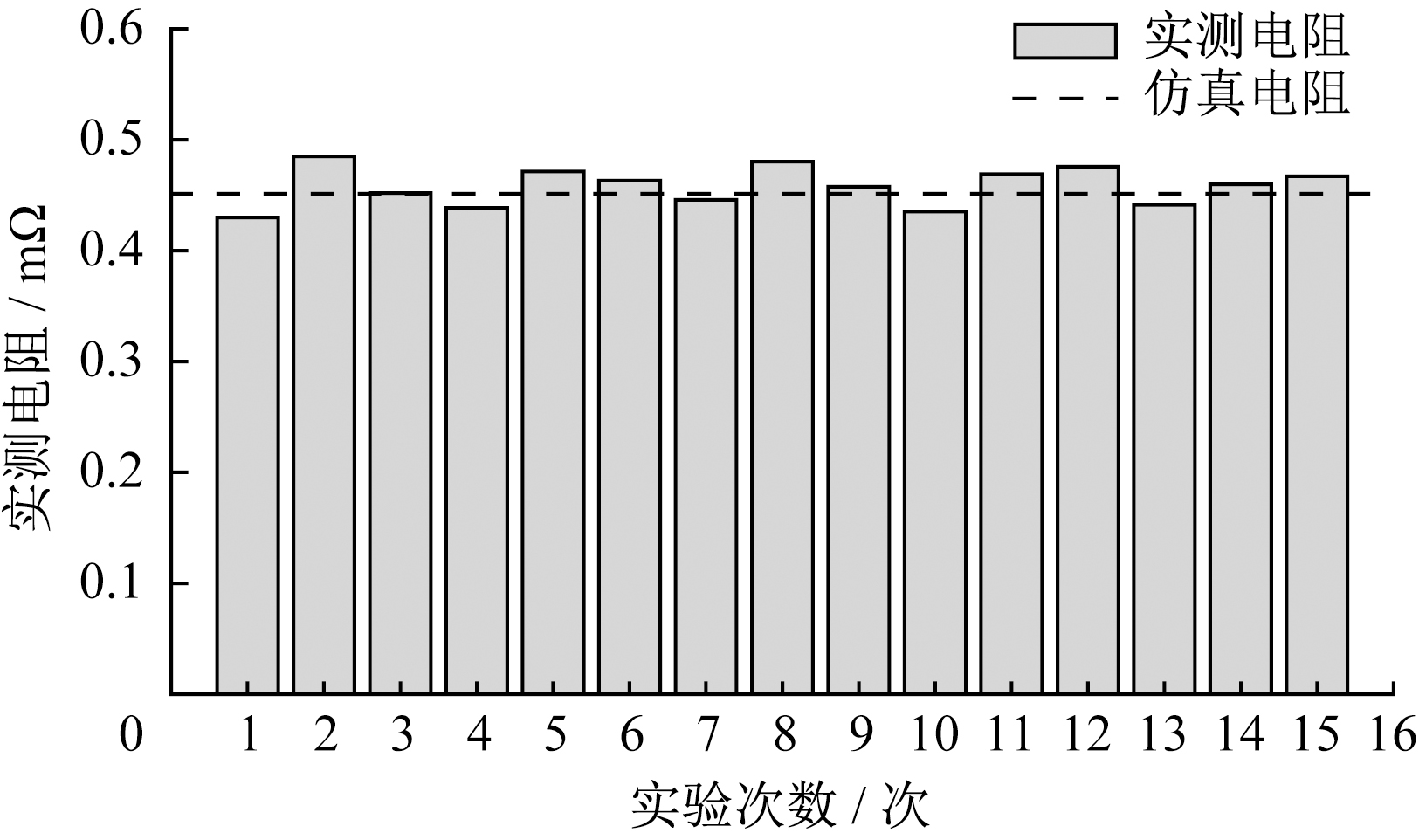

图13

参考文献 21

[1]	陈琴, 沈晓青, 韦南勇, 等. 线束插接件及端子的选型和统一化[J]. 汽车电器, 2013(4):7-10.
[2]	苟荣非, 蔡恒, 王强, 等. 汽车线束端子连接可靠性技术研究[J]. 汽车电器, 2018(5):59-62.
[3]	吕志召, 梁国胜, 雷军, 等. 飞机用电线电缆接线端子连接可靠性研究[J]. 电子产品可靠性与环境试验, 2022, 40(增刊1):21-25.
[4]	马伟泽, 任剑晓. 基于标准符合性的航空模压式端子压接多导线性能实践研究[J]. 中国标准化, 2024(9):227-231.
[5]	陈银达. 低压电器接线端子的机械性能试验[J]. 低压电器, 1987(3):25-27.
[6]	苏金州, 陈金汕. 接线端子弯曲及拉出试验装置的设计及不确定度评定[J]. 电器与能效管理技术, 2018(13):64-69.
[7]	ABBAS M, BATOZ J, COURTIN T, et al. Advanced numerical simulation of the crimping process of electric connectors[C]//Recent Advances in Integrated Design and Manufacturing in Mechanical Engineering.Lyon,France, 2003:241-250.
[8]	MORITA T. Numerical model of crimping by finite element method[C]//In Proceedings of the 42nd IEEE Holm Conference on Electrical Contacts.Chicago,IL,USA, 1996:151-155.
[9]	RIST T, SCHMITT W. Numerical simulation of the crimping process[C]//138th TMS Annual Meeting and Exhibition.San Francisco,CA,USA, 2009:517-522.
[10]	VILLENEUVE G, KULKARNI D, BASTNAGEL P, et al. Dynamic finite element analysis simulation of the terminal crimping process[C]//Proceedings of the Forty Second IEEE Holm Conference on Electrical Contacts.Chicago,IL,USA, 1996:156-171.
[11]	YIN Z, PARK J G, CHOI H S, et al. Quality improvement for crimping process of electrical connector using FEM analysis[J]. Transactions of Materials Processing, 2009, 18(3):229-235. doi: 10.5228/KSPP.2009.18.3.229
[12]	GU S, CHOI H S, KIM Y S. Effects of design variables on compression rate of wire in connector crimping process of wire harness using FEM[J]. Transactions of Materials Processing, 2010, 19(5):305-310. doi: 10.5228/KSPP.2010.19.5.305
[13]	ZHMURKIN D V. 3-D simulation of open-barrel crimping process:Study of the effect of serrations[C]//2009 Proceedings of the 55th IEEE Holm Conference on Electrical Contacts.Vancouver,Canada, 2009:114-120.
[14]	ZHMURKIN D V, CORMAN N E, COPPER C D, et al. 3-Dimensional numerical simulation of open-barrel crimping process[C]//Proceedings of the 54th IEEE Holm Conference on Electrical Contacts.Orlando,FL,USA, 2008:178-184.
[15]	KIVANC O C, OZGONENEL O, BOSTAN O, et al. A novel crimping technique approach for high power white good plugs[J]. Turkish Journal of Electrical Engineering and Computer Sciences, 2022, 30(4):1525-1538. doi: 10.55730/1300-0632.3863
[16]	RAJAK A K, KORE S D. Application of electromagnetic forming in terminal crimping using different types of field shapers[J]. Journal of Mechanical Science and Technology, 2018, 32(9):4291-4297. doi: 10.1007/s12206-018-0827-z
[17]	KIM M, SHIM J. Selection of magnetic pulse crimping process conditions to improve crimped terminal quality[J]. Metals, 2023, 13(11):1903. doi: 10.3390/met13111903
[18]	RAJAK A K, KORE S D. Numerical simulation and experimental study on electromagnetic crimping of aluminium terminal to copper wire strands[J]. Electrical Power Systems Research, 2018, 163:744-753. doi: 10.1016/j.epsr.2017.08.014
[19]	LI F, JIANG J, CHENG H, et al. Optimization of the field shaper parameters in electromagnetic pulse crimping of cable[J]. International Journal of Precision Engineering and Manufacturing, 2021, 22(10):1693-1706. doi: 10.1007/s12541-021-00577-z
[20]	DUARTE E N, SIMOES F D. Hybrid analysis of the crimping process of electrical terminals[J]. Revista Internacional de Metodos Numericos para Calculo y Diseno en Ingenieria, 2020, 36(3):44.
[21]	International Electrotechnical Commission. Solderlessconnections-Part2:Crimpedconnections-Generalrequirements,testmethodsandpracticalguidance:IEC60352-2-2013[S]. Geneva: International Electrotechnical Commission, 2013.

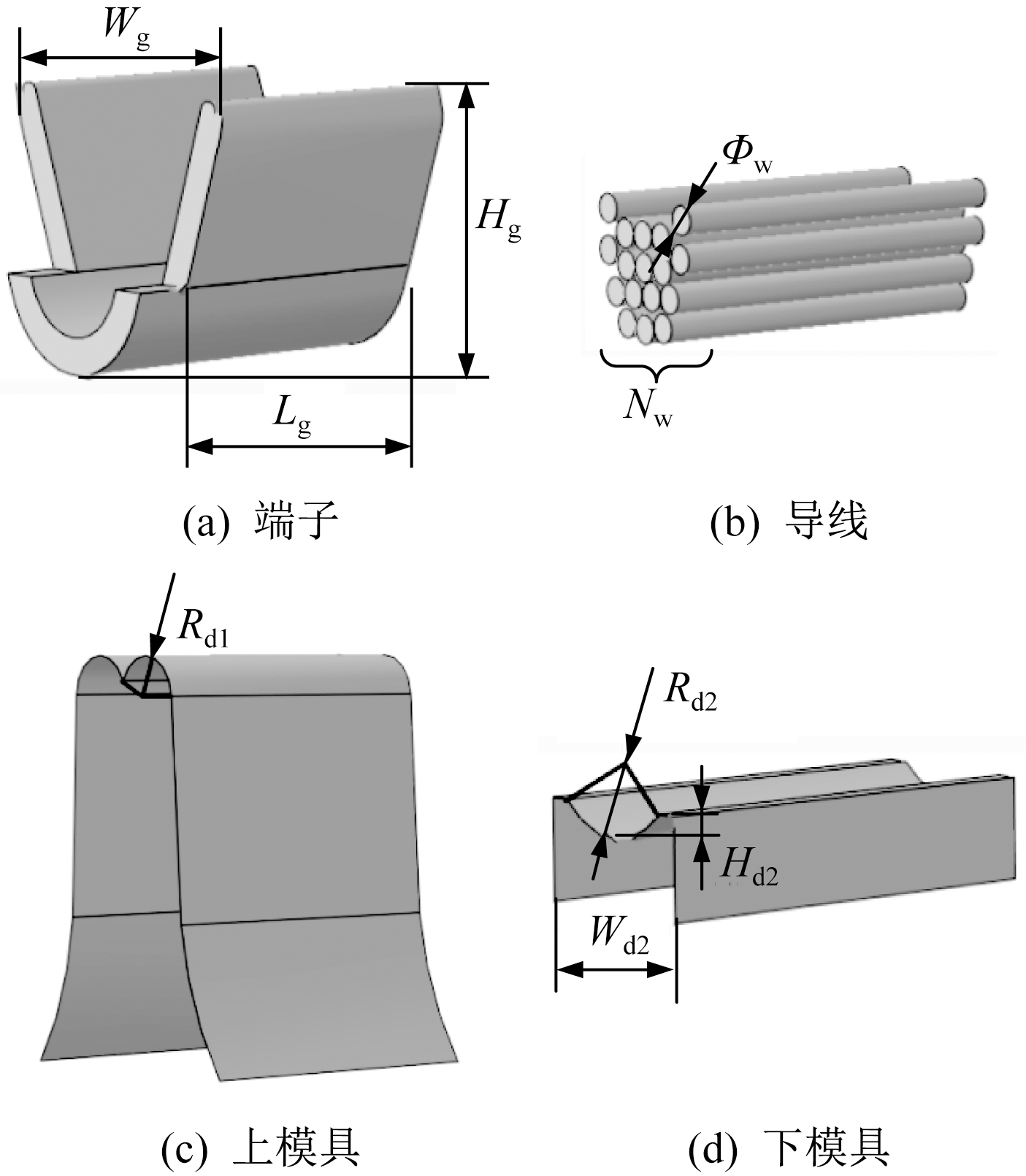

零件名称	参数	数值
端子	长度L_g/mm	1.5
	宽度W_g/mm	1.8
	高度H_g/mm	1.5
导线	直径Φ_w/mm	0.16
导线	数量N_w/个	17
上模具	圆弧半径R_d1/mm	0.28
下模具	宽度W_d2/mm	1.1
	圆弧半径R_d2/mm	0.60
	深度H_d2/mm	0.17

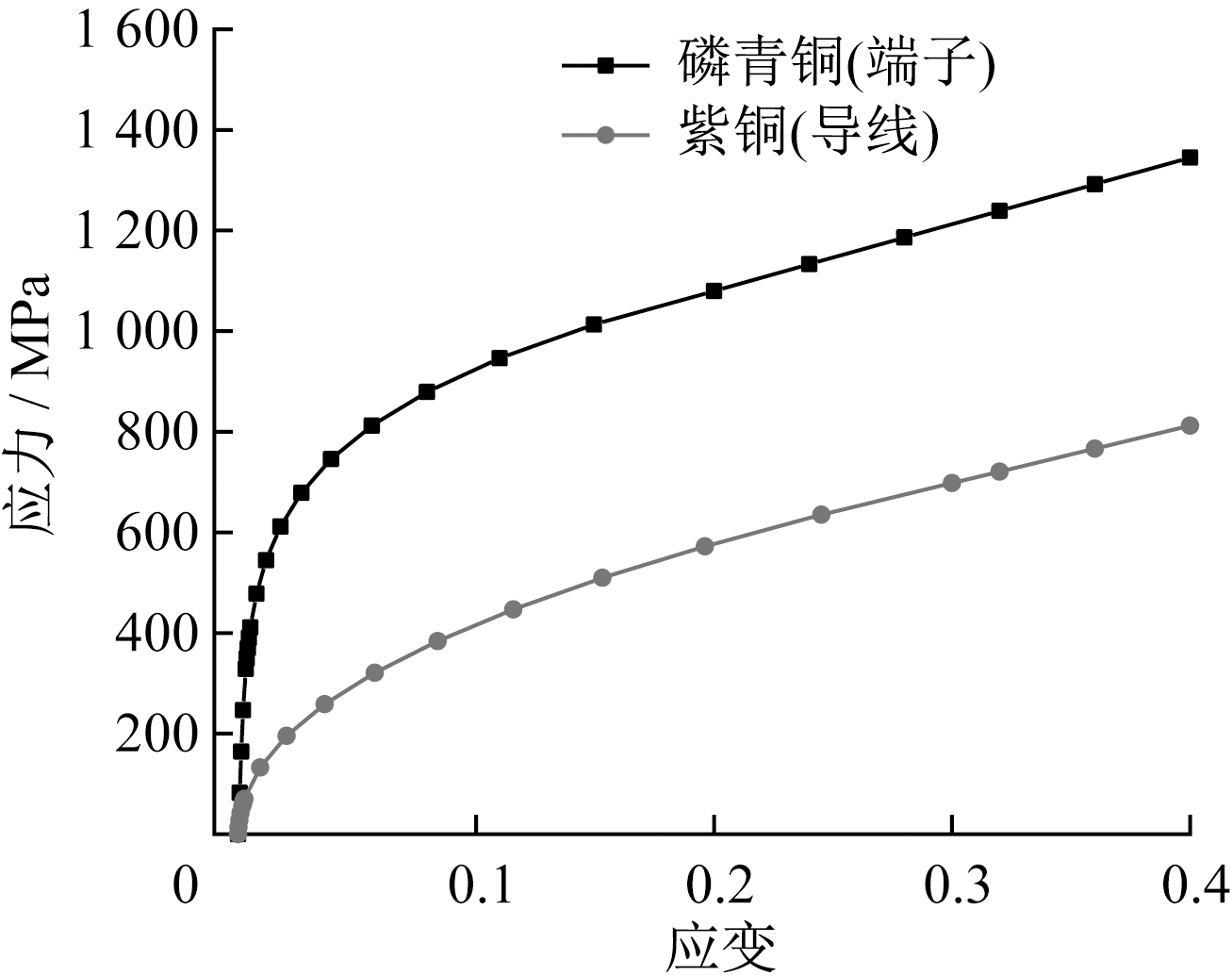

材料
磷青铜(端子)	密度ρ_g/(kg·m^-3)	8 800
	弹性模量E_g/GPa	130
	泊松比ν_g	0.30
紫铜(导线)	密度ρ_w/(kg·m^-3)	8 960
	弹性模量E_w/GPa	110
	泊松比ν_w	0.35
