永磁体磁场作用下高压直流继电器电弧重燃的影响因素研究

doi:10.16628/j.cnki.2095-8188.2024.08.005

摘要/Abstract

摘要：

电弧重燃是延长高压直流继电器开断时间的重要原因。为了研究灭弧室内电弧重燃特性,利用Comso1 Multiphysics软件仿真获得永磁体磁场,作为电弧仿真的基础条件,仿真分析磁场强度、开断速度、触头形状和气氛压力作用下电弧动态特性及电弧重燃的原因;设计4因素3水平正交试验,并结合仿真研究各因素对电弧重燃的影响程度。结果表明,电弧间隙的散热条件和电弧电压反施加于弧隙的电场强度是电弧重燃的重要原因;散热条件越差或电弧电压反施加的电场强度越高,越容易发生电弧重燃;4个因素对电弧重燃的影响程度依次为开断速度、气氛压力、触头形状和磁场强度。

关键词: 高压直流继电器, 电弧重燃, 永磁体, 正交试验

Abstract:

Arc reignition is an important reason for prolonging the disconnection time of highvoltage DC relays.In order to study the reignition characteristics inside the arc extinguishing chamber,the permanent magnet magnetic field was simulated by Comsol Multiphysics and the result was used as the basic condition for arc simulation.The dynamic characteristics of the arc and the reasons for arc reignition under the influence of magnetic field strength,breaking speed,contact shape,and atmospheric pressure were simulated and analyzed.A four factor three-level orthogonal experiment was designed,and the degree of influence of each factor on arc reignition was studied through simulation.The results indicate that the heat dissipation conditions in the arc gap and the electric field strength exerted by the arc voltage on the arc gap are important reasons for arc reignition.The worse the heat dissipation conditions or the higher the electric field strength exerted by the reverse arc voltage,the easier it is for arc reignition to occur.The degree of influence of four factors on arc reignition is in the order of breaking speed,gas pressure,contact shape,and magnetic field strength.

Key words: high voltage DC relay, arc reignition, permanent magnet, orthogonal test

中图分类号:

TM572.1

林臻, 张鹏, 刘向军. 永磁体磁场作用下高压直流继电器电弧重燃的影响因素研究[J]. 电器与能效管理技术, 2024, 0(8): 34-44.

LIN Zhen, ZHANG Peng, LIU Xiangjun. Study on Arc Reignition Influencing Factors of HVDC Relay Under Permanent Magnet Field[J]. LOW VOLTAGE APPARATUS, 2024, 0(8): 34-44.

图/表 23

图1

图2

图3

图4

图5

图6

表1

图7

表2

表3

图8

图9

图10

表4

图11

图12

图13

表5

图14

图15

表6

表7

表8

参考文献 24

[1]	李思泓. 高压直流接触器电弧分断关键技术研究[J]. 电器与能效管理技术, 2022(6):15-19.
[2]	陈德桂. 直流开断技术的进展与新型直流断路器[J]. 电器与能效管理技术, 2014(21):1-5.
[3]	许志红. 电器理论基础[M]. 北京: 机械工业出版社, 2014.
[4]	黄浩, 李静, 彭世东. 直流空气断路器高海拔环境下电弧重燃现象及其抑制措施[J]. 电器与能效管理技术, 2024(1):6-12.
[5]	ABBAOUI M, LEFORT A, CARVOU E, et al. Formation of a 40 A DC current arc during the opening of silver contacts[J]. Plasma Science & Technology, 2014, 16(5):471-478.
[6]	DONG K L, WU G N, QIAN P Y, et al. Research on dynamic characteristics of arc under electrode relative motion[J]. Plasma Science & Technology, 2023, 25(4):145-154.
[7]	杨茜, 荣命哲, 吴翊, 等. 低压断路器中空气电弧重击穿现象的仿真与实验研究[J]. 中国电机工程学报, 2007(6):84-88.
[8]	翟国富, 薄凯, 李庆楠, 等. 直流电弧运动过程中重击穿现象及机理研究[J]. 电工技术学报, 2016, 31(11):105-113.
[9]	韩颖, 孟令新, 侯春光, 等. 多物理因素影响下氢气介质直流电弧重击穿现象仿真与试验研究[J]. 电器与能效管理技术, 2018(22):28-34.
[10]	ONO H, SEKIKAWA J. Arc length of break arcs magnetically blown-out at arc extinction in a DC450 V/10 A resistive circuit[J]. IEICE Transactions on Electronics, 2013, E96-C(9):1132-1137.
[11]	李静, 刘凯, 曹云东, 等. 直流接触器分断过程中弧根演变及对重燃的影响分析[J]. 中国电机工程学报, 2019, 39(4):1241-1251.
[12]	苏伟龙, 许志红. 高压直流继电器磁吹系统的建模与设计[J]. 电工技术学报, 2022, 37(6):1583-1594.
[13]	HUANG K Y, SUN H, NNIU C P, et al. Simulation of arcs for DC relay considering different impacts[J]. Plasma Science & Technology, 2020, 22(2):024003.
[14]	ZHAI G F, BO K, CHEN M, et al. Investigation on plasma jet flow phenomena during DC air arc motion in bridge-type contacts[J]. Plasma Science & Technology, 2016, 18(5):485-489.
[15]	BO K, ZHOU X, ZHAI G F. Investigation on arc dwell and restriking characteristics in DC high-power relay[J]. IEEE Transactions on Plasma Science, 2017, 45(6):1032-1042.
[16]	FIEVET C, BARRAULT M, CHEVRIER P, et al. Experimental and numerical studies of arc restrikes in low-voltage circuit breakers[J]. IEEE Transactions on Plasma Science, 1997, 25(5):954-960.
[17]	李敏, 陈平. 新型大功率直流继电器建模与仿真分析[J]. 电器与能效管理技术, 2023(8):10-16.
[18]	陆旭锋. 磁场氢气灭弧介质下直流电弧特性研究[J]. 电工技术, 2022(2):66-69.
[19]	XIN C, WU J W, LIU B, et al. Plasma characteristics of DC hydrogen-nitrogen mixed gas arc under high pressure[J]. IEEE Transactions on Plasma Science, 2014, 42(10):2722-2723.
[20]	郭红斌, 张涛, 汤建方, 等. 不同灭弧介质下直流燃弧特性实验研究[J]. 电器与能效管理技术, 2023(4):15-20
[21]	GALLI G, HAMRITA H, JAMMES C, et al. Paschen’s law in extreme pressure and temperature conditions[J]. IEEE Transactions on Plasma Science, 2019, 47(3):1641-1647.
[22]	SHAO K, SUN S R, MENG X, et al. Experimental study of the effect of argon on the restrike characteristics of nitrogen arc[J]. Plasma Sources Science and Technology, 2022, 31(9):095008.
[23]	LIU X J, HUANG X, CAO Q C. Simulation and experimental analysis of DC arc characteristics in different gas conditions[J]. IEEE Transactions on Plasma Science, 2021, 49(3):1062-1071.
[24]	YOSHIDA K, SAWA K, SUZUKI K, et al. Influence of sealed gas and its pressure on arc discharge in electromagnetic contactor[C]// Electrical Contacts-IEEE Holm Conference on Electrical Contacts, 2017:236-241.

h/mm	重燃次数/次	重燃时刻/ms	电弧能量/J	电弧持续时间/ms	最大残留温度/K	电弧到达边缘时刻/ms
10	0	—	1.051	1.08	5 805.9	0.26
9	1	0.71	1.613	1.29	6 043.9	0.24
8	1	0.59	1.383	1.15	6 183.8	0.21
7	1	0.51	1.219	1.05	6 188.6	0.19
6	1	0.45	1.138	1.05	6 199.8	0.17

开断速度/ (mm·s^-1)	重燃次数/次	电弧持续时间/ms	电弧能量/J	最大残留温度/K
700	0	0.96	0.832	5 138.6
600	0	1.01	0.884	5 358.6
500	1	1.15	1.383	6 183.8
400	1	1.29	1.449	6 238.9
300	2	1.58	2.109	6 407.4

气氛压力/ MPa	重燃次数/次	电弧持续时间/ms	电弧能量/J	最大残留温度/K
0.01	0	2.17	4.174	4 193.9
0.05	2	1.48	2.064	5 822.6
0.10	1	1.15	1.383	6 183.8
0.15	0	1.06	0.975	5 228.1
0.20	0	1.06	1.008	4 624.4

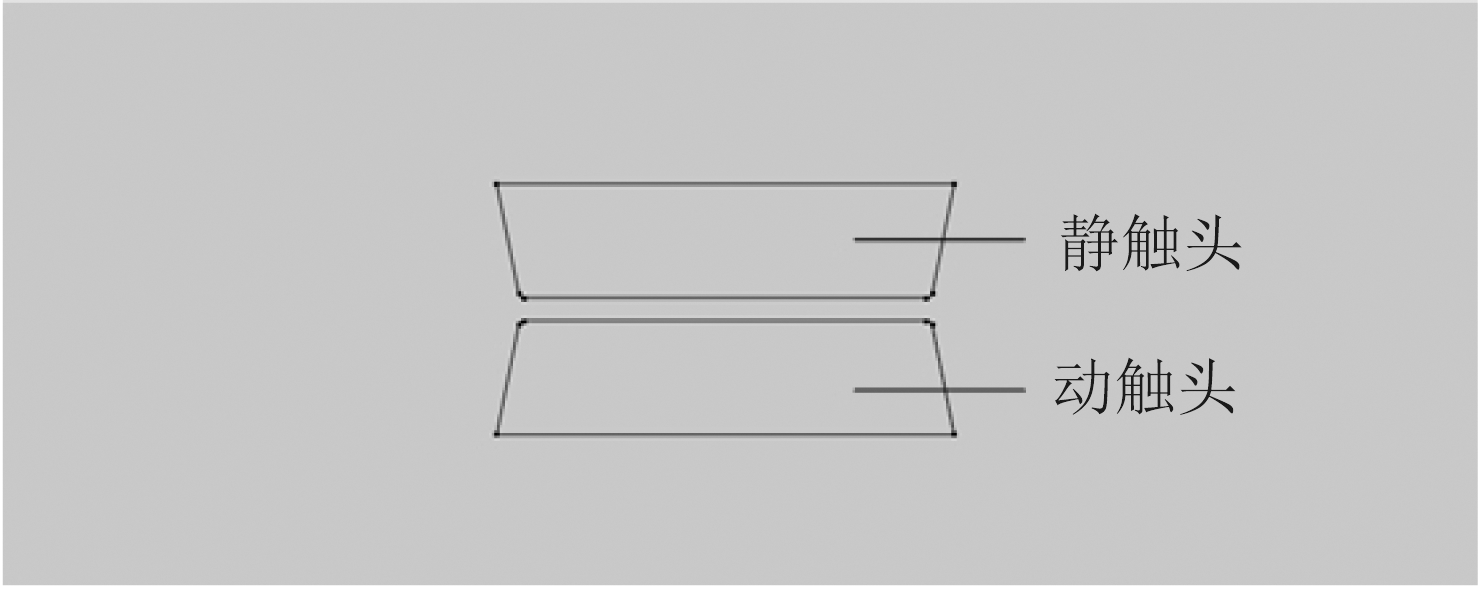

边缘曲率半径/mm	重燃次数/次	电弧持续时间/ms	电弧能量/J	最大残留温度/K
≈0	1	1.15	1.383	6 183.8
0.5	1	1.07	1.393	5 988.3
1.0	0	0.97	1.022	5 336.8
1.5	0	0.97	1.078	5 179.1
2.0	0	0.95	1.062	5 001.7

永磁体与触头中心距离/mm	重燃概率/%
h₀	70
h₀+2	40
h₀+4	30
