基于突变理论的锂离子储能系统热失控演化机制与主动防护策略综述

doi:10.16628/j.cnki.2095-8188.2026.04.007

摘要/Abstract

摘要：

锂离子储能系统是构建新型电力系统的关键核心,但热失控与电气故障等安全风险严重制约了其规模化应用。以构建全方位的储能安全技术体系为宗旨,系统综述了风险演化机制、多维监测诊断及高效防护策略三大关键领域。梳理了从材料改性到智能算法的技术进展,深入剖析了当前技术在复杂工况适应性与成本控制方面面临的挑战。展望未来,基于多场耦合仿真与AI智能预警的全生命周期管理将成为主流方向。研究认为,构建“风险预判—精准监测—高效防护”的闭环智能化体系,是实现储能产业安全可持续发展的必由之路。

关键词: 锂离子储能系统, 储能安全, 热失控, 安全预警, 智能运维

Abstract:

Lithium-ion energy storage systems are the core key to the construction of new power systems, while safety risks including thermal runaway and electrical faults seriously restrict their large-scale application. Aiming at building a comprehensive energy storage safety technical system, three key fields, including risk evolution mechanism, multi-dimensional monitoring and diagnosis, and high-efficiency protection strategy, are systematically reviewed. The technical progress from material modification to intelligent algorithm is summarized, and the existing challenges of current technologies in complex working condition adaptability and cost control are deeply analyzed.In the future, the full life-cycle management based on multi-field coupling simulation and artificial intelligence intelligent early warning will become the mainstream development direction. The research indicates that constructing a closed-loop intelligent system of“risk prediction, accurate monitoring and efficient protection”is an inevitable way to realize the safe and sustainable development of energy storage industry.

Key words: lithium-ion energy storage system, energy storage safety, thermal runaway, safety early warning, intelligent operation and maintenance

中图分类号:

TM911

张宏权, 刘明远, 陈星豪, 孙彪, 谢宇轩. 基于突变理论的锂离子储能系统热失控演化机制与主动防护策略综述[J]. 电器与能效管理技术, 2026, 0(4): 57-68.

ZHANG Hongquan, LIU Mingyuan, CHEN Xinghao, SUN Biao, XIE Yuxuan. Review of Thermal Runaway Evolution Mechanism and Active Protection Strategy for Lithium-Ion Energy Storage Systems Based on Catastrophe Theory[J]. LOW VOLTAGE APPARATUS, 2026, 0(4): 57-68.

图/表 12

图1

图2

图3

表1

图4

图5

表2

图6

图7

表3

图8

图9

参考文献 51

[1]	WANG S, JI Y, YANG J, et al. Built-in electric fields in electrochemical energy storage:Mechanisms,construction strategies,and future prospects[J]. Coordination Chemistry Reviews, 2026, 549:217340. doi: 10.1016/j.ccr.2025.217340
[2]	李建林, 王哲, 许德智, 等. 基于数据驱动法的锂离子电池寿命预测关键技术综述[J]. 电器与能效管理技术, 2021(9):10-18.
[3]	许江波, 李俊, 毛海波, 等. 构网型储能在西藏电网中的应用分析[J]. 电器与能效管理技术, 2025(10):8-15.
[4]	王冰, 王楠, 李娜, 等. 面向大规模新能源并网的电化学储能产业政策研究[J]. 电器与能效管理技术, 2021(4):1-5.
[5]	MAHEK M K, RAMADAN M, CHOI D S, et al. Lithium titanate batteries for sustainable energy storage:A comprehensive review of safety,performance,and environmental impact[J]. Journal of Energy Storage, 2025, 132:117573. doi: 10.1016/j.est.2025.117573
[6]	邓啟熙. 新型储能标准化现状分析及发展建议[J]. 电器与能效管理技术, 2025(10):1-7.
[7]	REN D, FENG X, HAN X, et al. Thermal runaway of lithium-ion batteries:Mechanism,modeling and aging effects[J]. ECS Meeting Abstracts, 2019,MA2019-1 1(6):593.
[8]	曾星, 魏斌, 赖铱麟, 等. 锂电池储能电站安全综合评价方法综述[J]. 电源技术, 2025, 49(3):486-496. doi: 10.3969/j.issn.1002-087X.2025.03.003
[9]	张宇鑫, 武建华, 郑林锋, 等. 基于数字孪生的锂离子电池管理系统设计分析[J]. 电气工程学报, 2022, 17(4):103-112.
[10]	安坤, 田政, 赵锦, 等. 浅析电化学储能电站建设中存在的安全隐患及解决措施[J]. 电器与能效管理技术, 2020(10):107-113.
[11]	NYAMATHULLA S, DHANAMJAYULU C. A review of battery energy storage systems and advanced battery management system for different applications:Challenges and recommendations[J]. Journal of Energy Storage, 2024, 86:111179. doi: 10.1016/j.est.2024.111179
[12]	SCHMUCH R, WAGNER R, HÖRPEL G, et al. Performance and cost of materials for lithium-based rechargeable automotive batteries[J]. Nature Energy, 2018, 3(4):267-278. doi: 10.1038/s41560-018-0107-2
[13]	LU L, HAN X, LI J, et al. A review on the key issues for lithium-ion battery management in electric vehicles[J]. Journal of Power Sources, 2013, 226:272-288. doi: 10.1016/j.jpowsour.2012.10.060
[14]	LIU J, WANG Z, BAI J. Influences of multi factors on thermal runaway induced by overcharging of lithium-ion battery[J]. Journal of Energy Chemistry, 2022, 70:531-541. doi: 10.1016/j.jechem.2022.03.011
[15]	孔德钰, 赵子越, 郇庆娜. 全固态金属锂电池安全性研究进展[J]. 电源技术, 2025, 49(12):2471-2484. doi: 10.3969/j.issn.1002-087X.2025.12.002
[16]	BECHERER J, KRAMER D, MÖNIG R. The growth mechanism of lithium dendrites and its coupling to mechanical stress[J]. Journal of Materials Chemistry A, 2022, 10(10):5530-5539. doi: 10.1039/D1TA10920K
[17]	XU X, CHENG X, JIANG F, et al. Dendrite-accelerated thermal runaway mechanisms of lithium metal pouch batteries[J]. SusMat, 2022, 2(4):435-444. doi: 10.1002/sus2.v2.4
[18]	FENG X, OUYANG M, LIU X, et al. Thermal runaway mechanism of lithium ion battery for electric vehicles:A review[J]. Energy Storage Materials, 2018, 10:246-267. doi: 10.1016/j.ensm.2017.05.013
[19]	权朝明, 孟祥飞, 李世斌, 等. 锂离子电池储能系统安全防控技术研究进展[J]. 电源技术, 2025, 49(1):26-35. doi: 10.3969/j.issn.1002-087X.2025.01.003
[20]	PENG R, KONG D, PING P, et al. Thermal runaway modeling of lithium-ion batteries at different scales:Recent advances and perspectives[J]. Energy Storage Materials, 2024, 69:103417. doi: 10.1016/j.ensm.2024.103417
[21]	TRAN M K, MEVAWALLA A, AZIZ A, et al. A review of lithium-ion battery thermal runaway modeling and diagnosis approaches[J]. Processes, 2022, 10(6):1192. doi: 10.3390/pr10061192
[22]	MENG H, HU M, KONG Z, et al. Risk analysis of lithium-ion battery accidents based on physics-informed data-driven Bayesian networks[J]. Reliability Engineering & System Safety, 2024, 251:110294. doi: 10.1016/j.ress.2024.110294
[23]	DAI Y, PANAHI A. Thermal runaway process in lithium-ion batteries:A review[J]. Next Energy, 2025, 6:100186. doi: 10.1016/j.nxener.2024.100186
[24]	LIU K, ZHAO S, WANG Y, et al. Advanced fault diagnosis in batteries:Insights into fault mechanisms,sensor fusion,and artificial intelligence[J]. Advances in Applied Energy, 2025, 20:100247. doi: 10.1016/j.adapen.2025.100247
[25]	ZINTH V, VON LÜDERS C, HOFMANN M, et al. Lithium plating in lithium-ion batteries at sub-ambient temperatures investigated by in situ neutron diffraction[J]. Journal of Power Sources, 2014, 271:152-159. doi: 10.1016/j.jpowsour.2014.07.168
[26]	李易涵, 罗露芳, 徐秋莹, 等. 钠电池层状过渡金属氧化物正极材料[J]. 化学通报, 2024, 87(11):1261-1272.
[27]	潘文涛, 余新玲, 杨续来, 等. 钠离子电池的机遇与挑战[J]. 材料工程, 2025, 53(7):1-14. doi: 10.11868/j.issn.1001-4381.2023.000637
[28]	MANTHIRAM A. A reflection on lithium-ion battery cathode chemistry[J]. Nature Communications, 2020, 11(1):1550. doi: 10.1038/s41467-020-15355-0 pmid: 32214093
[29]	李琪, 董小瑞, 李晓杰. 基于sei膜增厚的锂电池老化-电化学-热模型与验证[J]. 中北大学学报(自然科学版), 2025, 46(3):306-315.
[30]	VETTER J, NOVÁK P, WAGNER M R, et al. Ageing mechanisms in lithium-ion batteries[J]. Journal of Power Sources, 2005, 147(1):269-281. doi: 10.1016/j.jpowsour.2005.01.006
[31]	LIU H, WEI Z, HE W, et al. Thermal issues about Li-ion batteries and recent progress in battery thermal management systems:A review[J]. Energy Conversion and Management, 2017, 150:304-330. doi: 10.1016/j.enconman.2017.08.016
[32]	FENG X, HE X, OUYANG M, et al. Thermal runaway propagation model for designing a safer battery pack with 25 Ah LiNi_xCo_yMn_zO₂ large format lithium ion battery[J]. Applied Energy, 2015, 154:74-91. doi: 10.1016/j.apenergy.2015.04.118
[33]	LI Y, GUO W, STROE D I, et al. Evolution of aging mechanisms and performance degradation of lithium-ion battery from moderate to severe capacity loss scenarios[J]. Chemical Engineering Journal, 2024, 498:155588. doi: 10.1016/j.cej.2024.155588
[34]	REN D, HSU H, LI R, et al. A comparative investigation of aging effects on thermal runaway behavior of lithium-ion batteries[J]. eTransportation, 2019, 2:100034. doi: 10.1016/j.etran.2019.100034
[35]	李爱东, 刘丹丹, 陈永翀, 等. 不同老化阶段的锂离子电池热特性研究进展[J]. 电源技术, 2024, 48(4):554-567. doi: 10.3969/j.issn.1002-087X.2024.04.002
[36]	HAN X, LU L, ZHENG Y, et al. A review on the key issues of the lithium ion battery degradation among the whole life cycle[J]. eTransportation, 2019, 1:100005. doi: 10.1016/j.etran.2019.100005
[37]	YANG S C, HUA Y, QIAO D, et al. A coupled electrochemical-thermal-mechanical degradation modelling approach for lifetime assessment of lithium-ion batteries[J]. Electrochimica Acta, 2019, 326:134928. doi: 10.1016/j.electacta.2019.134928
[38]	TRAN M K, FOWLER M. A review of lithium-ion battery fault diagnostic algorithms:current progress and future challenges[J]. Algorithms, 2020, 13(3):62. doi: 10.3390/a13030062
[39]	WANG Q, MAO B, STOLIAROV S I, et al. A review of lithium ion battery failure mechanisms and fire prevention strategies[J]. Progress in Energy and Combustion Science, 2019, 73:95-131. doi: 10.1016/j.pecs.2019.03.002
[40]	XU L, WANG S, XI L, et al. A review of thermal management and heat transfer of lithium-ion batteries[J]. Energies, 2024, 17(16):3873. doi: 10.3390/en17163873
[41]	ZHAO J, LI X, SHUM C, et al. A review of physics-based and data-driven models for real-time control of polymer electrolyte membrane fuel cells[J]. Energy and AI, 2021, 6:100114. doi: 10.1016/j.egyai.2021.100114
[42]	WEI Y, WANG X, MI Y, et al. Early warning of thermal runaway in lithium-ion batteries using surface acoustic wave strain sensors[J]. Journal of Electronic Materials, 2025, 54(5):3594-3601. doi: 10.1007/s11664-025-11794-x
[43]	李晋, 王青松, 孔得朋, 等. 锂离子电池储能安全评价研究进展[J]. 储能科学与技术, 2023, 12(7):2282-2301. doi: 10.19799/j.cnki.2095-4239.2023.0252
[44]	夏向阳, 谭欣欣, 单周平, 等. 储能电站锂离子电池本体安全关键技术及新技术应用情况[J]. 中国电力, 2024, 57(11):1-17.
[45]	韩冲, 李继繁, 宋文华. 光纤光栅温度监测系统在锂电池储能站安全预警中的应用研究[J]. 南开大学学报(自然科学版), 2020, 53(5):21-25.
[46]	ZHANG Z, GUI H, GU D, et al. A hierarchical active balancing architecture for lithium-ion batteries[J]. IEEE Transactions on Power Electronics, 2017, 32(4):2757-2768. doi: 10.1109/TPEL.2016.2575844
[47]	孟国栋, 李雨珮, 唐佳, 等. 锂离子电池储能电站的热失控状态检测与安全防控技术研究进展[J]. 高电压技术, 2024, 50(7):3105-3127.
[48]	MA B, ZHANG L, YU H, et al. End-cloud collaboration method enables accurate state of health and remaining useful life online estimation in lithium-ion batteries[J]. Journal of Energy Chemistry, 2023, 82:1-17. doi: 10.1016/j.jechem.2023.02.052
[49]	宋爽, 李福, 唐西胜. 锂离子电池安全状态评估研究进展[J]. 储能科学与技术, 2023, 12(11):3545-3555. doi: 10.19799/j.cnki.2095-4239.2023.0512
[50]	KIM S, LEE H, LIM J, et al. Digital twin battery modeling and simulations:A new analysis and design tool for rechargeable batteries[J]. ACS Energy Letters, 2024, 9(10):5225-5239. doi: 10.1021/acsenergylett.4c01931
[51]	NZEREOGU P U, OYESANYA A, OGBA S N, et al. Solid-state lithium-ion battery electrolytes:Revolutionizing energy density and safety[J]. Hybrid Advances, 2025, 8:100339. doi: 10.1016/j.hybadv.2024.100339

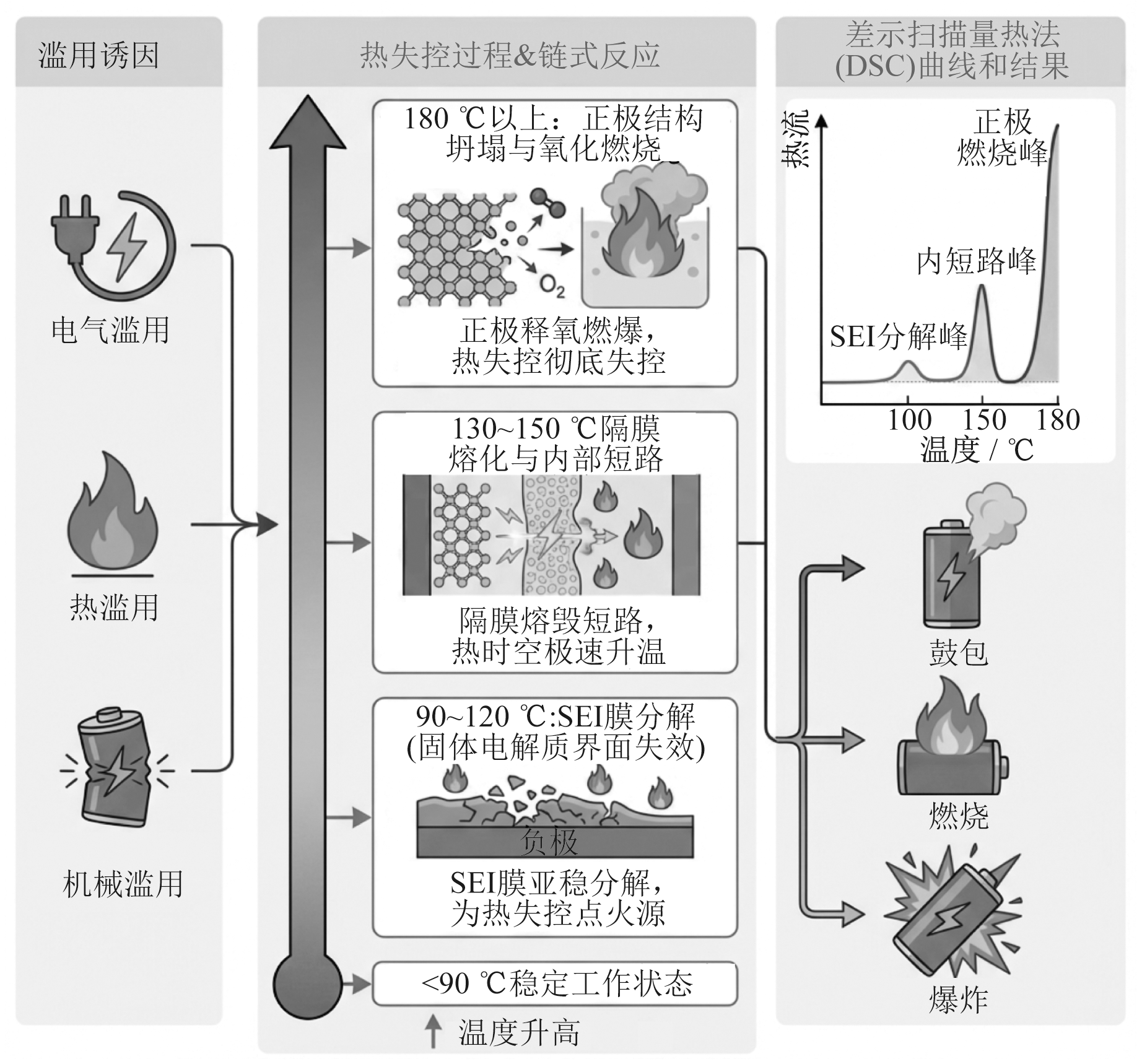

反应阶段	起始温度范围/℃	主要产热反应	热力学特性(产热量)	关键作用与影响
SEI膜分解	90~120	SEI膜中有机组分分解	弱放热	链式反应触发点,破坏负极保护层,暴露高活性反应界面
负极与电解液反应	120~250	嵌锂石墨与电解液还原反应	强放热	主要放热阶段之一,产热率大,是温升的关键驱动力
隔膜熔融/内短路	130~150	隔膜熔化,正负极接触导致内短路	产热量巨大, 取决于SOC	动力学转折点,由化学产热转为电-热耦合产热,导致温度跃升
正极分解	180~250 (依赖于材料)	正极材料晶格分解并释放氧气	强放热	反应放大器,释氧行为是导致起火爆炸的关键因素。三元材料比磷酸铁锂剧烈
电解质燃烧/爆炸	>250	电解液与正极释放的氧气燃烧	极强放热	最终失效形式,反应速率极快,导致电池破裂和火焰喷射

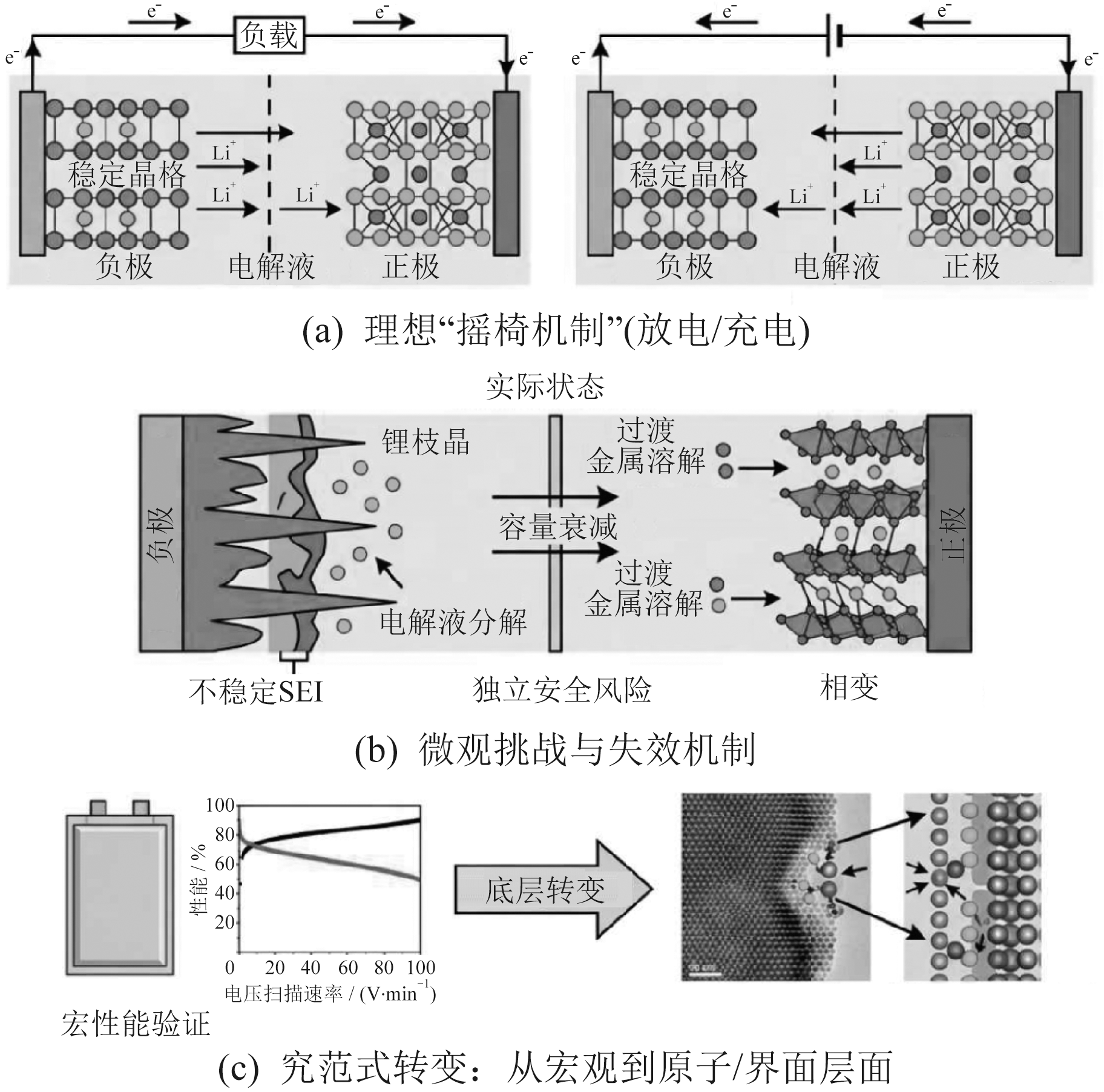

反应发生区域	诱发与类型条件	反应机理与主要产物
负极:SEI膜热分解与重构	高温(C>90 ℃),充放电体积呼吸	亚稳态有机组分分解产物:Li₂CO₃,C₂H₄,CO₂
负极:析锂	低温充电、大倍率过充、负极过量比低	Li⁺ +e^-→Li⁰ 产物:锂枝晶、死锂
正极:晶格结构相变	高电压(>4.5 V),深度脱锂、高温	层状→尖晶石→岩盐相产物:晶格畸变、析氧
正极:电解液氧化(CEI生长)	高电压、高SOC状态	溶剂在高电位下氧化脱氢产物:厚CEI膜,CO₂,CO
交互作用:过渡金属溶解	电解液酸化(HF腐蚀),正极材料老化	Mn²⁺/Ni²⁺溶出并迁移产物:负极表面沉积金属
电解质:锂盐分解与水解	微量水分、高温	LiPF₆→LiF+PF₅ PF₅+H₂O→HF+POF₃
集流体:腐蚀与溶解	过放电(Cu)、高电压(Al)	Cu→Cu²⁺(氧化),Al钝化膜破坏(点蚀)

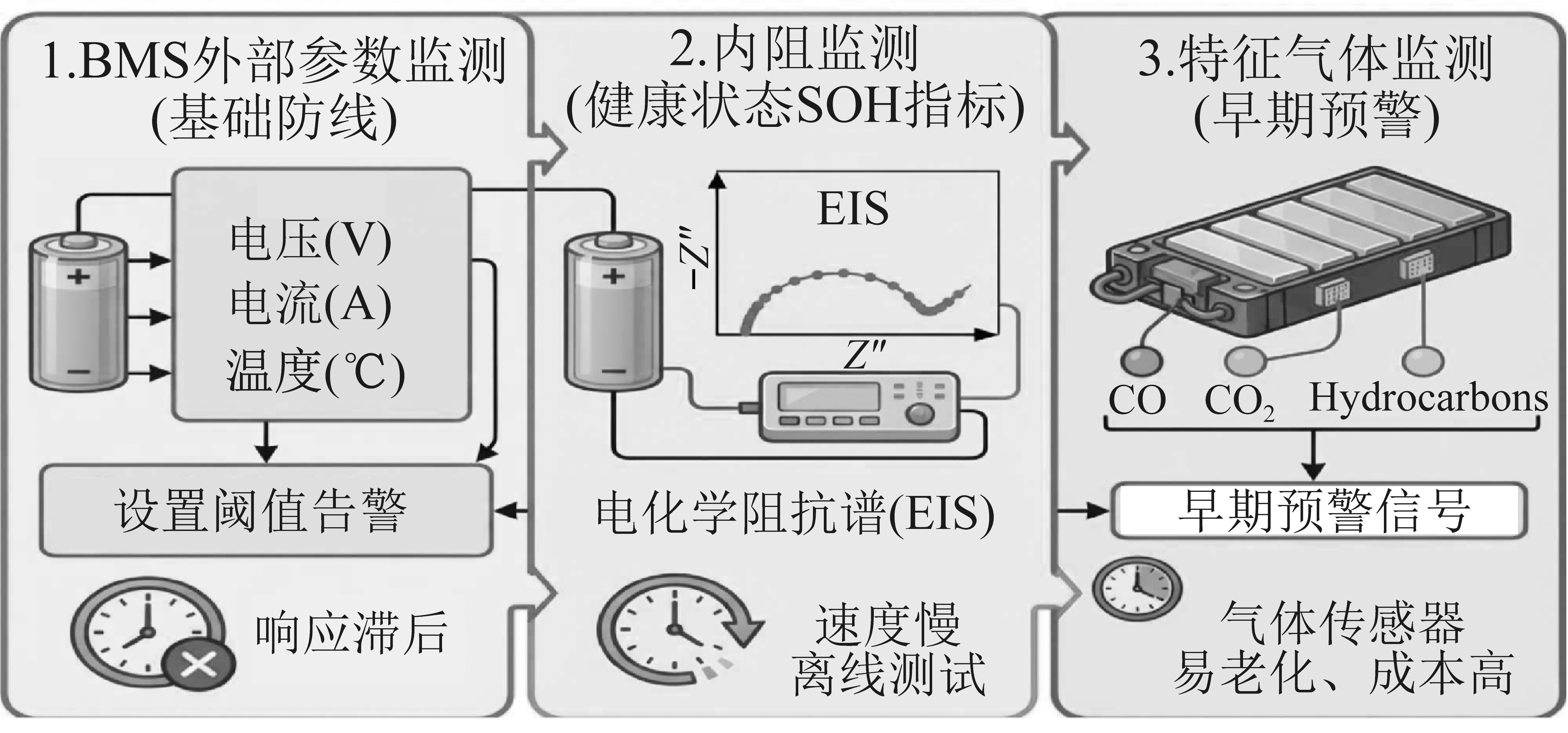

监测技术维度	关键信号指标	响应时效性 (相对于TR触发)	信号灵敏度	工程部署难度	成本	综述评价与适用场景
基础电热监测	电压、电流、表面温度	滞后(TR中后期)	低(受采样精度限制)	低(BMS标配)	低	基础防线。不可或缺,但对局部热点和微短路存在“盲区”,不能作为唯一预警源
内阻监测	AC/DC 阻抗	中等(老化演变期)	中	高(需在线激励)	中	SOH诊断辅助。适用于长周期健康度评估,但在突发性机械滥用下响应较慢
气体监测	CO,H₂	提前(5~15 min)	极高 (ppm级)	中(需优化气路)	中高	关键增量技术。能有效识别不可逆副反应的起始点,是目前提升系统安全冗余性价比最优的方案
机械/ 声学监测	膨胀力、声发射	实时/提前	高	极高 (需结构改造)	极高	前沿探索。具备内部状态透视能力,目前多见于高端实验场景或特种应用
