灌胶对EMI滤波器磁元件近场耦合影响研究

doi:10.16628/j.cnki.2095-8188.2025.06.002

摘要/Abstract

摘要：

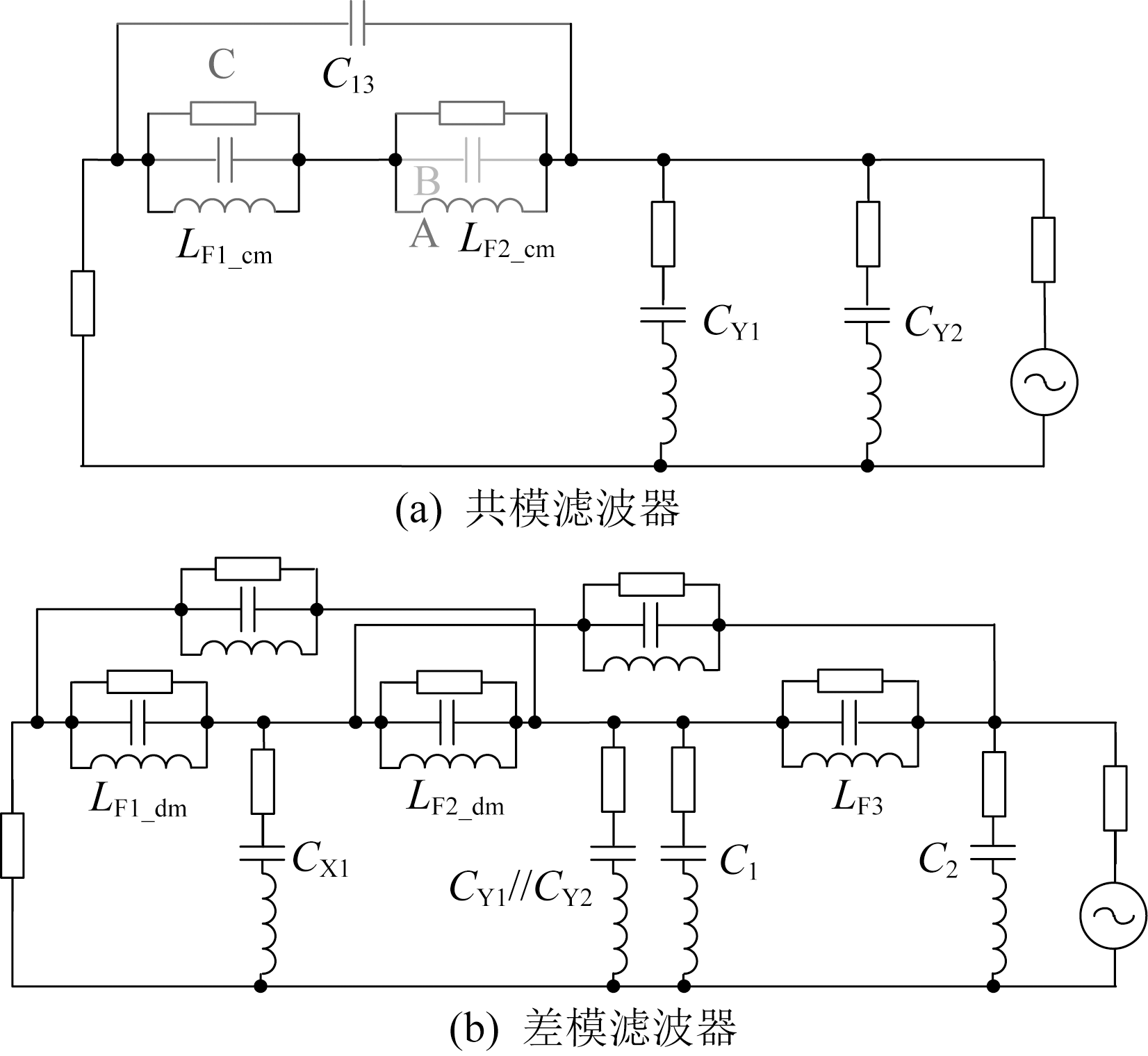

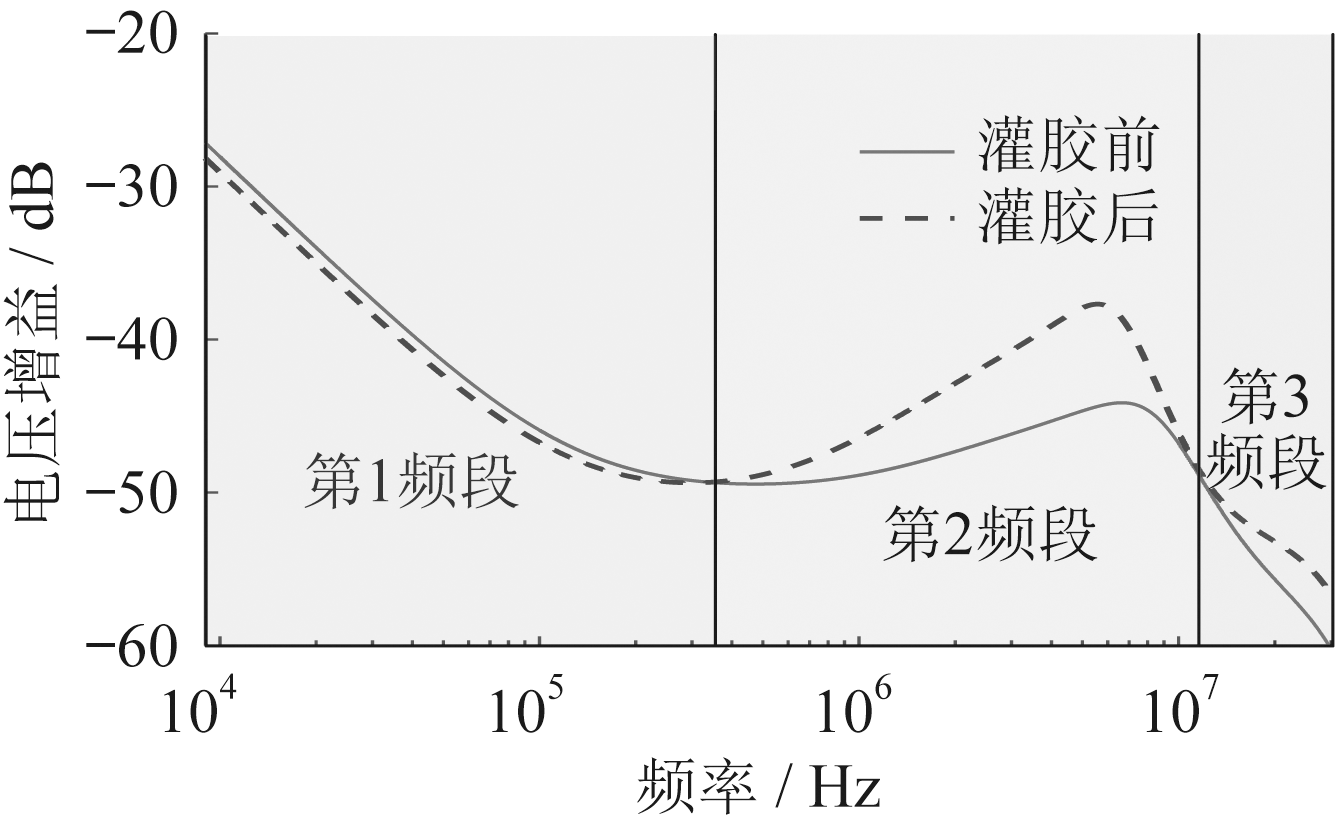

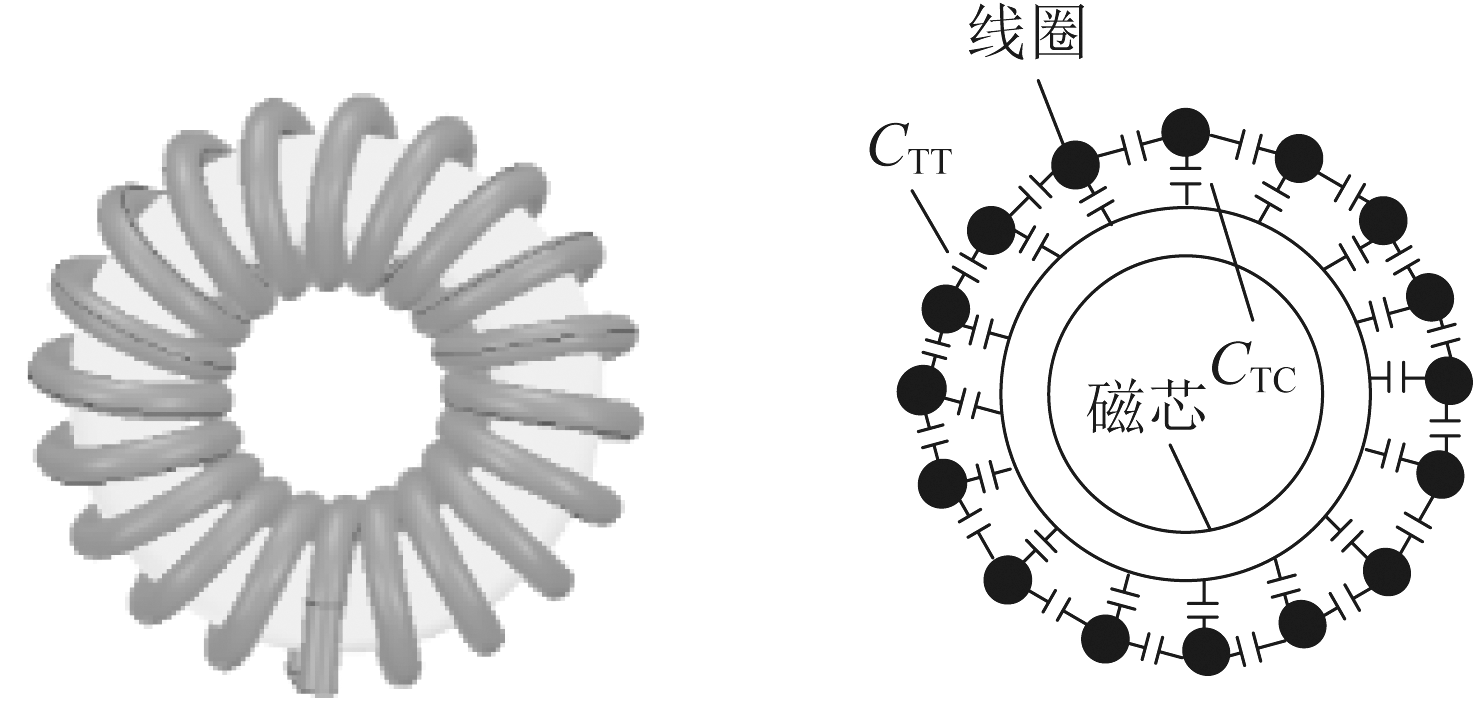

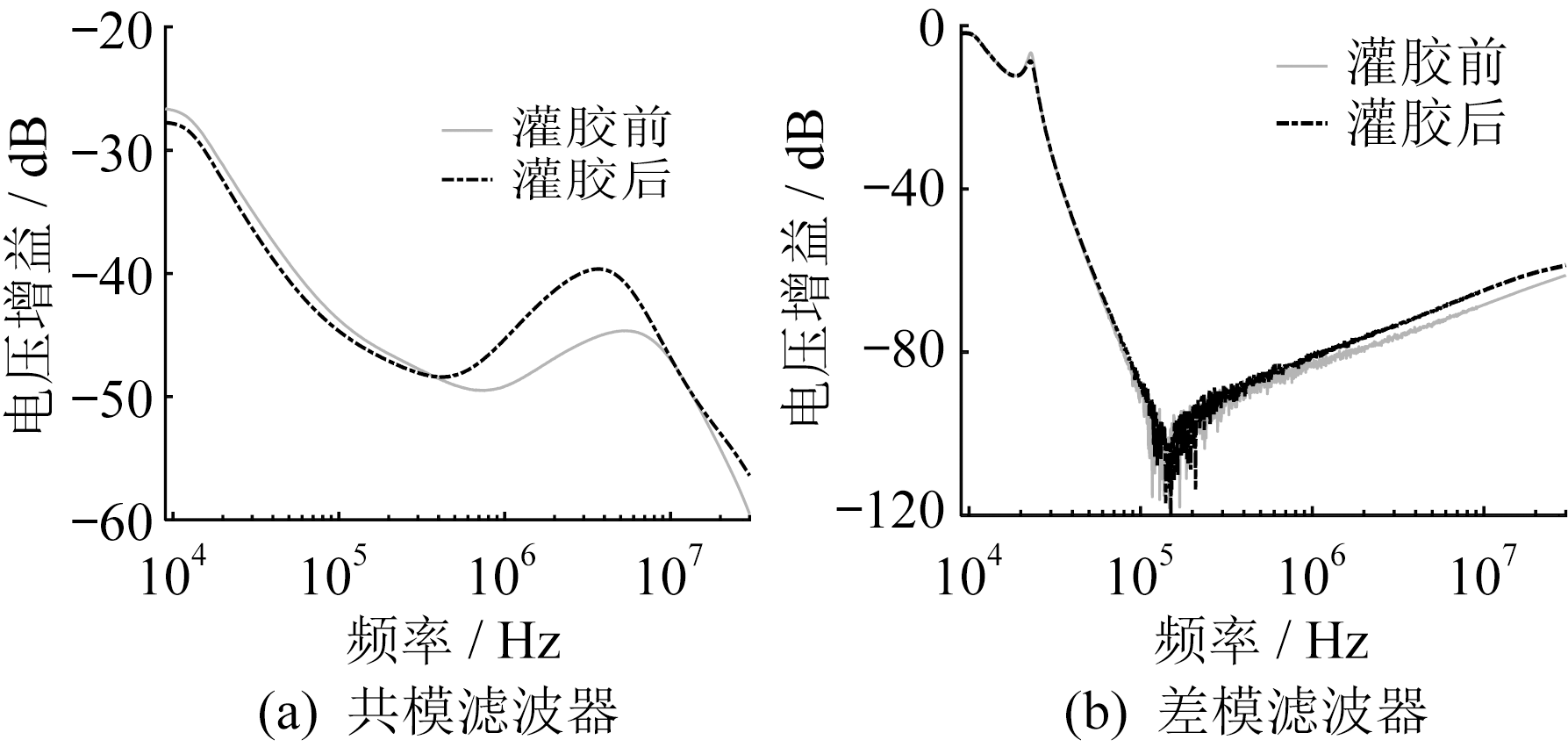

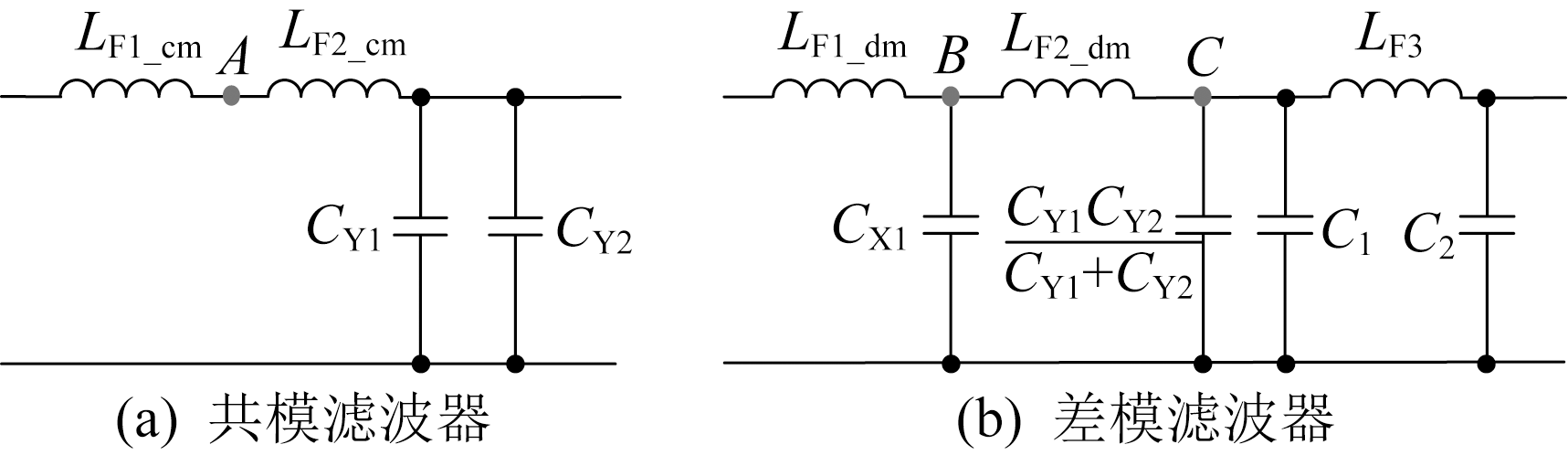

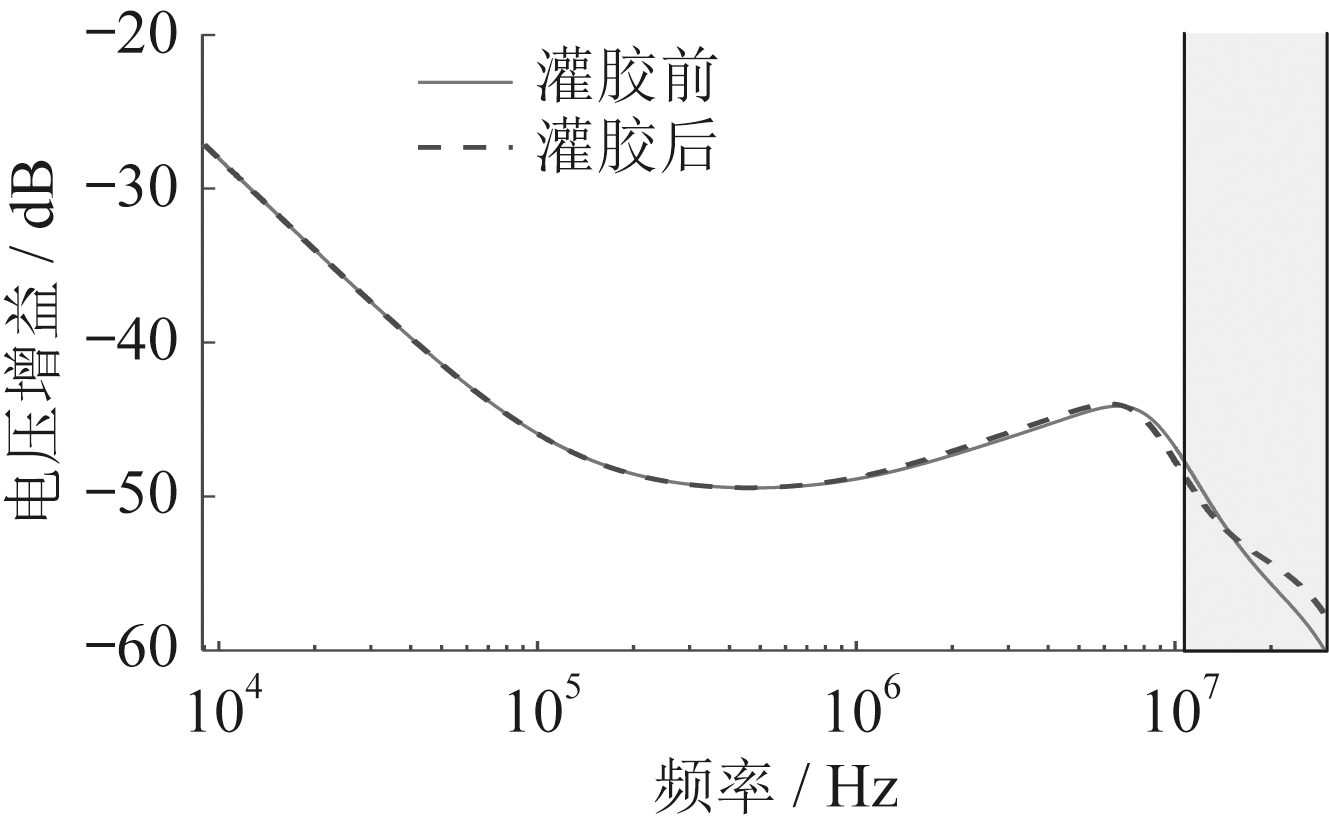

针对电磁干扰(EMI)滤波器灌胶后滤波效果变差的问题,首先建立综合考虑电场耦合和磁场耦合的滤波器近场耦合等效模型,并对磁元件灌胶前后近场耦合等效参数进行提取,结果表明灌胶会影响滤波器的自寄生效应和磁元件间的近场耦合效应。其次,对灌胶前后滤波器磁元件的近场耦合等效参数进行敏感性分析,结果表明灌胶前后滤波器插入电压增益变化主要由受近场耦合影响大的磁元件近场耦合等效电容参数变化引起,进一步明确了灌胶对磁元件近场耦合的影响机理。最后,提出部分灌胶方法改进传导EMI噪声,实验验证了部分灌胶的有效性。

关键词: EMI滤波器, 灌胶, 磁元件, 近场耦合, 电磁干扰

Abstract:

To address the issue of degraded filtering performance in electromagnetic interference (EMI) filters after potting, a near-field coupling equivalent model of the filter considering both electric field coupling and magnetic field coupling is established. The near-field coupling equivalent parameters of magnetic elements are extracted before and after potting. The parameter extraction results show that potting can affect the self-parasitism effect of the filter and the near-field coupling effect between magnetic elements. Then, the sensitivity analysis of the near-field coupling equivalent parameters of the magnetic elements before and after potting is carried out. The results show that the change of the insertion voltage gain of the filter before and after potting is mainly caused by the change of equivalent capacity parameters of the magnetic elements which are greatly affected by the near-field coupling. The influence mechanism of the near-field coupling of the magnetic elements after potting is further clarified. Finally, a partial potting method is proposed to improve the conduction EMI noise, and the effectiveness of partial potting is verified by experiments.

Key words: EMI filter, potting, magnetic element, near-field coupling, electromagnetic interference

中图分类号:

TM133

黄菊, 李欢欢, 毛行奎, 董纪清. 灌胶对EMI滤波器磁元件近场耦合影响研究[J]. 电器与能效管理技术, 2025, 0(6): 7-16.

HUANG Ju, LI Huanhuan, MAO Xingkui, DONG Jiqing. Study on Influence of Potting on Near-Field Coupling of Magnetic Elements in EMI Filters[J]. LOW VOLTAGE APPARATUS, 2025, 0(6): 7-16.

图/表 30

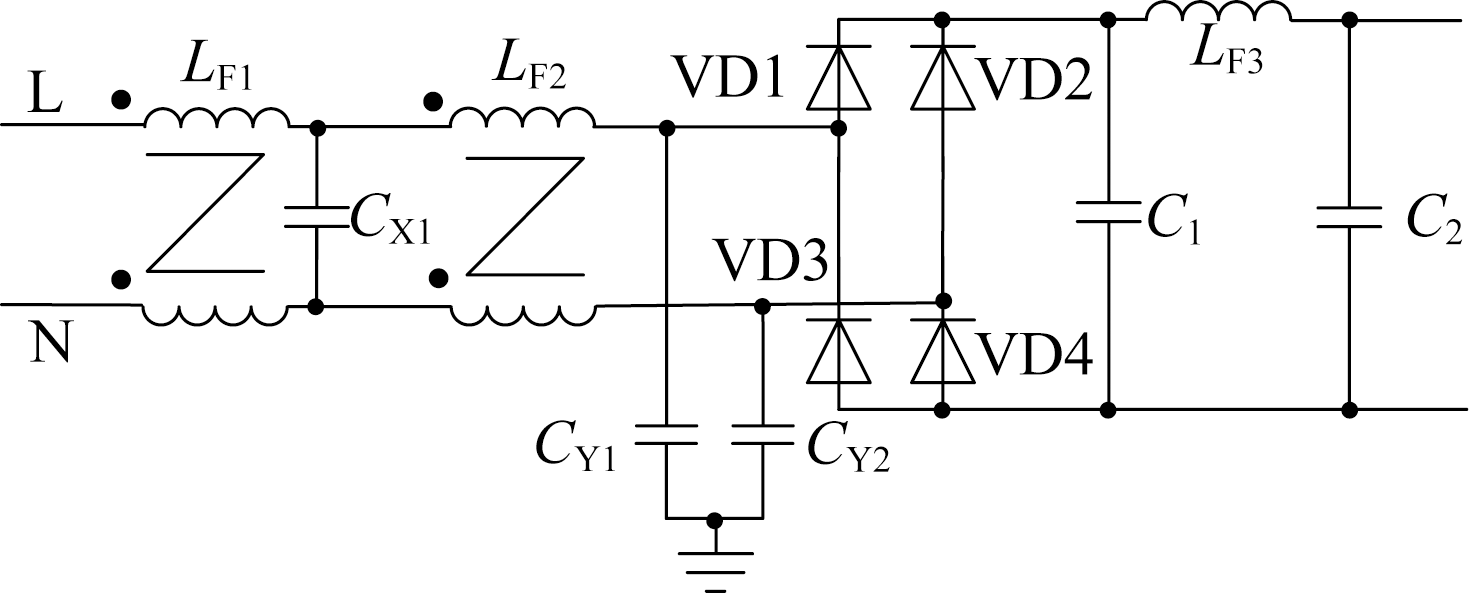

图1

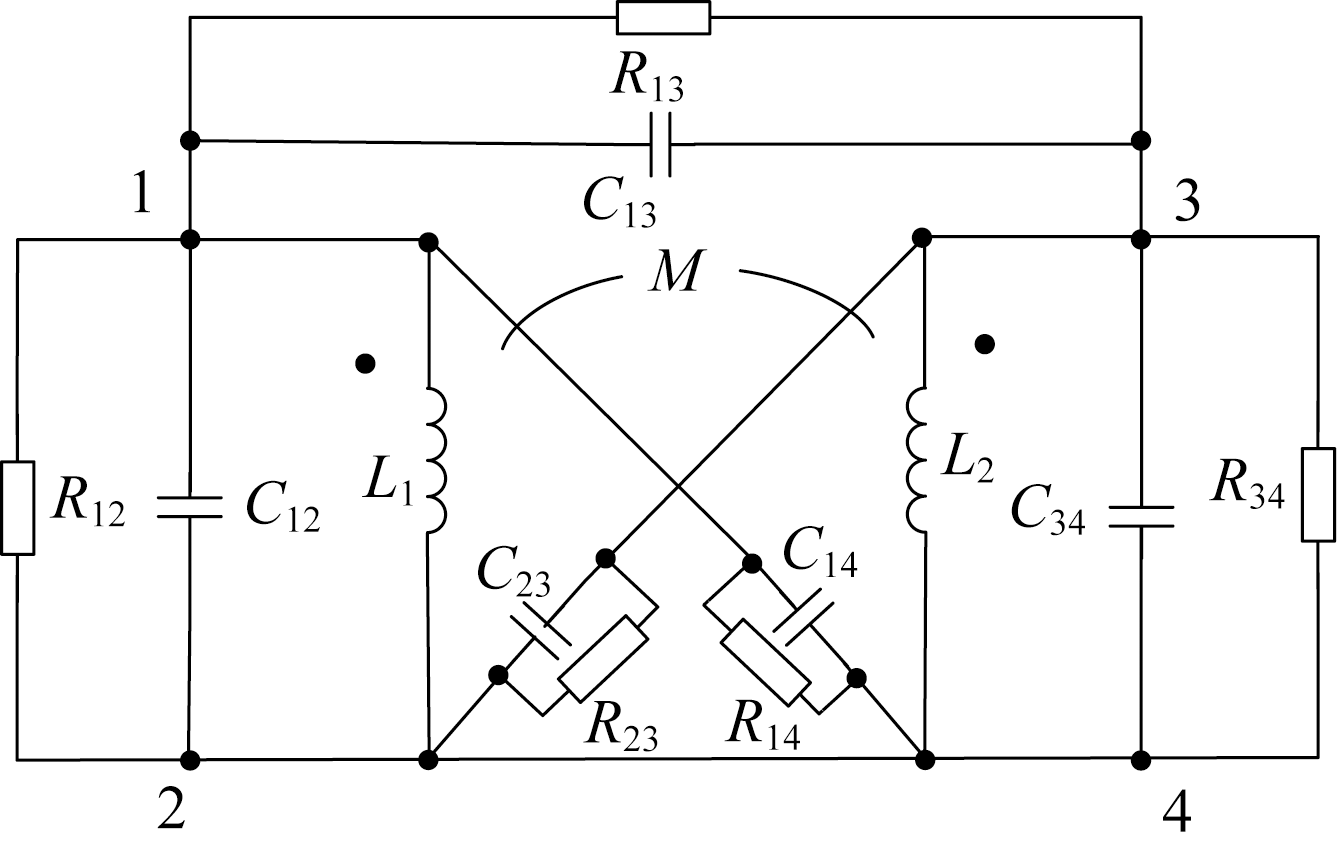

图2

表1

图3

图4

图5

图6

图7

图8

图9

表2

图10

表3

表4

图11

图12

表5

图13

表6

表7

表8

图14

图15

图16

图17

图18

图19

图20

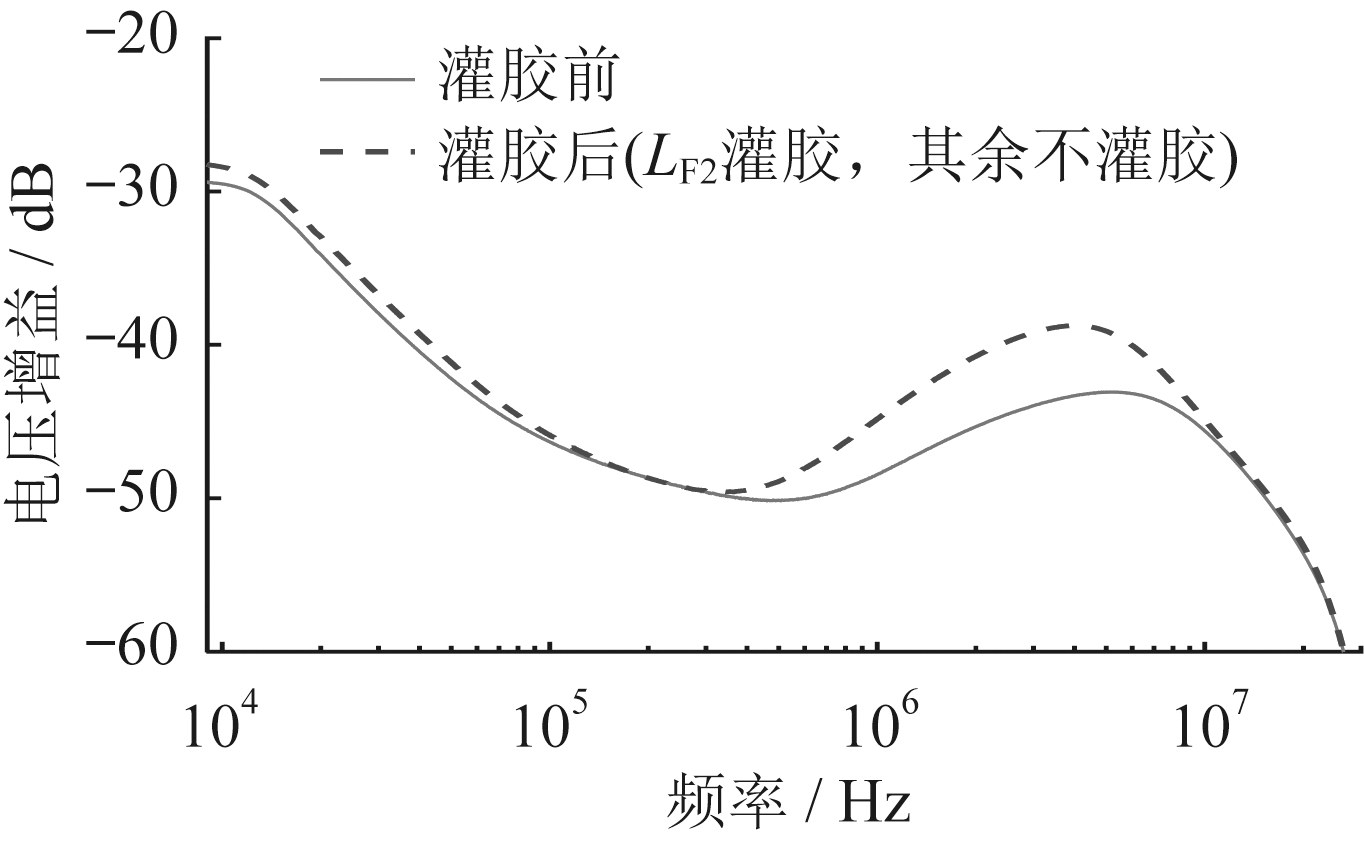

图21

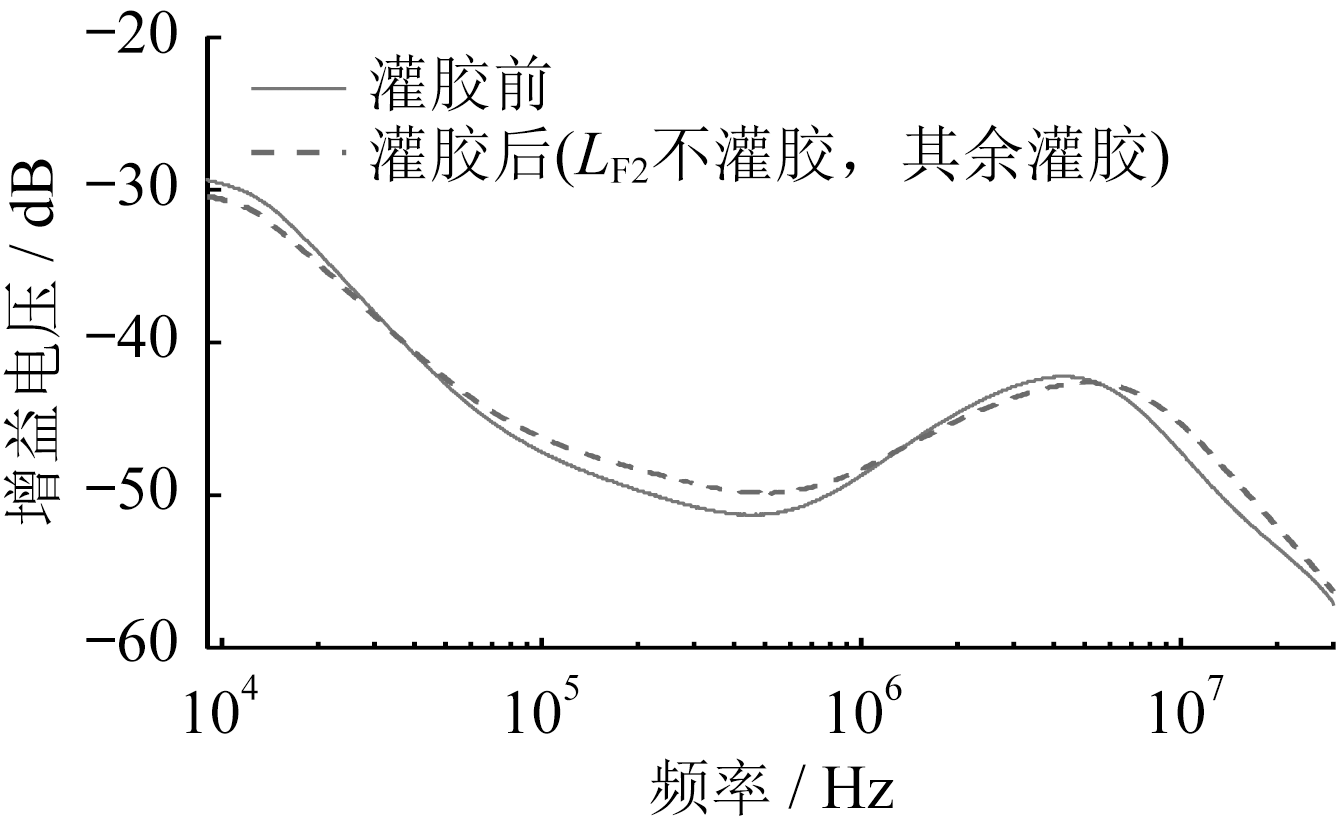

图22

参考文献 30

[1]	陈荣亮, 梁海燕, 刘艺涛. 基于人工神经网络的差模EMI滤波器插入损耗预测[J]. 电源学报, 2024, 22(5):67-73. doi: 10.13234/j.issn.2095-2805.2024.5.67
[2]	徐浩东, 罗嗣勇, 毕闯, 等. 基于SiC MOSFET同步Buck DC-DC变换器的宽频混合EMI滤波器设计[J]. 电工技术学报, 2024, 39(10):3060-3069.
[3]	林苏斌, 陆文韬, 张丽萍, 等. 开关电源共模噪声源内阻抗建模方法[J]. 电器与能效管理技术, 2021(1):84-89.
[4]	高晨, 周荔丹. 变频器内部EMI滤波板的研究设计及仿真[J]. 电器与能效管理技术, 2015(8):61-65.
[5]	王世山, 龚敏, 宋峥. 基于散射参数法的EMI滤波器电磁噪声抑制效果预测[J]. 电工技术学报, 2016, 31(18):66-74.
[6]	江师齐, 王卫, 王盼宝, 等. 一种结构对称型电磁集成电磁干扰滤波器分析与设计[J]. 电工技术学报, 2022, 37(22):5826-5835.
[7]	彭金融, 毛行奎, 崔文玲, 等. 基于插入无源二端口网络的噪声源阻抗提取方法研究[J]. 电工技术学报, 2023, 38(2):523-532.
[8]	黄华震, 卢铁兵. EMI滤波器互感系数对滤波性能的影响分析及其建模方法研究[J]. 中国电机工程学报, 2023, 43(S1):276-285.
[9]	温佐云, 姚月. 电力自动化设备EMI滤波器的仿真与分析[J]. 电器与能效管理技术, 2019(7):40-44.
[10]	傅恺宁, 连振珠, 陈为. EMI滤波器宽频段建模与滤波特性优化[J/OL]. 电源学报, 2024:1-13.(2024-09-03)[2025-01-02]. http://kns.cnki.net/kcms/detail/12.1420.tm.20240902.1655.005.
[11]	李志栋, 张逸成, 张佳佳, 等. 车用大功率DC/DC变换器集成滤波器设计[J]. 电器与能效管理技术, 2014(19):24-28.
[12]	WANG S, LEE F C. Analysis and applications of parasitic capacitance cancellation techniques for EMI suppression[J]. IEEE Transactions on Industrial Electronics, 2010, 57(9):3109-3117.
[13]	WANG S, LEE F C, ODENDAAL W G. Using a network method to reduce the parasitic parameters of capacitors[C]// 2004 IEEE 35th Annual Power Electronics Specialists Conference. Aachen, Germany,2004:304-308.
[14]	和军平, 陈为, 姜建国. 功率因数校正电路杂散磁场对传导干扰发射作用的分析研究[J]. 中国电机工程学报, 2005, 25(14):151-157.
[15]	颜伟, 赵阳, 王恩荣, 等. 复杂电子系统传导EMI噪声机理分析与处理[J]. 中国电机工程学报, 2012, 32(30):156-162.
[16]	苏淑娟, 叶尚斌, 张佳佳, 等. EMI滤波器磁场耦合参数提取方法比较研究[J]. 电器与能效管理技术, 2015(19):9-14.
[17]	ASMANIS G, STEPINS D, RIBICKIS L, et al. Modeling of mutual coupling between inductors[C]// 2015 IEEE Symposium on Electromagnetic Compatibility and Signal Integrity.Santa Clara,CA,USA,2015:294-299.
[18]	ASMANIS A, ASMANIS G, STEPINS D, et al. High-frequency modelling of EMI filters considering parasitic mutual couplings[C]// 2016 ESA Workshop on Aerospace EMC.Valencia,Spain,2016:1-6.
[19]	KOVACEVIC I F, FRIEDLI T, MUSING A M, et al. 3-D electromagnetic modeling of parasitics and mutual coupling in EMI filters[J]. IEEE Transactions on Power Electronics, 2014, 29(1):135-149.
[20]	MCGREW T, WANG S, LI Q. Reduction of CM noise by minimizing near-field effects in a DC-DC converter[J]. IEEE Transactions on Power Electronics, 2024, 39(4):4210-4223.
[21]	MA Z D, WANG S, HUANG Q H, et al. A review of radiated EMI research in power electronics systems[J]. IEEE Journal of Emerging and Selected Topics in Power Electronics, 2024, 12(1):675-694.
[22]	HE J, CHEN W, JIANG J. Identification and improvement of stray coupling effect in an L-C-L common mode EMI filter[C]// 2006 CES/IEEE 5th International Power Electronics and Motion Control Conference.Shanghai,China,2006:1-5.
[23]	ASMANIS G, ASMANIS A, STEPINS D. Mutual couplings in three phase T-type EMI filters[C]// International Symposium on Electromagnetic Compatibility. Rome,Italy,2012:1-6.
[24]	LI Y M, WANG S, SHENG H G, et al. Reduction and cancellation techniques for the near field capacitive coupling and parasitic capacitance of inductors[C]// 2018 IEEE Symposium on Electromagnetic Compatibility,Signal Integrity and Power Integrity.Long Beach,CA,USA,2018:432-437.
[25]	黄华高, 陈玮, 陈恒林, 等. Boost变流器传导电磁干扰的近场耦合模型[J]. 浙江大学学报, 2011, 45(11):2031-2037.
[26]	LIU B, REEN R, WANG F, et al. Capacitive coupling in T-shape related EMI filters:Mechanism,effects,and mitigation[C]//2018 IEEE Energy Conversion Congress and Exposition.Portland,OR,USA,2018:6404-6409.
[27]	谢静逸, 陈为, 陈庆彬, 等. 考虑电磁场耦合的磁性元件近场耦合模型[J]. 中国电机工程学报, 2022, 42(13):4652-4665.
[28]	曹鹤, 柏卉芷, 赵洁. 大功率电气元件封装用有机硅灌封胶的研制[J]. 有机硅材料, 2020, 34(6):16-19.
[29]	石磊磊, 王世山, 徐晨琛. 二端口网络散射参数理论及其在平面EMI滤波器测试中的应用[J]. 电工技术学报, 2013, 28(2):78-85.
[30]	崔文玲, 毛行奎, 彭金融, 等. 基于噪声源阻抗提取的EMI滤波器高效设计方法[J]. 电机与控制学报, 2023, 27(3):79-91.

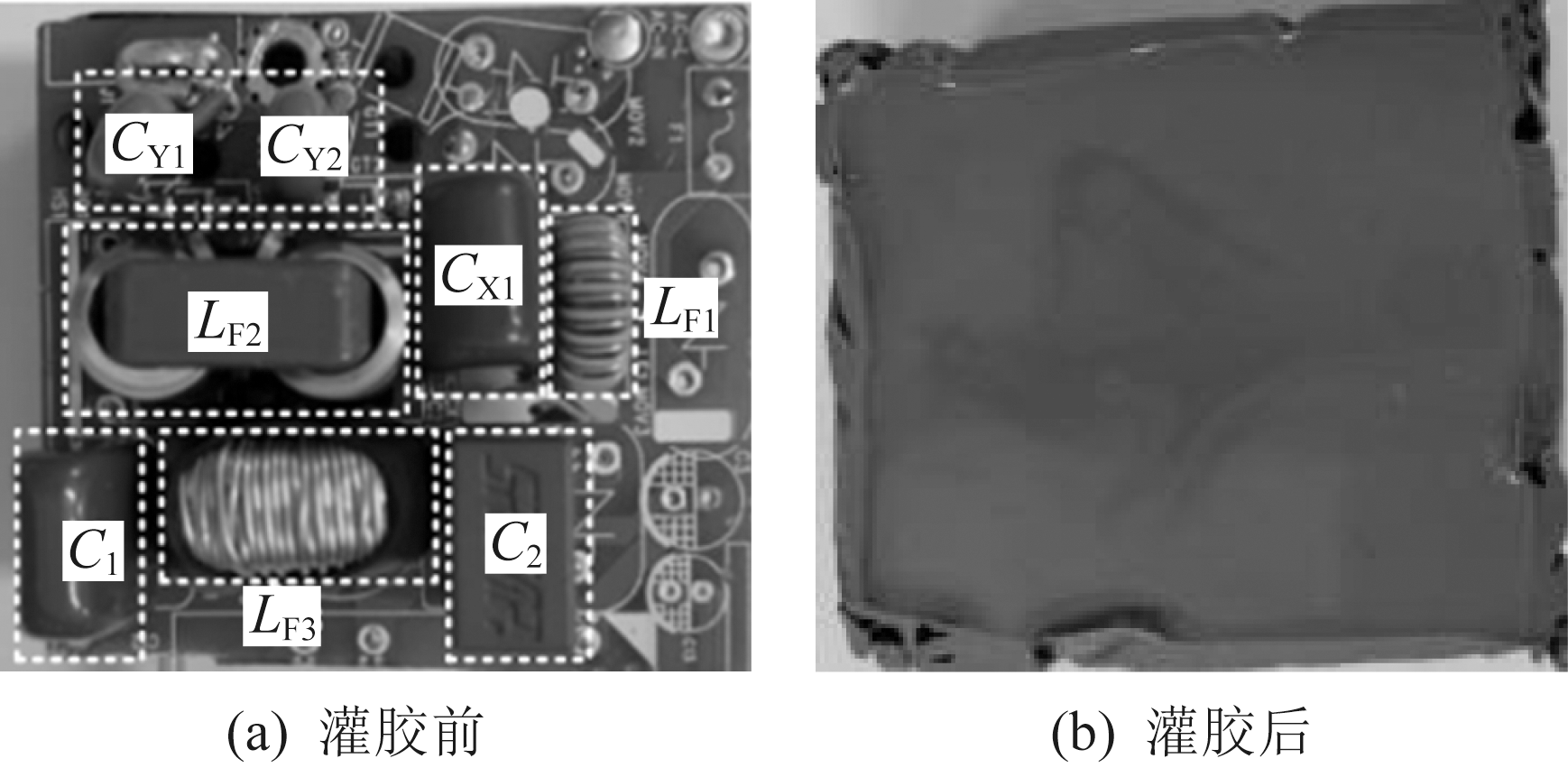

参数	数值
硬度/HA	45±5
相对介电常数	2.8~4.0
体积电阻率/(Ω·cm)	≥1.0×10¹²
介电强度/(kV·mm^-1)	≥14
导热系数/[W·(m·K)^-1]	0.6~0.8

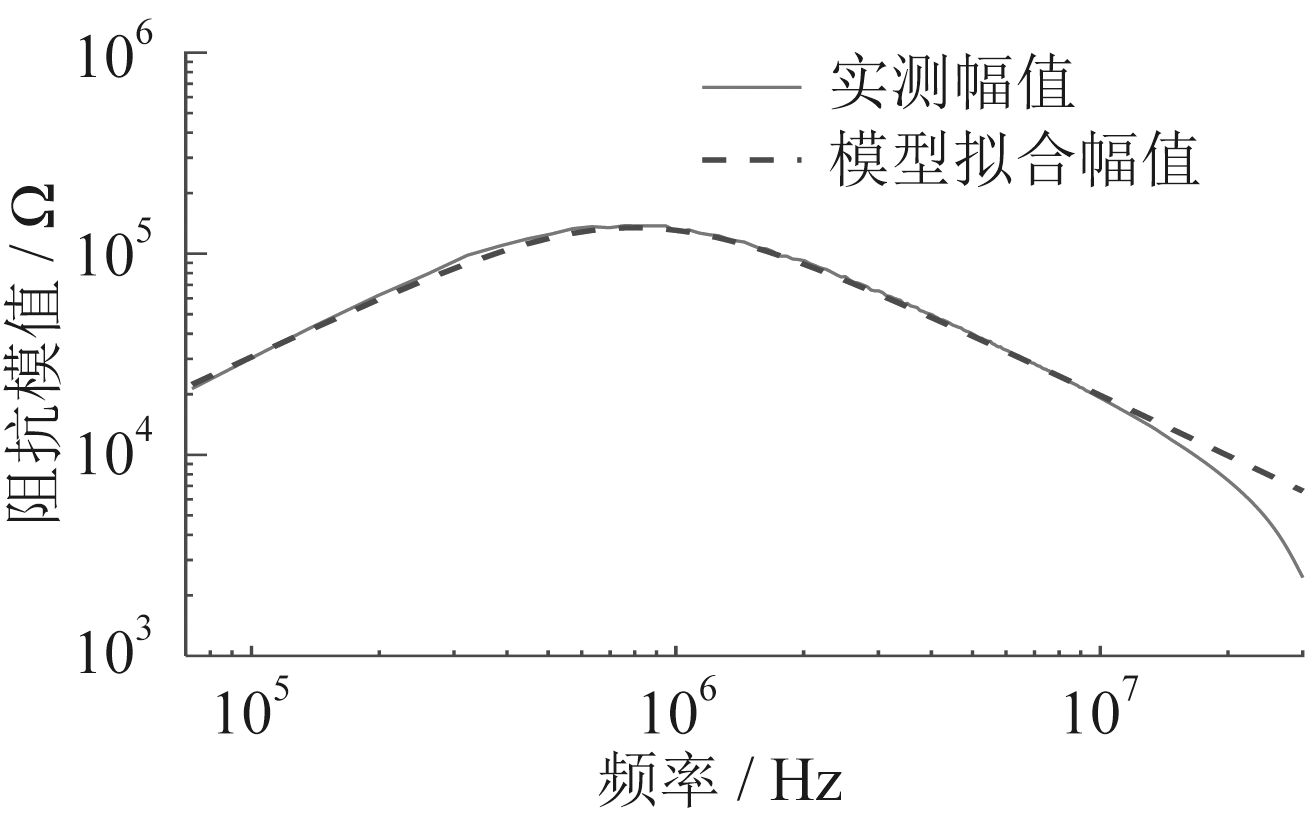

参数	Z_y1	参数	Z_y1
R/MΩ	R₁₃=1.89	C/pF	C₁₃=1.30
L/mH	L_a=35.00

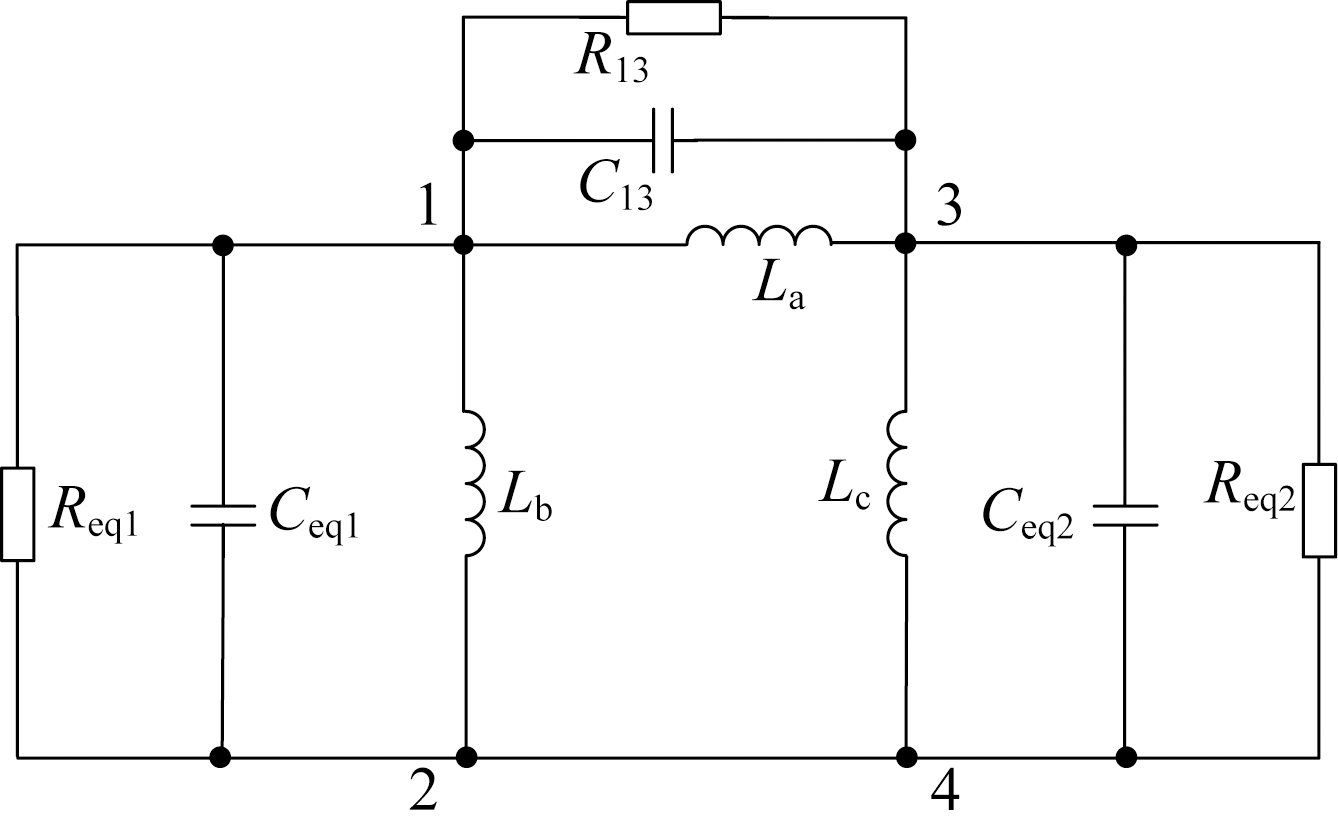

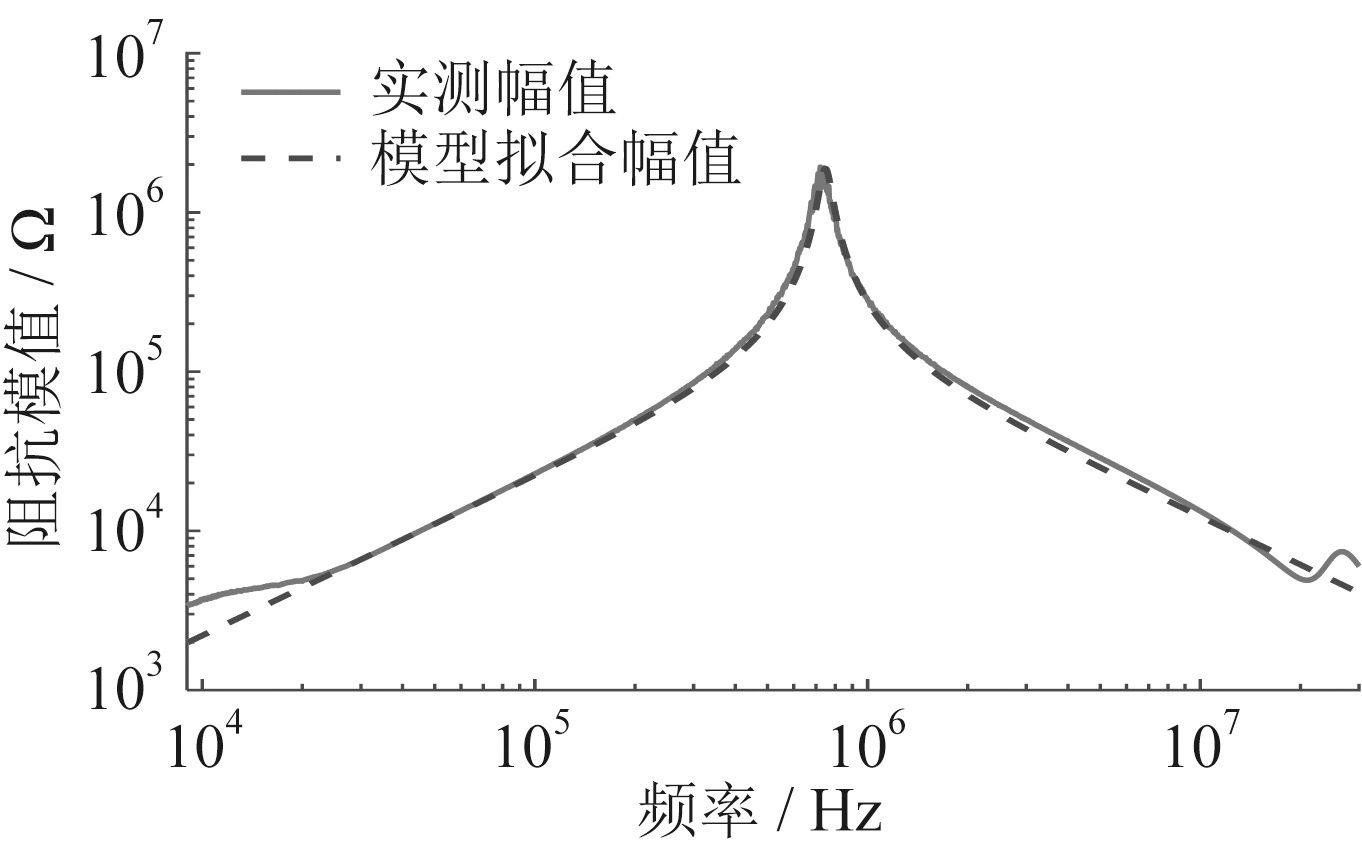

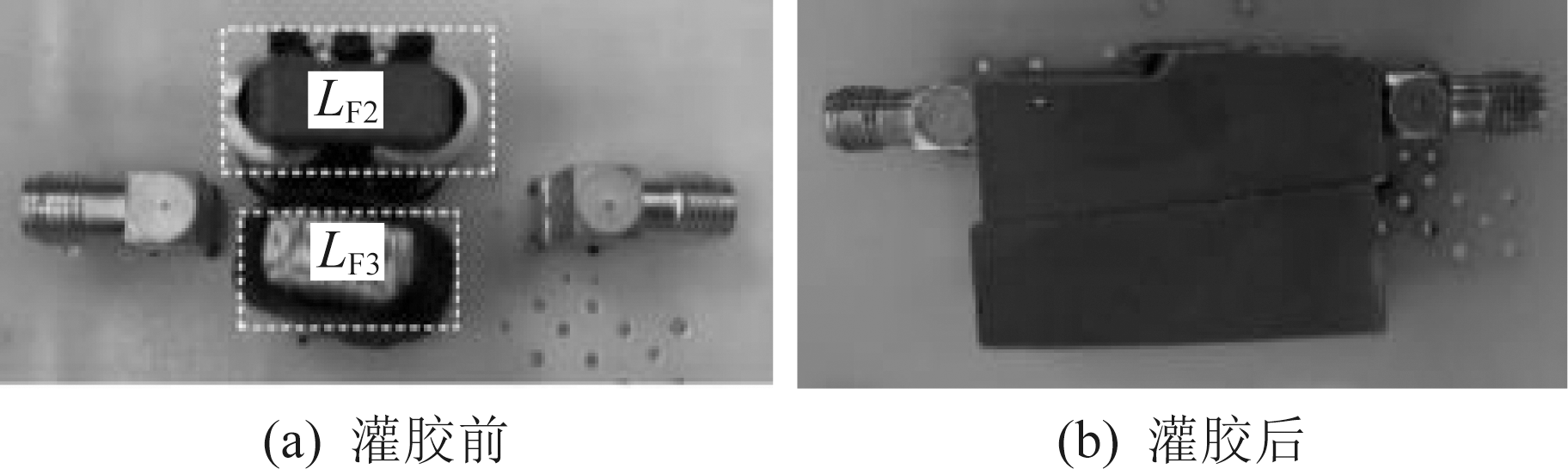

参数		自参数	近场耦合等效参数
L_F3	R/kΩ	R₁₂=7.38	R_eq1=6.95
	L/μH	L₁=470.15	L_b=476.12
	C/pF	C₁₂=43.42	C_eq1=43.95
L_{F2_dm}	R/kΩ	R₃₄=96.56	R_eq2=95.96
	L/μH	L₂=181.30	L_c=182.21
	C/pF	C₃₄=2.06	C_eq2=2.55

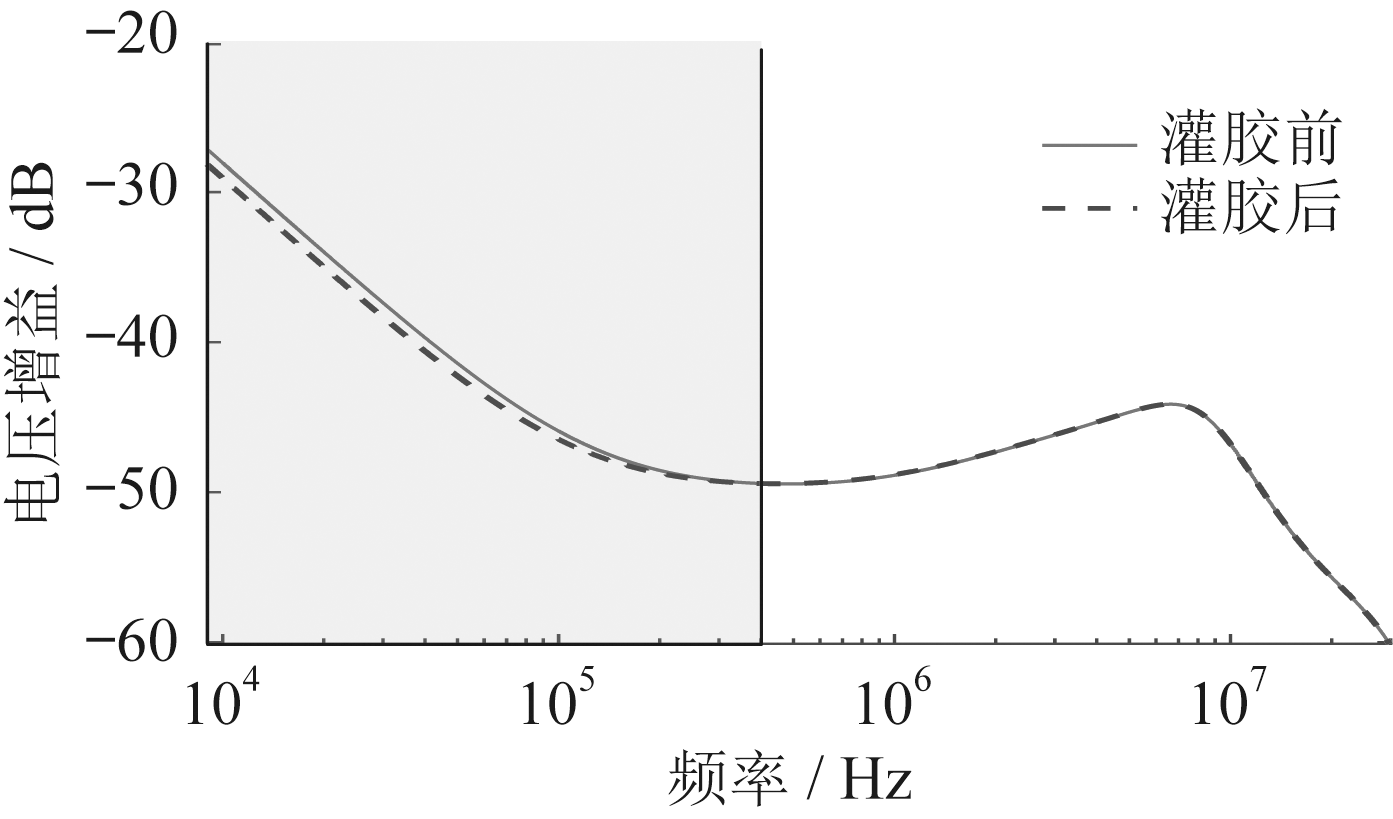

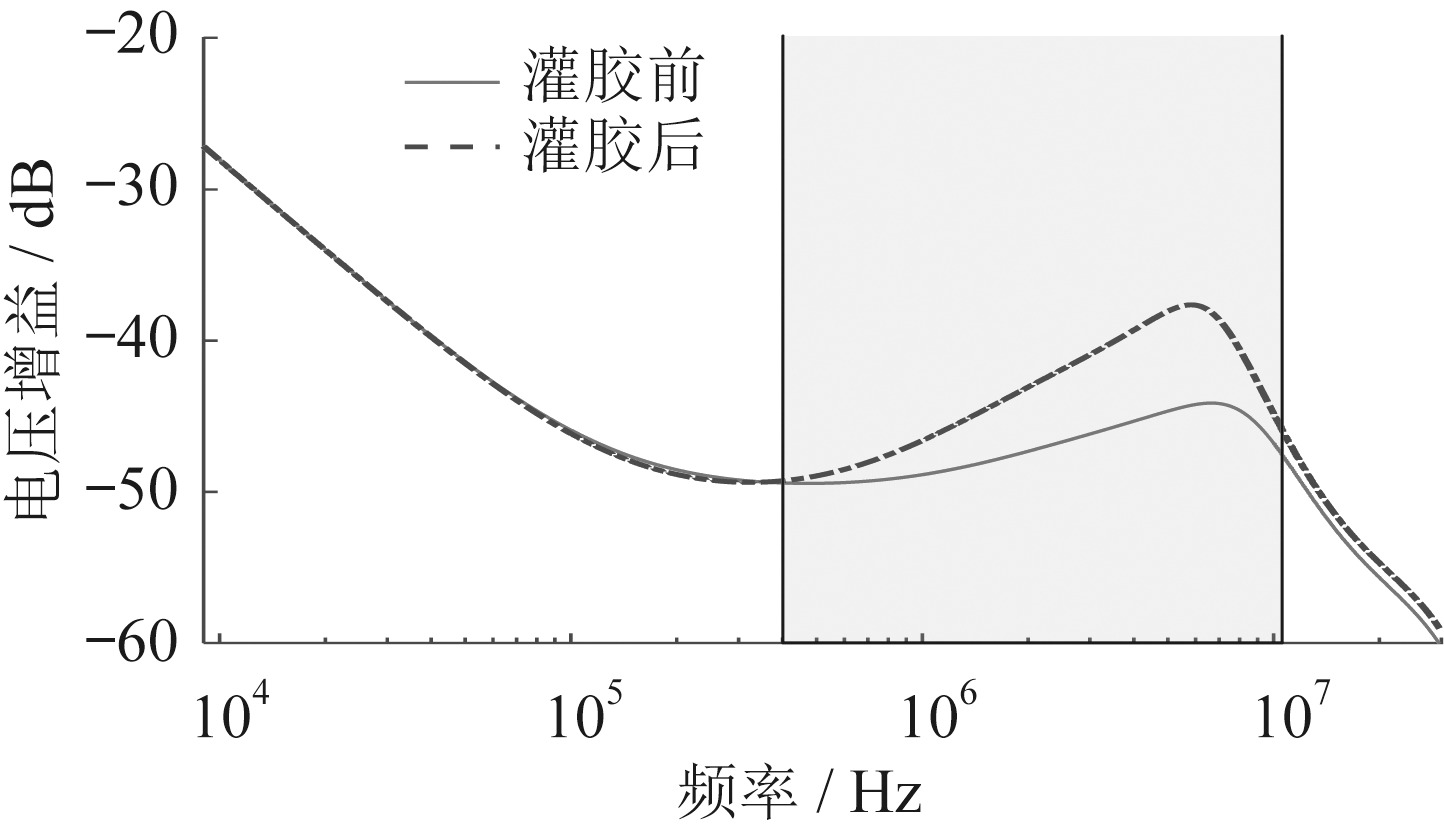

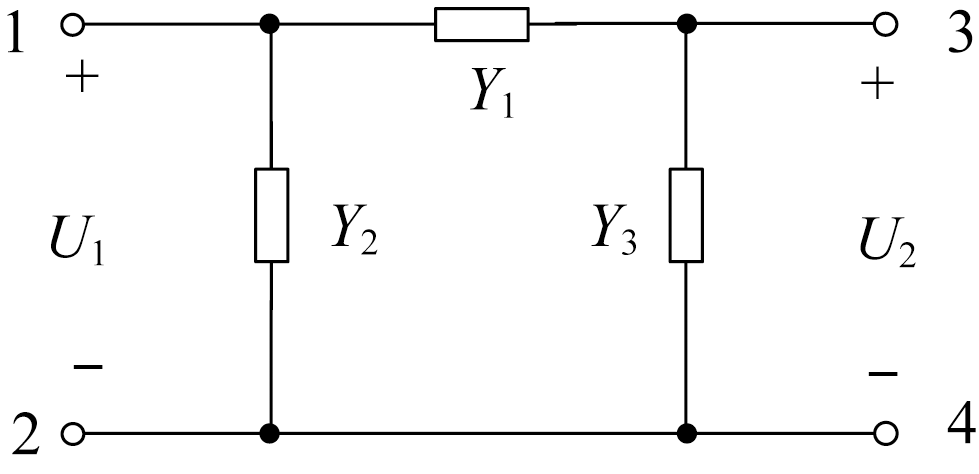

参数		Z_y1	Z_y2	Z_y3
灌胶前	R/kΩ	R₁₃=1 890.00	R_eq1=6.95	R_eq2=95.96
	L/μH	L_a=35 000.00	L_b=476.12	L_c=182.21
	C/pF	C₁₃=1.30	C_eq1=43.95	C_eq2=2.55
灌胶后	R/kΩ	R₁₃=1 900.00	R_eq1=6.89	R_eq2=96.21
	L/μH	L_a=35 000.00	L_b=474.69	L_c=181.98
	C/pF	C₁₃=1.67	C_eq1=49.21	C_eq2=4.46

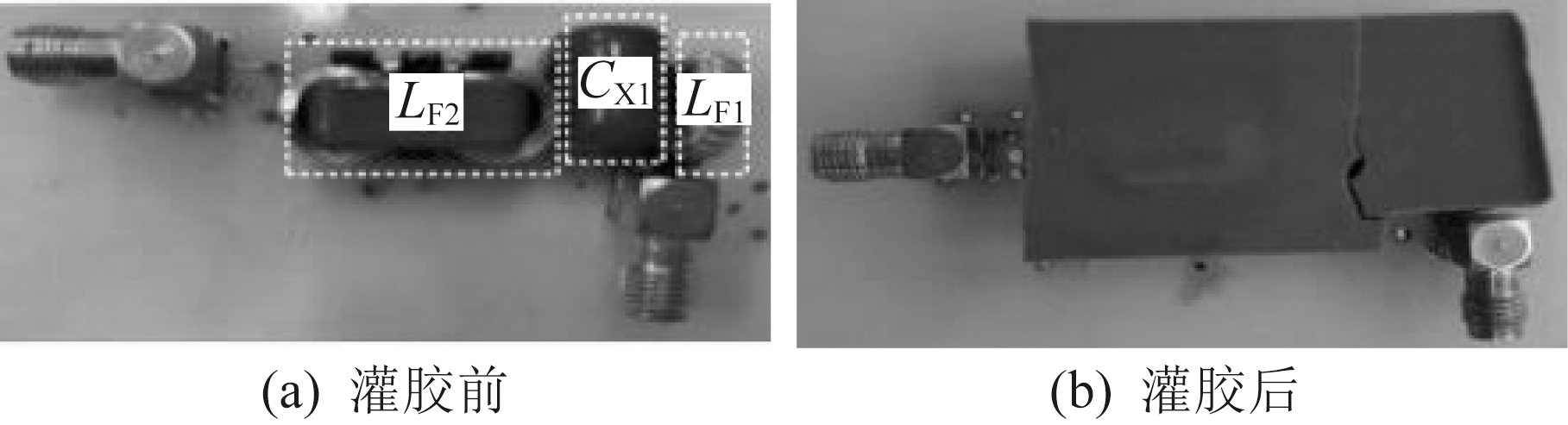

参数	Z_y1	参数	Z_y1
R/kΩ	R₁₃=134.60	C/pF	C₁₃=0.80
L/mH	L_a=49.00
