电连接器高温振动失效仿真研究

doi:10.16628/j.cnki.2095-8188.2024.07.013

摘要/Abstract

摘要：

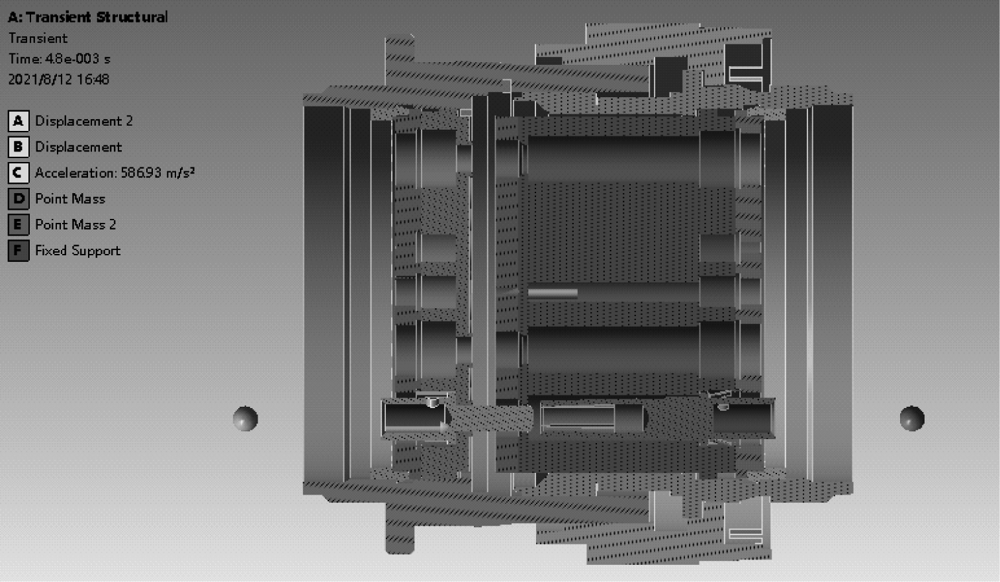

应用Ansys软件对电连接器整体模型在高温振动环境下的动态响应进行仿真,深入分析接触件尾部线缆质量、温度、分离力、应力松弛等指标对微动幅值的影响。基于仿真得出原设计在高温振动中会发生失效的结论,优化设计接触正压力和尾部线缆质量。结合仿真分析结果和计算,得到电连接器在指定高温振动条件下不发生失效的设计指标范围,即分离力应尽量接近上限值2.5 N,每个接触件尾部线缆质量应尽量控制在1.2 g以内。通过试验验证了仿真和优化的正确性,研究结果可为电连接器抗高温振动提供设计与优化思路。

关键词: 电连接器, 高温振动, 接触, 仿真, 失效, 磨损

Abstract:

The dynamic response of electrical connector in high temperature vibration environment is analyzed with Ansys software.The influence of the quality of the cable at the tail of the contact piece,temperature,separation force,stress relaxation,etc.on the micro motion amplitude is deeply analyzed.Based on the simulation,it is concluded that the original design will fail in high temperature vibration.The design of the contact positive pressure and the quality of the tail cable are optimized.Combined with the simulation analysis results and the relevant calculation,the design index range for the electrical connector to not fail under the specified high temperature vibration conditions is obtained,which means that the separation force should be as close as possible to the upper limit of 2.5 N,and the quality of the cable at the tail of each contact should be controlled within 1.2 g.The correctness of the simulation and optimization is verified by the test,which provides the design and optimization ideas for the high temperature vibration resistance of the electrical connector.

Key words: electrical connector, high temperature vibration, contact, simulation, failure, wear

中图分类号:

TM503.5

朱宁, 翟国富. 电连接器高温振动失效仿真研究[J]. 电器与能效管理技术, 2024, 0(7): 79-86.

ZHU Ning, ZHAI Guofu. Simulation Study on High Temperature Vibration Failure of Electrical Connector[J]. LOW VOLTAGE APPARATUS, 2024, 0(7): 79-86.

图/表 14

图1

图2

图3

图4

表1

表2

图5

图6

图7

图8

图9

表3

图10

图11

参考文献 20

[1]	骆燕燕, 武雄伟, 田亚超, 等. 冲击环境下电连接器接触性能研究[J]. 工程设计学报, 2018, 25(1):110-117. doi: 10.3785/j.issn.1006-754X.2018.01.015
[2]	韩乙铖, 孟圆, 张超, 等. 连接器接触件机械磨损失效机理的实验研究[J]. 电器与能效管理技术, 2024(3):60-65.
[3]	STEFAN M G,WILLIAM F B I I I, BRIAND L. F-22 lessons learned:line replaceable module (LRM) electrical connector-an investigation of vibration-induced contact wear and electro static discharge hardening[C]// Proceedings of the ASME 2009 International Mechanical Engineering.Lake Buena Vista,Florida:ASME, 2009:327-340.
[4]	齐小军, 冯伟杰. 连接器弹片结构接触特性分析与优化[J]. 电器与能效管理技术, 2022(10):48-55.
[5]	FLOWERS G T, XIE F, BOZACK M J, et al. Modeling early stage fretting of electrical connectors subjected to random vibration[J]. IEEE Transactions on Components and Packaging Technologies, 2005, 28(4):721-727.
[6]	陈文华. 航天电连接器可靠性试验和分析的研究[D]. 杭州: 浙江大学, 1997.
[7]	XIE F, FLOWERS G T, CHEN C, et al. Analysis and prediction of vibration-induced fretting motion in a blade/receptacle connector pair[J]. IEEE Transaction on Components and Packaing Technology, 2009, 32(3):583-592.
[8]	CHEN C, FLOWERS G T, BOZACK M, et al. Modeling and analysis of a blade/receptacle pair for the prediction of vibration-induced fretting degradation[C]// 2008 Proceedings of the 54th IEEE Holm Conference on Electrical Contacts, 2008:276-283.
[9]	FLOWERS G T, XIE F, BOZACK M, et al. Vibration thresholds for fretting corrosion in electrical connectors[C] //Proceedings of the Forty-Eighth IEEE Holm Conference on Electrical Contacts, 2002:133-139.
[10]	任万滨, 王鹏, 马晓明, 等. 电连接器镀金铜触点材料微动磨损特性的实验研究[J]. 电工技术学报, 2013, 28(12):119-124.
[11]	陈文华, 崔杰, 潘骏, 等. 航天电连接器振动可靠性试验与分析[J]. 航空学报, 2003, 24(4):342-345.
[12]	YANG S, CHEN L, LI S. Dynamics of vehicle-road coupled system[M]. Beijing: Springer Jointly Published with Science Press, 2015.
[13]	李雪清, 章继高. 镀金表面微孔腐蚀的电接触特点[J]. 电工技术学报, 2004, 19(9):51-56.
[14]	GAO J C, ZHUN J. Effects of electrical contact failure on high speed digital signal transmission[C]// 2008 Proceedings of the 54th IEEE Holm Conference on Electrical Contacts, 2008:41-46.
[15]	任万滨, 武剑, 陈宇, 等. 电触点材料接触电阻高精密测量技术[J]. 电工技术学报, 2014, 29(1):31-36.
[16]	SWINGLER J, MCBRIDE J W. Fretting corrosion and the reliability of multicontact connector terminals[J]. IEEE Transactions on Components and Packaging Technologies, 2002, 25(4):670-676.
[17]	POMPANON F, LAPORTE J, FOUVRY S, et al. Normal force and displacement amplitude influences on silver-plated electrical contacts subjected to fretting wear:a basic friction energy contact compliance formulation[J]. Wear, 2019(426/427):652-661.
[18]	REN W B, DU Y W, CUI L, et al. Research on fretting regimes of gold-plated copper alloy electrical contact material under different vibration amplitude and frequency combinations[J]. Wear, 2014(321):70-78.
[19]	ROTACH M W. Turbulence close to a rough urban surface part I:reynolds stress[J]. Boundary-Layer Meteorology, 1993, 65(1):1-28.
[20]	王世娇, 陈文华, 钱萍, 等. 航天电连接器的可靠性设计建模[J]. 机械工程学报, 2017, 53(10):180-186. doi: 10.3901/JME.2017.10.180

零件	材料	密度/(kg·m^-3)	弹性模量/GPa	泊松比
外壳	2A12	2 800	68.0	0.33
螺套	不锈钢	7 900	200.0	0.30
基座	LCP	1 610	17.6	0.41
撑簧圈	C17200	8 250	134.0	0.30
接触件	QSn4-3	8 800	121.6	0.30

插孔	分离力/N		减小比例/%
插孔	振动前	振动后	减小比例/%
插孔1	1.6	1.1	31.25
插孔2	2.1	1.6	23.81
插孔3	1.7	1.2	29.41
插孔4	1.9	1.2	36.84
插孔5	2.0	1.4	30.00
插孔6	1.8	1.2	33.33
插孔7	2.1	1.5	28.57
插孔8	1.7	1.1	35.29

编号	分离力/N	线缆质量/g	编号	分离力/N	线缆质量/g
1	1.2	0.2	9	2.1	0.5
2	1.5	0.2	10	2.5	0.5
3	1.8	0.2	11	1.2	1.0
4	2.1	0.2	12	1.5	1.0
5	2.5	0.2	13	1.8	1.0
6	1.2	0.5	14	2.1	1.0
7	1.5	0.5	15	2.5	1.0
8	1.8	0.5	—	—	—
