双有源桥DC-DC变换器回流功率优化策略研究

doi:10.16628/j.cnki.2095-8188.2023.10.003

摘要/Abstract

摘要：

针对双有源桥DC-DC变换器在功率传输过程中回流功率过大的问题,基于双重移相控制,提出一种分段优化控制策略对回流功率进行优化。通过定义功率分段点,对输出功率进行分段。当输出功率低于功率分段点时,电路实现零回流功率运行;当输出功率高于功率分段点时,电路实现最小回流功率运行。最后,搭建了1台250 W的实验样机。实验结果表明,与传统移相控制方式相比,分段优化控制策略能有效减少双有源桥DC-DC变换器的回流功率,提高电路工作效率。

关键词: 双有源桥DC-DC变换器, 回流功率, 双重移相控制, 分段优化

Abstract:

Aiming at the value of the backflow power of dual-active-bridge DC-DC converter is too large during power transmission, based on the dual-phase-shift control, the segmented optimization control strategy is proposed to optimize the backflow power. In the control strategy, the whole output power is divided by defining the power segmentation point. When the output power is lower than the power segmentation point, zero backflow power operation is realized.When the output power is higher than the power segmentation point, the minimum backflow power operation is realized. Finally, a 250 W experimental prototype is built. The experimental results show that compared with the traditional phase shift control method, the segmented optimization control strategy can effectively reduce the backflow power of the dual-active-bridge DC-DC converter and improve the efficiency of the circuit.

Key words: dual-active-bridge DC-DC converter, backflow power, dual-phase-shift control, segmented optimization

中图分类号:

TM46

康志伟, 徐玉珍. 双有源桥DC-DC变换器回流功率优化策略研究[J]. 电器与能效管理技术, 2023, 0(10): 14-20.

KANG Zhiwei, XU Yuzhen. Research on Backflow Power Optimization Strategy for Dual-Active-Bridge DC-DC Converter[J]. LOW VOLTAGE APPARATUS, 2023, 0(10): 14-20.

图/表 14

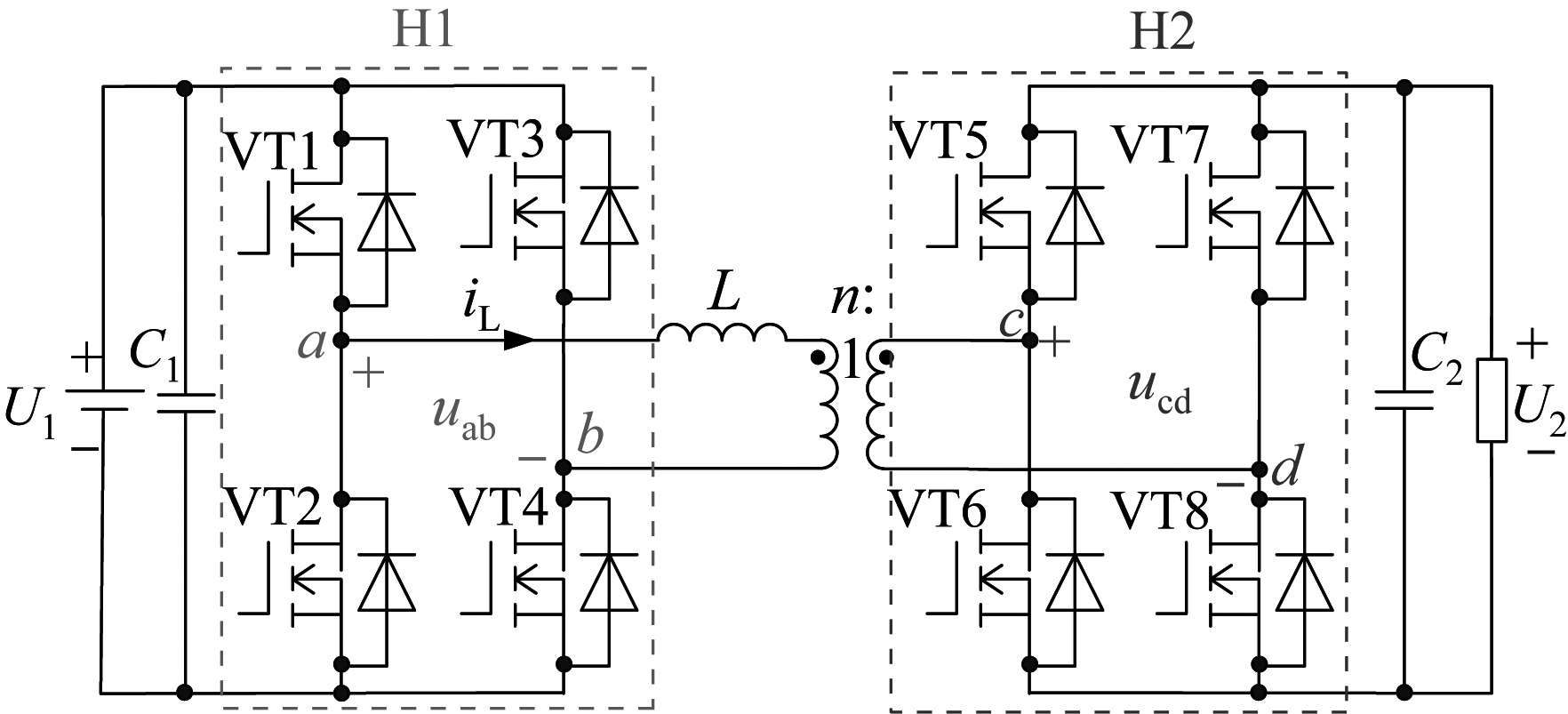

图1

图2

图3

图4

图5

图6

图7

图8

图9

表1

图10

图11

图12

图13

参考文献 20

[1]	ROLAK M, SOBOL C, MALINOWSKI M, et al. Efficiency optimization of two dual active bridge converters operating in parallel[J]. IEEE Transactions on Power Electronics, 2020, 35(6):6523-6532. doi: 10.1109/TPEL.63
[2]	赵彪, 安峰, 宋强, 等. 双有源桥式直流变压器发展与应用[J]. 中国电机工程学报, 2021, 41(1): 288-298,418.
[3]	杨涛, 刘君, 曾华荣, 等. 一种适用于10kV配电网的混合式电力电子变压器仿真研究[J]. 电器与能效管理技术, 2017(22):22-29,49.
[4]	丁纪明, 段浩伟. 交直流配电网关键设备可靠性评估研究[J]. 电器与能效管理技术, 2020(1):51-57,77.
[5]	杨向真, 孔令浩, 杜燕, 等. 基于动态矩阵控制的DAB变换器电流应力与回流功率优化方法[J]. 电力系统自动化, 2021, 45(17):153-160.
[6]	蔡逢煌, 石安邦, 江加辉, 等. 结合电流应力优化与虚拟电压补偿的双有源桥DC-DC变换器三重移相优化控制[J]. 电工技术学报, 2022, 37(10):2559-2571.
[7]	KWON O, KIM K S, KWON B H. Highly efficient single-stage DAB microinverter using a novel modulation strategy to minimize reactive power[J]. IEEE Journal of Emerging and Selected Topics in Power Electronics, 2022, 10(1):544-552. doi: 10.1109/JESTPE.2021.3090097
[8]	TAN N M L, ABE T, AKAGI H. Design and performance of a bidirectional isolated DC-DC converter for a battery energy storage system[J]. IEEE Transactions on Power Electronics, 2012, 27(3):1237-1248. doi: 10.1109/TPEL.2011.2108317
[9]	韩文辉. 用于直流配电网的双有源桥直流偏置抑制研究[J]. 电器与能效管理技术, 2021(9):91-99.
[10]	罗敏, 梁晖. LC串联谐振型双向DC/DC变换器研究[J]. 电器与能效管理技术, 2020(2):30-40,46.
[11]	SONG W, HOU N, WU M. Virtual direct power control scheme of dual active bridge DC-DC converters for fast dynamic response[J]. IEEE Transactions on Power Electronics, 2018, 33(2):1750-1759. doi: 10.1109/TPEL.2017.2682982
[12]	赵彪, 于庆广, 孙伟欣. 双重移相控制的双向全桥DC-DC变换器及其功率回流特性分析[J]. 中国电机工程学报, 2012, 32(12):43-50.
[13]	ZHAO B, YU Q, SUN W. Extended-phase-shift control of isolated bidirectional DC-DC converter for power distribution in microgrid[J]. IEEE Transactions on Power Electronics, 2012, 27(11):4667-4680. doi: 10.1109/TPEL.2011.2180928
[14]	HOU N, Li Y. Overview and comparison of modulation and control strategies for a nonresonant single-phase dual-active-bridge DC-DC converter[J]. IEEE Transactions on Power Electronics, 2020, 35(3):3148-3172. doi: 10.1109/TPEL.63
[15]	ZHAO B, SONG Q, LIU W. Power characterization of isolated bidirectional dual-active-bridge DC-DC converter with dual-phase-shift control[J]. IEEE Transactions on Power Electronics, 2012, 27(9):4172-4176. doi: 10.1109/TPEL.2012.2189586
[16]	汪雄, 刘宏勋, 唐言宾. 基于优化回流功率的双重移相控制研究[J]. 电器与能效管理技术, 2017(6):67-70.
[17]	张勋, 王广柱, 商秀娟, 等. 双向全桥DC-DC变换器回流功率优化的双重移相控制[J]. 中国电机工程学报, 2016, 36(4):1090-1097.
[18]	刘赫, 路鑫, 高圣伟, 等. 双有源桥DC-DC变换器的回流功率优化控制[J]. 电源技术, 2020, 44(2):277-280,294.
[19]	王金浩, 宋述勇, 李瑞, 等. 双向全桥DC/DC变换器电流应力和回流功率优化[J]. 电力电子技术, 2022, 56(6):120-122,133.
[20]	李彦君, 张兴, 赵文广, 等. 基于拓展移相调制的双有源桥回流功率优化策略[J]. 太阳能学报, 2022, 43(3):216-222. doi: 10.19912/j.0254-0096.tynxb.2020-0546

参数	取值
输入电压U₁/V	100
额定输出电压U₂/V	100
储能电感L /μH	103
一次侧、二次侧支撑电容C₁、C₂/μF	470
工作频率f/kHz	50
