MC-WPT系统能量与信号并行传输技术研究

doi:10.16628/j.cnki.2095-8188.2022.02.005

电器与能效管理技术 ›› 2022, Vol. 0 ›› Issue (2): 27-33.doi: 10.16628/j.cnki.2095-8188.2022.02.005

MC-WPT系统能量与信号并行传输技术研究

殷勇¹, 王成亮², 肖宇华¹, 高源³

1.国网江苏省电力有限公司, 江苏南京 210000
2.江苏方天电力技术有限公司, 江苏南京 210000
3.重庆大学自动化学院, 重庆 400044

收稿日期:2021-10-14 出版日期:2022-02-28 发布日期:2022-03-31
作者简介:殷勇(1971—),男,高级工程师,博士,主要从事高电压技术、无线电能传输技术的研究。|王成亮(1981—),男,高级工程师,博士,主要从事高电压、智能配电、无线电能传输、能源互联网技术研究。|肖宇华(1984—),男,高级工程师,主要从事无线电能传输技术、电气工程研究。

Research on Parallel Transfer Technology of Power and Signal in MC-WPT System

YIN Yong¹, WANG Chengliang², XIAO Yuhua¹, GAO Yuan³

1. State Grid Jiangsu Electric Power Co.,Ltd.,Nanjing 210000,China
2. Jiangsu Fangtian Electric Power Technology Co.,Ltd.,Nanjing 210000,China
3. School of Automation,Chongqing University,Chongqing 400044,China

Received:2021-10-14 Online:2022-02-28 Published:2022-03-31

摘要/Abstract

摘要：

随着无线电能传输技术的发展成熟,其应用范围不断扩大。为了提升系统的鲁棒性,实现高性能的电能传输以及信号传输,越来越多的应用场合要求实现通信功能。系统基于磁耦合谐振无线电能传输技术,针对具体相关的应用场景,设计了能量信号并行传输系统的框架。能量传输补偿拓扑选择LCC-S型结构,并在传统的双线圈能量传输耦合机构中加入了一对特殊线圈作为通信信道,实现了能量信号的并行传输,并从仿真和实验的角度验证了所设计系统的可行性。

关键词: 无线电能传输, 磁耦合谐振, LCC-S型拓扑, 能量信号并行传输

Abstract:

With the development of wireless power transfer technology,its application range is expanding.In order to improve the robustness of the system,to realize high-performance power transfer and signal transfer,more and more applications require the realization of communication function.Based on the technology of magnetically coupled wireless power transfer,the framework of power signal parallel transmission system is designed according to the specific application scenarios.LCC-S structure is selected for power transfer compensation topology.A pair of special coils are added to the traditional power transfer coupling mechanism as communication channel to realize the parallel transfer of power and signal.The feasibility of the system is verified from the point of simulation and experiment.

Key words: wireless power transfer, magnetic coupling resonance, LCC-S resonance compensation topology, power and signal parallel transfer

中图分类号:

TM724

殷勇, 王成亮, 肖宇华, 高源. MC-WPT系统能量与信号并行传输技术研究[J]. 电器与能效管理技术, 2022, 0(2): 27-33.

YIN Yong, WANG Chengliang, XIAO Yuhua, GAO Yuan. Research on Parallel Transfer Technology of Power and Signal in MC-WPT System[J]. LOW VOLTAGE APPARATUS, 2022, 0(2): 27-33.

图/表 14

图1

图2

图3

图4

图5

表1

图6

图7

表2

图8

图9

图10

图11

图12

参考文献 14

[1]	周驰, 潘越, 朱敏辉. 磁耦合谐振式无线能量传输技术效率分析[J]. 浙江电力, 2020, 39(2):28-35.
[2]	WEI Z, MI C C. Compensation topologies of high-power wireless power transfer systems[J]. IEEE Transactions on Vehicular Technology, 2016, 65(6):4768-4778. doi: 10.1109/TVT.2015.2454292
[3]	郑益田, 郑宗华, 陈庆彬. 基于开关器件的非线性宇称时间对称无线电能传输系统[J]. 电器与能效管理技术, 2020(4):62-66.
[4]	亢凯, 侯信宇, 左志平, 等. 多中继模式无线电能传输系统建模与传输效率分析[J]. 电器与能效管理技术, 2019(17):50-55.
[5]	ZHANGR, HO CK. MIMO broadcasting for simultaneous wireless information and power transfer[J]. IEEE Transactions on Wireless Communications, 2013, 12(5):1989-2001. doi: 10.1109/TWC.2013.031813.120224
[6]	CHOI K W, HWANG S I, AZIZ A A, et al. Simultaneous wireless information and power transfer (SWIPT) for Internet of things:Novel receiver design and experimental validation[J]. IEEE Internet of Things Journal, 2020, 7(4):2996-3012. doi: 10.1109/JIoT.6488907
[7]	LIU X, ZHANG X Y, JIA M, et al. 5G-based green broadband communication system design with simultaneous wireless information and power transfer[J]. Physical Communication, 2018, 28:130-137. doi: 10.1016/j.phycom.2018.03.015
[8]	SUN Y S, LI Y G, WU J, et al. Bidirectional simultaneous wireless information and power transfer via sharing inductive link and single switch in the secondary side[J]. IEEE Access, 2020, 8:184187-184198. doi: 10.1109/Access.6287639
[9]	KIM J, WEI G, KIM M, et al. A wireless power and information simultaneous transfer technology based on 2FSK modulation using the dual bands of series-parallel combined resonant circuit[J]. IEEE Transactions on Power Electronics, 2019, 34(3):2956-2965. doi: 10.1109/TPEL.2018.2847044
[10]	GUO P, YUAN R, CHEN Y, et al. High-bandwidth-utilization wireless power and information transmission based on DDPSK modulation[J]. IEEE Access, 2019, 7:85560-85572. doi: 10.1109/Access.6287639
[11]	SATO F, NOMOTO T, KANO G, et al. A new contactless power-signal transmission device for implanted functional electrical stimulation (FES)[J]. IEEE Transactions on Magnetics, 2004, 40(4):2964-2966. doi: 10.1109/TMAG.2004.830416
[12]	HUANG C C, LIN C L, WU Y K. Simultaneous wireless power/data transfer for electric vehicle charging[J]. IEEE Transactions on Industrial Electronics, 2017, 64(1):682-690. doi: 10.1109/TIE.2016.2608765
[13]	SHYU K K, JWO K W, CHEN Z Y, et al. Inductive power supply system with fast full-duplex information rate device[C]// The International Conference on Computer as a Tool, 2007:1382-1386.
[14]	HIRAI J, KIM T W, KAWAMURA A. Practical study on wireless transmission of power and information for autonomous decentralized manufacturing system[J]. IEEE Transactions on Industrial Electronics, 1999, 46(2):349-359. doi: 10.1109/41.753774

参数	数值
参数	一次侧	二次侧

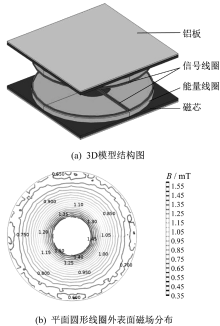

线圈总匝数/匝	28	28
线圈层数/层	2	2
导体直径/mm	2.56	2.56
线圈外径/mm	100	100
线圈内径/mm	33	33
磁芯尺寸/ (mm×mm×mm)	100×100×2	100×100×2
铝板尺寸/ (mm×mm×mm)	100×100×2	100×100×2

参数	数值
逆变器开关频率f_sw/kHz	150
一次侧能量线圈电感L_p/μH	81.26
二次侧能量线圈电感L_s/μH	81.26
能量线圈互感M/μH	36.63
补偿电感L_f/μH	41.70
补偿电容C_f/nF	26.99
补偿电容C_p/nF	28.45
补偿电容C_s/nF	13.85
二次侧等效负载R_e/Ω	34.6
一次侧数据传输频率f_siga/MHz	0.5
二次侧数据传输频率f_sigb/MHz	0.5
一次侧信号载波频率f_sa/MHz	9
二次侧信号载波频率f_sb/MHz	5
一次侧信号驱动电流I_siga/A	1/9
二次侧信号驱动电流I_sigb/A	1/5
直流母线电压U_dc/V	110
