固体绝缘材料内部气隙中表面残余电荷对局部放电起始位置的影响

doi:10.16628/j.cnki.2095-8188.2020.12.002

电器与能效管理技术 ›› 2020, Vol. 0 ›› Issue (12): 7-13.doi: 10.16628/j.cnki.2095-8188.2020.12.002

固体绝缘材料内部气隙中表面残余电荷对局部放电起始位置的影响

何平¹, 何若冰¹, 陈佳², 杨旭², 周思远³

1.广东电网有限责任公司阳江供电局,广东阳江 529500
2.国网电力科学研究院武汉南瑞有限责任公司,湖北武汉 430074
3.武汉大学电气与自动化学院,湖北武汉 430072

收稿日期:2020-10-09 出版日期:2020-12-30 发布日期:2021-01-05
作者简介:何平(1980—),男,高级工程师,主要从事输电线路运行与维护。|何若冰(1986—),男,高级工程师,主要从事输电线路运行维护、输电设备工程建设工作。|陈佳(1989—),男,工程师,主要从事输变电设备状态分析与评价工作。
基金资助:
* 广东电网有限责任公司科技项目资助(031700KK52170017)

Influence of Surface Residual Charges on PD Inception Location within Cavity Embedded in Solid Dielectrics

HE Ping¹, HE Ruobing¹, CHEN Jia², YANG Xu², ZHOU Siyuan³

1. Yangjiang Power Supply Bureau of Guangdong Grid Co.,Ltd.,Yangjiang 529500,China
2. State Grid Power Research Institute,Wuhan NARI Company,Wuhan 430074,China
3. School of Electrical Engineering and Autoination,Wuhan University,Wuhan 430072,China

Received:2020-10-09 Online:2020-12-30 Published:2021-01-05

摘要/Abstract

摘要：

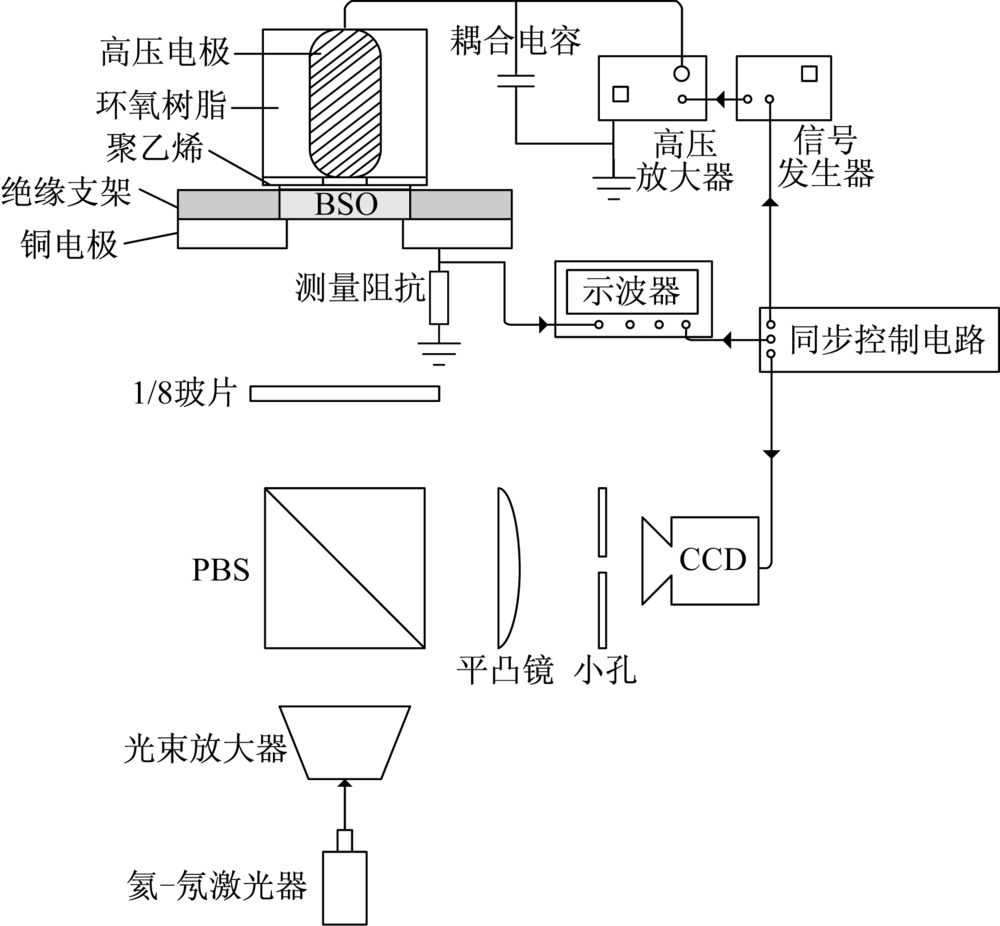

为了弄清局部放电产生的表面残余电荷对放电特性的影响,搭建了表面电荷-局部放电联合测试系统,研究了气隙在电极表面和介质内部两种情况下,局部放电序列中放电位置的变化。随着电压周期增大,电压极性反转前后异极性放电位置重合率不断减小。在某一电压周期下,绝缘内部气隙中的异极性放电位置重合率始终比电极表面气隙中的高。电极表面气隙中前半周期有负电荷积累的异极性放电位置重合率要高于在前半周期有正电荷积累的情形,而绝缘内部气隙中这两种情形下的异极性放电位置重合率近似相等。研究表明残余电荷会从改变电场和提供自由电子两方面对局部放电起始位置产生影响。

关键词: 局部放电, 表面电荷, 放电位置, 气隙, 固体电介质

Abstract:

In order to clarify the effect of surface residual charge caused by partial discharge(PD) on the discharge characteristics,a surface charge-PD joint test system is utilized to focus on the variation of the discharge position in the PD sequence of the air gap on the electrode surface and inside the medium.As the voltage period increases,the coincidence rate of the opposite polarity discharges positions before/after the voltage polarity reversal decreases continuously.Under the same voltage period,the coincidence rate of the positions of the opposite polarity discharges in the air gap inside the insulation is always higher than in the air gap on the electrode surface.The coincidence rate of opposite-polarity discharge positions with negative charge accumulation in the first half period of the electrode surface air gap is higher than in the case of positive charge accumulation during the first half period,and the opposite-polarity discharge position coincidence rate in the two cases in the internal air gap in the insulation are approximately equal.It is shown that the residual charge has an effect on the initial position of partial discharge from changing the electric field and providing free electrons.

Key words: partial discharge, surface charge, discharge position, air gap, solid dielectric

中图分类号:

TM855

何平, 何若冰, 陈佳, 杨旭, 周思远. 固体绝缘材料内部气隙中表面残余电荷对局部放电起始位置的影响[J]. 电器与能效管理技术, 2020, 0(12): 7-13.

HE Ping, HE Ruobing, CHEN Jia, YANG Xu, ZHOU Siyuan. Influence of Surface Residual Charges on PD Inception Location within Cavity Embedded in Solid Dielectrics[J]. LOW VOLTAGE APPARATUS, 2020, 0(12): 7-13.

图/表 12

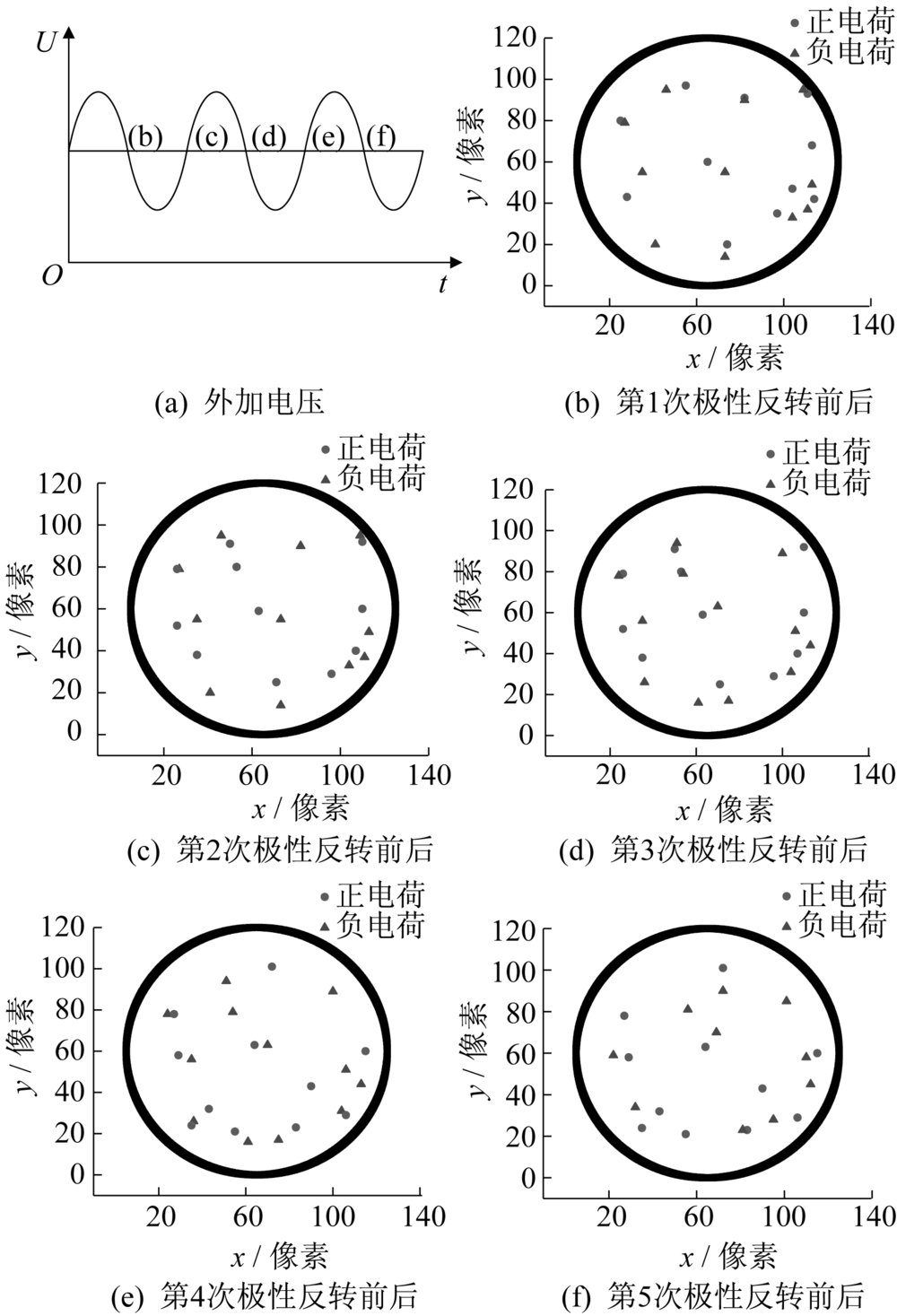

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

参考文献 20

[1]	朱军, 李冬, 李渝, 等. 超声波和TEV技术在配电网开关柜检测中的应用研究[J]. 电器与能效管理技术, 2016(19):27-30.
[2]	马婷婷, 杜伯书, 孔晓晓, 等. 开关柜绝缘状态检测与故障诊断[J]. 电器与能效管理技术, 2019(15):71-76.
[3]	布赫. 基于35 kV高压开关柜的综合局部放电检测技术[J]. 电器与能效管理技术, 2019(21):48-51,69.
[4]	VAN-BRUNT R J. Stochastic properties of partial-discharge phenomena[J]. IEEE Transactions on Electrical Insulation, 1991,26(5):902-948. doi: 10.1109/14.99099
[5]	FRUTH B, NIEMEYER L. The importance of statistical characteristics of partial discharge data[J]. IEEE Transactions on Electrical Insulation, 1992,27(1):60-69. doi: 10.1109/14.123441
[6]	VAN-BRUNT R J, CERNYAR E W. Influence of memory propagation on phase-resolved stochastic behavior of AC generated partial discharges[J]. Applied Physics Letters, 1991,58(23):2628-2630. doi: 10.1063/1.104815
[7]	VAN-BRUNT R J, CERNYAR E W. Importance of unraveling memory propagation effects in interpreting data on partial discharge statistics[J]. IEEE Transactions on Electrical Insulation, 1993,28(6):905-916. doi: 10.1109/14.249364
[8]	MANSOUR D E A, KOJIMA H, HAYAKAWA N. Surface charge accumulation and partial discharge activity for small gaps of electrode/epoxy interface in SF₆ gas[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2009,16(4):1150-1157. doi: 10.1109/TDEI.2009.5211869
[9]	FLORKOWSKA M, FLORKOWSKA B, WLODEK R. Investigations on post partial discharge charge decay in void using chopped sequence[J]. IEEE Transactions on Dielectrics and Electrical Insulation. 2017,24(6):3831-3838. doi: 10.1109/TDEI.2017.006625
[10]	聂一雄, 徐卫东, 周文文, 等. 12kV 固体绝缘开关柜中绝缘气隙缺陷的放电特征[J]. 电工技术学报, 2018,33(12):2894-2902.
[11]	陈伟根, 龙震泽, 谢波, 等. 不同气隙尺寸的油纸绝缘气隙放电特征及发展阶段识别[J]. 电工技术学报, 2016,31(10):49-58.
[12]	周洁睿, 任明, 黄文广, 等. 双指数和振荡操作冲击电压下SF₆气隙缺陷局部放电行为分析[J]. 高电压技术, 2019,45(12):3970-3977.
[13]	柯春俊, 潘成, 吴锴, 等. 人工气隙面积对局部放电特性的影响[J]. 西安交通大学学报, 2013,47(6):103-108.
[14]	卓然, 潘成, 吴锴. 电压周期变化时表面电荷衰减对局部放电特性的影响[J]. 高电压技术, 2017,43(1):238-245.
[15]	YURGELENAS Y V, WAGNER H E. A computational model of a barrier discharge in air at atmospheric pressure:the role of residual surface charges in microdischarge formation[J]. Journal of Physics D:Applied Physics, 2006,39(18):4031. doi: 10.1088/0022-3727/39/18/015
[16]	BOGACZYK M, WILD R, STOLLENWERK L, et al. Surface charge accumulation and discharge development in diffuse and filamentary barrier discharges operating in He,N₂ and mixtures[J]. Journal of Physics D Applied Physics, 2012,45(46):4833-4839.
[17]	AKISHEV Y, APONIN G, BALAKIREV A, et al. Memory and sustention of microdischarges in a steady-state DBD:volume plasma or surface charge[J]. Plasma Sources Science and Technology, 2011,20(2):024005. doi: 10.1088/0963-0252/20/2/024005
[18]	潘成. 局部放电序列中的表面电荷动态分布及其对放电特性的影响[D]. 西安:西安交通大学, 2014.
[19]	WU K, PAN C, MENG Y, et al. Dynamic behavior of surface charge distribution during partial discharge sequences[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2013,20(2):612-619.
[20]	PAN C, WU K, MENG Y, et al. The effect of discharge area variation on stochastic characters of PD magnitude[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2017,24(1):217-226. doi: 10.1109/TDEI.2016.005904
