Research on Key Technology of Uninterrupted Operation Load Without Power Outage in Low Voltage Transformer Area of Mobile Generator

doi:10.16628/j.cnki.2095-8188.2021.12.015

Abstract

Abstract:

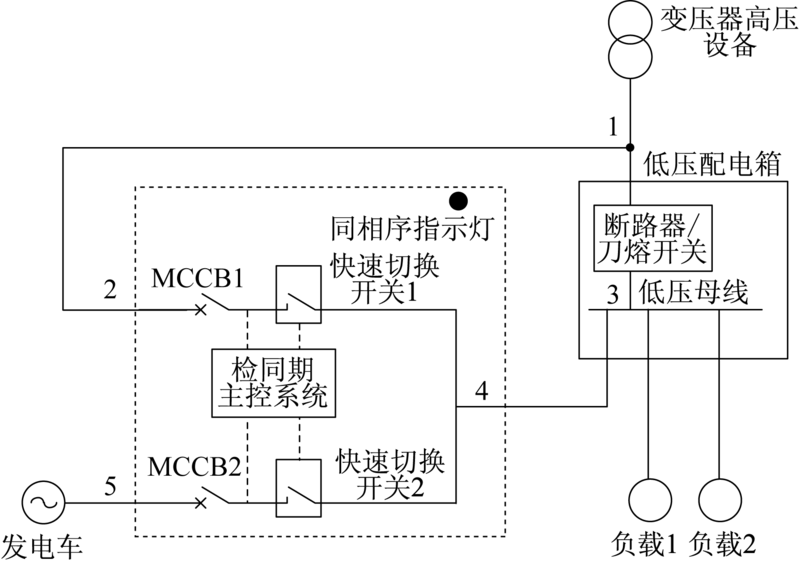

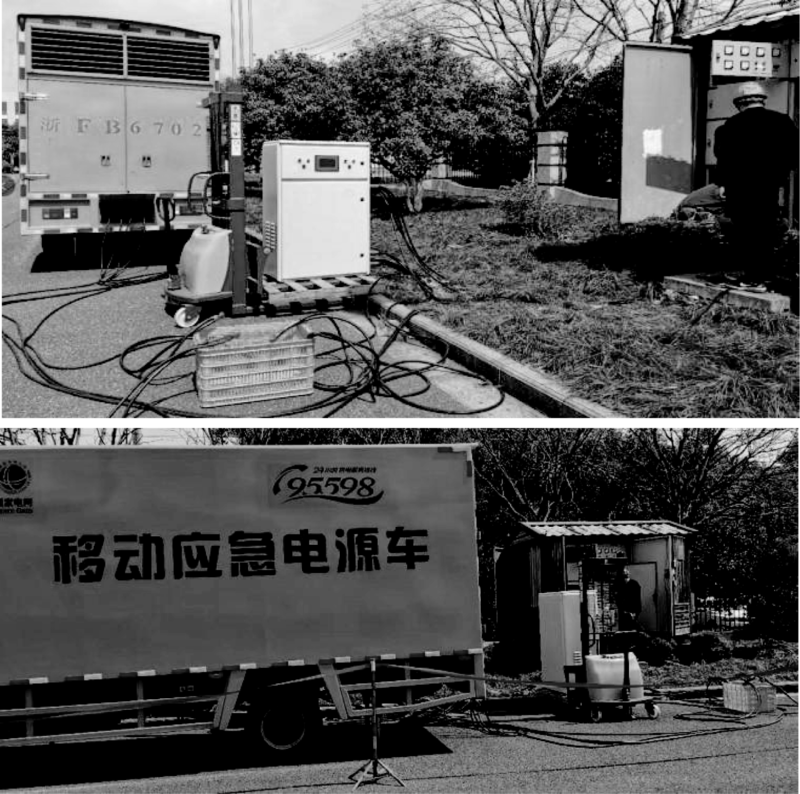

This paper describes the application status of 0.4 kV emergency power generator vehicle to ensure the power supply,the load outage and operational defects caused by the operation detection of distribution network are described in detail.A fast switching method of uninterrupted operation load without power outage in lowvoltage transformer area of mobile generator is proposed. It uses high response excitation driving technology of the change-over switch,and through the DSP high-speed sampling to predict the action time of grid connection conversion accurately.After the grid-connection,instantaneous detection at grid-connection time and instantaneous disassembly technology are used to ensure the load in the case of without power outage to achieve a smooth transition between the mains and generators.After the field operation test,it shows that this method is more efficient,safe and reliable for the operation and inspection of distribution network without power outage.

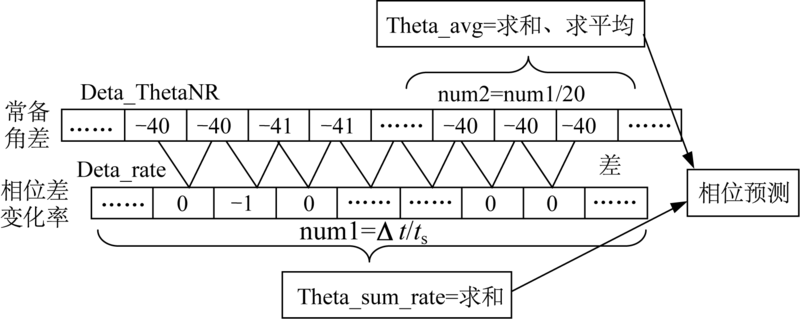

Key words: emergency generator, non-power outage operation, quasi-synchronous phase prediction, fast grid connection and disconnection

CLC Number:

TM732

CHEN Chao, DING Yimin, JIN Guozhong, WU Xiangyuan, BAO Weifeng, BAI Huadong. Research on Key Technology of Uninterrupted Operation Load Without Power Outage in Low Voltage Transformer Area of Mobile Generator[J]. LOW VOLTAGE APPARATUS, 2021, 0(12): 85-89.

Figures/Tables 8

References 8

[1]	范才勇, 徐浩, 杜雪, 等. 不停电作业的低压电源车并机并网系统设计[J]. 自动化与仪表, 2020, 35(4):6-10.
[2]	周洁, 许解, 王永平. 应急发电车的配置与管理[J]. 电力需求侧管理, 2014, 16(5):55-58.
[3]	许伟, 徐科军, 杨双龙, 等. 一种降低高低压电源切换励磁电路功耗的方案[J]. 自动化仪表, 2015, 36(8):85-88.
[4]	许国凯, 杨晓翔, 刘江. 使用应急发电车短时停电更换杆上配变作业解析[J]. 电子制作, 2014(16):240-241.
[5]	简美加, 楼伟国, 马雪伟, 等. 双电源开关电源接入装置研究综述[J]. 电器与能效管理技术, 2020(1):36-39.
[6]	黄纯, 何怡刚, 江亚群. 一种新的自动准同期并列算法的研究[J]. 中国电机工程学报, 2005, 25(3):60-64.
[7]	王浩, 王杰峰, 任军辉, 等. 无源型直流转换开关在金属回线柔直电网中的应用分析[J]. 高压电器, 2020, 56(8):243-249,255.
[8]	柏华东, 李月军, 陈佳成, 等. 基于逆变原理的混合式快速转换开关设计与研究[J]. 电器与能效管理技术, 2019(21):42-47.
