Research on Node Site Selection and Capacity Configuration Technology of Clustered Energy Storage Power Station

doi:10.16628/j.cnki.2095-8188.2021.06.005

Abstract

Abstract:

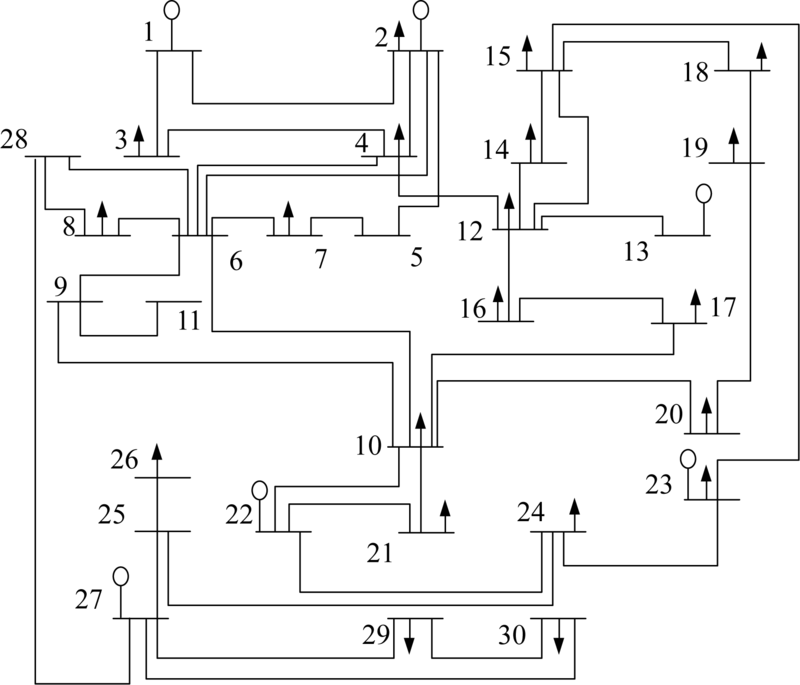

In order to solve the problem of capacity and location planning of cluster energy storage power stations in wind power grid connected power system,this paper proposes a method of node location and capacity allocation of cluster energy storage power stations.Firstly,according to the distribution coefficient of power transmission,the influence mechanism of zoning capacity distribution and active frequency regulation capacity of energy storage power station is analyzed and demonstrated,and the ideas of constant capacity and location of energy storage power station are proposed.Secondly,considering the similarity of system power sensitivity,active power frequency modulation and energy storage investment comprehensively,the system is divided by the sensitivity of system power disturbance,and the integrated planning model of constant capacity-site selection of cluster energy storage power stations is built with the objective of minimizing the active power proportion and the annual investment cost of power station and energy storage power station.Finally,a 30-node network in Matpower tool is taken as an example to verify the effectiveness and feasibility of the proposed method.

Key words: cluster energy storage power station, fixed capacity site selection, PTDF, zoning capacity distribution, active frequency regulation capacity

CLC Number:

TM732

GU Suping, LU Mingyue, WU Haitao, LI Lin. Research on Node Site Selection and Capacity Configuration Technology of Clustered Energy Storage Power Station[J]. LOW VOLTAGE APPARATUS, 2021, 0(6): 30-35.

Figures/Tables 6

References 14

[1]	娄素华, 杨天蒙, 吴耀武, 等. 含高渗透率风电的电力系统复合储能协调优化运行[J]. 电力系统自动化, 2016, 40(7):30-35.
[2]	刘吉臻. 大规模新能源电力安全高效利用基础问题[J]. 中国电机工程学报, 2013, 33(16):1-8.
[3]	牛萌, 靳文涛, 艾小猛, 等. 大规模储能减小弃风的规划配置研究[J]. 电器与能效管理技术, 2018(14):69-78.
[4]	高越. 锂离子电池特性及其在小型风电系统储能上的应用研究[D]. 石家庄:河北科技大学, 2017.
[5]	徐小三, 张明. 含蓄电池储能的永磁直驱风力发电系统并网研究[J]. 电气自动化, 2015, 37(3):45-47.
[6]	任宏宇, 康积涛, 钱琳. 多机电力系统中储能装置的选址方法对比分析[J]. 分布式能源, 2019, 4(2):23-29.
[7]	李建林, 郭斌琪, 牛萌, 等. 风光储系统储能容量优化配置策略[J]. 电工技术学报, 2018, 33(6):1189-1196.
[8]	丁倩. 考虑可再生能源不确定性的储能选址定容规划方法研究[D]. 杭州:杭州电子科技大学, 2020.
[9]	王彦虹. 风储联合系统中储能选址定容及控制策略研究[D]. 上海:上海交通大学, 2017.
[10]	丁倩, 曾平良, 孙轶恺, 等. 一种考虑可再生能源不确定性的分布式储能电站选址定容规划方法[J]. 储能科学与技术, 2020, 9(1):162-169.
[11]	胡强晖, 郑铁军, 杜严行. 风电并网对电力系统稳定性影响的探讨[J]. 经济管理(全文版), 2016(5):132.
[12]	陈召阳, 吕飞鹏. 考虑运行方式的电网关键线路辨识[J]. 电力系统及其自动化学报, 2014, 26(11):32-36.
[13]	石屹巍. 功率灵敏度计算在输电权交易中的应用[J]. 黑龙江电力, 2016, 38(3):226-229.
[14]	林涌艺, 邵振国, 张嫣, 等. 基于多测点正序电压相关性与典型模式匹配寻优的电压暂降源定位[J]. 电工技术学报, 2017, 32(17):35-46.

分区	节点	配容结果/MW
一区	6	0.50
一区	28	2.08
二区	16	0.61
	17	0.50
	19	0.51
	20	0.93
	21	0.50
	22	1.46
	23	0.50
三区	29	3.14
三区	30	3.04
