Research on Power Supply Capability Margin of Distribution Network Considering DG and Diversified Loads

doi:10.16628/j.cnki.2095-8188.2021.06.017

Abstract

Abstract:

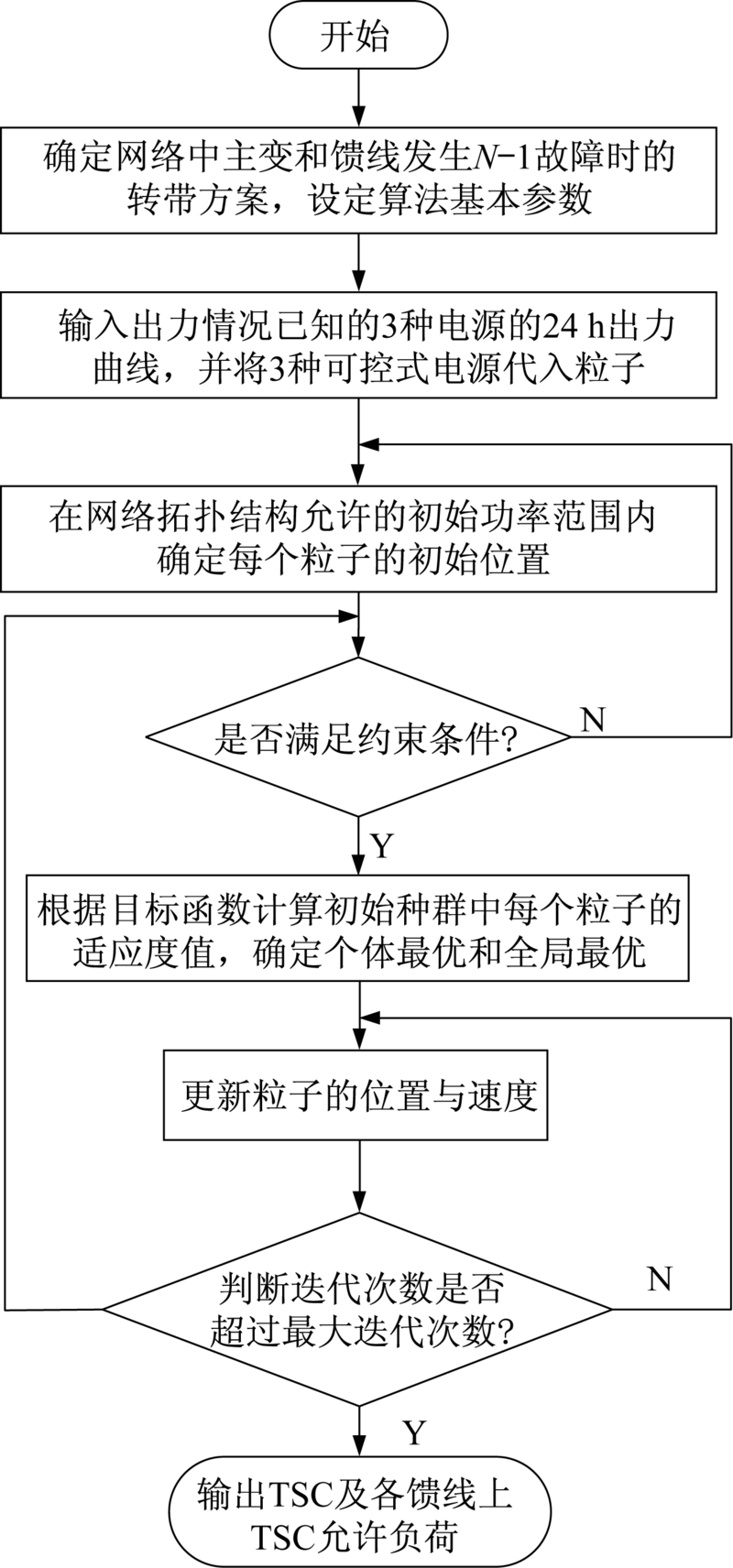

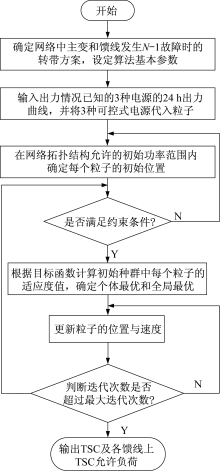

In order to solve the impact of distributed power sources such as photovoltaic power generation and hydroelectric power generation,as well as diversified loads such as electric vehicles and energy storage components on their power supply capacity and margin after they are connected to the distribution network,firstly,the maximum power supply capacity and margin model of the distribution network is established,and its objective function and constraint conditions are defined.Then,based on the influence of distributed power supply and diversified load on the power supply capacity of the distribution network,the maximum power supply capacity and margin model of the distribution network considering distributed power supply and diversified load is established.Finally,the simplified particle swarm optimization algorithm is used to carry out the calculation.Through a practical distribution network application,it is proved that the algorithm can provide a good reference for distributed power supply and diversified load access network,has the optimization and effectiveness,and lays a solid foundation for the promotion of low-carbon and green power grid work.

Key words: distribution network, power supply capacity, margin, distributed generation(DG), diversified load

CLC Number:

TM732

XU Haidong, HUANG Ming. Research on Power Supply Capability Margin of Distribution Network Considering DG and Diversified Loads[J]. LOW VOLTAGE APPARATUS, 2021, 0(6): 99-105.

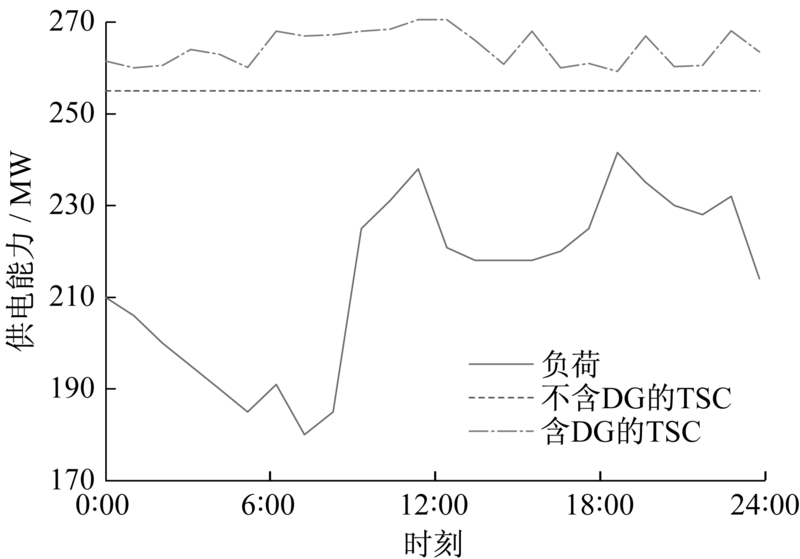

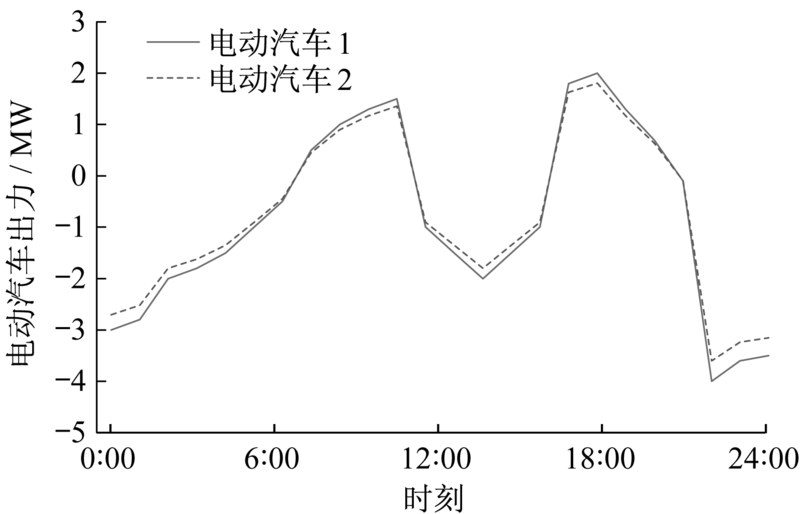

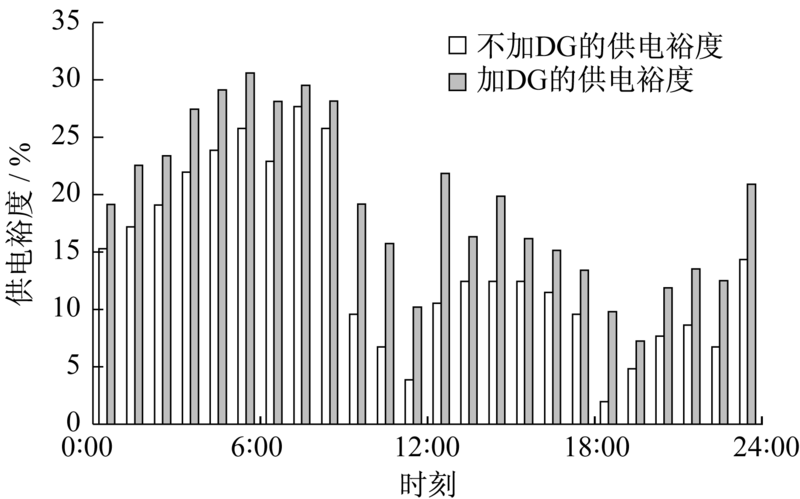

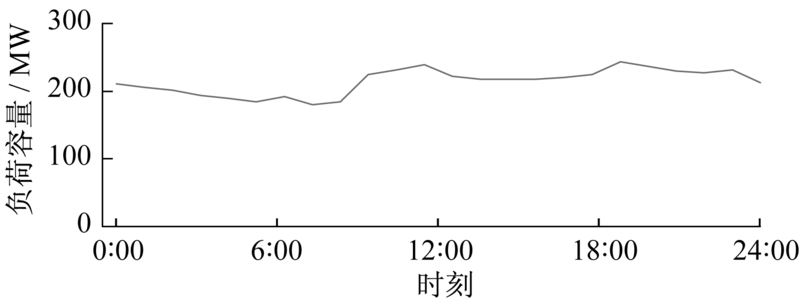

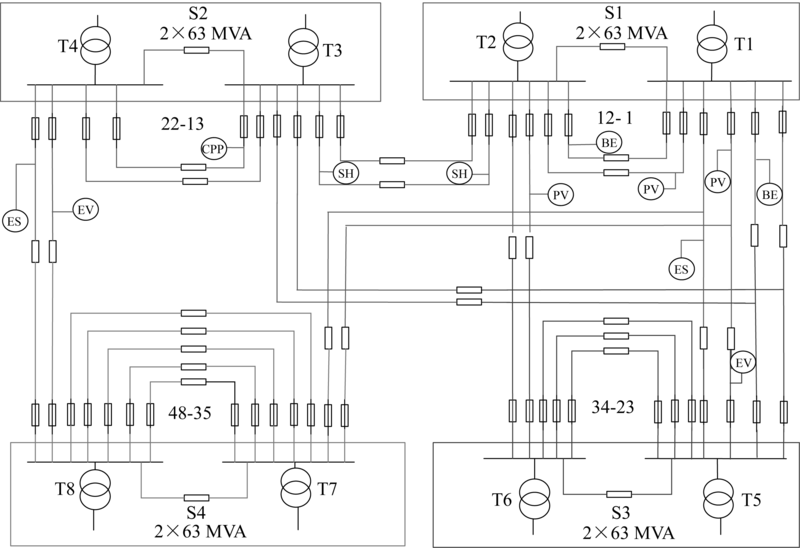

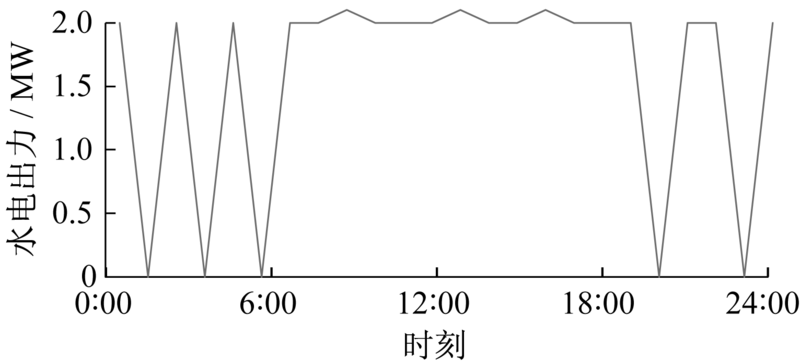

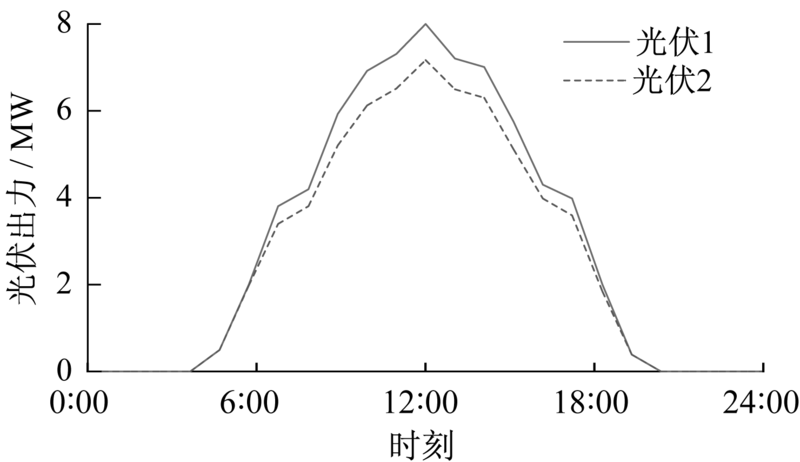

Figures/Tables 10

References 15

[1]	杨刚. DG对配电网馈线供电能力的影响及其在配电网规划中的优化配置[D]. 广州:华南理工大学, 2019.
[2]	武生国. 考虑负荷不确定性的配电网供电能力适应性分析方法[D]. 北京:华北电力大学, 2015.
[3]	郭寅昌. 基于配电网安全性分析的供电能力计算方法研究[D]. 天津:天津大学, 2016.
[4]	朱嘉麟. 基于重构技术的配网最大供电能力评估方法[D]. 杭州:浙江大学, 2020.
[5]	YAN F, CHEN X Y, TANG W S, et al. Reliability and power supply capability evaluation of active distribution networks with four-terminal soft open points[J]. IET Smart Grid, 2020, 3(5):657-666. doi: 10.1049/stg2.v3.5
[6]	袁傲, 何平, 王科丁, 等. 基于层次分析法的配电网综合评价体系研究[J]. 电器与能效管理技术, 2019(24):75-78.
[7]	雷显荣. 配电系统综合供电能力分析研究[D]. 天津:天津大学, 2015.
[8]	CHENG M, LUO Q D, CUI Z W. Research on total supply capability of distribution network based on power product service system[J]. Procedia CIRP, 2019, 83:434-439. doi: 10.1016/j.procir.2019.04.137
[9]	高亚静, 朱静, 程华新, 等. 计及不确定性因素基于多场景的主动配电网系统短期供电能力评估[J]. 中国电机工程学报, 2016, 36(22):6076-6085.
[10]	XIAO J, ZHANG M M, BAI L Q, et al. Boundary supply capability for distribution systems:Concept,indices and calculation[J]. IET Generation Transmission & Distribution 2018, 12(2):499-506. doi: 10.1049/gtd2.v12.2
[11]	侯四维, 许建军. 考虑可再生能源并网的配电网规划技术[J]. 电器与能效管理技术, 2018(5):69-72.
[12]	杨刚, 管霖, 林凌雪, 等. 分布式电源并网对配网馈线供电能力的影响分析[J]. 电力系统及其自动化学报, 2020(1):13-18.
[13]	李楠, 顾洁, 刘波, 等. 基于改进粒子群算法的多能互补微电网系统优化配置与运行策略研究[J]. 电器与能效管理技术, 2017(18):23-31.
[14]	LIU H R, CUI J C, LU Z D, et al. A hierarchical simple particle swarm optimization with mean dimensional information[J]. Applied Soft Computing Journal, 2019, 76:712-725. doi: 10.1016/j.asoc.2019.01.004
[15]	宁云发, 刘漫丹. 基于改进简化粒子群算法的活性污泥过程建模[J]. 计算机工程与设计, 2019(3):232-238.

时刻	生物质能1 /MW	生物质能2 /MW	时刻	生物质能1 /MW	生物质能2 /MW
1∶00	3.47	3.91	13∶00	4.62	5.43
2∶00	4.71	4.69	14∶00	4.28	2.81
3∶00	4.25	4.62	15∶00	3.78	4.38
4∶00	4.89	4.61	16∶00	5.27	4.88
5∶00	3.21	4.50	17∶00	4.17	5.80
6∶00	3.74	4.72	18∶00	4.65	3.52
7∶00	3.14	4.03	19∶00	5.47	5.14
8∶00	4.55	4.38	20∶00	4.54	2.82
9∶00	3.73	3.45	21∶00	4.77	4.82
10∶00	4.46	2.78	22∶00	4.01	5.09
11∶00	2.48	3.43	23∶00	4.36	4.08
12∶00	2.93	1.78	24∶00	4.42	4.58

时刻	自备电厂1 /MW	自备电厂2 /MW	时刻	自备电厂1 /MW	自备电厂2 /MW
1∶00	4.99	4.31	13∶00	3.82	3.63
2∶00	4.76	5.16	14∶00	6.57	6.18
3∶00	5.35	5.28	15∶00	4.25	5.82
4∶00	4.24	5.64	16∶00	4.71	5.10
5∶00	4.57	5.34	17∶00	5.46	5.29
6∶00	2.92	7.16	18∶00	4.50	5.41
7∶00	4.82	3.70	19∶00	4.05	5.28
8∶00	5.91	4.16	20∶00	5.30	8.19
9∶00	4.31	5.23	21∶00	6.12	5.89
10∶00	6.52	6.26	22∶00	4.22	4.58
11∶00	7.10	7.98	23∶00	5.52	5.45
12∶00	3.34	4.47	24∶00	6.54	5.40
