Optimization Design of Electromagnetic System of Hydraulic Electromagnetic Circuit Breaker

doi:10.16628/j.cnki.2095-8188.2021.05.008

Abstract

Abstract:

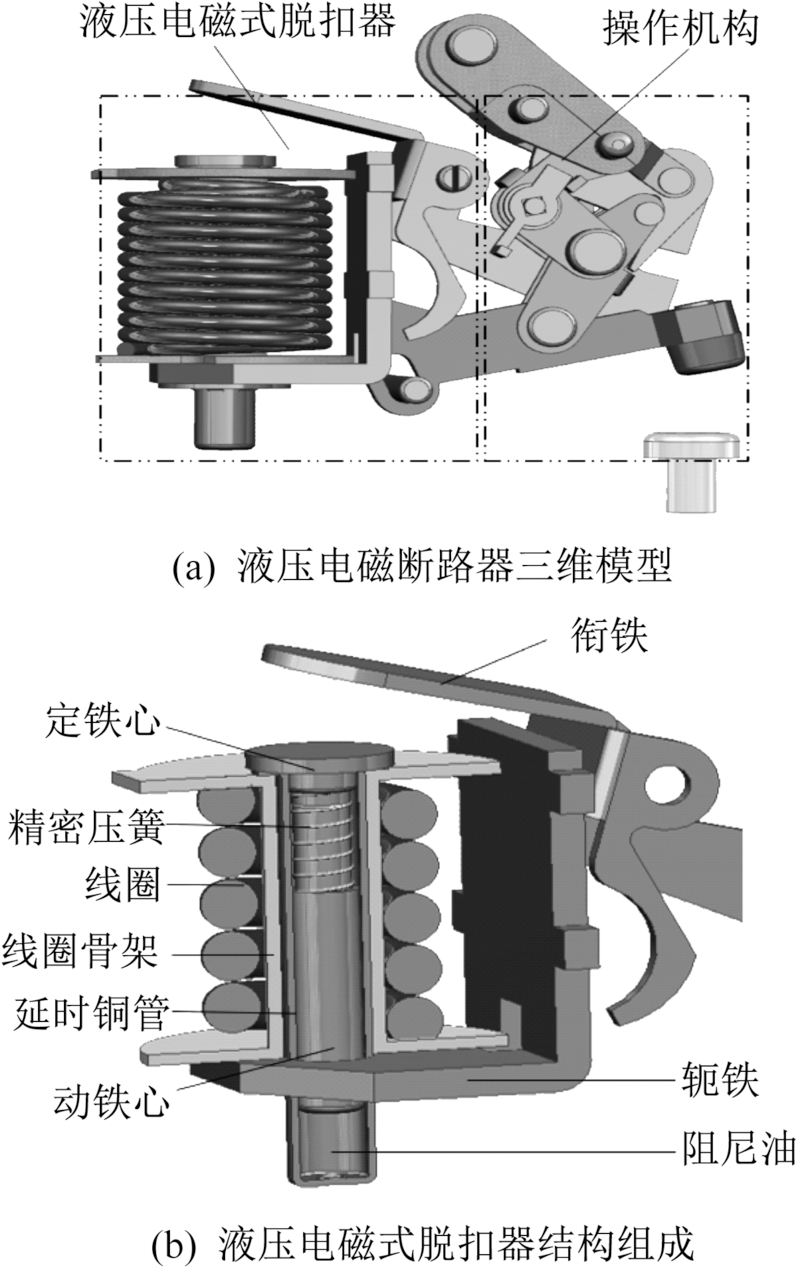

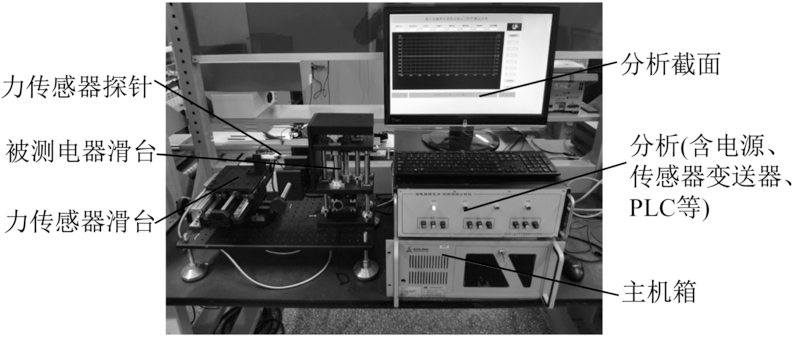

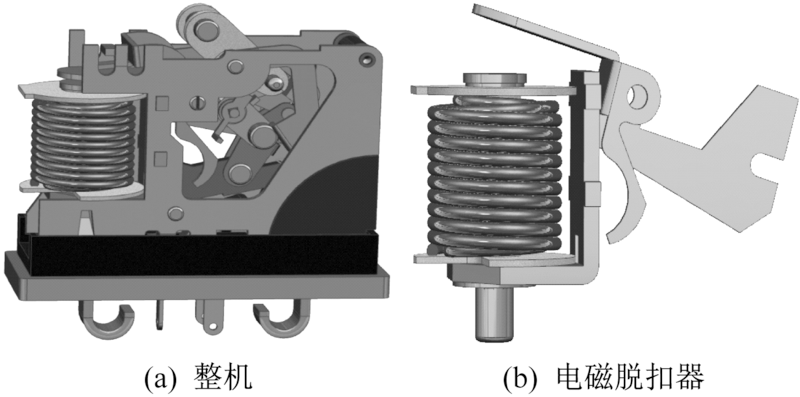

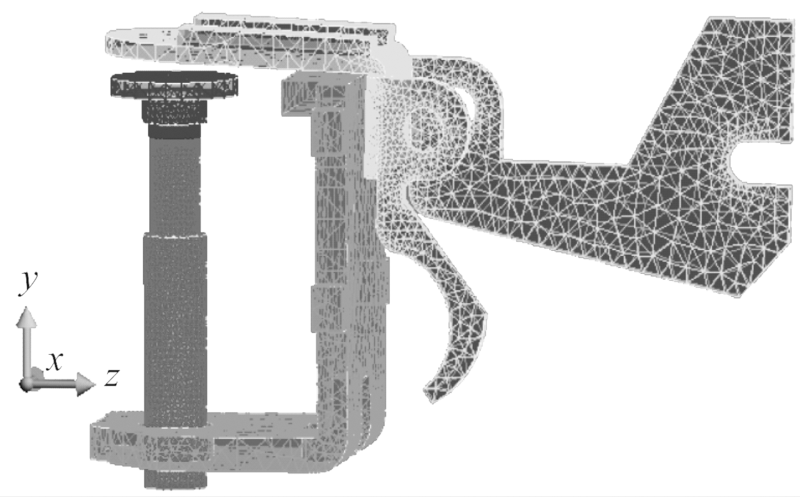

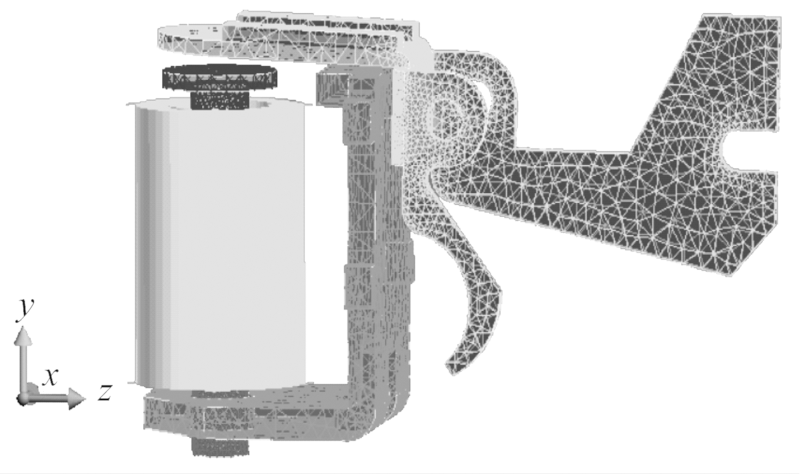

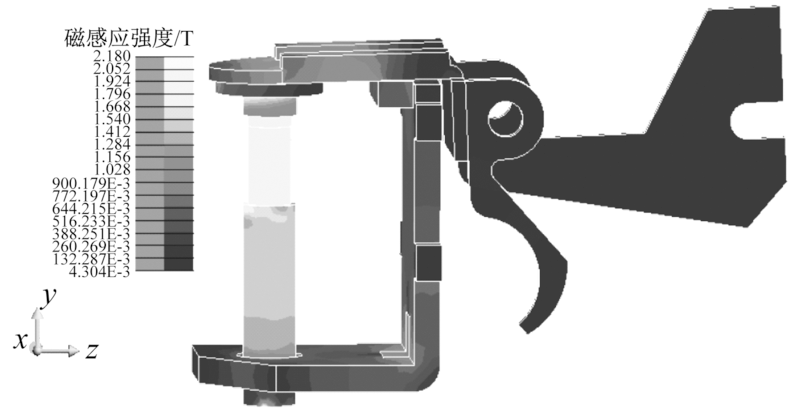

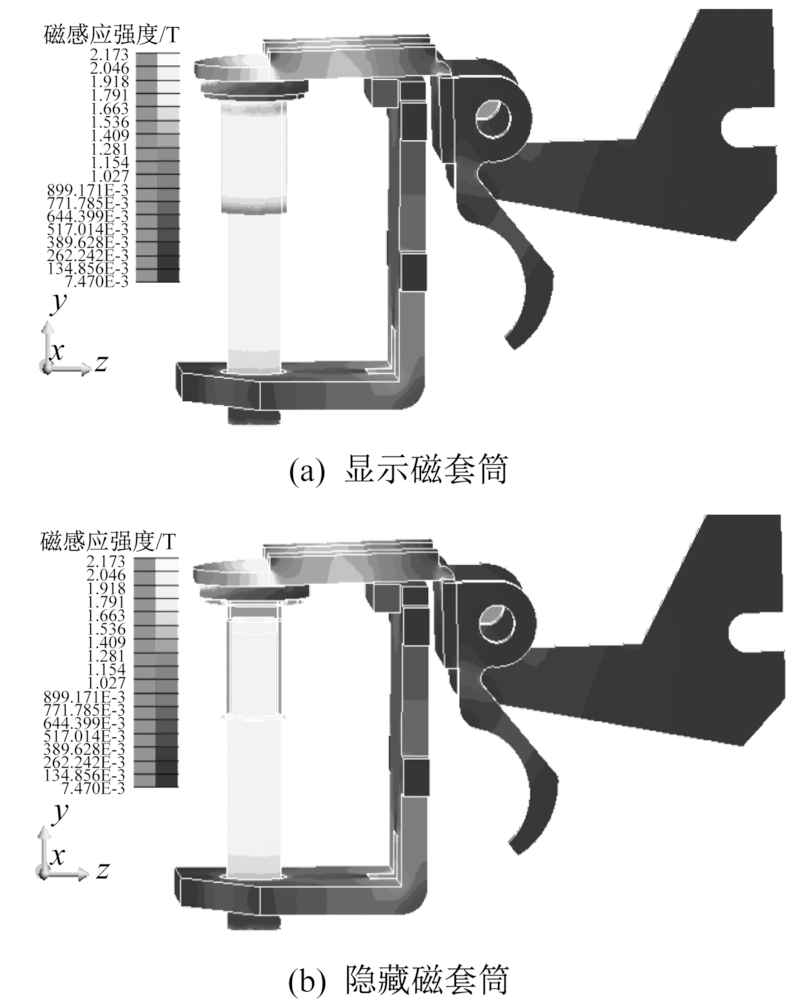

In order to improve the electromagnetic torque of the hydraulic electromagnetic circuit breaker,a certain type of hydraulic electromagnetic circuit breaker is used as an object for optimal design of its electromagnetic system.First,combined with virtual prototype technology,a three-dimensional physical model of the hydraulic electromagnetic circuit breaker was established according to the product design drawings.Then,considering that the output characteristics of the initial design of the electromagnetic system can not meet the requirements of tripping,the structure of the electromagnetic system of the circuit breaker is optimized based on finite element software Altair Flux,then its output characteristics could meet the requirements of tripping.Finally,the experimental system was built to test the electromagnetic torque of the circuit breaker,which verifies the accuracy of the finite element simulation.By increasing the output magnetic torque of the electromagnetic system of the circuit breaker,the unlocking reliability of the circuit breaker can be improved on the premise that the mechanism locking torque is determined.

Key words: hydraulic electromagnetic circuit breaker, electromagnetic torque, virtual prototype technology, electromagnetic system, three-dimensional physical model, unlock reliability

CLC Number:

TM561

ZHOU Xue, YONG Zhuang, LI Donghui, ZHAI Guofu. Optimization Design of Electromagnetic System of Hydraulic Electromagnetic Circuit Breaker[J]. LOW VOLTAGE APPARATUS, 2021, 0(5): 41-47.

Figures/Tables 19

References 14

[1]	杨元威, 关永刚, 陈士刚, 等. 基于声音信号的低压断路器机械故障诊断方法[J]. 中国电机工程学报, 2018,38(22):6730-6737.
[2]	侯立杰. 油阻尼断路器性能分析及操作机构优化设计[D]. 天津:河北工业大学, 2015.
[3]	BISWAS S S, SRIVASTAVA A K, WHITEHEAD D. Areal-time data-driven algorithm for health diagnosis and prognosis of a circuit breaker trip assembly[J]. IEEE Transactions on Industrial Electronics, 2015,62(6):3822-3831. doi: 10.1109/TIE.2014.2362498
[4]	施宏伟, 付哲, 黄杰, 等. 基于正交试验的油阻尼断路器优化设计[J]. 电器与能效管理技术, 2019(10):27-30.
[5]	薄凯, 周学, 翟国富, 等. 大电流条件下真空接触器温升特性的试验测量与仿真分析[J]. 电工技术学报, 2019,34(24):5135-5143.
[6]	周宝石, 刘向军. 高压直流继电器双线圈涡流斥力机构仿真优化设计[J]. 电器与能效管理技术, 2020,594(9):7-12.
[7]	GHASSEMI M, FARZANEH M, CHISHOLM W. A coupled computational fluid dynamics and heat transfer model for accurate estimation of temperature increase of anice-covered FRP live-line tool[J]. IEEE Transactions on Dielectrics & Electrical Insulation, 2015,21(6):2628-2633.
[8]	SUZUKI S, KAWASE Y, YAMA-GUCHI T, et al. Dynamic analysis of circuit breaker with oil dashpot using multimesh modification method[J]. IEEE Transactions on Magnetics Mag, 2011,47(5):1002-1005. doi: 10.1109/TMAG.20
[9]	KIM Y M, CHO S H, LIM K J, et al. Analysis on electromagnetic repulsion force in molded case circuit breaker [C]∥International Conference on Electric Power Equipment-Switching Technology.IEEE, 2012: 379-382.
[10]	SUZUKI S, KAWASE Y, YAMAGUCHI T, et al. Analysis method of long-time behavior of circuit breaker with oil dashpot [C]∥International Conference on Electrical Machines & Systems.IEEE, 2013: 1-4.
[11]	骆燕燕, 武雄伟, 田亚超, 等. 冲击环境下电连接器接触性能研究[J]. 工程设计学报, 2018,25(1):110-117.
[12]	乔延华, 苏秀苹, 董天颖. 油阻尼断路器触头系统电动斥力仿真及优化[J]. 系统仿真学报, 2018,30(6):2175-2181,2189.
[13]	李元, 薛建议, 任双赞, 等. 高压开关柜温湿度分布的三维数值模拟研究[J]. 电工技术学报, 2019,34(24):5095-5103.
[14]	石磊, 骆文平. 真空断路器温升模拟与散热设计[J]. 船电技术, 2016,36(5):68-71.

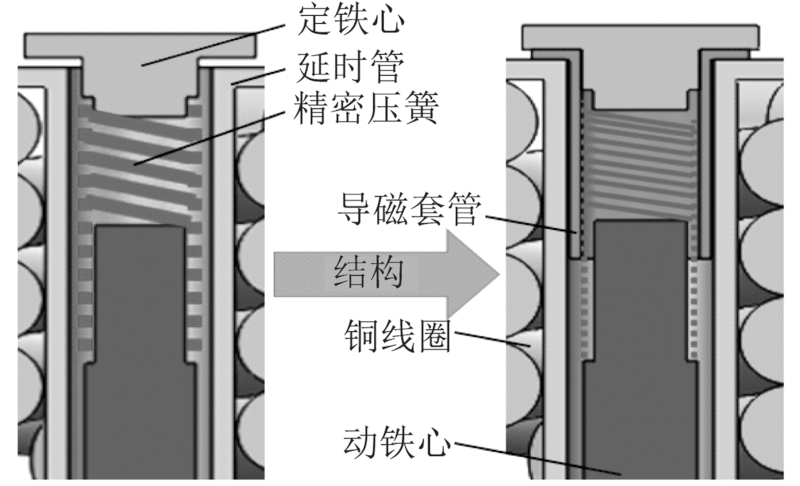

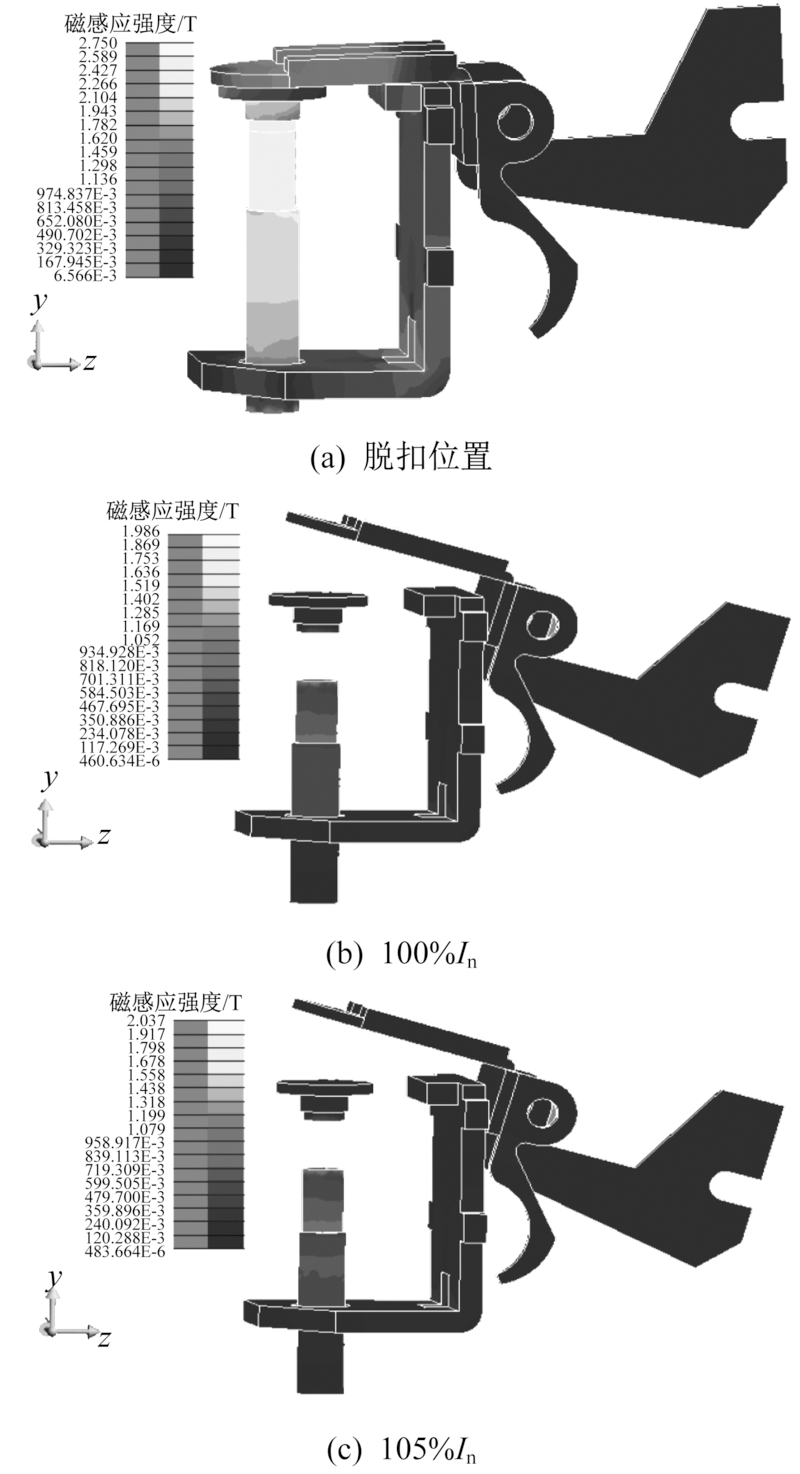

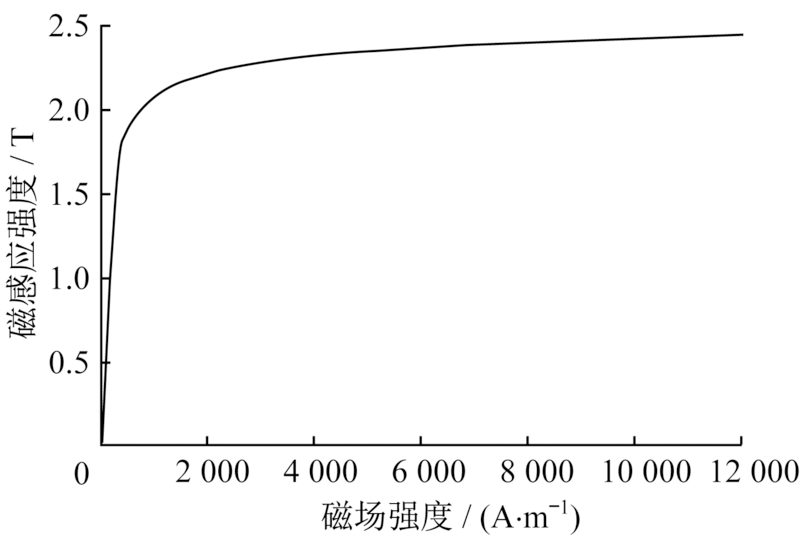

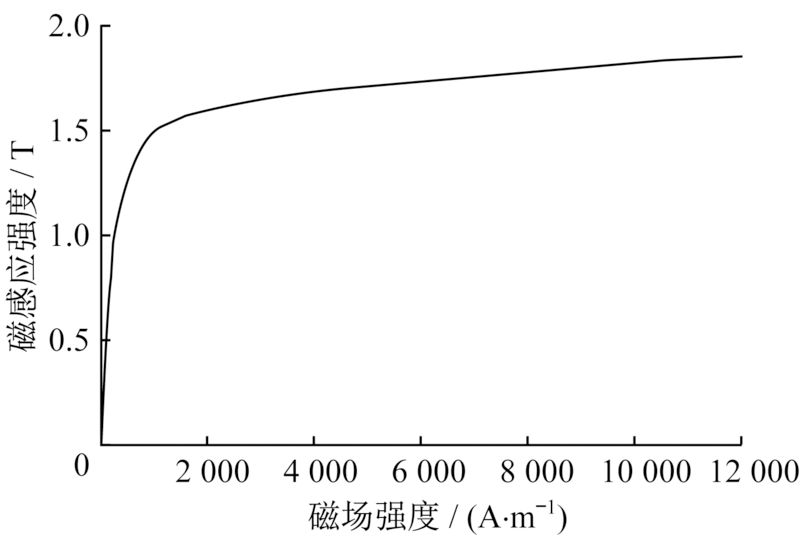

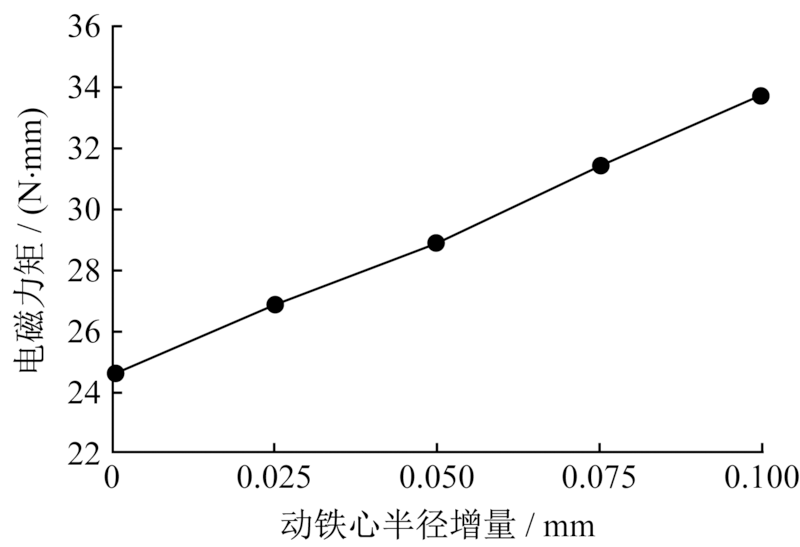

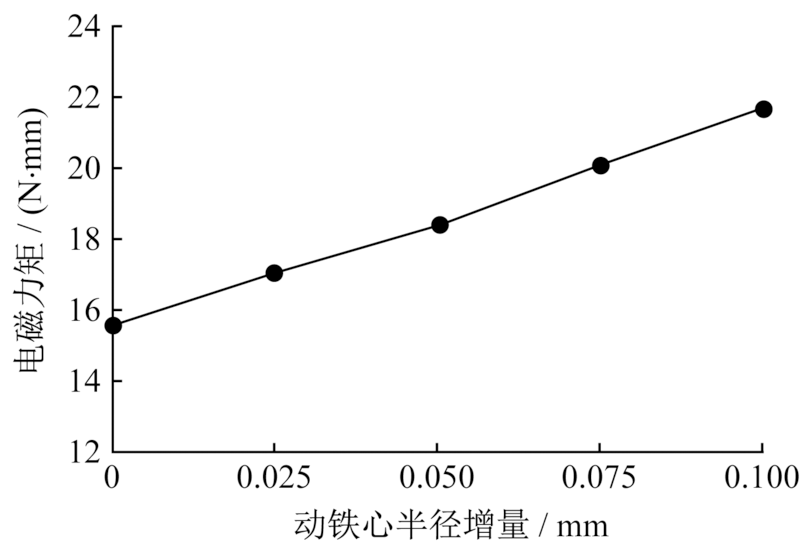

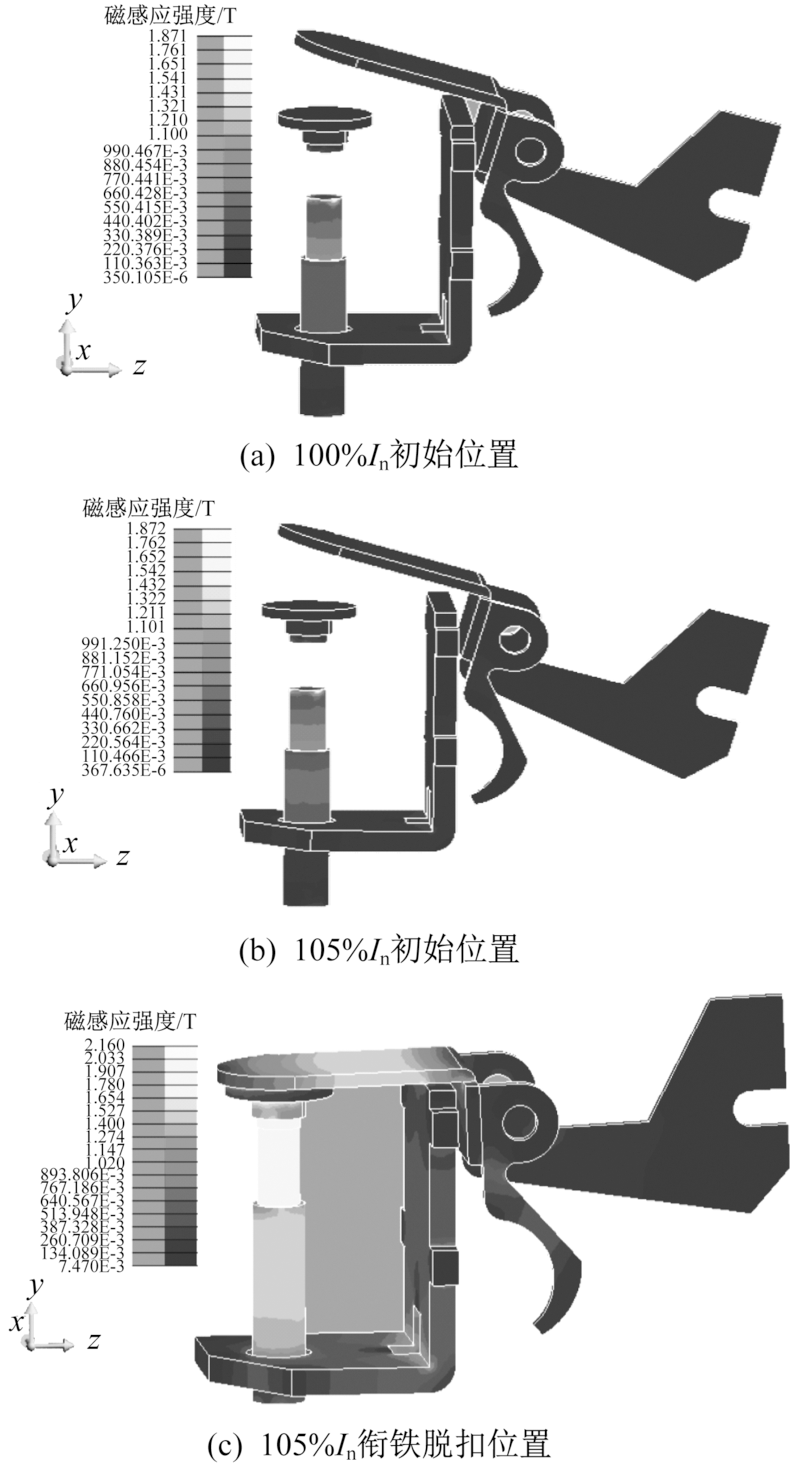

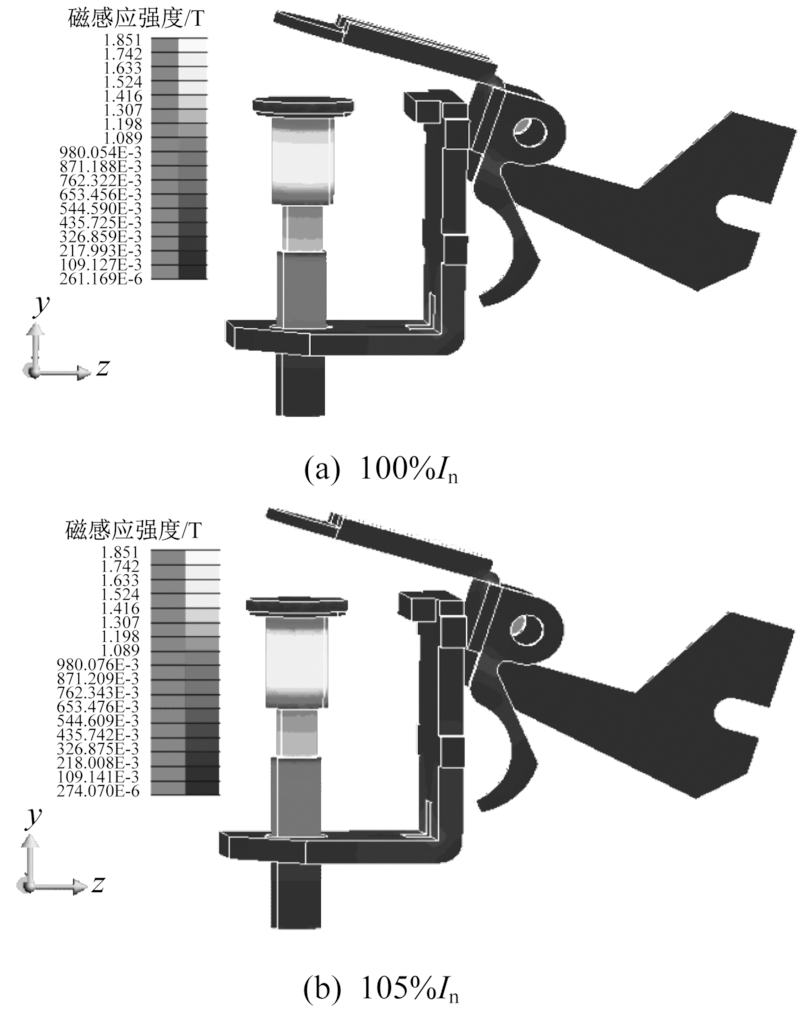

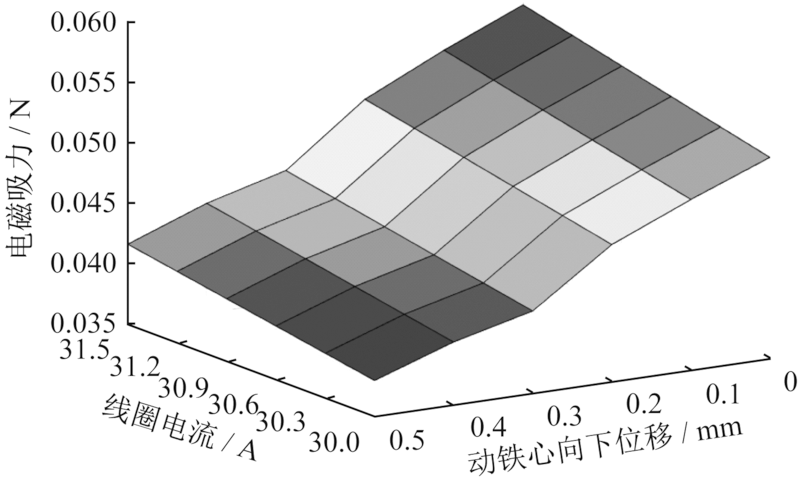

技术方案名称	动铁心受力/N		衔铁片电磁力矩/(N·mm)
技术方案名称	100%I_n	105%I_n	衔铁片电磁力矩/(N·mm)
指标要求	≤0.050	≥0.050	30.00
原始设计	0.043	0.048	10.26
优化方案一	0.046	0.051	31.85
优化方案二	0.047	0.052	31.50

过载电流	电磁力矩/(N·mm)		相对误差/%
过载电流	仿真结果	实验结果	相对误差/%
105%I_n	0.284 9	0.290 9	2.06
135%I_n	0.335 7	0.330 4	1.60
150%I_n	0.358 1	0.365 2	1.94

过载电流	电磁力矩/(N·mm)		相对误差/%
过载电流	仿真结果	实验结果	相对误差/%
105%I_n	10.26	10.33	0.71
135%I_n	11.36	11.48	1.07
150%I_n	11.91	11.98	0.62
