Cubic Inch Relay Anti-Vibration Design Based on Finite Element Simulation of Vibration Characteristics

doi:10.16628/j.cnki.2095-8188.2021.04.005

Abstract

Abstract:

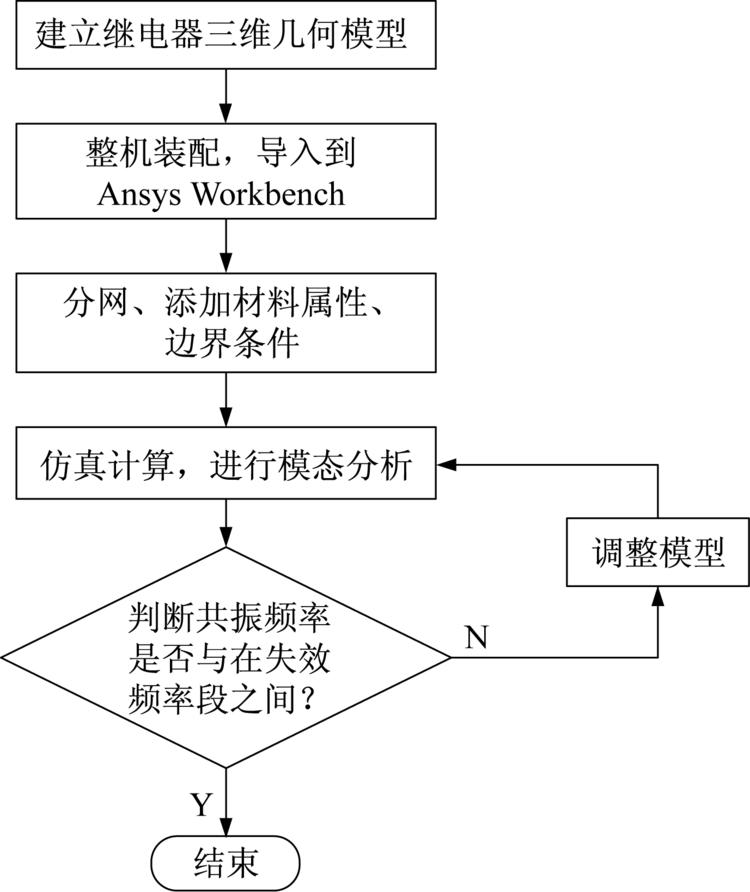

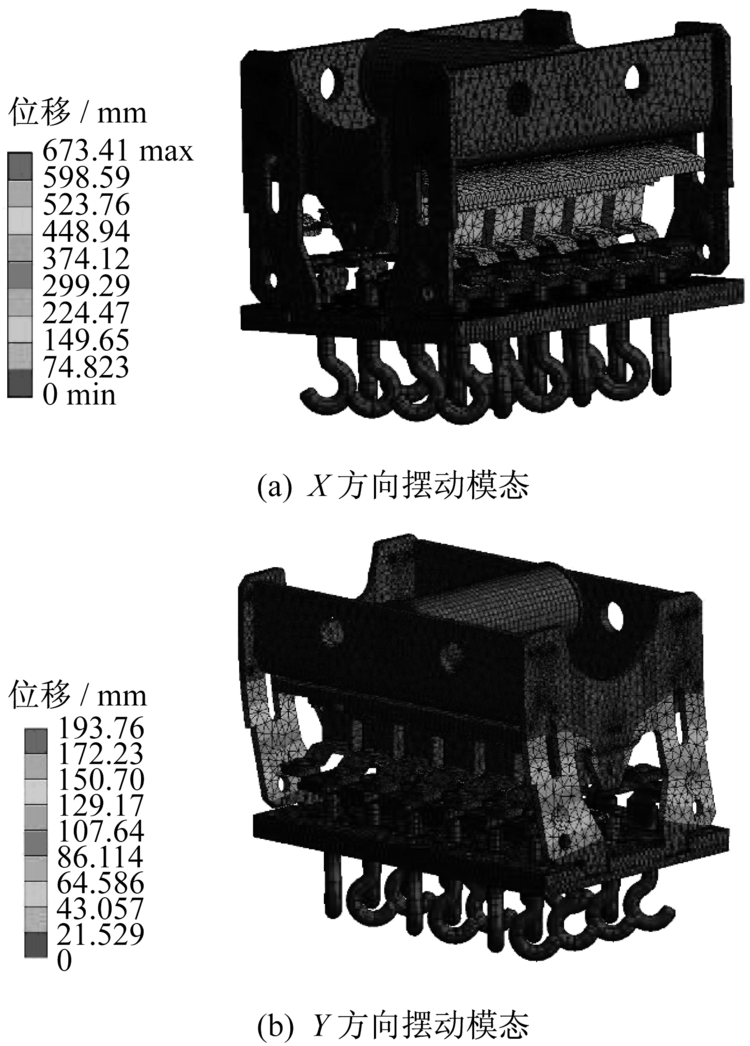

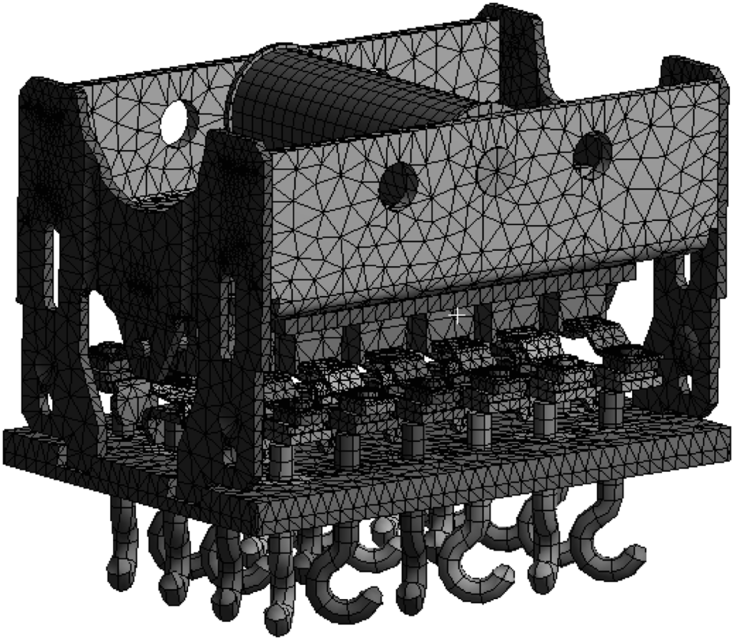

The vibration failure mode and weak links of the inch relay through vibration test were analyzed.An Ansys-based anti-vibration finite element model was established to perform modal analysis verification and key part response force analysis.Combined the basic ideas of anti-vibration design and transfer path analysis of vibrational excitation,the anti-vibration design of the relay was given out.It is verified that the anti-vibration design has a significant effect on improving the anti-vibration performance of the relay through simulation analysis and testing.

Key words: relay, finite element, model analysis, responsive force

CLC Number:

TM581.3

WANG Yue, TAN Jun. Cubic Inch Relay Anti-Vibration Design Based on Finite Element Simulation of Vibration Characteristics[J]. LOW VOLTAGE APPARATUS, 2021, 0(4): 24-28.

Figures/Tables 13

References 12

[1]	翟国富, 崔行磊, 杨文英. 电磁继电器产品及研究技术发展综述[J]. 电器与能效管理技术, 2016(2):1-8.
[2]	陆俭国, 骆燕燕, 李文华, 等. 航天继电器贮存寿命试验及失效分析[J]. 电工技术学报, 2009,24(2):54-59.
[3]	王稚惠. 密封电磁继电器的可靠性及触点粘结失效分析[D]. 哈尔滨:哈尔滨工业大学, 2007.
[4]	王珏. 电磁继电器耐力学性能一致性优化技术的研究[D]. 哈尔滨:哈尔滨工业大学, 2015.
[5]	陈少军. 数值计算在 VLCC 船上层建筑的振动特性研究[J]. 舰船科学技术, 2019,41(6):22-24.
[6]	GUO Y, WEN H B, ZHONG X F, et al. Secondary development of Ansys and its application in calculating the natural vibration period of variable cross section towers[C]// IEEE International Conference on Communication Software and Networks, 2011: 667-672.
[7]	孙宏杰, 曹云东, 刘炜, 等. 铁路信号继电器触簧系统振动特性的仿真研究[J]. 电器与能效管理技术, 2015(6):15-19.
[8]	王振, 杨育丰, 刘坤, 等. 兴安直流输电工程继电器绝缘失效机理及整治措施[J]. 广东电力, 2019,32(8):126-132.
[9]	郭勇, 张海卫, 杨诗茹, 陈长和, 张大壮. 提高机组超速保护装置可靠性分析研究[J]. 浙江电力, 2019,38(8):97-103.
[10]	杨文英, 梅发斌, 刘兰香, 翟国富. 继电器多余物检测用大脉宽振动台的虚拟样机建模与设计[J]. 电器与能效管理技术, 2018(22):70-76.
[11]	王珏, 杨文英, 肖斌, 等. 基于3D有限元电磁继电器耐力学性能的关键因素研究[J]. 电器与能效管理技术, 2015(14):7-12.
[12]	李哲, 王珏. 微小型电磁继电器振动特性的仿真分析[J]. 电器与能效管理技术, 2015(6):20-24.

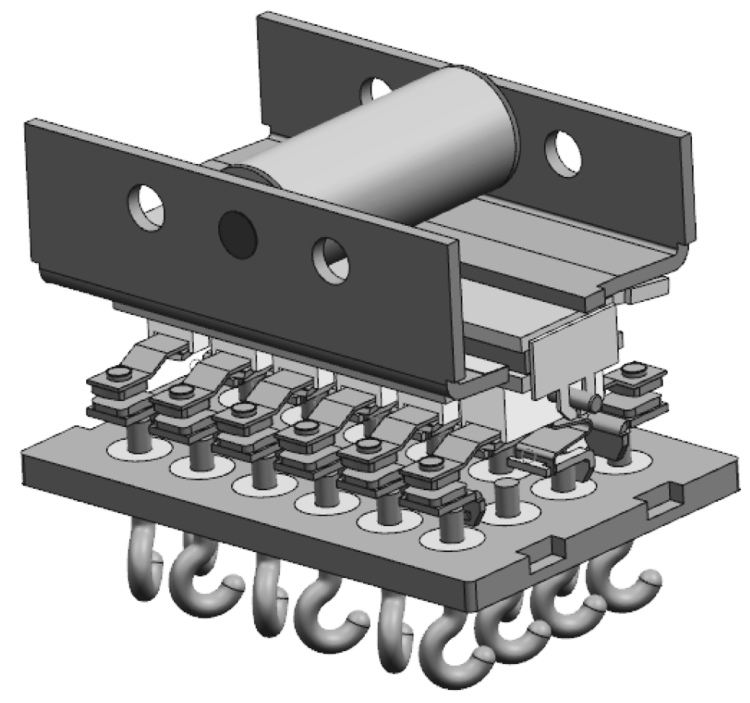

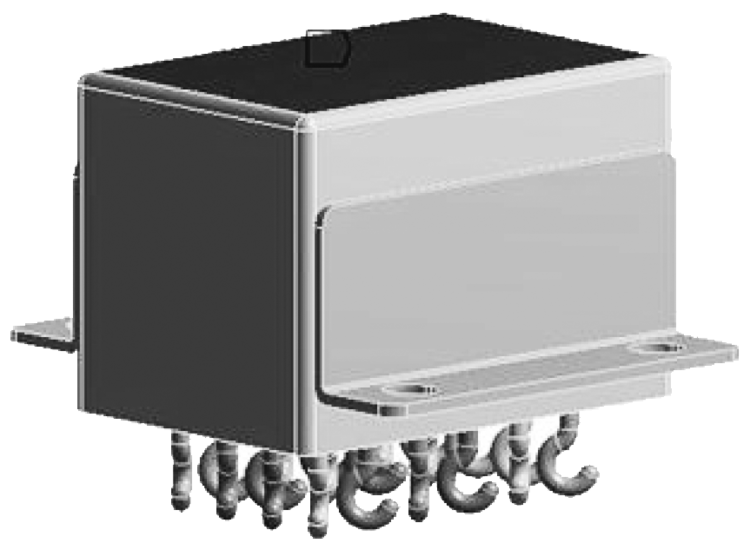

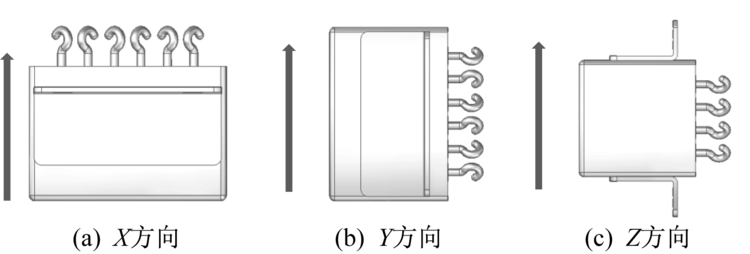

产品编号	X方向				Y方向				Z方向				备注
		正弦		随机		正弦		随机		正弦		随机
		D	E	D	E	D	E	D	E	D	E	D		E
	#1	√	√	√	×	√	√	√	√	√	√	√		√	6号触点抖断
#2	√	√	√	×	√	√	√	√	√	√	√	√		5号触点抖断
#3	√	√	√	×	√	√	√	√	√	√	√	√		1号触点抖断
#4	√	×	√	×	√	√	√	√	√	√	√	√	6号(600~800 Hz)/ 5号触点抖断
#5	√	√	√	×	√	√	√	√	√	√	√	√	2号、3号触点抖断
#6	√	√	√	×	√	√	√	√	√	√	√	√	2号~6号触点同时抖断
#7	√	√	√	×	√	√	√	√	√	√	√	√	6号触点抖断
#8	√	×	√	√	√	√	√	√	√	√	√	√	4号、5号触点点抖断
#9	√	×	√	×	√	√	√	√	√	√	√	√	6号(600~800 Hz)/ 1号~6号触点同时抖断

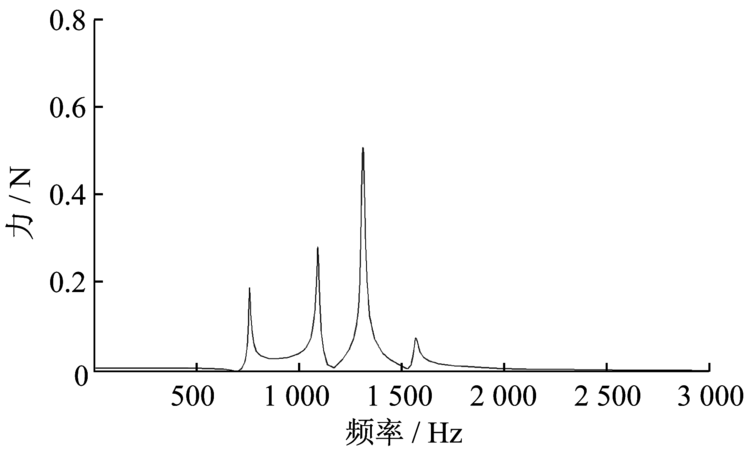

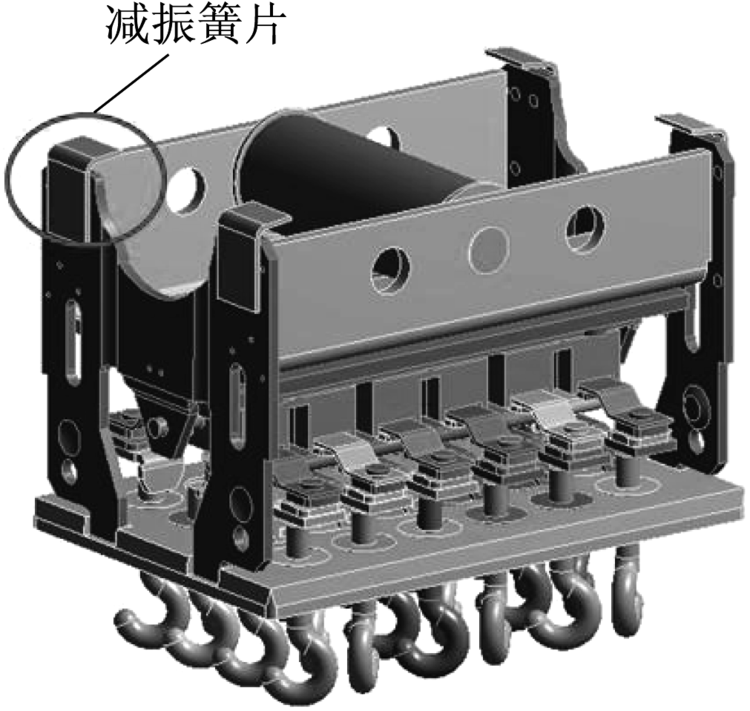

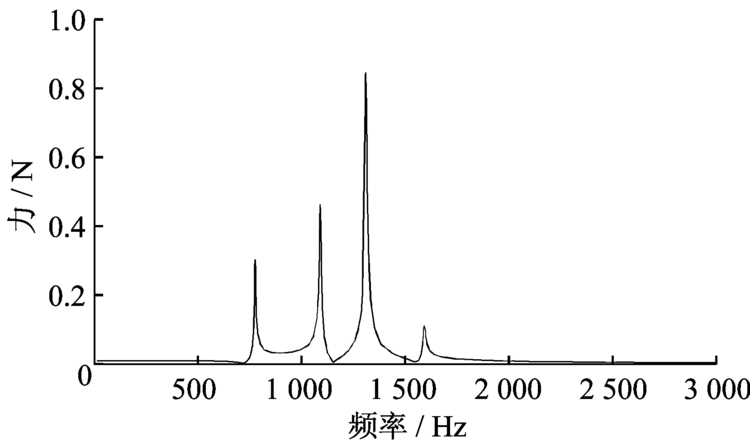

名称	类别	响应力 /N	同比降低百分比/%
触点系统	无减振簧片	0.84	39.2
触点系统	有减振簧片	0.51	39.2
衔铁组件	无减振簧片	5.42	22.3
衔铁组件	有减振簧片	4.21	22.3

产品编号	X方向				Y方向				Z方向				备注
		正弦		随机		正弦		随机		正弦		随机
		D	E	D	E	D	E	D	E	D	E	D		E
	#11	√	√	√	√	√	√	√	√	√	√	√		√	—
#12	√	√	√	√	√	√	√	√	√	√	√	√		—
#13	√	√	√	√	√	√	√	√	√	√	√	√		—
#14	√	√	√	√	√	√	√	√	√	√	√	√	—
#15	√	√	√	√	√	√	√	√	√	√	√	√	—
#16	√	×	√	√	√	√	√	√	√	√	√	√	2号、3号触点抖闭(1 090Hz)
#17	√	√	√	√	√	√	√	√	√	√	√	√	—
#18	√	×	√	√	√	√	√	√	√	√	√	√	3号、4号、5号触点抖闭(1 130Hz)
#19	√	√	√	√	√	√	√	√	√	√	√	√	—
