基于超速和变桨优化协调的双馈风电机组一次调频控制

doi:10.16628/j.cnki.2095-8188.2021.10.004

摘要/Abstract

摘要：

随着风电并网容量的不断增加,新能源发电系统对风电参与调频提出了更高要求。由于双馈电机有功功率和频率解耦,无法提供支撑电网频率控制的有功备用功率,所以通过减载控制提前预留部分有功功率作为调频备用,但是超速和变桨控制在不同风况下具有一定的局限性。提出一种基于超速和变桨优化协调的一次调频控制策略,适应全风速工况,研究超速和变桨的优化组合方式,在不同风况下整定协调控制器参数,稳定地释放备用功率。仿真结果表明,所提出的方法比现有方法具有更优的调频性能,能够更好地减少弃风。

关键词: 双馈风电机组, 一次调频, 变桨和超速, 优化协调

Abstract:

With the increasing of the grid-connected capacity of wind power,the new energy generation system puts forward higher requirements for wind power to participate in frequency modulation.Because the doubly-fed wind turbines the active power and frequency are decoupled,the active standby power supporting the grid frequency control cannot be provided.Therefore,load reduction is carried out and part of active power is reserved in advance as standby for frequency modulation.However,overspeed and paddle change control have certain limitations under different wind conditions.In this paper,a primary frequency modulation control strategy based on optimal coordination of overspeed and variable paddle is proposed to adapt to the full wind speed condition.The optimal combination of overspeed and variable paddle is studied to adjust and coordinate controller parameters under different wind conditions to release standby power stably.The simulation results show that the optimization and coordination control method proposed in this paper has better frequency modulation performance than the existing method,can reduce wind abandon better.

Key words: doubly fed induction generator (DFIG), primary frequency modulation, variable paddle and overspeed, optimization and coordination

中图分类号:

TM315

张留生, 谢震, 许可宝, 张兴. 基于超速和变桨优化协调的双馈风电机组一次调频控制[J]. 电器与能效管理技术, 2021, 0(10): 18-27.

ZHANG Liusheng, XIE Zhen, Xu Kebao, ZHANG Xing. Primary Frequency Modulation Control of DFIG Based on Optimization and Coordination of Overspeed and Variable Paddle[J]. LOW VOLTAGE APPARATUS, 2021, 0(10): 18-27.

图/表 18

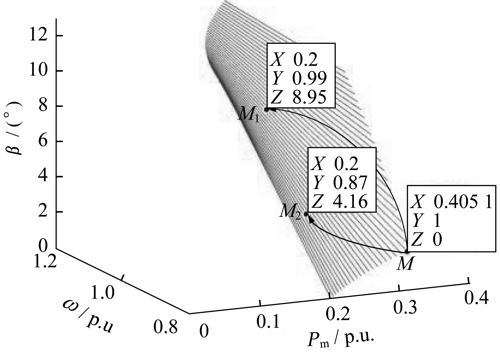

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

表1

协调控制器变参数整定

v/(m·s^-1)	β/(°)	K_β	$ω mppt *$ /p.u.	ω_mppt/p.u.	K_β
6.0	0	0	0.87	0.81	1.50
6.5	0	0	0.94	0.87	1.75
7.0	0	0	1.01	0.95	1.78
7.5	0	0	1.08	1.01	1.83
7.9	0	0	1.14	1.07	1.90
8.5	2.3	11.5	1.20	1.15	1.25
9.3	2.8	14.0	1.20	1.18	0.50
9.7	3.0	15.0	1.20	1.20	0
10.0	2.1	10.5	1.20	1.20	0
11.0	1.7	8.5	1.20	1.20	0

表1

图11

图12

表2

图13

图14

图15

图16

参考文献 21

[1]	闫群民, 李玉娇, 张田. 并网双馈风机PCC电压质量分析及控制策略研究[J]. 电力电容器与无功补偿, 2020, 41(2):152-157.
[2]	刘皓明, 赵敏, 张占奎, 等. 双馈风电机组的整体协调减振策略[J]. 广东电力, 2019, 32(1):36-45.
[3]	汪雅静, 马益平, 王吉庆, 等. 双馈式风电机组直接电压控制策略研究[J]. 电力电容器与无功补偿, 2019, 40(2):172-177.
[4]	BLAABJERG F, TEODORESCU R, LISERRE M. Overview of control and grid synchronization for distributed power generation systems[J]. IEEE Transactions on Industrial Electronics, 2016, 53(5):1398-1409. doi: 10.1109/TIE.2006.881997
[5]	VAN DE VYVER J, DE KOONING J D M, MEERSMAN B, et al. Droop control as an alternative inertial response strategy for the synthetic inertia on wind turbines[J]. IEEE Transactions on Power Systems, 2016, 31(2):1129-1138. doi: 10.1109/TPWRS.2015.2417758
[6]	张冠锋, 杨俊友, 孙峰, 等. 基于虚拟惯量和频率下垂控制的双馈风电机组一次调频策略[J]. 电工技术学报, 2017, 32(22):225-232.
[7]	YE H, PEI W, QI Z. Analytical modeling of inertial and droop responses from a wind farm for short-term frequency regulation in power systems[J]. IEEE Transactions on Power Systems, 2016, 31(5):3414-3423. doi: 10.1109/TPWRS.2015.2490342
[8]	米增强, 刘力卿, 余洋, 等. 限电弃风工况下双馈风电机组有功及调频控制策略[J]. 电工技术学报, 2015, 30(15):81-88.
[9]	ZHANG S, MISHRA Y, SHAHIDEHPOUR M. Fuzzy-logic based frequency controller for wind farms augmented with energy storage systems[J]. IEEE Transactions on Power Systems, 2016, 31(2):1595-1603. doi: 10.1109/TPWRS.2015.2432113
[10]	NGUYEN N, BERA A, MITRA J. Energy storage to improve reliability of wind integrated systems under frequency security constraint[J]. IEEE Transactions on Industry Applications, 2018, 54(5):4039-4047. doi: 10.1109/TIA.2018.2838558
[11]	刘颖明, 陈亮, 王晓东, 等. 混合储能参与风电集群一次调频的容量配置优化[J]. 电器与能效管理技术, 2020(10):55-63.
[12]	颜全椿, 顾文, 李辰龙, 等. 基于储能的风电虚拟同步机调频特性分析[J]. 电器与能效管理技术, 2020(8):18-22,32.
[13]	陈斌, 王德林, 张俊武, 等. 双馈风电机组参与电网一次调频的多风速段综合控制及变参数整定[J]. 电工电能新技术, 2018, 37(11):40-47.
[14]	范冠男, 刘吉臻, 孟洪民, 等. 电网限负荷条件下风电场一次调频策略[J]. 电网技术, 2016, 40(7):2030-2037.
[15]	张晨曦, 王德林, 马宁宁, 等. 风电场限功率状态下电网旋转备用优化分配[J]. 电力系统自动化, 2017, 41(21):170-177.
[16]	赵晶晶, 吕雪, 符杨, 等. 基于可变系数的双馈风机虚拟惯量与超速控制协调的风光柴微电网频率调节技术[J]. 电工技术学报, 2015, 30(5):59-68.
[17]	谢桦, 许宏远, 高文忠, 等. 双馈风电机组参与一次调频控制策略研究[J]. 电器与能效管理技术, 2018(14):13-19,32.
[18]	ANDRAZ Z, GREGOR V, MILOS P. A novel strategy for variable-speed wind turbines’participation in primary frequency control[J]. IEEE Transactions on Energy Convention, 2012, 3(4):791-799.
[19]	吉静, 郝丽丽, 王昊昊, 等. 风电机组参与一次调频的自适应控制方法[J]. 电力电容器与无功补偿, 2020, 41(6):174-179.
[20]	任冲, 柯贤波, 樊国伟, 等. 大规模风电直流送出系统过电压抑制措施及控制方案优化研究[J]. 高压电器, 2020, 56(5):163-174.
[21]	田新首, 迟永宁, 汤海雁, 等. 一种双馈风电机组频率控制器[J]. 广东电力, 2016, 29(6):43-49.

参数	数值
双馈风机额定功率/MW	2.0
额定风速/(m·s^-1)	12
发电机定子电阻/mΩ	7.8
定子d轴电感/H	1.42
定子q轴电感/H	2.75
发电机极对数	2
负荷1/WM	0.2
直流电压/V	1 100
网侧逆变器电感/mH	0.15e-3
网侧逆变器电容/μF	500e-6
同步电机额定功率/MW	2
同步电机额定电压/V	400
同步电机极对数	2
Z₁	(0.682+j0.483)%
Z₂	(1.432+j0.967) %
Z₃	(0.682+j0.241)%
