Research on Safe Grounding Protection for Small Resistance Grounding System Considering Distributed Generation

doi:10.16628/j.cnki.2095-8188.2024.03.011

Abstract

Abstract:

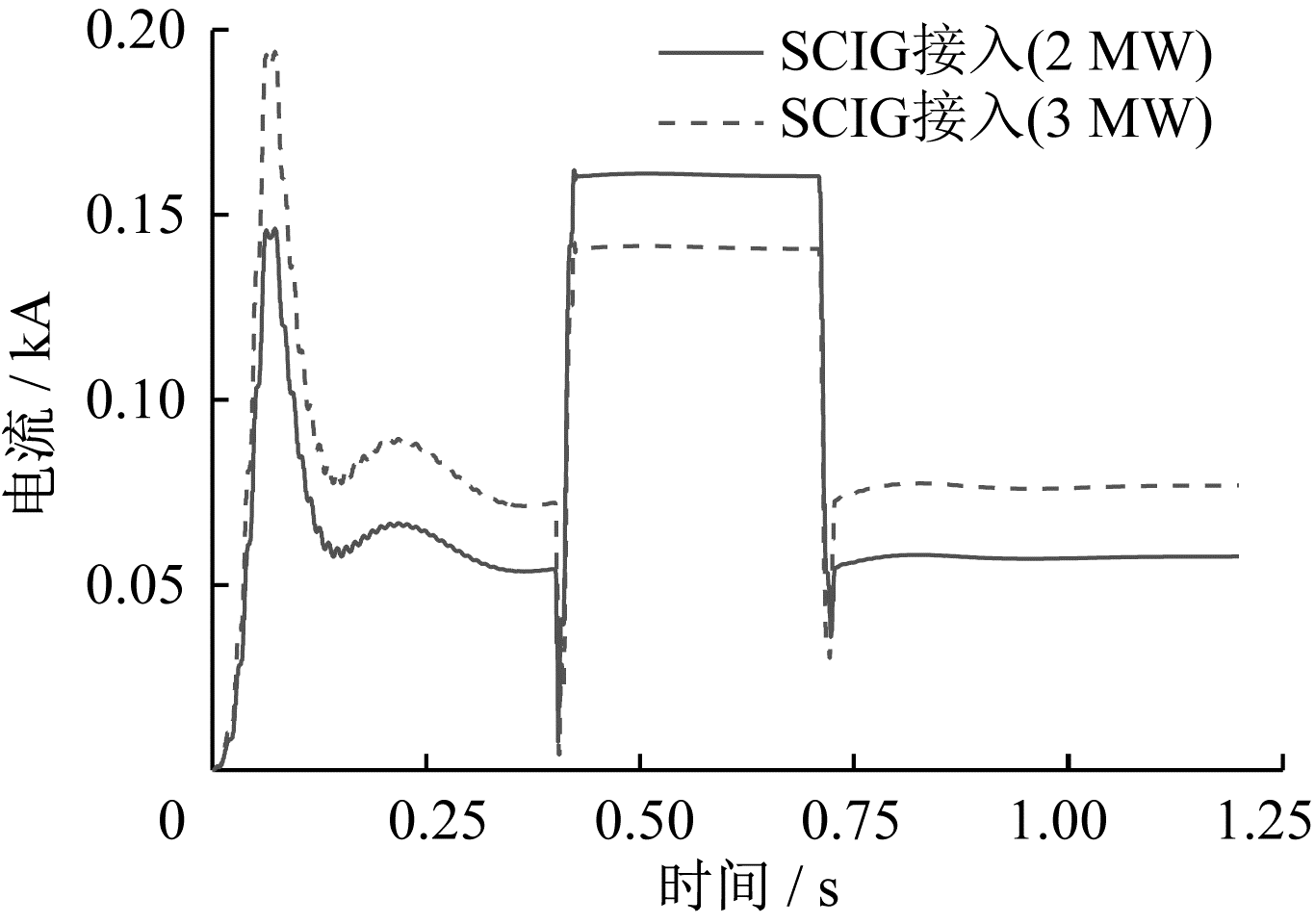

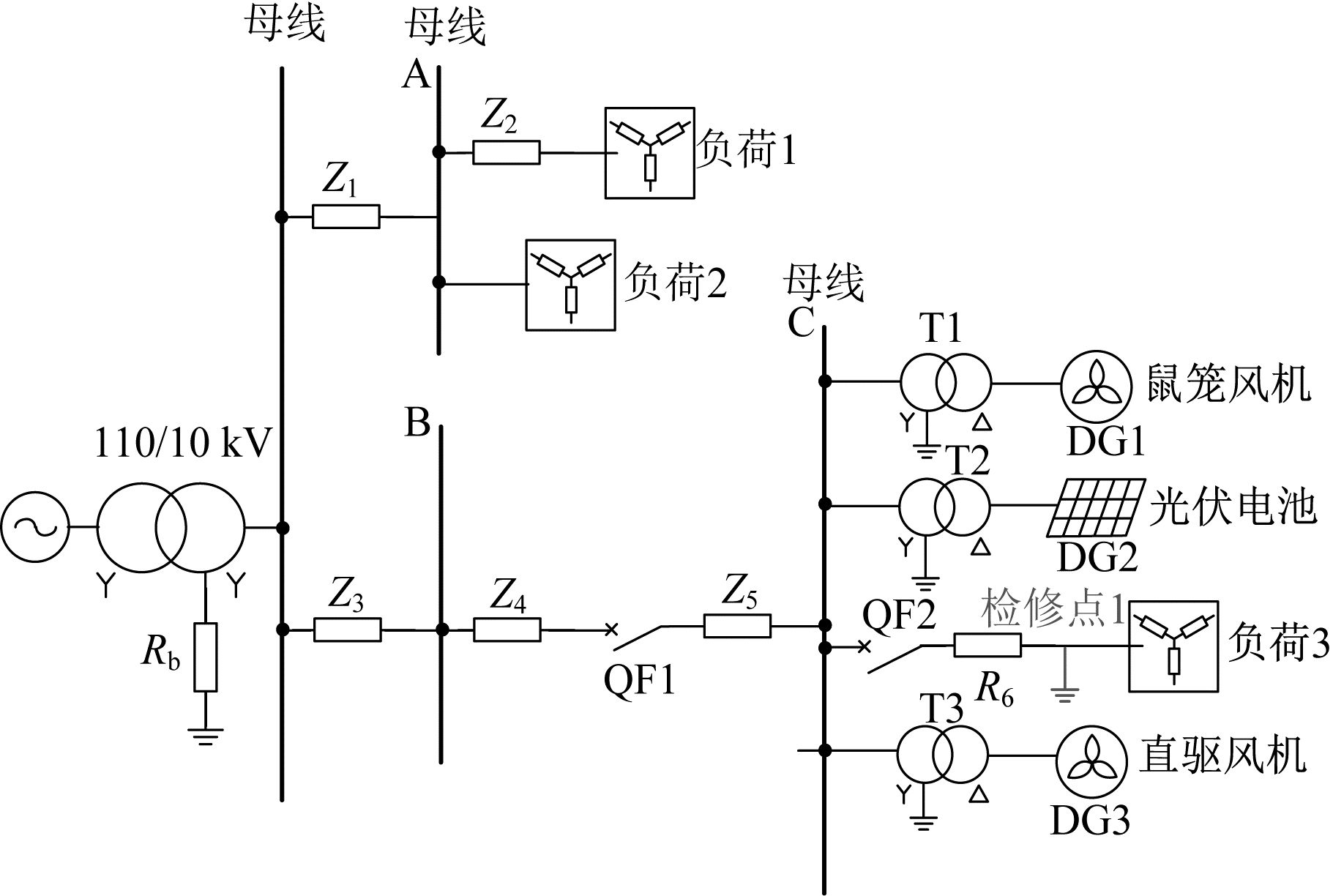

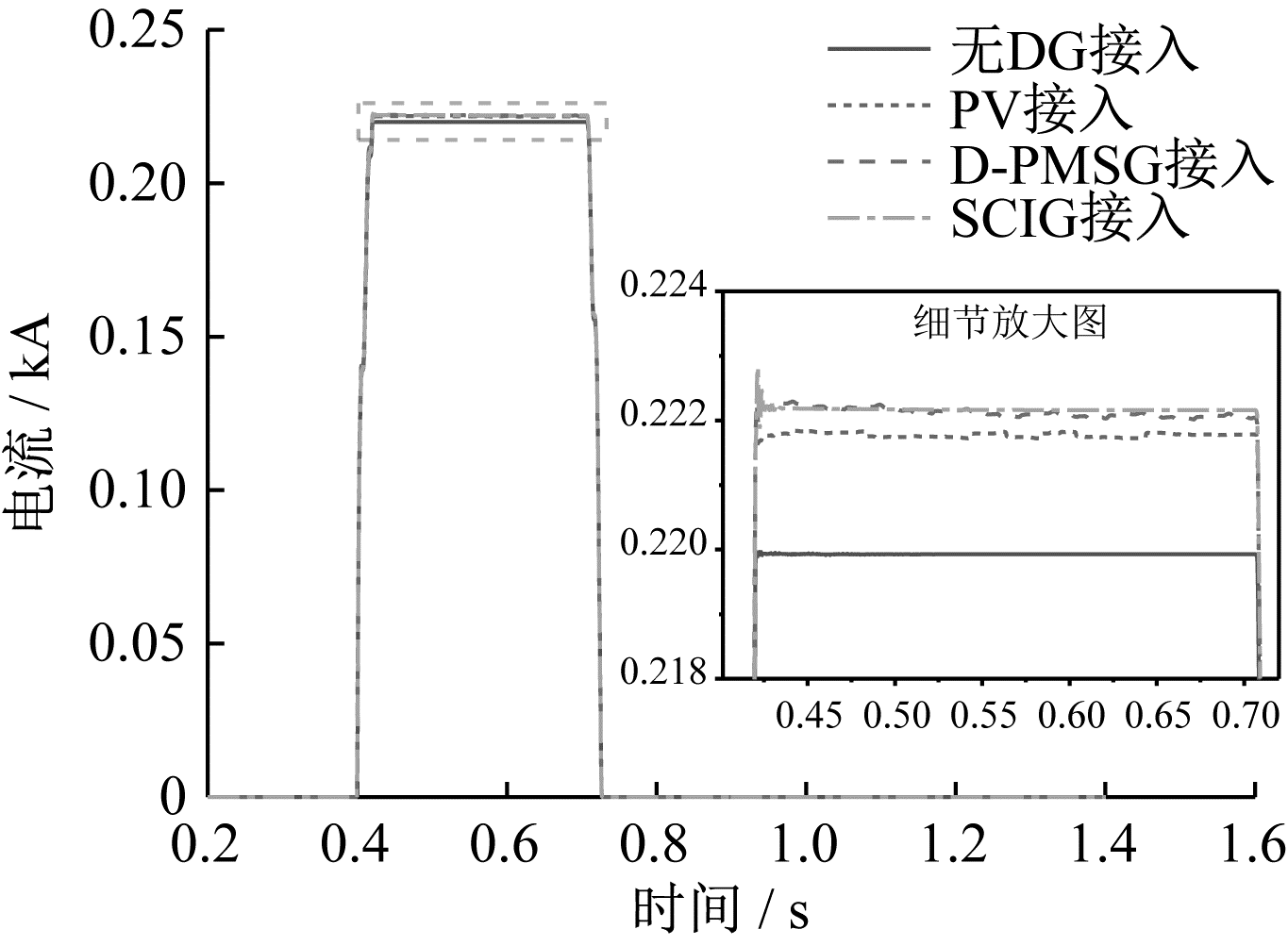

Excessive residual voltage and step voltage in the case of single-phase "false power supply" of the neutral point grounding system with small resistance may pose a threat to the personal safety of operators,especially in the trend of large-scale connection of distributed generation supplies.Firstly,the grounding mode of grounding electrode and related soil characteristics are analyzed from the safety basis of grounding measures.The corresponding typical soil grounding resistance calculation method is provided.Secondly,based on PSCAD/EMTDC and Anysy software,the operating grounding model of small resistance grounding system with distributed power supply is built to analyze the problems of residual voltage and excessive step voltage.Finally,combined with the actual field verification,the effective grounding safety measures for maintenance operation are put forward to provide useful reference for relevant departments.

Key words: small resistance grounding system, distributed generation, residual voltage, step voltage, safe operation

CLC Number:

TM774.4

WANG Chengjie. Research on Safe Grounding Protection for Small Resistance Grounding System Considering Distributed Generation[J]. LOW VOLTAGE APPARATUS, 2024, 0(3): 66-70.

Figures/Tables 14

References 14

[1]	徐丙垠, 李天友. 配电网中性点接地方式若干问题的探讨[J]. 供用电, 2015, 32(6):12-16,29.
[2]	薛永端, 郭丽伟, 张林利, 等. 有源配电网中性点接地方式的选择问题[J]. 电力系统自动化, 2015, 39(13):129-136.
[3]	龙国华, 刘衍, 彭军海, 等. 配网小电阻接地系统过电压与人身安全性仿真研究[J]. 电瓷避雷器, 2019(5):85-91,98.
[4]	黄伟达, 李天友, 刘松喜, 等. 中压有源配电网工作接地线安全校核方法[J]. 电力科学与技术学报, 2022, 37(4):114-124.
[5]	NEAMT L, CHIVER O. A Simple design method of unequal spacing arrangement for substation grounding grid[J]. IEEE Access, 2021(9):141339-141346.
[6]	JAMALI M, NIASATI M, JAZAERI M. Lightning analysis of adjacent grounding systems using multi-conductor transmission line method[J]. IET Science,Measurement and Technology, 2020, 14(10):848-52. doi: 10.1049/iet-smt.2019.0267
[7]	杨体. 变配电接地装置的技术、安全要求及施工方法[J]. 电力自动化设备, 2003(5):82-85.
[8]	曹晓斌, 吴广宁, 付龙海, 等. 温度对土壤电阻率影响的研究[J]. 电工技术学报, 2007(9):1-6.
[9]	俞胜, 梁晖, 马恒瑞. 考虑环境因素影响的配电线路雷电绝缘防护失效概率计算[J]. 智慧电力, 2020, 48(5):106-110.
[10]	刘连光, 马成廉. 基于有限元方法的直流输电接地极多层土壤地电位分布计算[J]. 电力系统保护与控制, 2015, 43(18):1-5.
[11]	熊栘贝, 刘宇彬. 基于CDEGS影响立体式杆塔接地装置冲击接地电阻的因素研究[J]. 电器与能效管理技术, 2020(8):12-17.
[12]	DAWALIBI F, BLATTNER C J. Earth Resistivity Measurement Interpretation Techniques[J]. Power Apparatus & Systems IEEE Transactions on, 1984, PAS-103(2):374-382.
[13]	王云会, 郑强仁, 郭淼, 等. 分布式电源接入配电网的控制策略及消纳能力评估研究[J]. 电器与能效管理技术, 2022(4):83-87.
[14]	毛兴华, 马亚琦, 潘子仁, 等. 小电阻接地系统单相接地故障地电位分布与人身安全性研究[J]. 电瓷避雷器, 2019(2):120-124.

土壤电阻率/Ω?m	工频接地电阻/Ω	土壤电阻率/Ω?m	工频接地电阻/Ω
100及以下	10	1 000~2 000	25
100~500	15	2 000以上	30
500~1 000	20	—	—

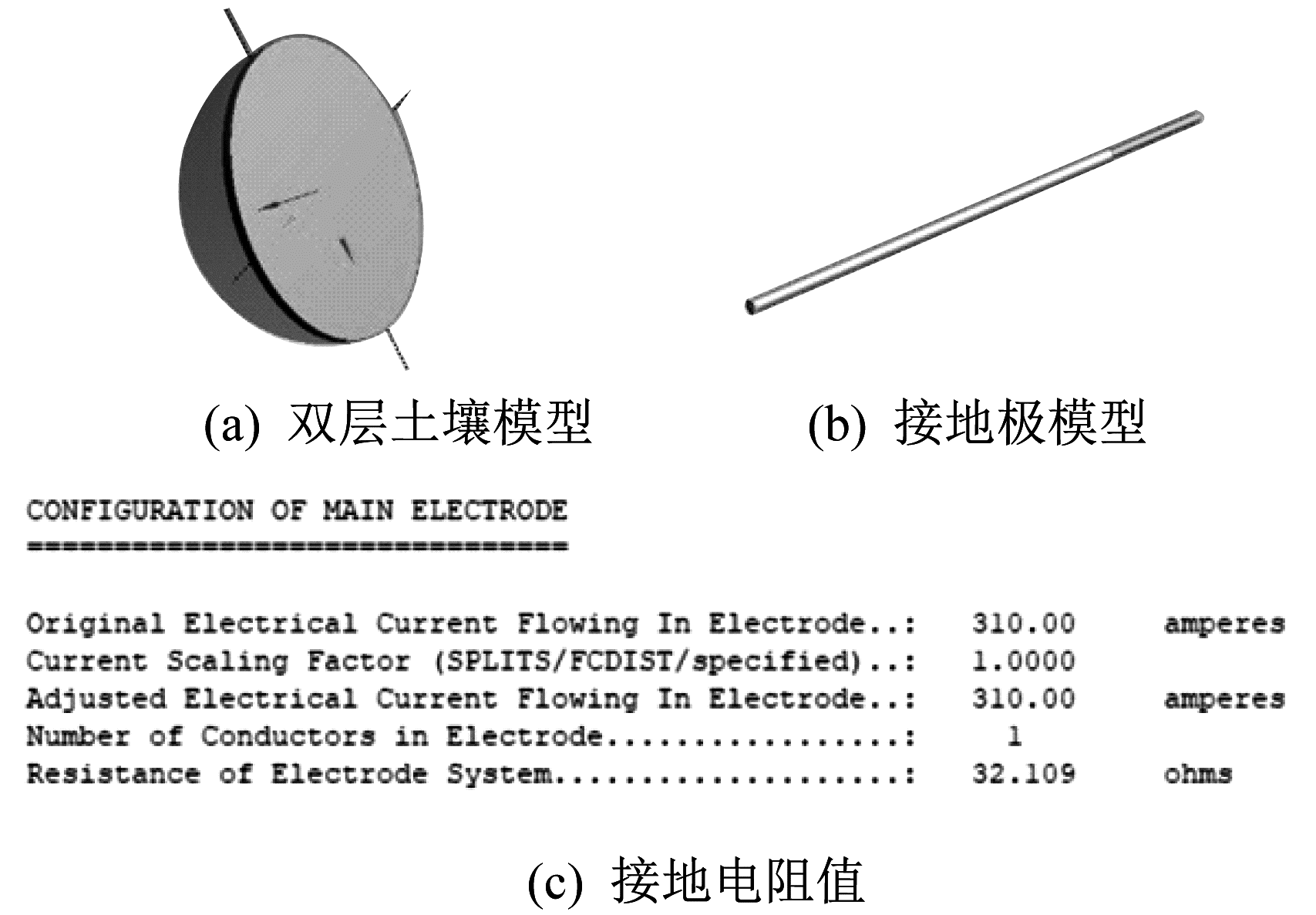

名称	电阻率/ (Ω·m)	各环境电阻率范围/(Ω·m)
名称	电阻率/ (Ω·m)	较湿多雨	干燥少雨
陶土、黏土	10	5~20	10~100
泥炭、沼泽地	20	10~30	50~300
黑土、田园土	50	30~100	50~300
砂质黏土	100	30~100	50~300
黄土	200	100~200	50~300
砂、砂砾	1 000	25~1 000	1 000~2 500
砾石、碎石	5 000	—	—
多岩山地	5 000	—	—
花岗岩	2×10⁵	—	—

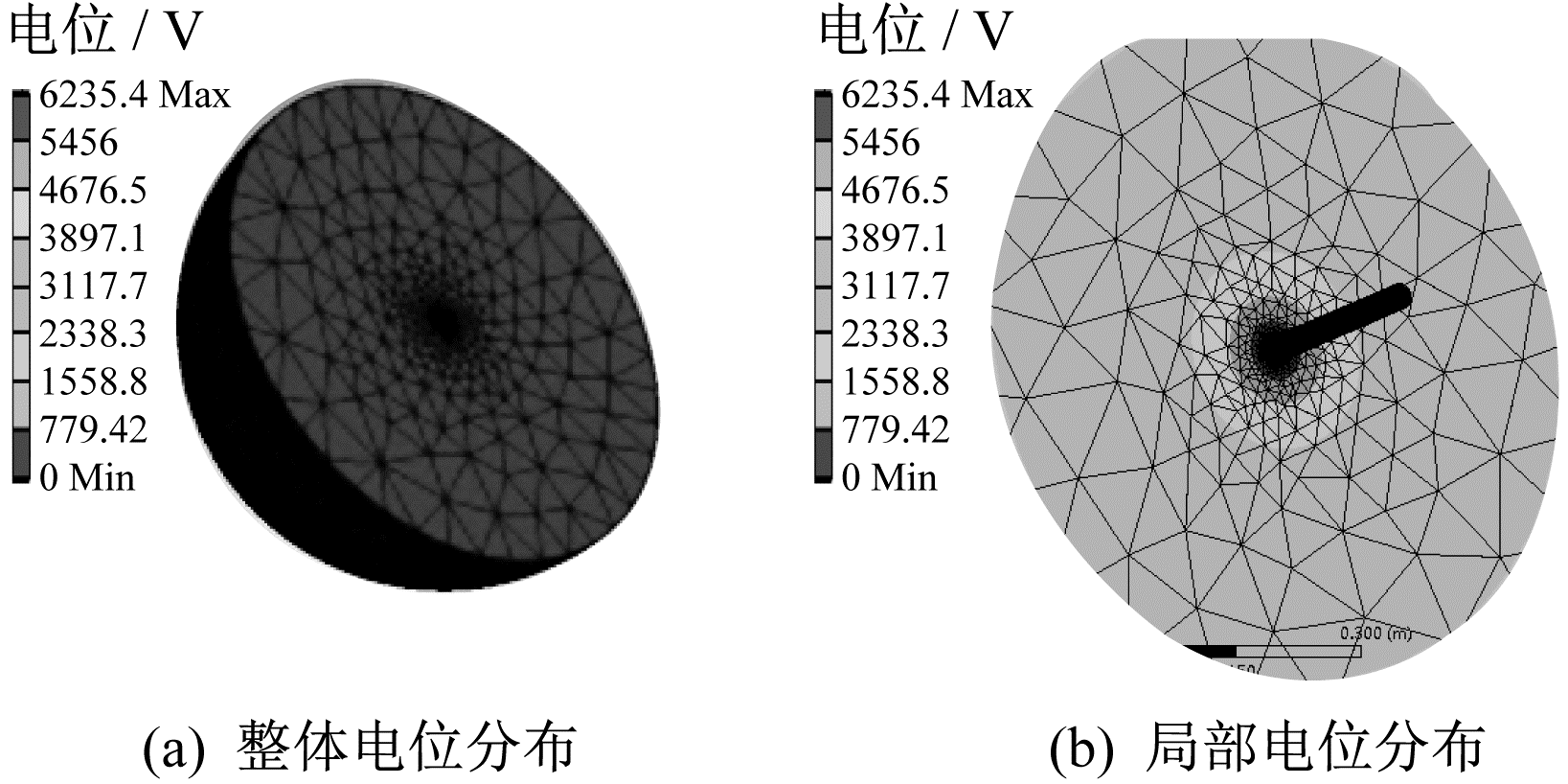

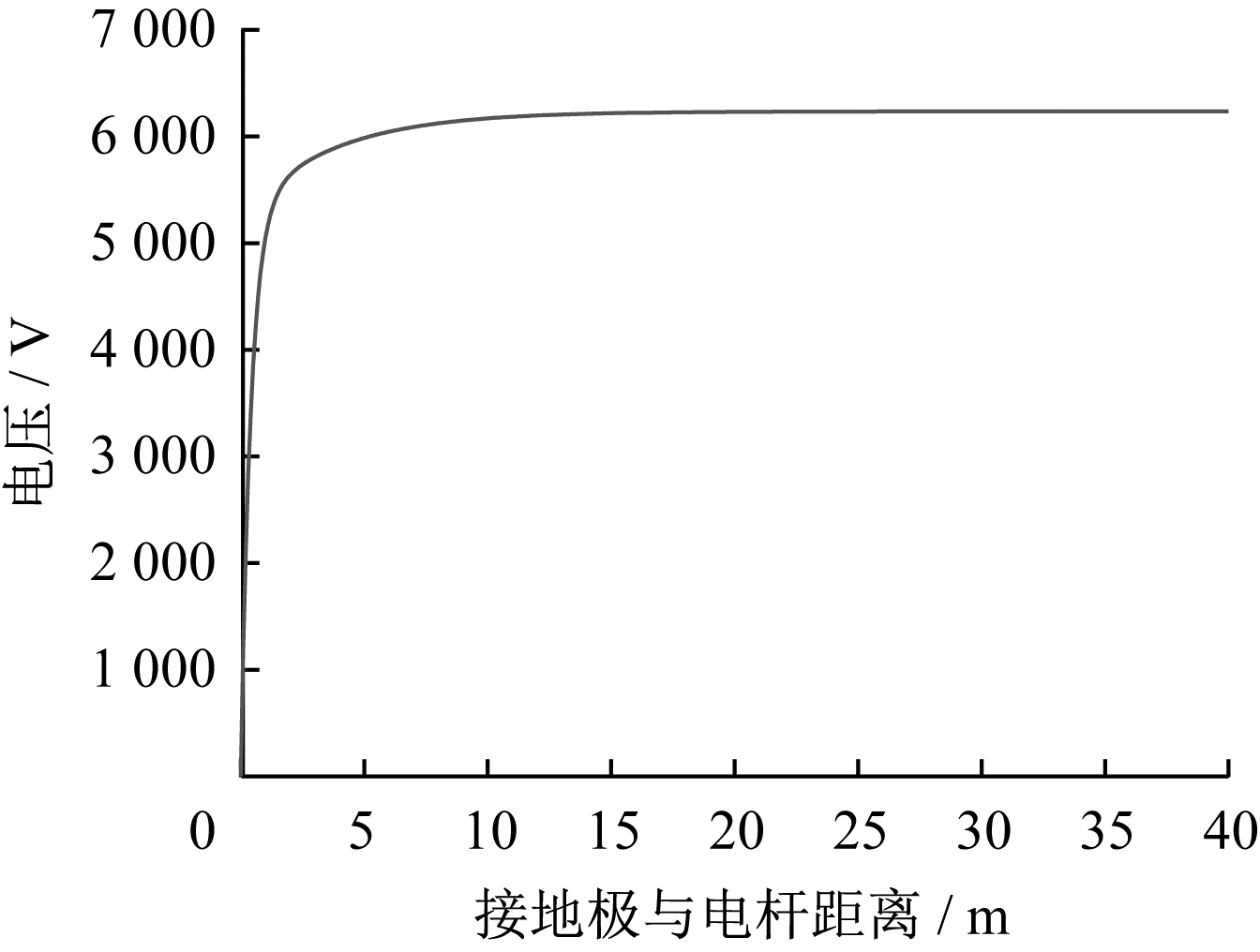

距离/m	跨步电压/V	距离/m	跨步电压/V
0~1	5 049.930 0	4~5	76.917 8
1~2	587.638 9	5~6	58.665 1
2~3	166.893 4	6~7	44.866 7
3~4	103.289 6	7~8	34.324 4

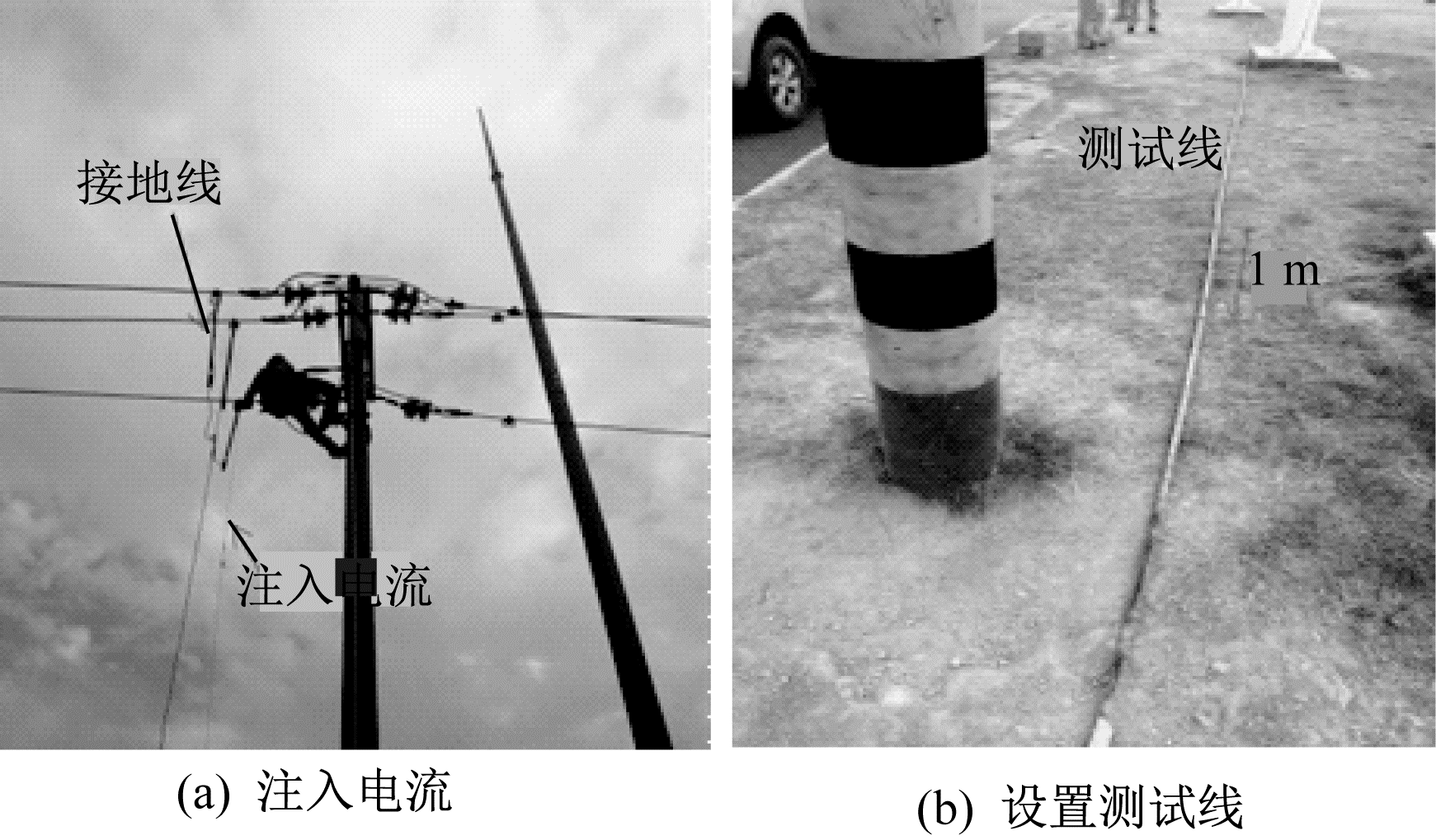

测试地点	接地极埋深/m	接地阻抗/Ω	接地电阻/Ω
17#杆草坪	0.6	218.80	218.80
17#杆草坪	0.7	205.20	205.20
17#杆草坪	0.8	198.10	198.10
17#杆草坪	0.9	194.80	194.70
17#杆附近红土	0.4	85.43	85.32
17#杆附近红土	0.6	69.46	69.34

测试地点	改善方法(埋深/m)	接地阻抗/Ω	接地电阻/Ω
17#杆草坪	双重接地极(埋深0.6)	151.30	151.30
17#杆草坪	双重接地极(埋深0.7)	146.30	146.20
17#杆草坪	加入盐水(埋深0.6)	118.30	118.30
17#杆草坪	加入盐水(埋深0.7)	108.50	108.50
17#杆草坪	加入盐水(埋深0.8)	104.20	104.10
17#杆附近红土	加入盐水(埋深0.6)	35.42	35.28
