LOW VOLTAGE APPARATUS ›› 2022, Vol. 0 ›› Issue (9): 18-26.doi: 10.16628/j.cnki.2095-8188.2022.09.003

• System Research & Analysis • Previous Articles     Next Articles

Research on Simulation System of Integrated Community Energy

SUN Hao1,2, CHEN Yonghua3, WU Weining1, XING Zuoxia1

  1. 1. Shenyang University of Technology,Shenyang 110870, China
    2. SPIC Northeast Electric Power Co.,Ltd.,Shenyang 110181, China
    3. NARI Group Corporation (State Grid Electric Power Research Institute), Nanjing 211100, China
  • Received:2022-07-11 Online:2022-09-30 Published:2022-10-20

Abstract:

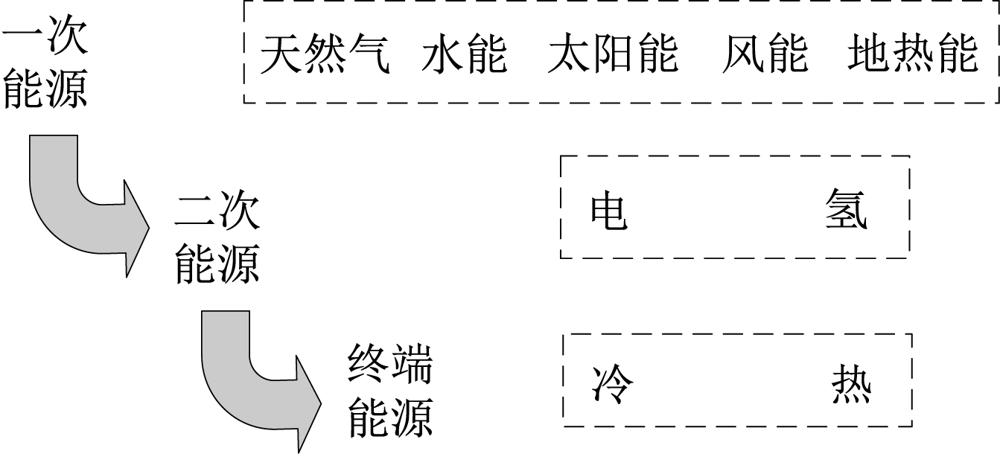

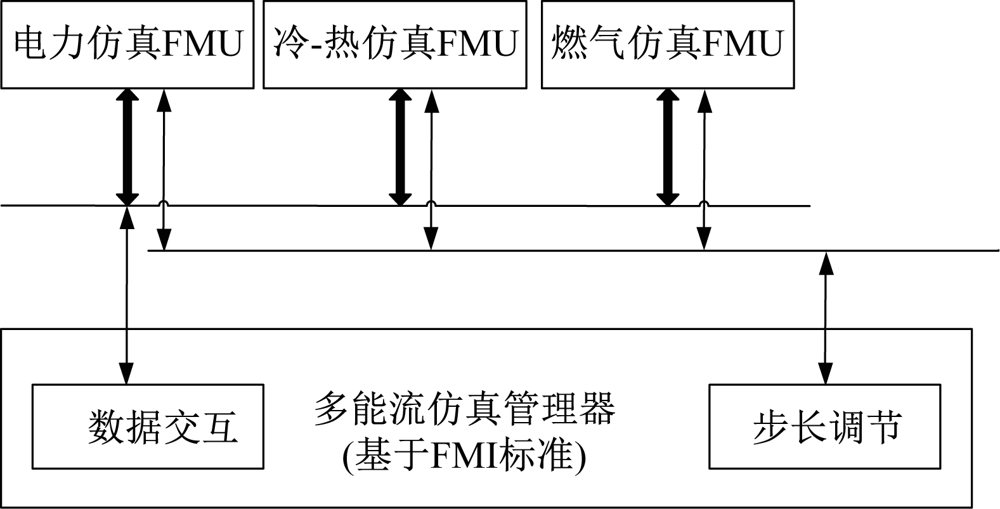

Aimed at the technical status of integrated community energy system,the integrated community energy simulation analysis system was developed.Based on the theory of energy cascade utilization,the energy flow interaction mechanism of the integrated energy system was established.Based on the FMI information exchange technology,the information flow interaction mechanism of the integrated community energy system was established.The modeling,simulation and analysis of regional multi-energy flow were realized under the unified platform architecture.The integrated community energy simulation system developed to realize the interaction between energy flow and information flow in the integrated community energy system,and the joint simulation of electricity-cooling-heating-gas system.The system can provide users with a friendly operation interface in a unified modeling interface.The open architecture can be compatible with third-party software,and provide theoretical simulation analysis tools for real engineering problems.

Key words: integrated community energy system, simulation, modeling, cascade utilization
