Detection Device of Transformer Substation Battery Pack Based on Wireless Communication Technology

doi:10.16628/j.cnki.2095-8188.2022.07.006

Abstract

Abstract:

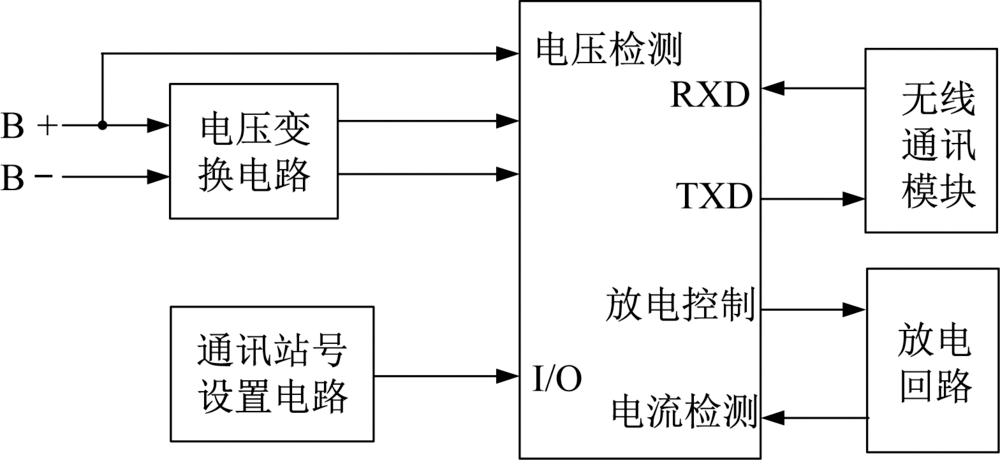

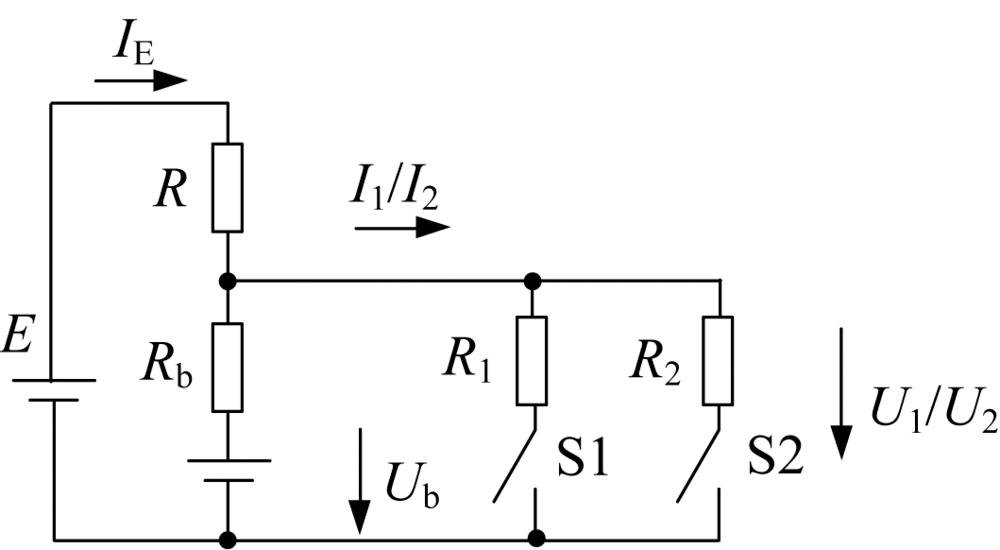

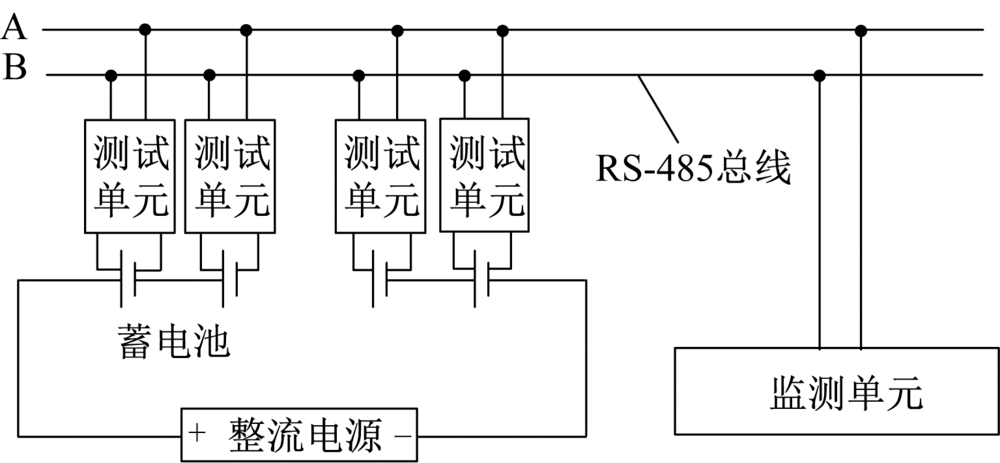

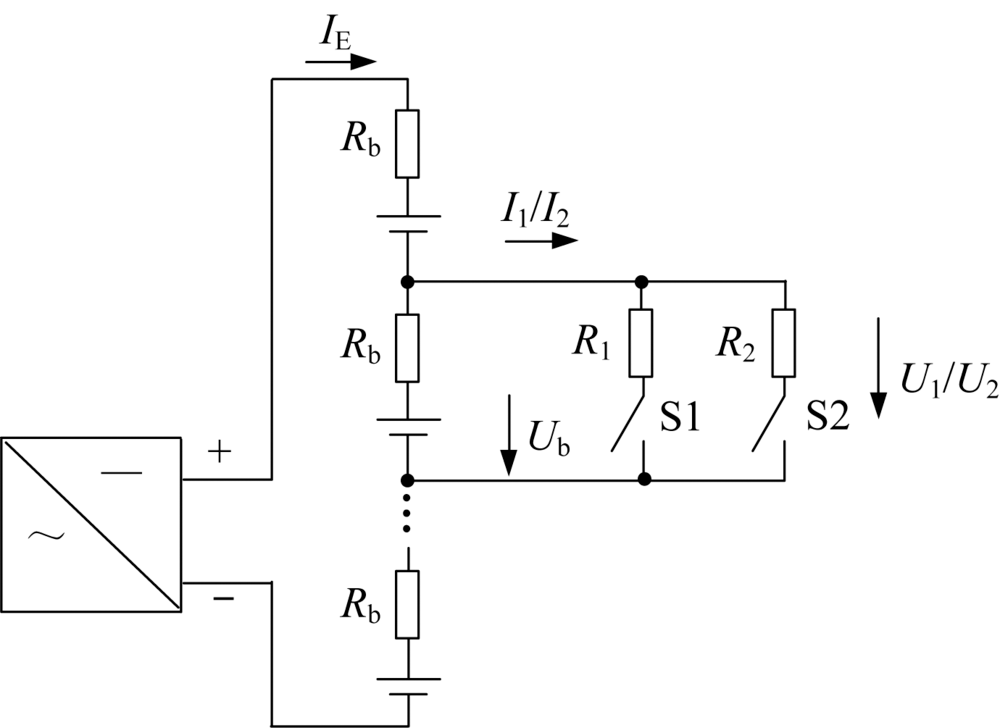

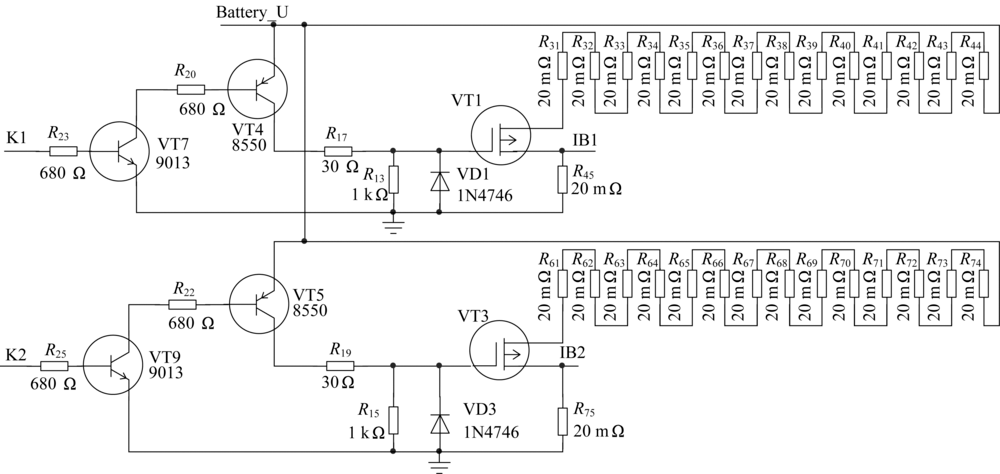

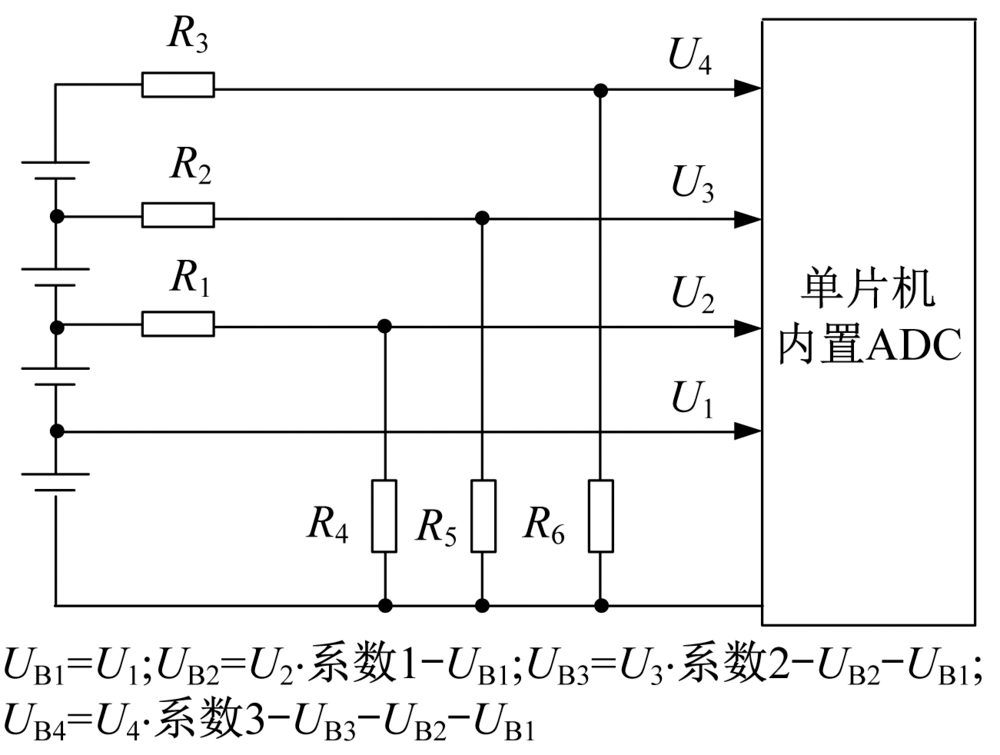

In order to ensure that the battery pack provides uninterrupted power supply for the load in case of AC power failure,configuring the battery monitoring device to monitor the battery state in real time has become a conventional scheme of DC power supply system in important substations.A set of distributed battery detection device based on wireless communication for 2 V battery pack is designed.The system is composed of a monitoring unit and several test units.The device is equipped with a test unit for 3 or 4 batteries in series.The single chip microcomputer built-in analog-to-digital conversion module is used in the test unit,which can detect the corresponding battery terminal voltage in real time and configure the resistance discharge module at the same time.The monitoring unit uses wireless communication to call the test unit with station number in broadcast mode to obtain data,and sends internal resistance detection command in response to on-site manual command or remote control command.The test unit uses twi-discharge method to realize on-line detection of corresponding battery internal resistance.The experimental results show that the device can effectively measure the battery voltage and internal resistance.

Key words: battery, wireless communication, measuring unit, twi-discharge, internal resistance

CLC Number:

TM912

MA Yan, WU Hang, ZHOU Ya, CAO Hai, HUANG Haihong. Detection Device of Transformer Substation Battery Pack Based on Wireless Communication Technology[J]. LOW VOLTAGE APPARATUS, 2022, 0(7): 36-40.

Figures/Tables 12

References 11

[1]	刘彪, 曹磊, 马建辉, 等. 基于IEC61850规约的变电站直流电源状态监测系统[J]. 电器与能效管理技术, 2019(22):83-88,95.
[2]	申娟平. 变电站蓄电池在线检测维护技术探讨[J]. 电力系统装备, 2020(3):72-73.
[3]	江红成, 潘岑诚, 江季声, 等. 110 kV变电站蓄电池维护检测方法研究与探讨[J]. 蓄电池, 2018, 55(4):179-184.
[4]	马文长. 变电站直流系统中蓄电池的检测和维护问题[J]. 通信电源技术, 2017, 34(5):194-195,197.
[5]	王洪, 卢志涛, 王少博, 等. 基于人工智能的电网用蓄电池健康度评估[J]. 广东电力, 2019, 32(4):79-84.
[6]	梅简, 张杰, 刘双宇, 等. 电池储能技术发展现状[J]. 浙江电力, 2020, 39(3):75-81.
[7]	李立伟, 邹积岩. 蓄电池在线监测系统的设计与实现[J]. 电工技术, 2002(11):7-9.
[8]	张健, 凌瀛. 电力系统用蓄电池在线无损检测与运行优化系统的设计[J]. 华东电力, 2014, 42(8):1719-1721.
[9]	王海欣, 黄海宏. 新型蓄电池智能检测装置[J]. 电力建设, 2006, 27(2):55-57.
[10]	李红桥, 向小民. 利用瞬间大电流放电法检测蓄电池内阻[J]. 三峡大学学报(自然科学版), 2005, 27(5):413-416.
[11]	黄海宏, 王海欣, 吴黎丽, 等. 二次放电在线检测蓄电池内阻[J]. 电力系统自动化, 2007, 31(15):89-93.

电池编号	1次放电电流/A	2次放电电流/A	计算的内阻值/mΩ
1	21	38	1.64
2			1.68
3			1.36
4			1.68
