Optimal Scheduling Strategy of Wind,Fire and Energy Storage Considering Battery Capacity Degradation

doi:10.16628/j.cnki.2095-8188.2021.09.005

Abstract

Abstract:

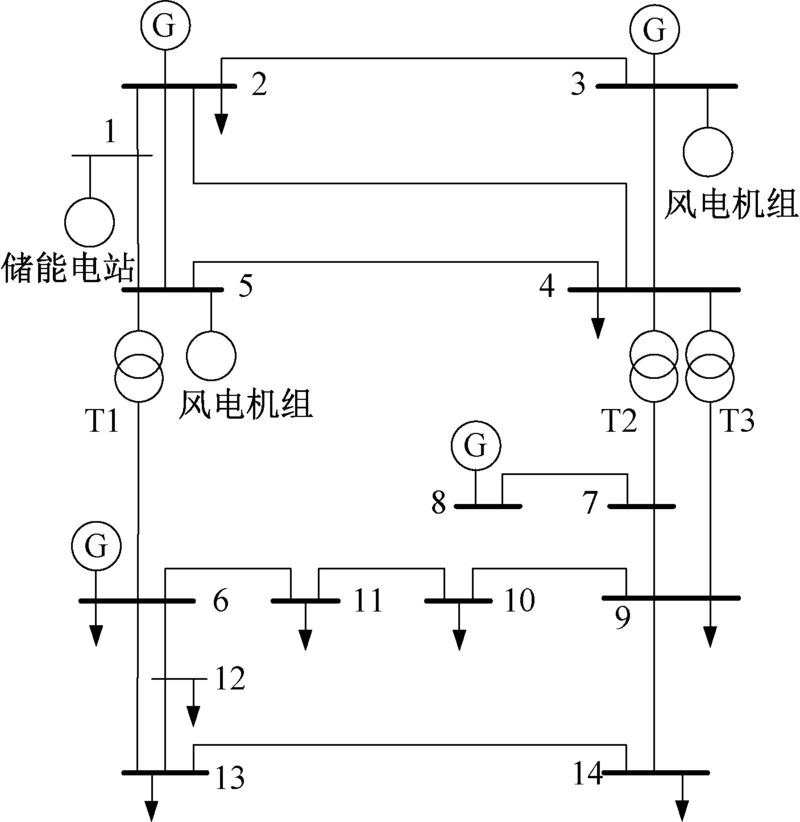

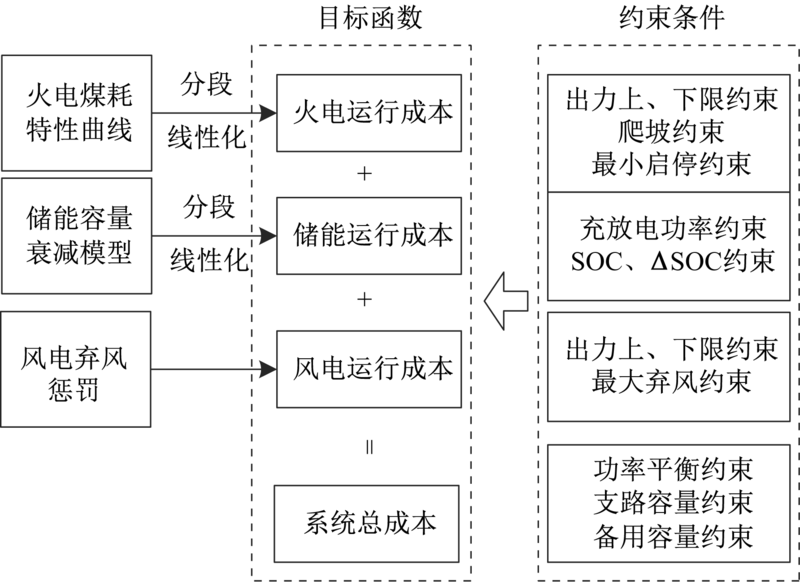

Energy storage technology provides a new way to deal with wind power access to the grid,however,frequent use of energy storage power stations will cause the battery capacity decline and the operation costs of power stations increase.This paper proposes a combined optimal scheduling model of wind,fire and energy storage,which considers the battery capacity degradation,thermal power start-up,shutdown and ramp up,wind power abandonment,system branch capacity and system reserve,etc.The model is linearized and calculated by calling CPLEX solver.The simulation results of 4-machine 14 bus system show that the model can alleviate battery capacity attenuation,thermal power climbing shortage,wind power curtailment and line capacity shortage.This paper provides a practical and feasible scheduling scheme for the healthy and reliable operation of energy storage power station.

Key words: wind-fire-storage, optimal scheduling, energy storage power stations, battery capacity degradation

CLC Number:

TM912

GUO Binqi, ZHANG Jiangfeng, SU Ye, WU Jiping, SUN Jiandong. Optimal Scheduling Strategy of Wind,Fire and Energy Storage Considering Battery Capacity Degradation[J]. LOW VOLTAGE APPARATUS, 2021, 0(9): 32-39.

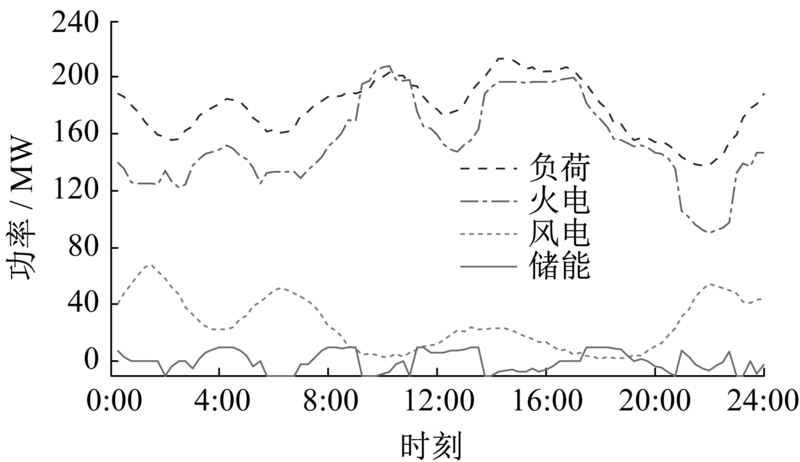

Figures/Tables 15

References 17

[1]	王长路, 王伟功, 张立勇, 等. 中国风电产业发展分析[J]. 重庆大学学报, 2015, 38(1):148-154.
[2]	李建林, 郭斌琪, 薛宇石等. 国内微电网示范工程及运行控制能效管理技术综述[J]. 电器与能效管理技术, 2017(18):1-7.
[3]	赵静, 万瑞妮, 郭敏, 等. 电池储能系统在并网风电场运行中的协调控制研究[J]. 电器与能效管理技术, 2020(10):71-76.
[4]	王民华, 李凤霞. 混合储能平抑微电网功率波动控制策略研究[J]. 电力电容器与无功补偿, 2020, 41(4):215-220.
[5]	王裕奎. 我国典型风储示范工程运行效果分析[J]. 电器与能效管理技术, 2020(12):35-40.
[6]	何俊峰, 葛延峰, 葛维春, 等. 大容量储能电站的等值仿真模型及并网运行特性研究[J]. 电力电容器与无功补偿, 2020, 41(4):221-227.
[7]	王亚旭, 李凤霞, 苏猛. 风光发电系统中模拟电机特性的储能优化控制[J]. 电力电容器与无功补偿, 2019, 40(3):158-164.
[8]	王蓓蓓, 李扬. 面向智能电网的电力需求侧管理规划及实施机制[J]. 电力自动化设备, 2010, 30(12):19-24.
[9]	AALAMI H A, MOGHADDAM P M, YOUSEFI G R. Demand response modeling considering interruptible/curtailable loads and capacity market programs[J]. Applied Energy, 2010(87):243-250.
[10]	吴雄, 王秀丽, 李骏, 等. 风电储能混合系统的联合调度模型及求解[J]. 中国电机工程学报, 2013, 33(33):10-17.
[11]	陆秋瑜, 胡伟, 闵勇, 等. 考虑时间相关性的风储系统多模式协调优化策略[J]. 电力系统自动化, 2015, 39(2):6-12.
[12]	甘伟, 艾小猛, 方家琨, 等. 风-火-水-储-气联合优化调度策略[J]. 电工技术学报, 2017, 32(S1):11-20.
[13]	向育鹏, 卫志农, 孙国强, 等. 基于全寿命周期成本的配电网蓄电池储能系统的优化配置[J]. 电网技术, 2015, 39(1):264-270.
[14]	韩晓娟, 程成, 籍天明, 等. 计及电池使用寿命的混合储能系统容量优化模型[J]. 中国电机工程学报, 2013, 33(34):91-97.
[15]	李相俊, 马锐, 王上行, 等. 考虑电池寿命的商业园区储能电站运行控制策略[J]. 高电压技术, 2020, 46(1):62-70.
[16]	徐群, 吕晓禄, 武乃虎, 等. 考虑电池寿命和过放现象的风电场储能容量优化[J]. 电网技术, 2014, 38(6):1505-1511.
[17]	MA Z, ZOU S, LIU X. A distributed charging coordination for large-scale plug-in electric vehicles considering battery degradation cost[J]. IEEE Transactions on Control Systems Technology, 2015, 23(5):2044-2052. doi: 10.1109/TCST.2015.2394319

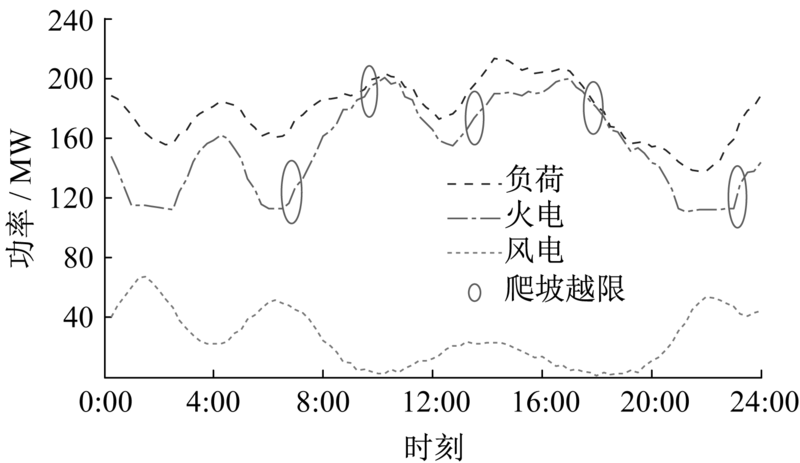

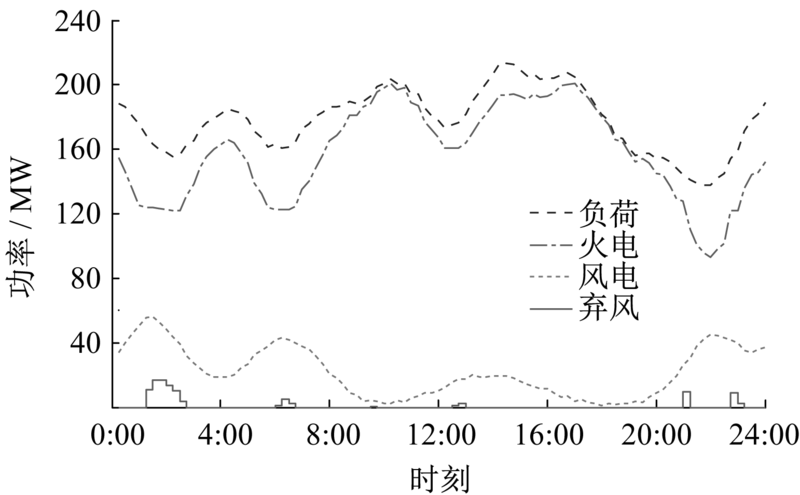

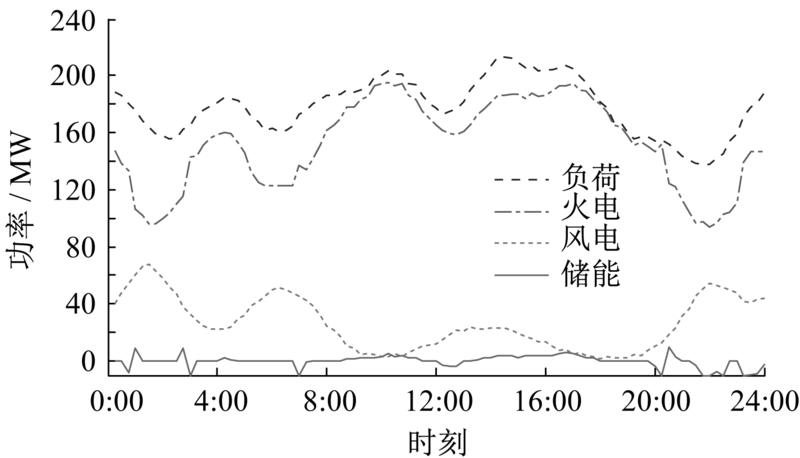

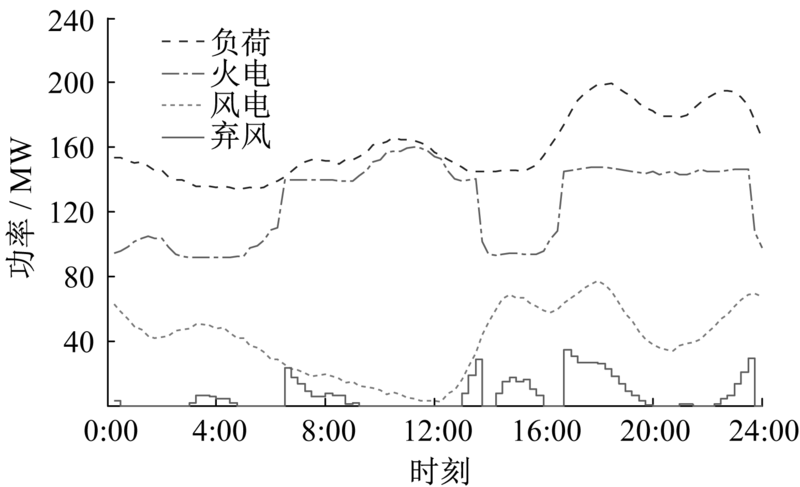

季节	火电运行成本/万元	弃风成本/万元	系统总成本/万元	弃风率/%
冬季	136.40	5.93	142.33	15.25
夏季	177.23	1.04	178.27	4.95

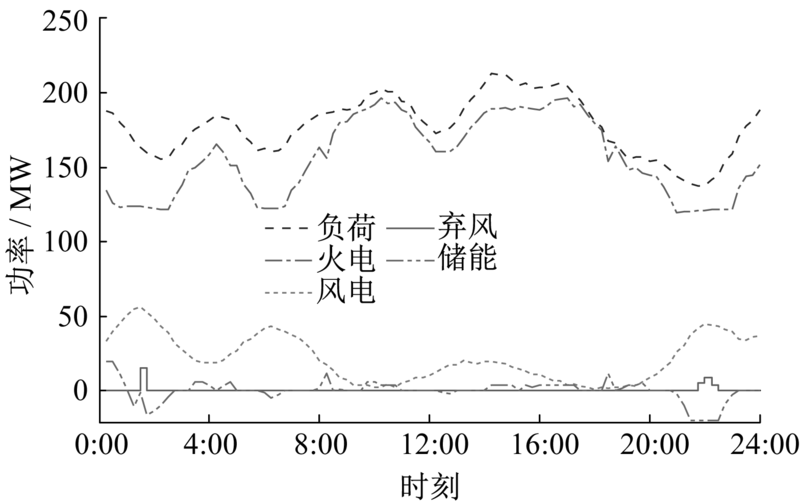

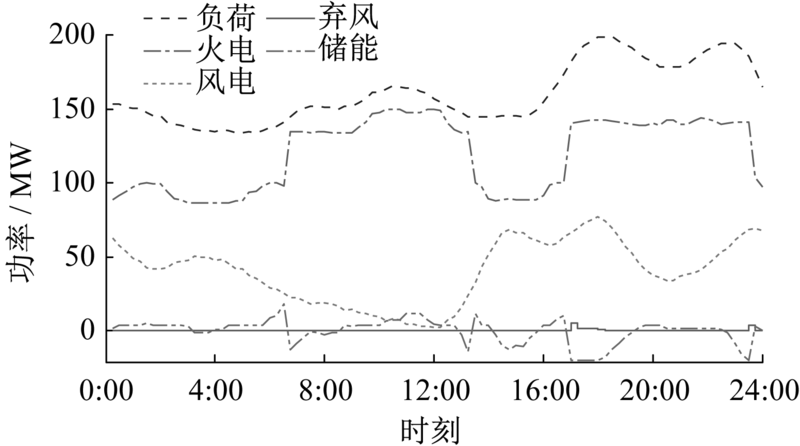

季节	储能容量衰减成本/万元	火电运行成本/万元	弃风成本 /万元	系统总成本/万元	弃风率/%
冬季	1.42	130.70	0.51	132.63	1.29
夏季	1.36	169.70	0.32	171.38	1.56

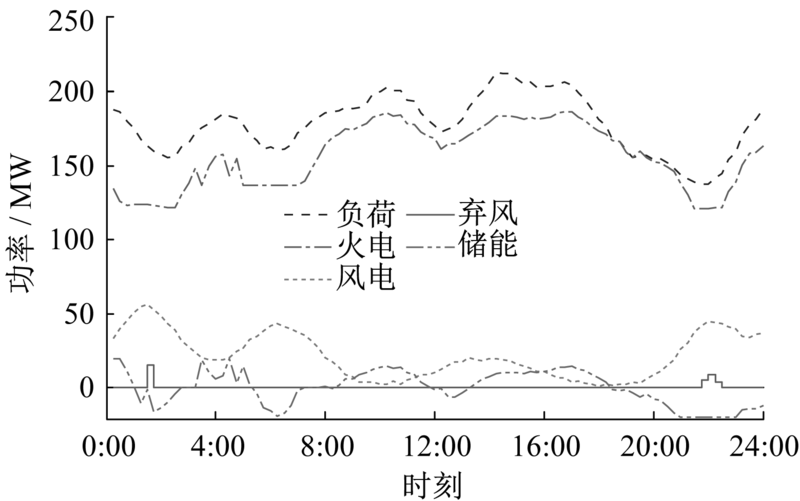

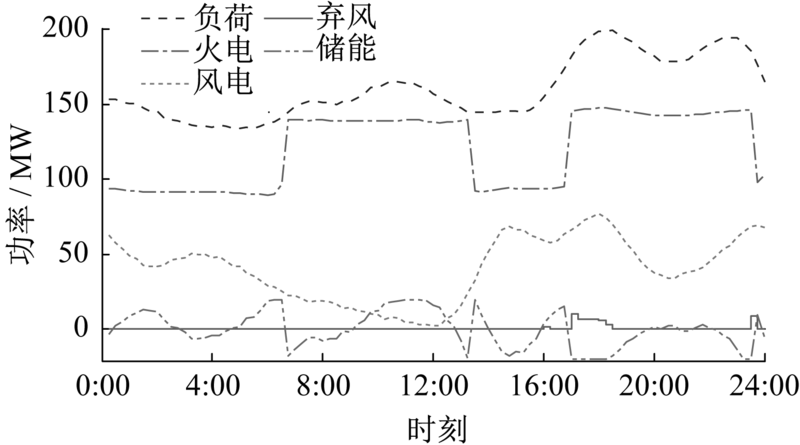

季节	储能容量衰减成本/万元	火电运行成本/万元	弃风成本 /万元	系统总成本/万元	弃风率/%
冬季	0.88	130.37	0.15	131.4	2.04
夏季	0.76	176.22	0.59	177.3	2.80
