基于全息希尔伯特频谱分析的交流串联电弧故障电流特征研究*

doi:10.16628/j.cnki.2095-8188.2024.06.002

摘要/Abstract

摘要：

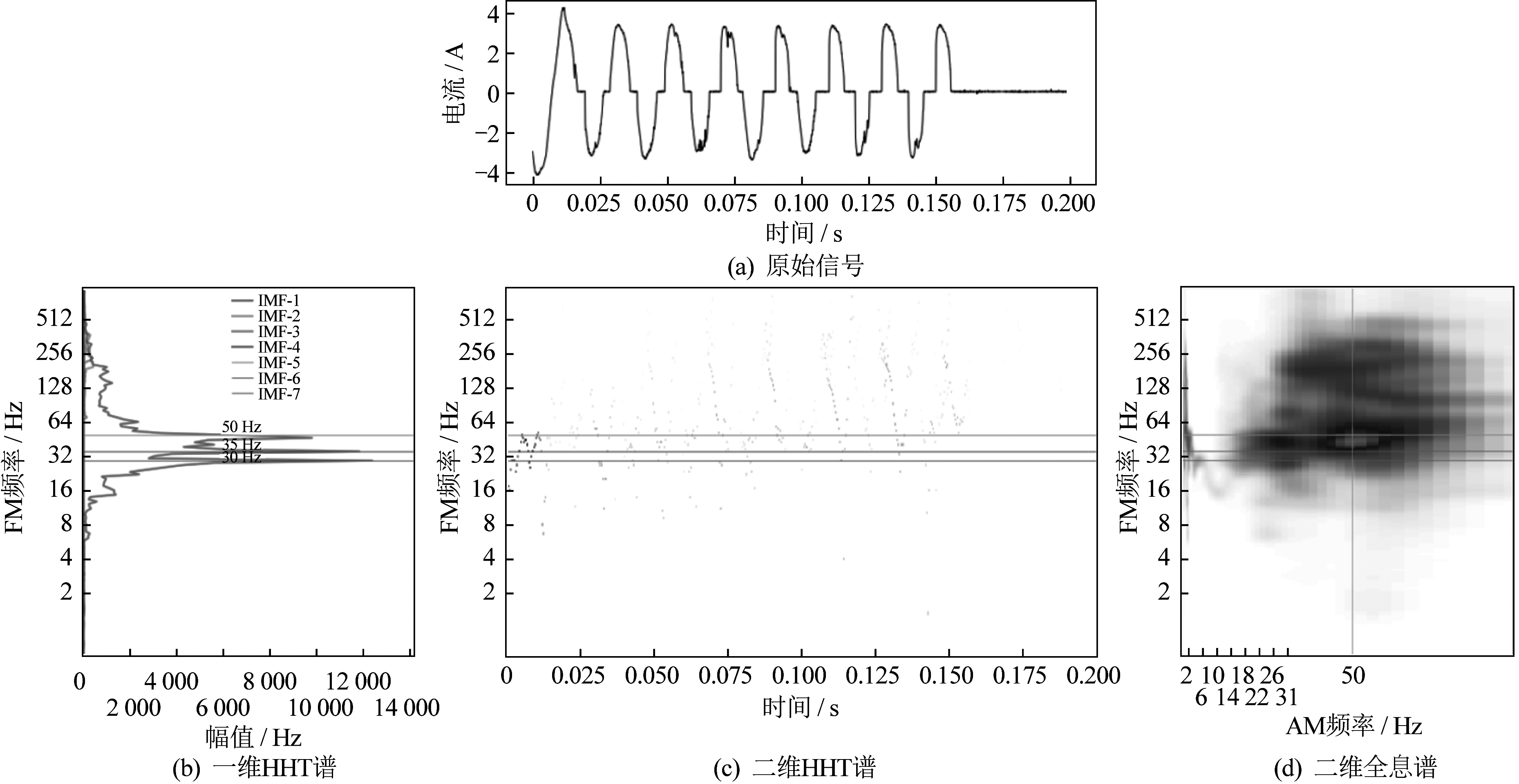

针对交流串联电弧故障信号特征提取和分析的难题,提出采用循环掩码经验模态分解(itEMD)进行信号分解以获取多层内涵模态分量(IMF),结合全息希尔伯特变换(HHT)展现高维幅度调制-频率调制(AM-FM)谱图的分析方法,从而获取高区分度的电弧故障信号特征谱图。采用基于 GB/T 31143—2014的电弧故障实验平台,采集7种屏蔽负载模式下电弧故障电流信号,分析研究不同环境下电弧故障特征。所提方法对于电弧故障检测技术的开发具有一定的理论指导意义。

关键词: 交流电弧, 串联电弧故障, 全息希尔伯特频谱分析, 循环掩码经验模态分解

Abstract:

To solve the problem of extraction and analysis of alternative-current series arc fault characteristics, an analysis methodology that applies iterated masking empirical mode decomposition (itEMD) for current signal decomposition to obtain multi-layer intrinsic mode functions (IMFs) is proposed, and Holo-Hilbert transform(HHT) is utilized to represent high-dimensional amplitude-modulation-and-frequency-modulation (AM-FM) spectra, so that the high discriminative characteristic spectra of series arc faults can be achieved. The arc fault current signals are acquired under seven masking load modes in accordance with GB/T 31143—2014, and arc fault characteristics under different conditions are investigated by the proposed methodology. The presented study is of significant theoretical importance to the development of arc fault detection techniques.

Key words: alternative-current arcs, series arc faults, Holo-Hilbert spectral analysis, iterated masking empirical mode decomposition

中图分类号:

TM501.2

吴自然, 韩燕, 陈冲. 基于全息希尔伯特频谱分析的交流串联电弧故障电流特征研究^*[J]. 电器与能效管理技术, 2024, 0(6): 8-16.

WU Ziran, HAN Yan, CHEN Chong. Research on Characteristics of AC Series Fault Arcs Based on Holo-Hilbert Spectral Analysis[J]. LOW VOLTAGE APPARATUS, 2024, 0(6): 8-16.

图/表 19

图1

表1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

图13

图14

图15

图16

图17

表2

参考文献 20

[1]	KIM C J. Electromagnetic radiation behavior of low-voltage arcing fault[J]. IEEE Transactions on Power Delivery, 2009, 24(1):416-423.
[2]	XIAO X, SI X, XIONG Q, et al. Arc fault risk evaluation based on image recognition[C]// 2021 IEEE 5th Conference on Energy Internet and Energy System Integration (EI2),2021:1579-1583.
[3]	KIM J C, NEACSU D O, LEHMAN B, et al. Series AC arc fault detection using only voltage waveforms[C]// 2019 IEEE Applied Power Electronics Conference and Exposition (APEC).Anaheim,CA, USA:IEEE,2019:2385-2389.
[4]	LIN J, LUAN W, LIU B. A novel non-intrusive arc fault detection method for low-voltage customers[C]// 2021 6th Asia Conference on Power and Electrical Engineering (ACPEE).Chongqing,China:IEEE,2021: 84-88.
[5]	廖晓宇. 低压交流串联电弧故障检测技术研究[D]. 哈尔滨: 哈尔滨工业大学, 2021.
[6]	刘君. 低压交流串联电弧故障检测方法及模块设计[D]. 哈尔滨: 哈尔滨工业大学, 2022.
[7]	ATHARPARVEZ M, PURANDARE K R. Series arc fault detection using novel signal processing technique[C]// 2018 IEEE Holm Conference on Electrical Contacts,2018:335-339.
[8]	崔芮华, 曹欢, 耿丽恺, 等. 基于峭度和间谐波分析的故障电弧识别方法[J]. 电气传动, 2018, 48(10):79-84.
[9]	YANG K, CHU R, ZHANG R, et al. A novel methodology for series arc fault detection by temporal domain visualization and convolutional neural network[J]. Sensors, 2020, 20(1):162.
[10]	朱海. 基于鲸鱼优化算法改进随机森林的电弧故障检测方法[J]. 电器与能效管理技术, 2024(2):21-27,55.
[11]	郑力, 鲍光海. 基于改进MobileNet的串联电弧故障检测方法[J]. 电器与能效管理技术, 2024(2):13-20.
[12]	HUANG N E, SHEN Z, LONG S R, et al. The empirical mode decomposition method and the Hilbert spectrum for nonlinear and non-stationary time series analysis[J]. Proceedings of The Royal Society A,1998, 454(1971):903-998.
[13]	QUINN A J, LOPES-DOS-SANTOS V, DUPRET D, et al. EMD:empirical mode decomposition and hilbert-Huang spectral analyses in python[J]. Journal of Open Source Software, 2021, 6(59):2977.
[14]	HSU H T, LEE W K, SHYU K K, et al. Analyses of EEG oscillatory activities during slow and fast repetitive movements using holo-hilbert spectral analysis[J]. IEEE Transactions on Neural Systems and Rehabilitation Engineering, 2018, 26(9):1659-1668.
[15]	PARISE G, MARTIRANO L, LAURINI M. Simplified arc-fault model:the reduction factor of the arc current[J]. IEEE Transactions on Industry Applications, 2013, 49(4):1703-1710.
[16]	HUANG N E, HU K, YANG A C C, et al. On holo-hilbert spectral analysis:a full informational spectral representation for nonlinear and non-stationary data[J]. Philosophical Transactions of the Royal Society A:Mathematical, Physical and Engineering Sciences, 2016, 374(2065):20150206.
[17]	FOSSO O B, MOLINAS M. Method for mode mixing separation in empirical mode decomposition[J/OB]. https://www.researchgate.net/publication/319896551.
[18]	FABUS M S, QUINN A J, WARNABY C E, et al. Automatic decomposition of electrophysiological data into distinct nonsinusoidal oscillatory modes[J]. Journal of Neurophysiology, 2021, 126(5):1670-1684.
[19]	全国低压电器标准化技术委员会. 电弧故障保护电器(AFDD)的一般要求:GB/T 31143—2014[S]. 北京: 中国标准出版社, 2014.
[20]	FABUS M S, WOOLRICH M W, WARNABY C W, et al. Understanding harmonic structures through instantaneous frequency[J]. IEEE Open Journal of Signal Processing, 2022(3):320-334.

负载	类别	参数
卤素灯	阻性	300 W
荧光灯	阻性	80 W
电子式开关电源	容性	最小总谐波畸变率为100%, 单独3次谐波最小畸变率75%
空压机	容性	2 200 W
电子灯光调节器	感性	600 W,60°导通角
真空吸尘器	感性	1 200 W
电钻	感性	800 W

负载类型	幅度峰值对应频率	正常状态波动范围	故障状态波动范围
纯电阻	f_FM (ω,Hz)	43.092~2 489.677	400.853~1 459.940
纯电阻	f_AM (Ω,Hz)	151.860~917.681	610.776~766.597
荧光灯加5 A电阻	f_FM (ω,Hz)	40.853~2 922.036	500.576~1 459.940
荧光灯加5 A电阻	f_AM (Ω,Hz)	43.109~766.597	510.605~917.681
真空吸尘器	f_FM (ω,Hz)	118.806~856.105	730.487~1 243.920
真空吸尘器	f_AM (Ω,Hz)	88.525~766.597	510.605~534.955
电容器启动电动机	f_FM (ω,Hz)	125.319~364.447	66.046~729.431
电容器启动电动机	f_AM (Ω,Hz)	36.012~766.597	610.776~640.386
电子式开关电源	f_FM (ω,Hz)	86.249~405.504	400.853~655.576
电子式开关电源	f_AM (Ω,Hz)	73.951~260.506	36.012~766.597
