Experimental Study on AC Arc Characteristics of Rocker Switches

doi:10.16628/j.cnki.2095-8188.2024.10.008

Abstract

Abstract:

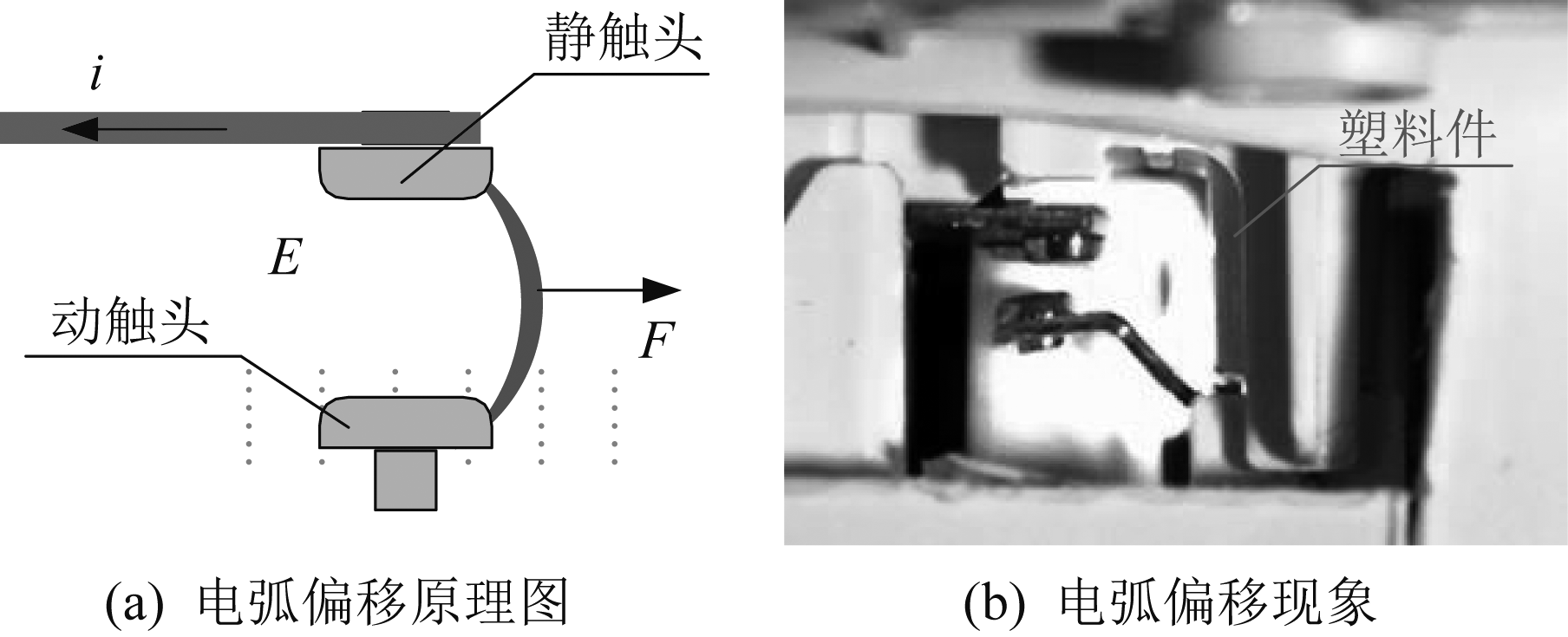

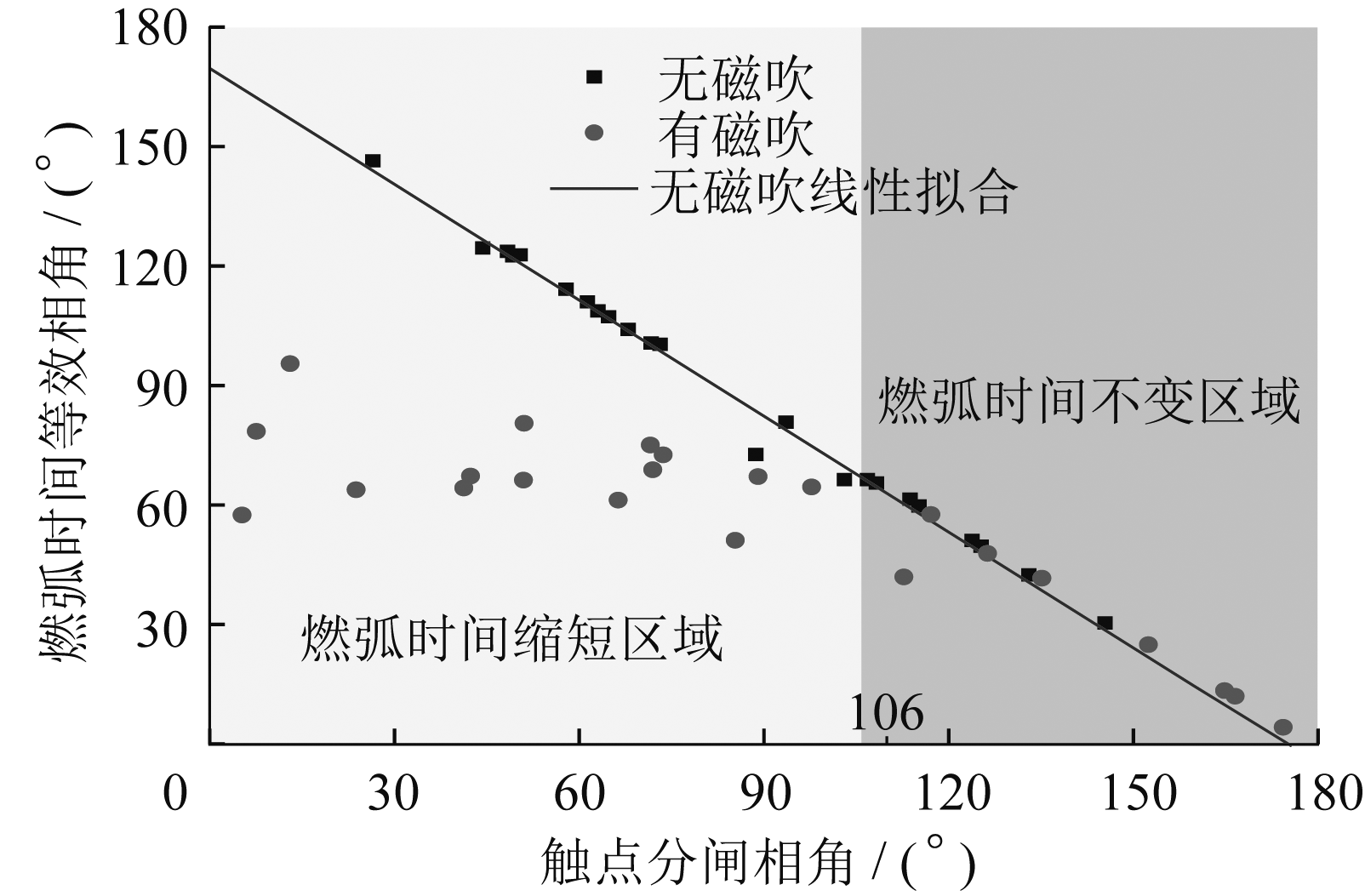

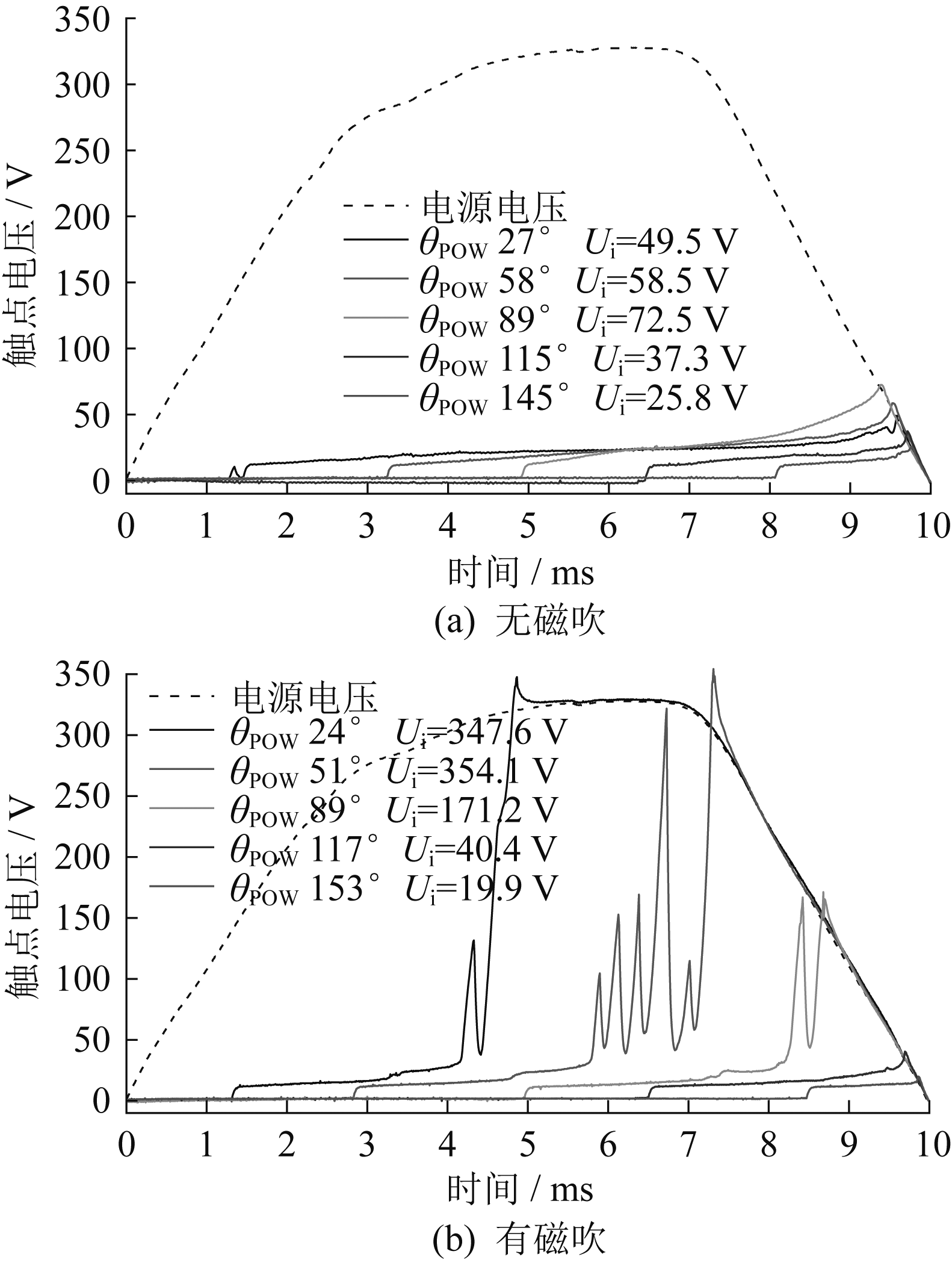

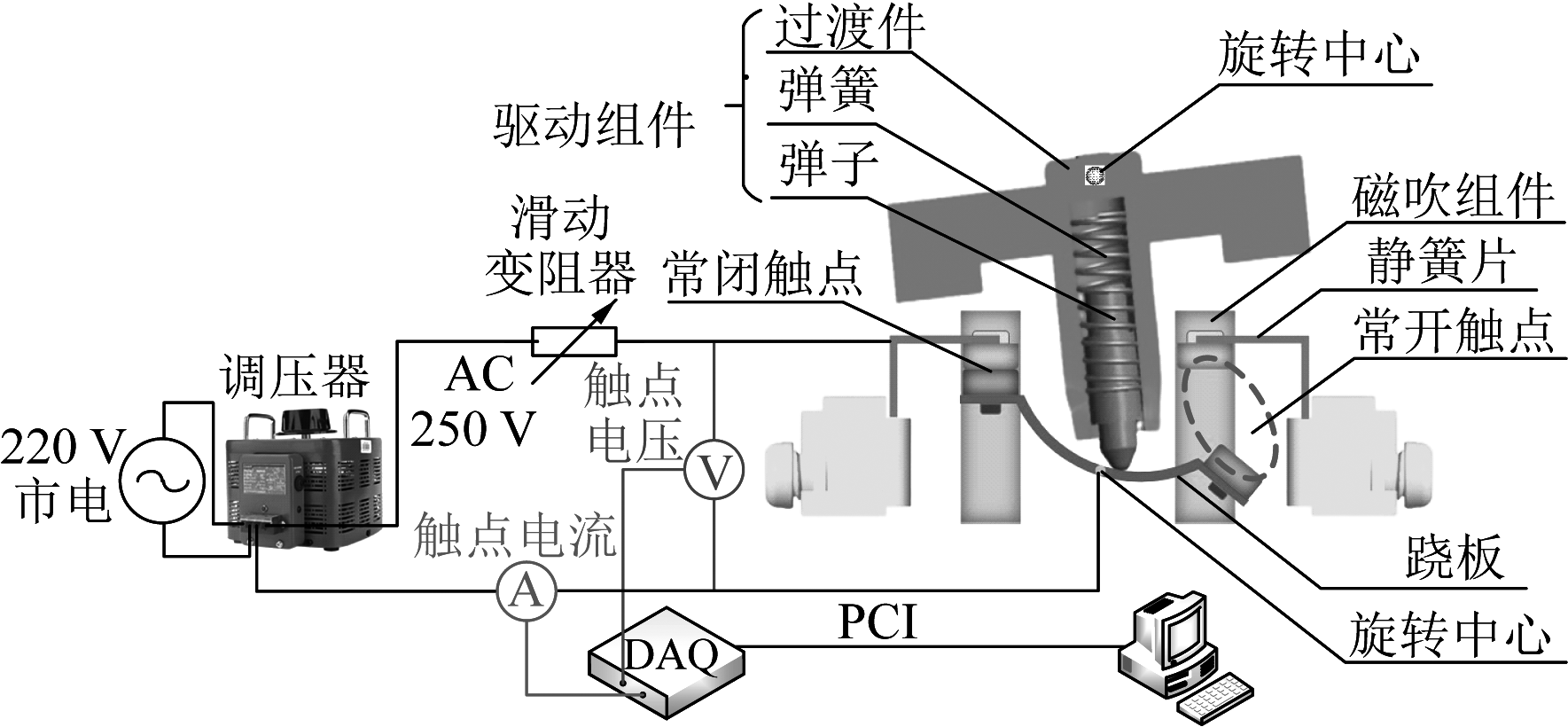

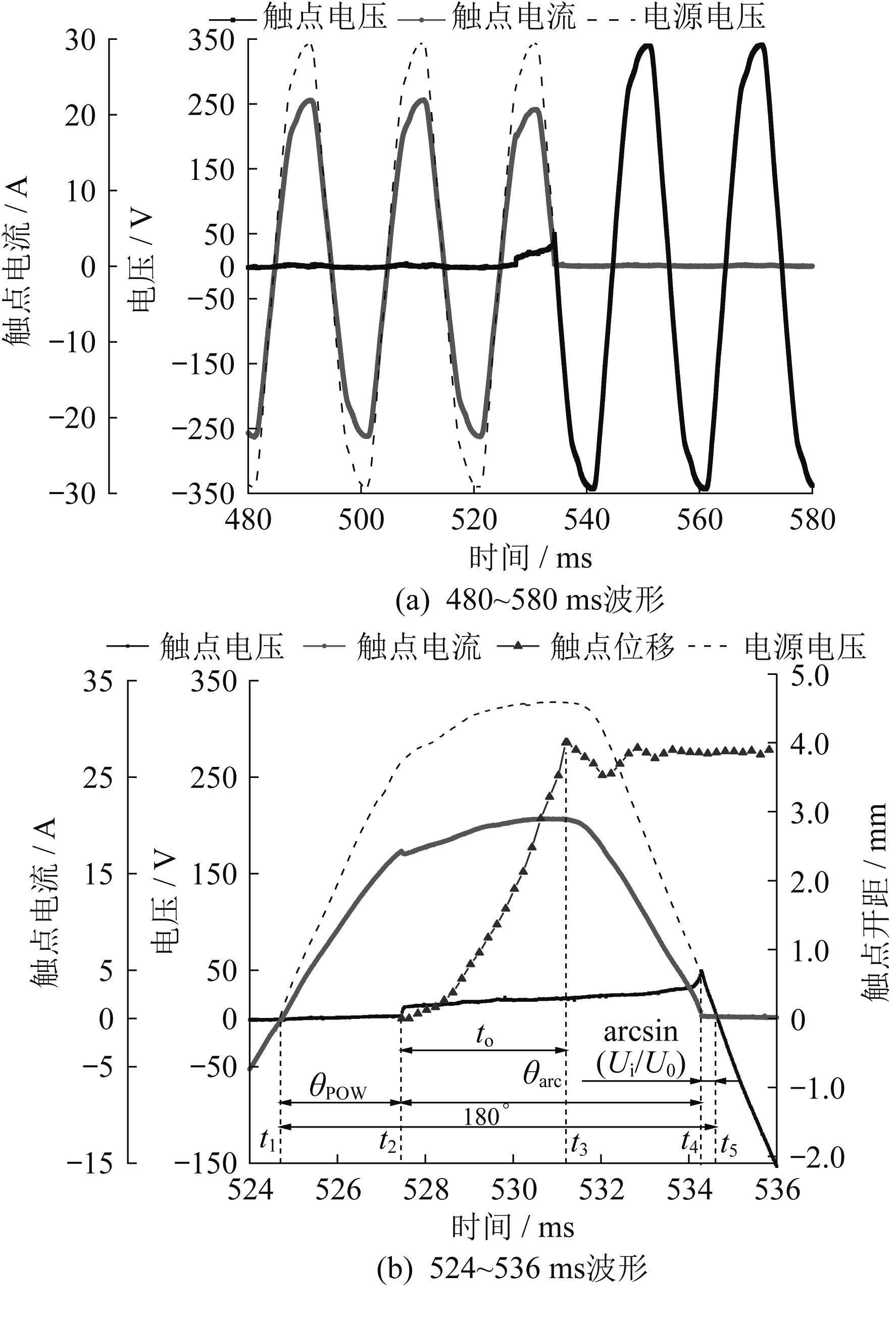

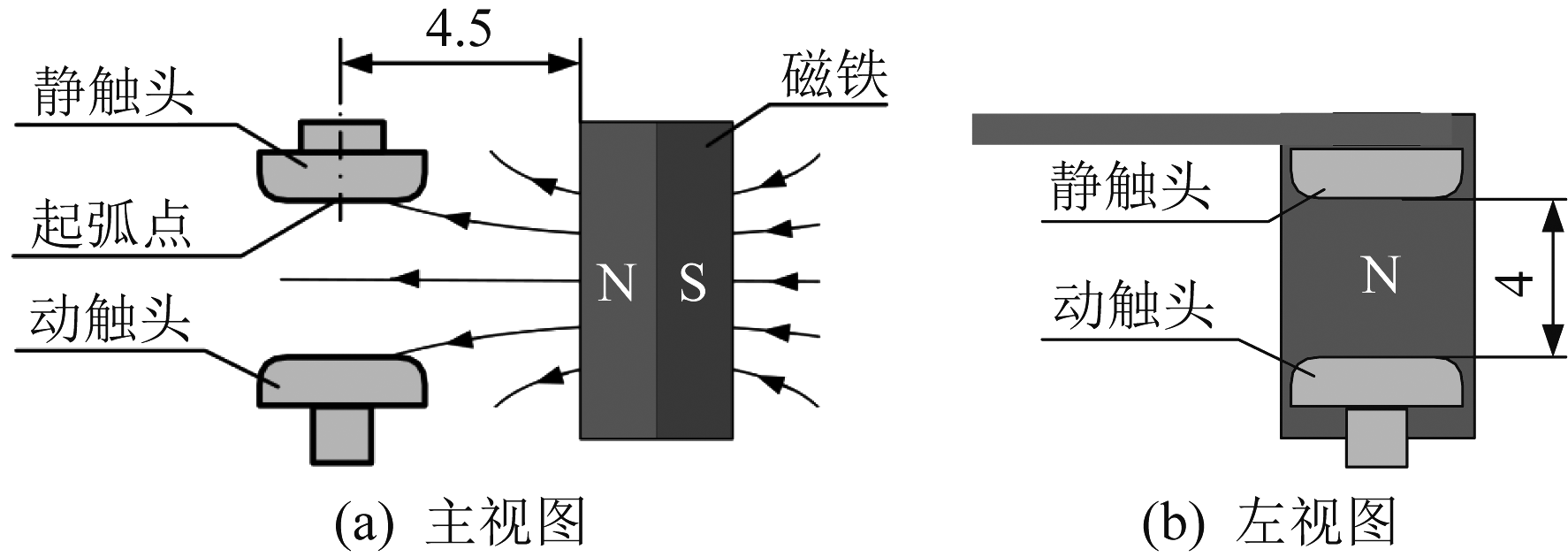

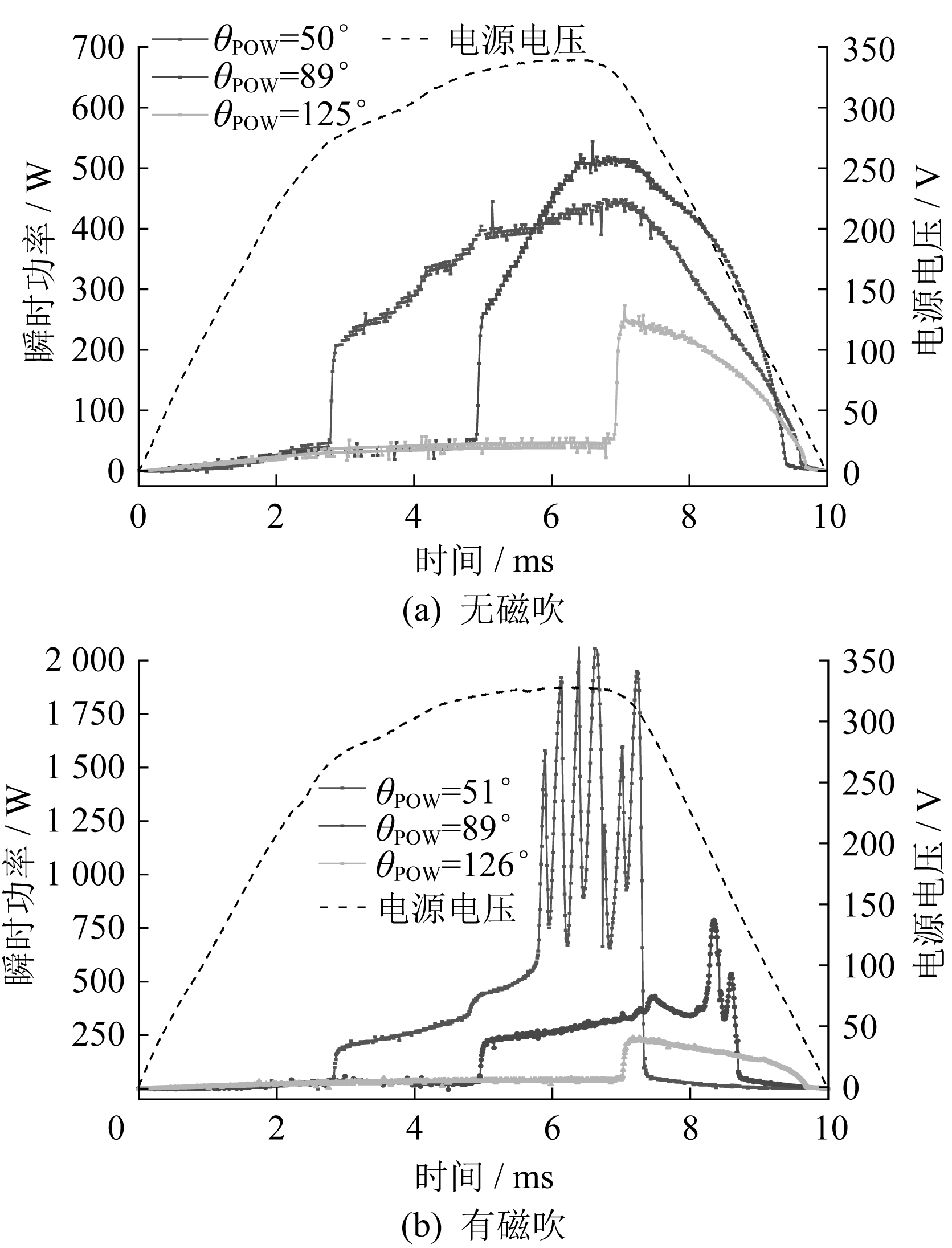

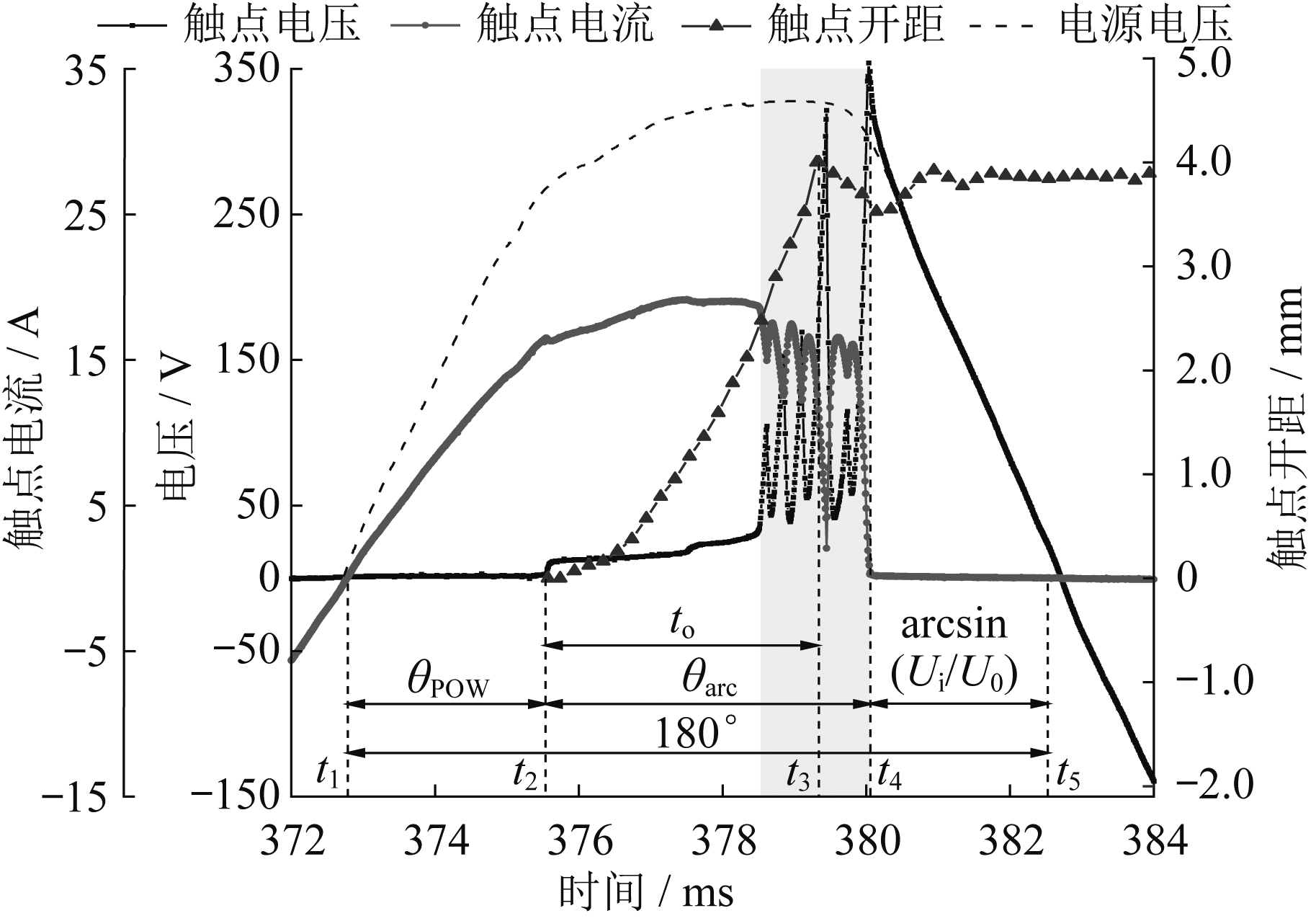

The AC arc characteristic curve is an important basis for evaluating the breaking capacity of switches.The influence of magnetic blowing on AC arc characteristics is analyzed by testing the contact voltage and contact current waveforms during the breaking process of rocker switch.It is confirmed that there are two arc extinguishing mechanisms,which are the mechanical breaking mechanism and the current zero-crossing mechanism.The drawn conclusion is valuable for improving the AC load breaking capacity of rocker switches.

Key words: rocker switch, magnetic blowing, AC arc, POW, arc extinguishing theory

CLC Number:

TM564

LU Siyu, ZHANG Chao, QIU Jun, HE Yubin, REN Wanbin. Experimental Study on AC Arc Characteristics of Rocker Switches[J]. LOW VOLTAGE APPARATUS, 2024, 0(10): 48-52.

Figures/Tables 10

References 8

[1]	国家质量监督检验检疫总局, 国家标准化管理委员会. 家用和类似用途固定式电气装置的开关第1部分:通用要求:GB/T 16915.1—2014[S]. 北京: 中国标准出版社, 2014.
[2]	张冠生. 电器理论基础[M]. 北京: 机械工业出版社,1989.
[3]	陈伟刚. 直流接触器灭弧时间试验分析[J]. 低压电器, 2014(5):12-14.
[4]	苏伟龙, 许志红. 高压直流继电器磁吹系统的建模与设计[J]. 电工技术学报, 2022, 37(6):1583-1594.
[5]	徐凯, 李治军, 祝聪, 等. 小电流分断吹弧磁场仿真及试验研究[J]. 船电技术, 2022, 42(8):27-30.
[6]	任万滨, 金建炳, 郭继峰, 等. 碳电极交流电弧伏安特性的实验研究[J]. 电工技术学报, 2014, 29(1):18-22,30.
[7]	郑昕, 单潇洁. 低压交流电弧电流零区电压波形特征分析与应用[J]. 电工技术学报, 2020, 35(22):4717-4725.
[8]	ZHENG Z, REN W, WANG T. Experimental investigation of the breaking arc behavior and interruption mechanisms for AC contactors[J]. IEEE Transactions on Plasma Science, 2021, 49(1):389-395.
