Study on Properties of Pure Iron and Soft Magnetic Material of Relay and Selection of Heat Treatment Process

doi:10.16628/j.cnki.2095-8188.2024.07.009

LOW VOLTAGE APPARATUS ›› 2024, Vol. 0 ›› Issue (7): 60-64.doi: 10.16628/j.cnki.2095-8188.2024.07.009

• Electrical Design & Discussion • Previous Articles Next Articles

Study on Properties of Pure Iron and Soft Magnetic Material of Relay and Selection of Heat Treatment Process

SHI Lei, WU Duanjian, LIAO Yushen, WU Yuanjin

Guizhou Zhenhua Qunying Electrical Appliances Co.,Ltd., Guiyang 550018, China

Received:2024-04-12 Online:2024-07-30 Published:2024-08-21

Abstract

Abstract:

The magnetic properties of the pure iron affect the core function of relays.The differences in magnetic properties of several pure iron materials are investigated primarily under various heat treatment processes and the impact on relay related performane is simulated.Finally, based on the actual usage scenarios of relays,the recommendations on the selection of pure iron materials and heat treatment processes of relay are put forward.

Key words: relay, pure iron, magnetic performance, heat treatment process

CLC Number:

TM58

SHI Lei, WU Duanjian, LIAO Yushen, WU Yuanjin. Study on Properties of Pure Iron and Soft Magnetic Material of Relay and Selection of Heat Treatment Process[J]. LOW VOLTAGE APPARATUS, 2024, 0(7): 60-64.

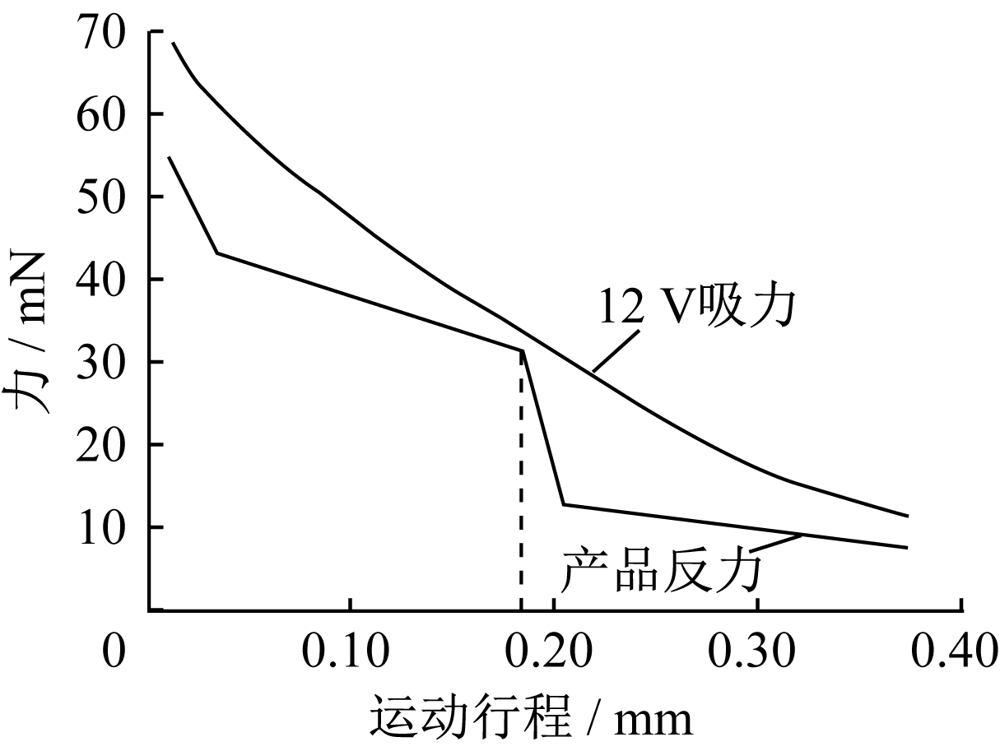

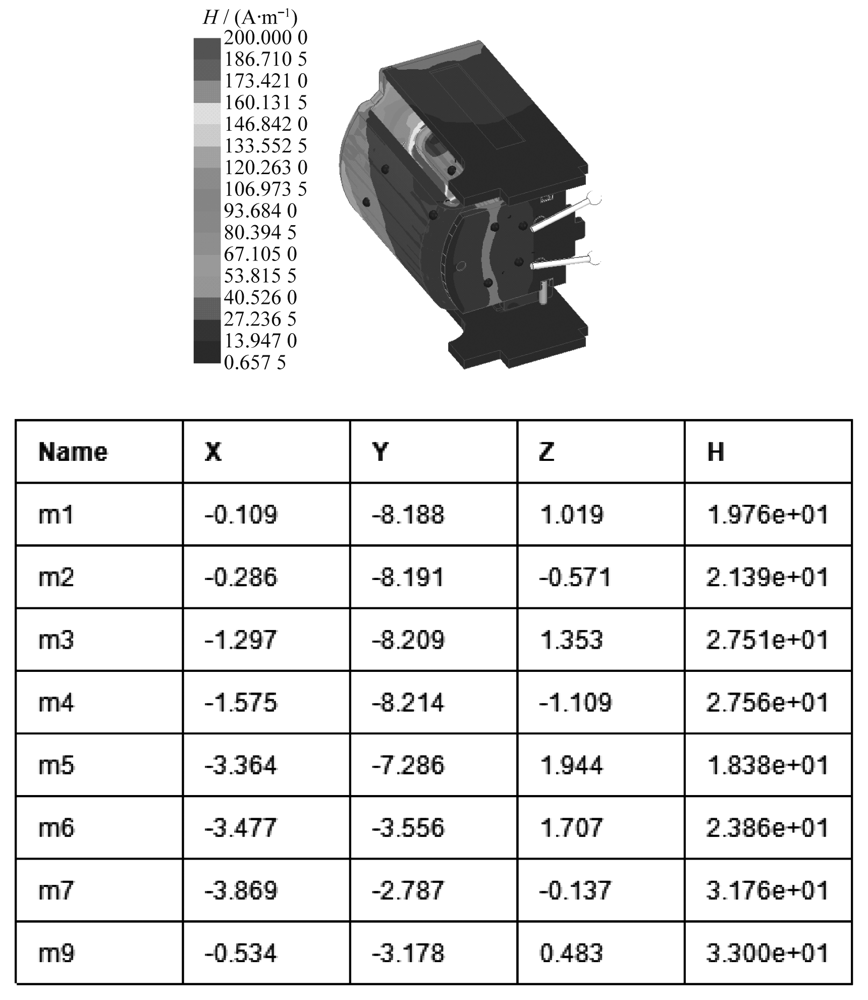

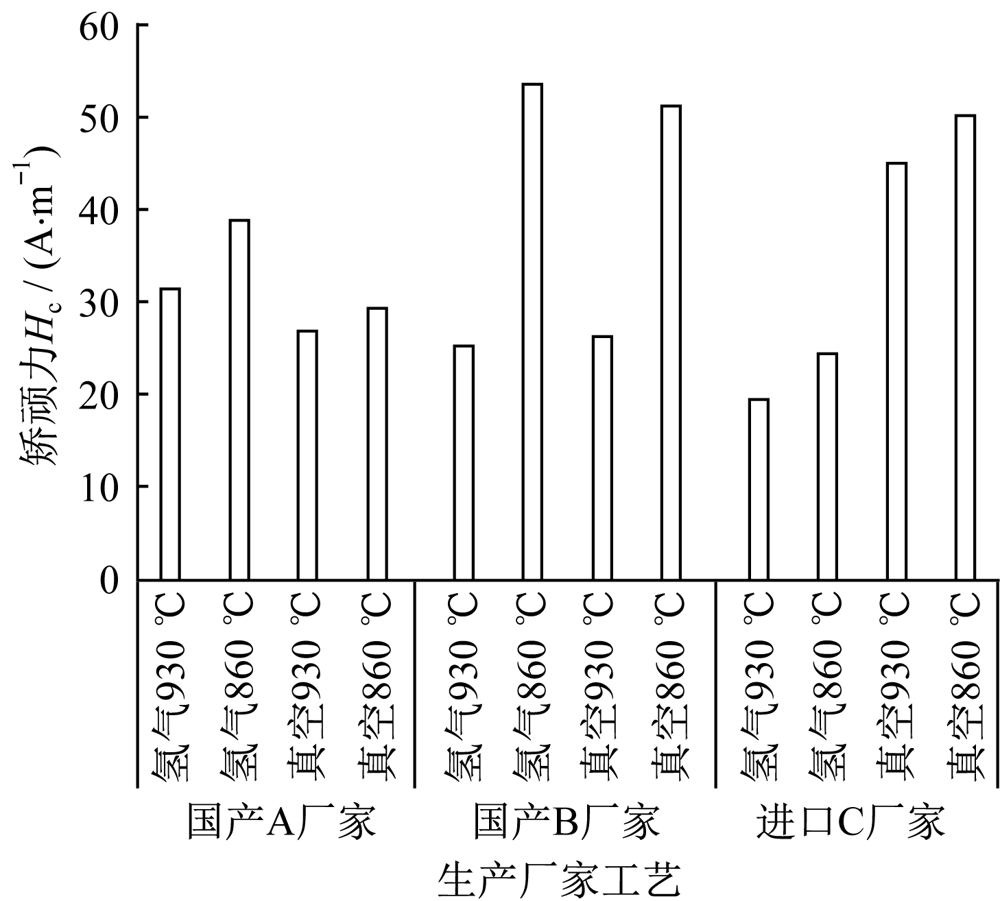

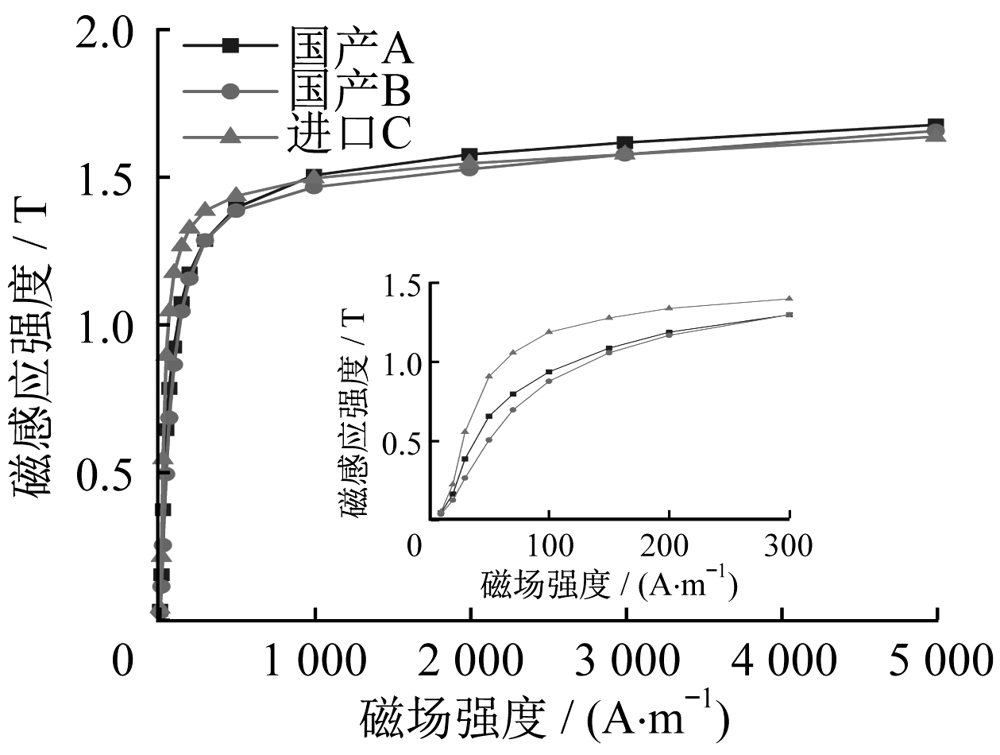

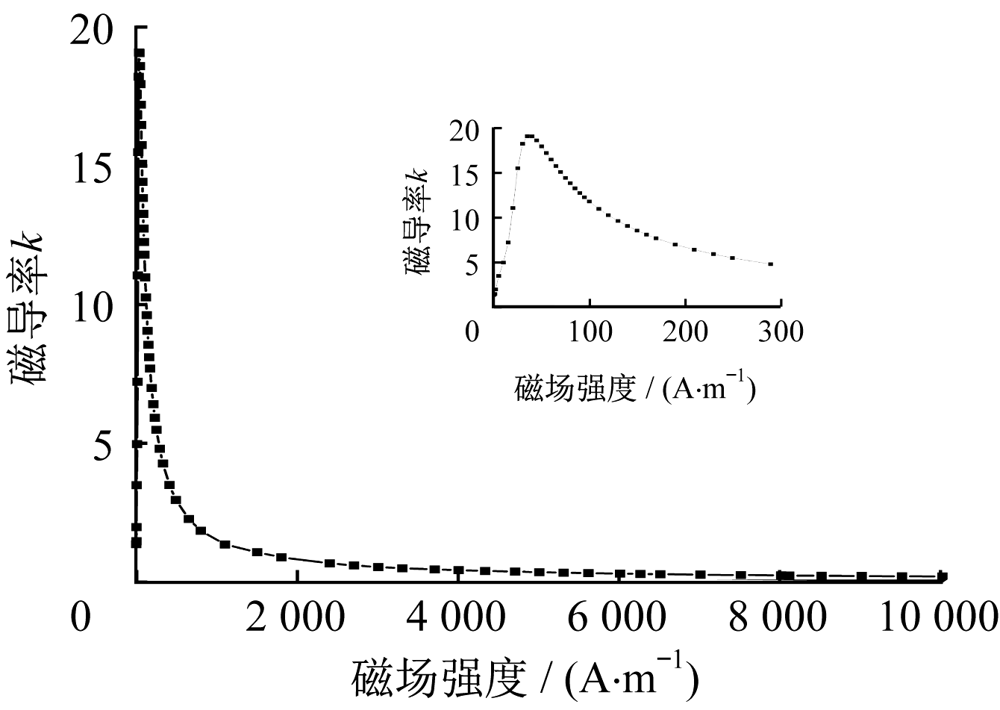

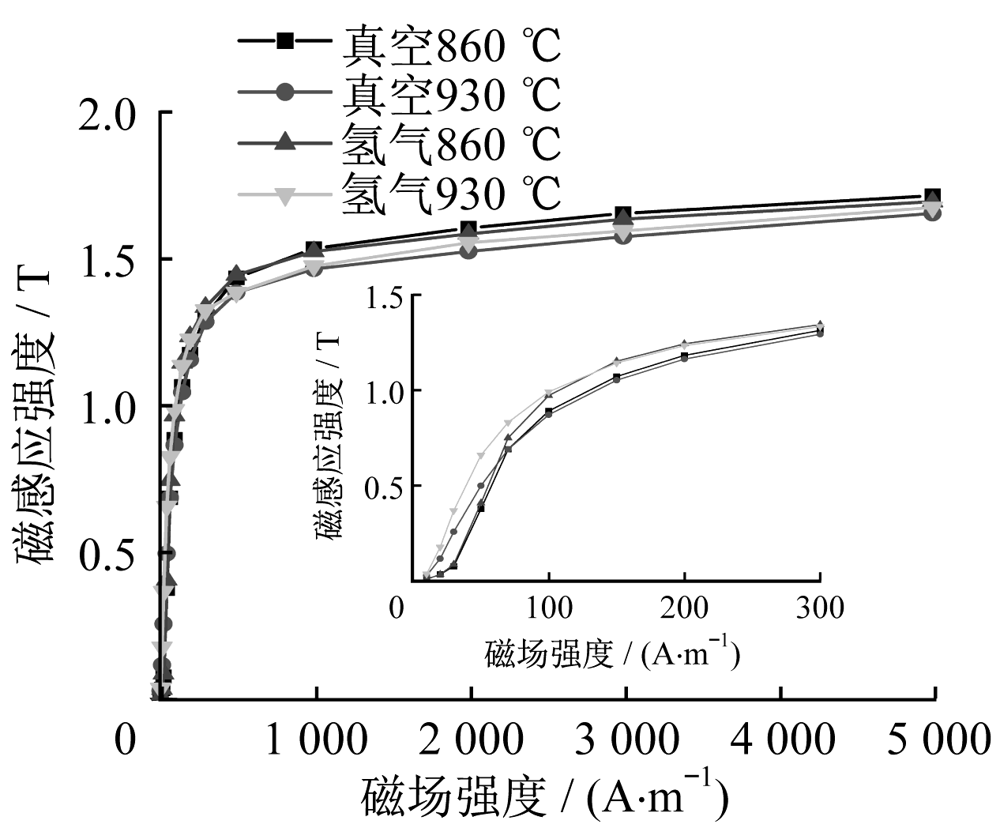

纯铁材料	最大μ_i	最大μ_m	最小H_c	最大B_{5 000}
国产A厂家	氢气930 ℃	氢气930 ℃	真空930 ℃	真空930 ℃
国产B厂家	氢气930 ℃	氢气930 ℃	氢气930 ℃	真空860 ℃
进口C厂家	氢气860 ℃	氢气860 ℃	氢气930 ℃	氢气860 ℃

材料	μ_i	μ_m	H_c/(A·m^-1)	B/T(B_{5 000})
DT4C纯铁	—	15 000	32.0	1.71
1J76合金	20 000	140 000	2.8	0.75
1J51合金	—	35 000	19.9	1.50
铁钴合金	—	12 000	45.0	2.35

[1]	翟国富, 崔行磊, 杨文英. 电磁继电器产品及研究技术发展综述[J]. 电器与能效管理技术, 2016(2):1-8.
[2]	刘俊杰. 电工纯铁的含碳量与磁性能的关系[J]. 航空兵器, 2002, 9(2):45-46.
[3]	周文凤, 黄文荣, 张永皞. 纯铁晶粒细化与均匀化的热处理工艺研究[J]. 热加工工艺, 2016, 45(20):228-231.
[4]	李书常. 简明典型金属材料热处理实用手册[M]. 北京: 机械工业出版社, 2010.
[5]	石磊, 谢林炜, 安仕清. 电磁继电器吸合电压一致性分析[J]. 中国航天, 2020(增刊1):99-103.
[6]	严密. 磁学基础与磁性材料[M]. 2版. 杭州: 浙江大学出版社, 2019.
