Research on Arc Root Stagnation of Contact Edge Phenomenon and Influencing Factors in DC Interruption

doi:10.16628/j.cnki.2095-8188.2024.04.004

Abstract

Abstract:

The evolution of arc root has an important effect on the switching efficiency of DC air circuit breaker. Based on the magneto-hydro-dynamics (MHD) model, the essential cause for the arc root stagnation of the contact edge was simulated and analyzed. The effects of the external magnetic field and breaking speed for the arc root stagnation of the contact edge were obtained. The results show that the transfer of the arc root from the contact to the arc runner is completed through breakdown. The arc root stagnation of the contact edge is formed because the arc runner has not reached the breakdown condition before the arc root transfers. With the increase of magnetic field intensity, the arc root stagnation time of the contact edge decreases, and the ability to shorten the arc root stagnation of the contact edge becomes weak, eventually tends to be saturated. At the initial stage of arcing, increasing the contacts breaking speed within a certain rang is conducive to reduce the arc root stagnation time. However, excessively increasing the contacts breaking speed has a weak effect on reducing the arc root stagnation time under the influence of Lorentz force and airflow field.

Key words: DC, air arc, arc root stagnation of the contact edge, magneto-hydro-dynamics (MHD), breaking speed

CLC Number:

TM561

BAO Yuliang, LI Jing, DUAN Wei, PENG Shidong, LIU Shuxin. Research on Arc Root Stagnation of Contact Edge Phenomenon and Influencing Factors in DC Interruption[J]. LOW VOLTAGE APPARATUS, 2024, 0(4): 30-37.

Figures/Tables 12

方程	瞬态项	平流项	扩散项	源项
质量守恒	0	?·(ρv)	0	0
动量守恒	$? (ρ v) ? t$	?·(ρvv)+?ρ	?·(τ)	J×B
能量守恒	$? (ρ H) ? t$	?·(ρHv)	?· $λ c p ? H$	$1 σ J 2 - S r a d + S φ$

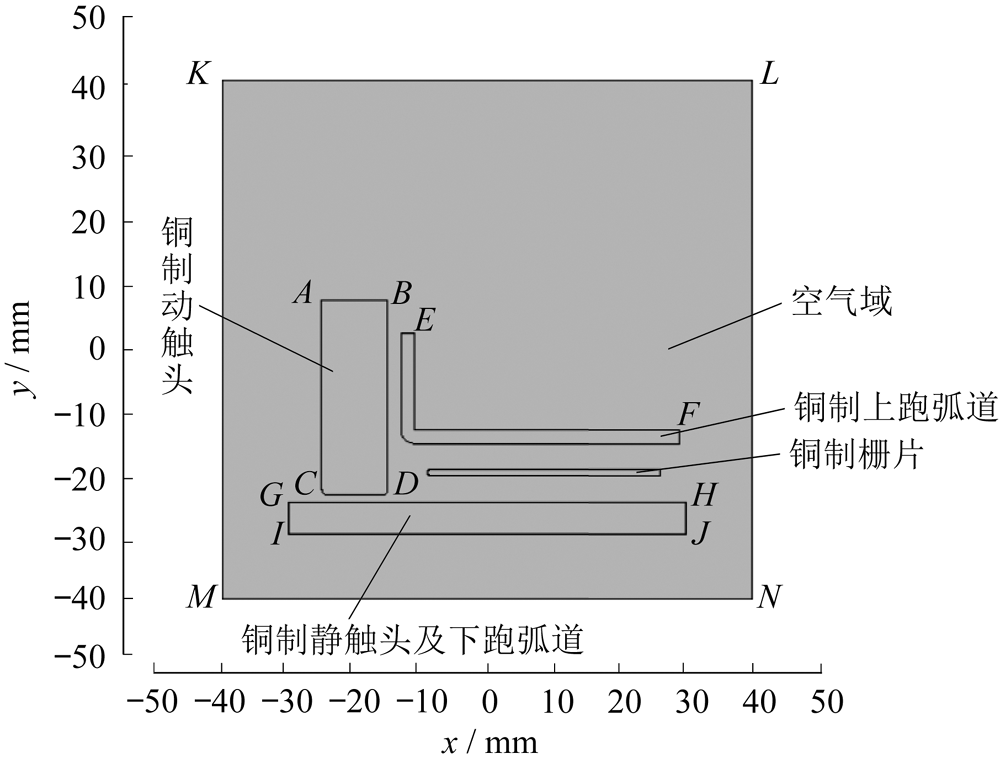

边界	压力边界	磁场边界	电场边界	传热边界
KLMN	1 atm	$? A ? n$ =0	—	—
IJ	—	$? A ? n$ =0	φ=0 V	$? T ? t$ =0
AB,EF	—	$? A ? n$ =0	φ=220 V	$? T ? t$ =0

References 27

[1]	陈默, 陆宁懿, 翟国富. 基于电弧磁流体仿真的DC1500V两极塑壳断路器气道优化设计[J]. 电工技术学报, 2023, 38(8): 2222-2232.
[2]	吴芳柱, 田园. 基于中低压交直流配电网的工业园区综合能源系统设计探索[J]. 电器与能效管理技术, 2023(6):44-50.
[3]	孟羽, 李兴文, 吴子豪, 等. 光伏系统直流故障电弧时频域特性及其复合模型研究[J]. 高压电器, 2022, 58(5):23-30,40.
[4]	汪倩, 陈思磊, 孟羽, 等. 低压直流系统故障电弧检测技术研究综述[J]. 高压电器, 2023, 59(5):93-103.
[5]	高汉林, 许峰, 张涵. 光伏系统直流故障电弧特性与检测装置研究[J]. 电器与能效管理技术, 2022(11):46-53.
[6]	李静, 钱宇, 王奥飞, 等. 磁吹直流空气断路器弧根跃迁及对开断特性的影响研究[J]. 中国电机工程学报, 2023, 43(4):1651-1661.
[7]	冯义, 晋斌, 陈娜, 等. 计及分布式电源接入的配电网故障恢复方法[J]. 电器与能效管理技术, 2021(12):78-84.
[8]	王云会, 郑强仁, 郭淼, 等. 分布式电源接入配电网的控制策略及消纳能力评估研究[J]. 电器与能效管理技术, 2022(4):83-87.
[9]	YANG F, MA R G, WU Y, et al. Numerical study on arc plasma behavior during arc commutation process in direct current circuit breaker[J]. Plasma Science and Technology, 2012, 14(2): 167-171.
[10]	RONG M, MA Q, WU Y, et al. The influence of electrode erosion on the air arc in a low-voltage circuit breaker[J]. Journal of Applied Physics, 2009, 106(2): 61-67.
[11]	MCBRIDE J W, WEAVER P M, JEFFERY P A. Arc root mobility during contact opening at high current[J]. IEEE Transactions on Components, Packaging, and Manufacturing Technology: Part A, 1998, 21(1): 61-67.
[12]	易晨曦, 李静, 彭世东, 等. 中压直流空气断路器短路分断电弧特性研究[J]. 电器与能效管理技术, 2023(8):17-23.
[13]	HUO J D, WANG Y F, CAO Y. 3D computational study of arc splitting during power interruption: the influence of metal vapor enhanced radiation on arc dynamics[J]. Journal of Physics D: Applied Physics, 2021, 54(8): 085502.
[14]	WU Y, RONG M Z, LI X W, et al. Numerical analysis of the effect of the chamber width and outlet area on the motion of an air arc plasma[J]. IEEE Transactions on Plasma Science, 2008, 36(5): 2831-2837.
[15]	吴翊, 荣命哲, 杨茜, 等. 低压空气电弧动态特性仿真及分析[J]. 中国电机工程学报, 2005(21):146-151.
[16]	MA R G, RONG M Z, YANG F, et al. Investigation on arc behavior during arc motion in air DC circuit breaker[J]. IEEE Transactions on Plasma Science, 2013, 41(9): 2551-2560.
[17]	LI X W, CHEN D G, WANG Q, et al. Simulation of the effects of several factors on arc plasma behavior in low voltage circuit breaker[J]. Plasma Science and Technology, 2005, 7(5): 3069-3072.
[18]	PENG S D, LI J, CAO Y D, et al. Research on arc root stagnation when small current is interrupted in self-excited circuit breaker[J]. Plasma Science and Technology, 2022, 24(11): 18-29.
[19]	杨茜, 荣命哲, 吴翊. 低压断路器中空气电弧运动的仿真及实验研究[J]. 中国电机工程学报, 2006, 26(15):89-94.
[20]	钱宇. 大容量直流空气断路器电弧动态特性的研究[D]. 沈阳: 沈阳工业大学, 2022.
[21]	李静, 刘凯, 曹云东, 等. 直流接触器开断过程中弧根演变及对重燃的影响分析[J]. 中国电机工程学报, 2019, 39(4):1241-1251.
[22]	XIE W H, WU G N, YANG Z F, et al. Study on the erosion characteristics of copper arbon electrode pairs by DC air arc[J]. High Voltage, 2021, 6(4): 674-683.
[23]	荣命哲, 杨飞, 吴翊, 等. 直流断路器电弧研究的新进展[J]. 电工技术学报, 2014, 29(1):1-9.
[24]	程礼椿. 空气压力对磁吹电弧运动、停滞和触头侵蚀的影响[J]. 低压电器, 1991(1):21-25.
[25]	陈维, 张国钢, 柯春俊. 开断速度对触头电弧侵蚀影响的数值分析[J]. 低压电器, 2009(9):16-20.
[26]	程礼椿, 王步云. 低气压空气中磁吹电弧的停滞与侵蚀[J]. 电工技术学报, 1991, 6(1):51-57.
[27]	李兴文, 贾申利, 张博雅. 气体开关电弧物性参数计算及特性仿真研究与应用[J]. 高电压技术, 2020, 46(3):757-771.

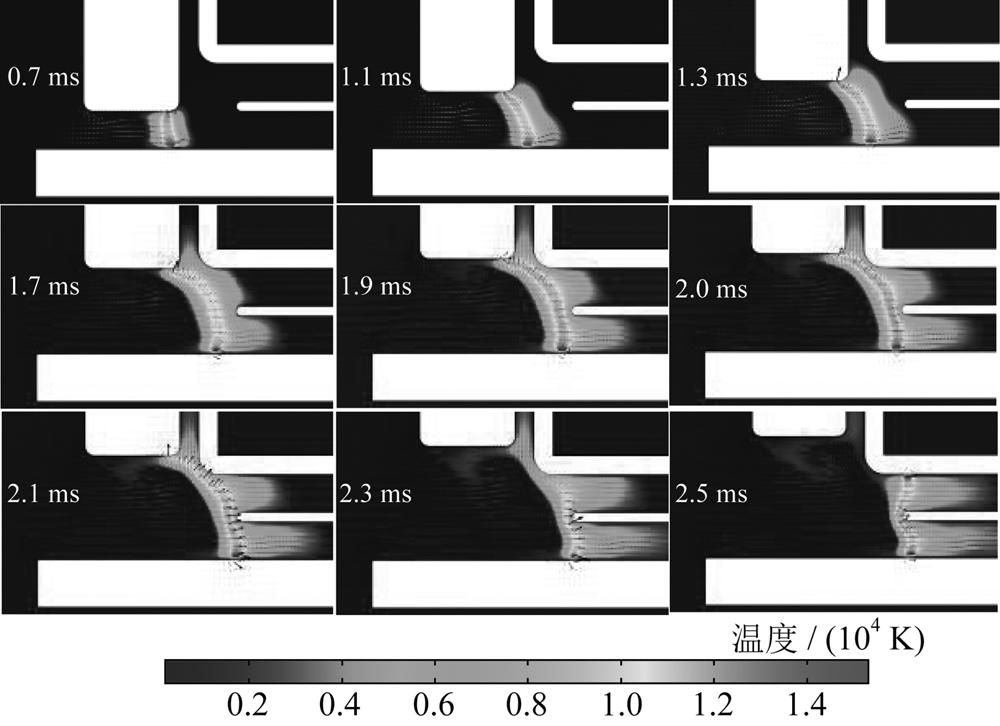

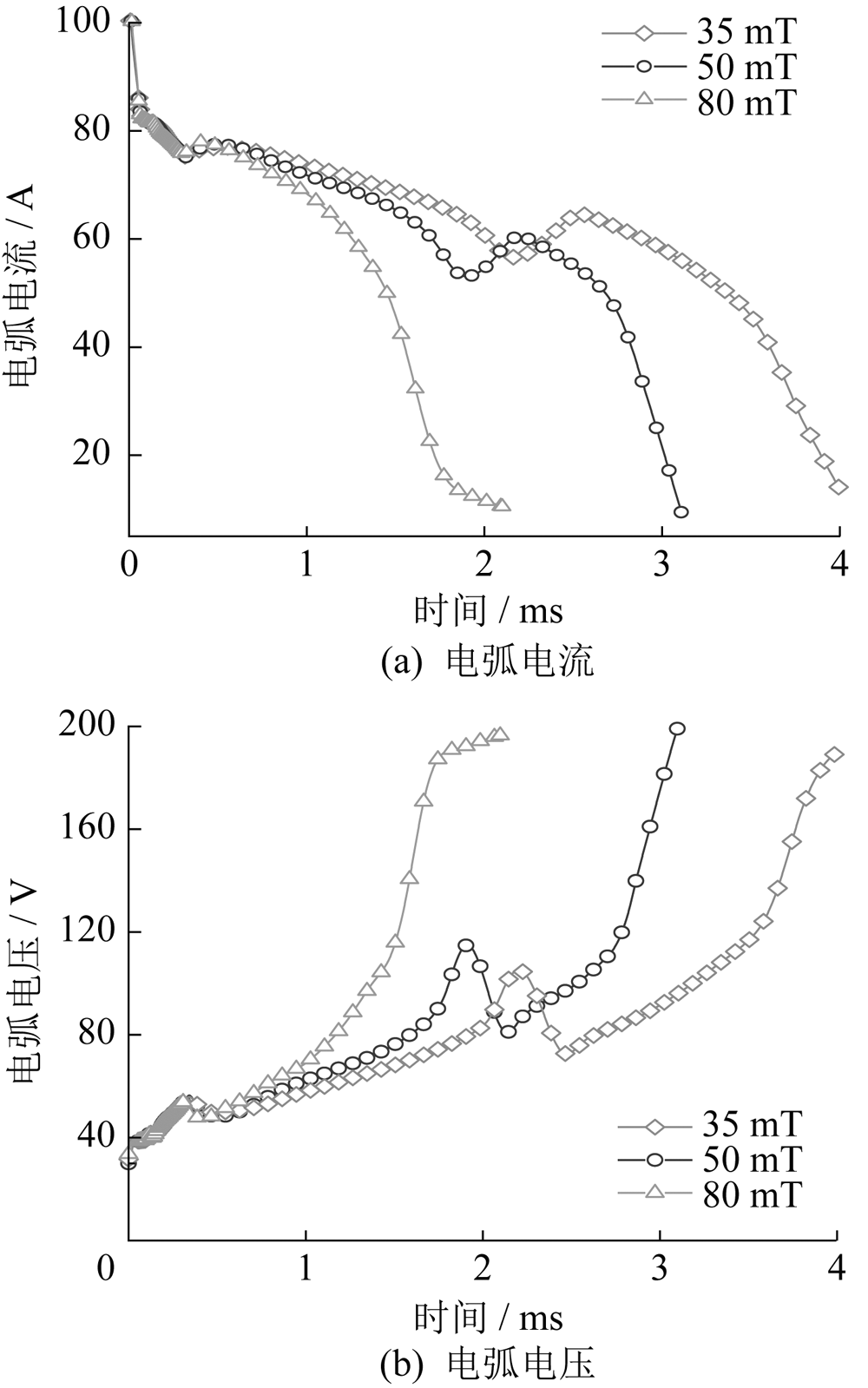

磁场/ mT	阳极弧根是否停滞	停滞时间/ ms	跃迁时刻/ ms
35	是	1.4	2.20
50	是	1.1	1.78
80	是	1.0	1.59

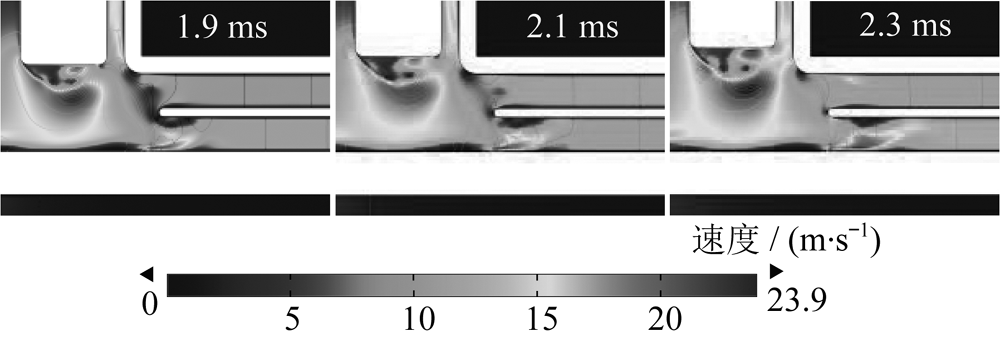

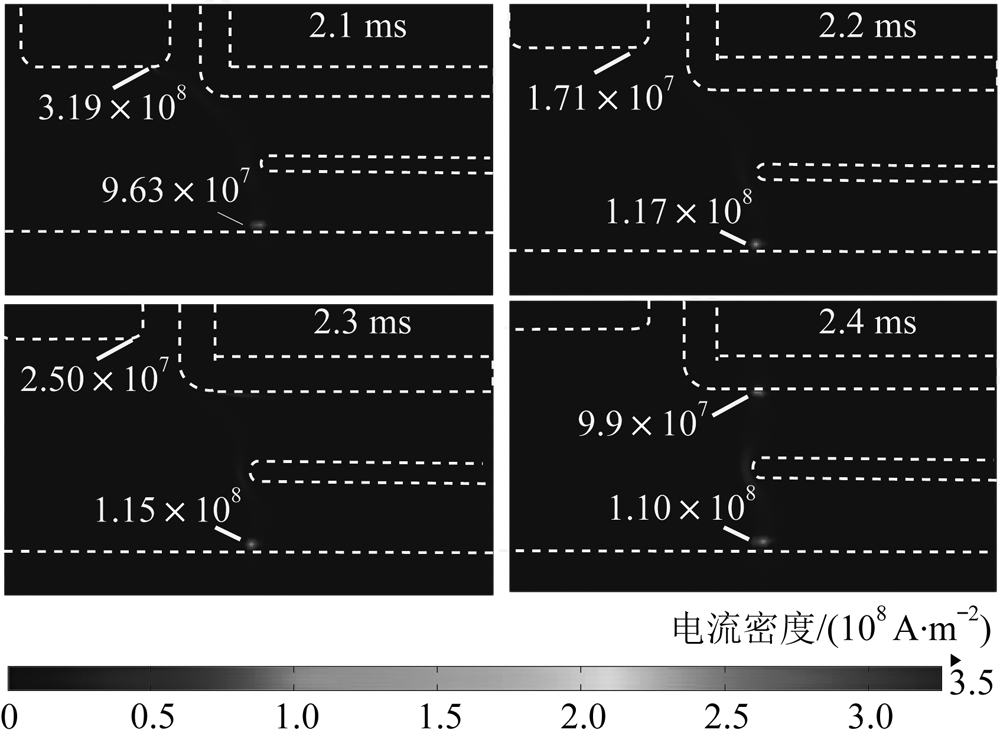

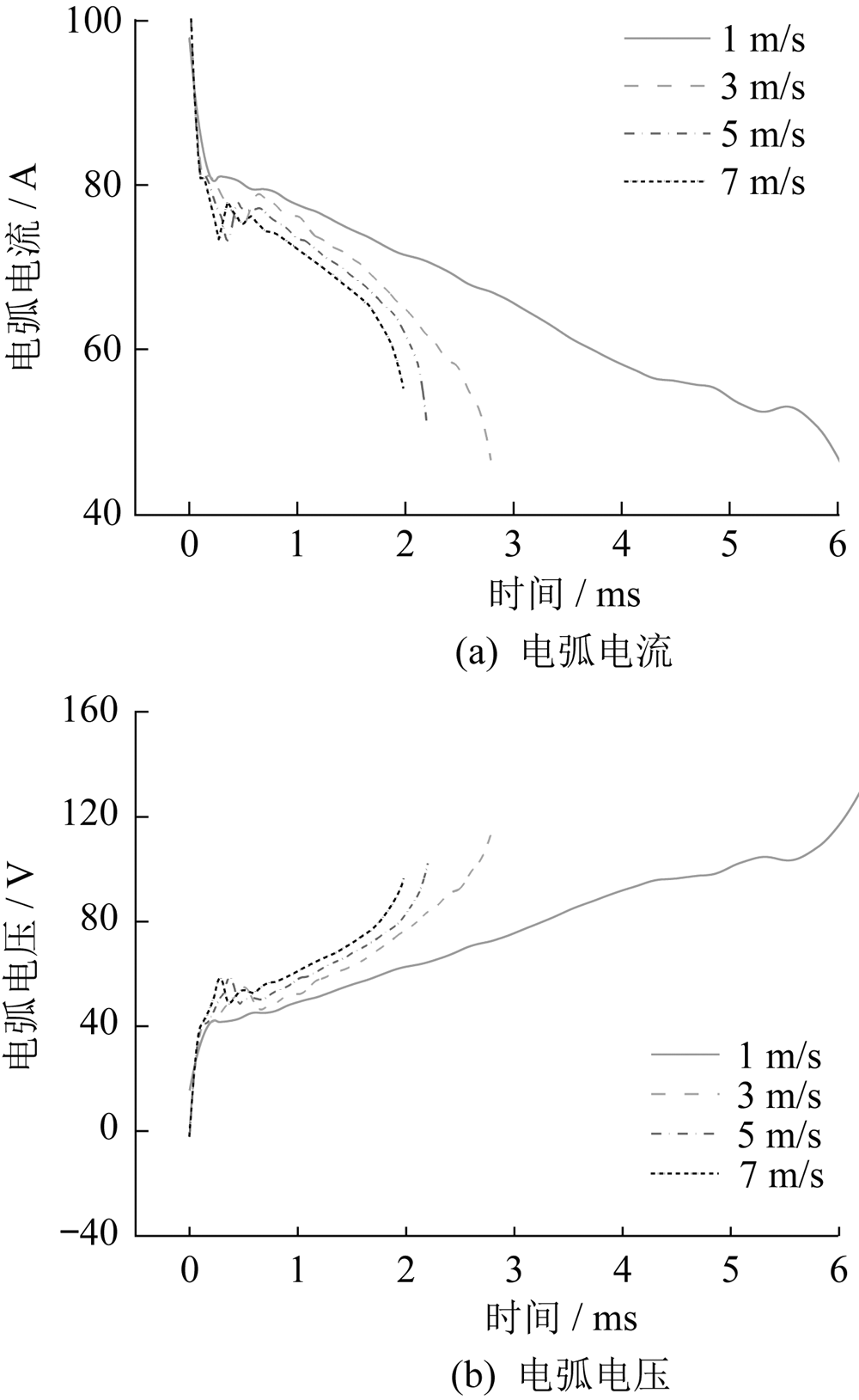

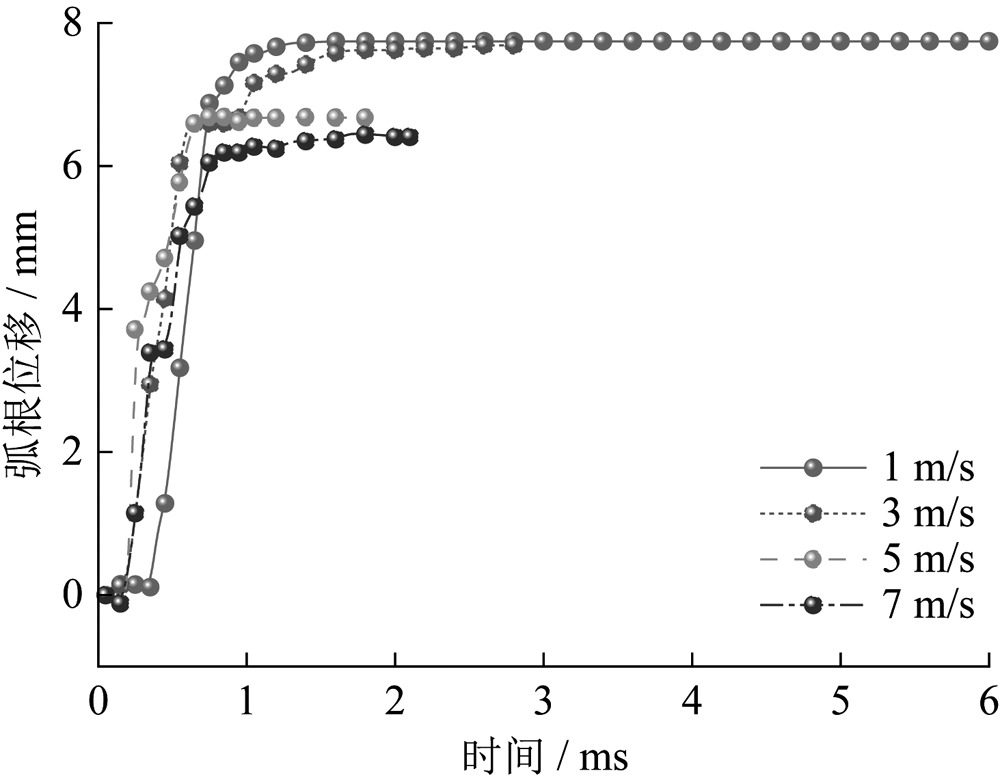

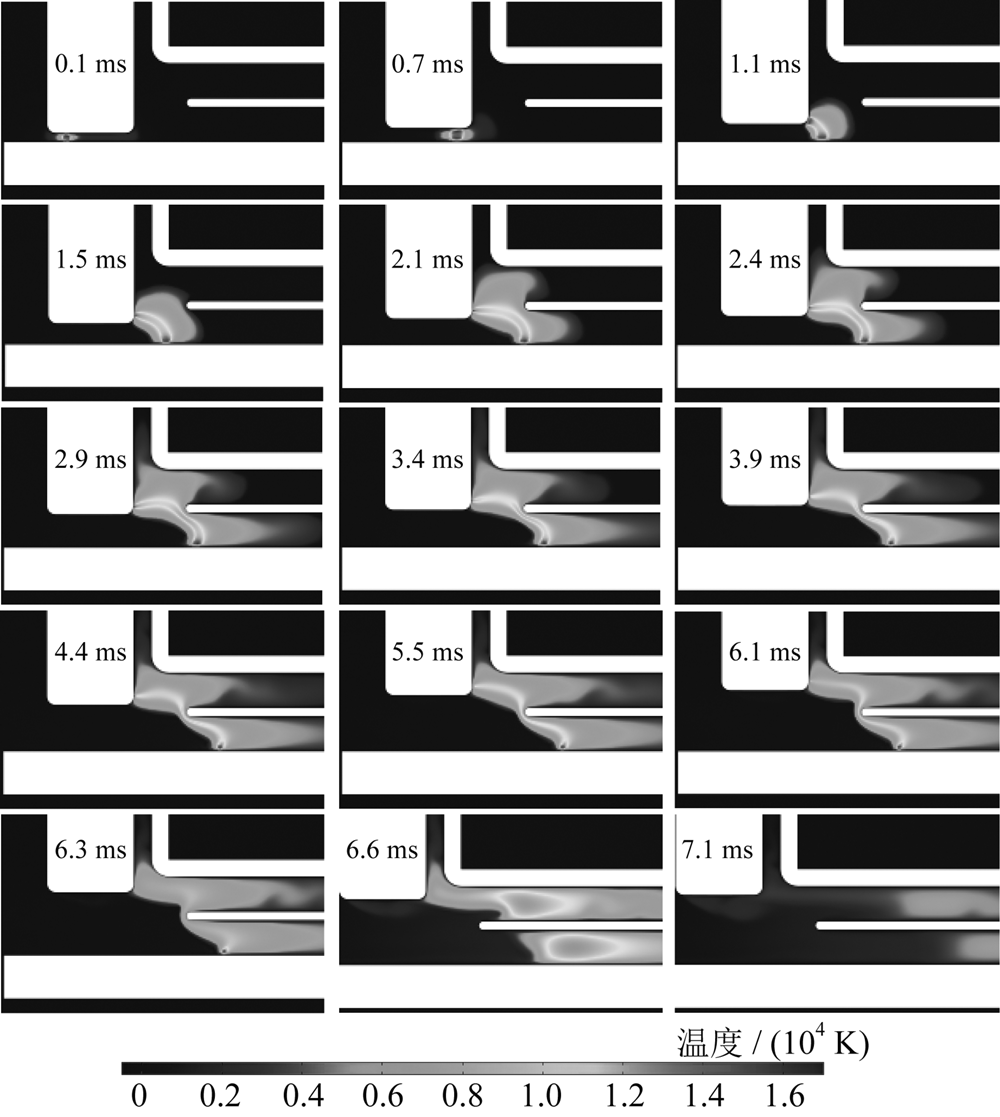

开断速度/ (m·s^-1)	阳极弧根是否停滞	停滞时间/ ms	跃迁时刻/ ms
1	是	4.78	6.21
3	是	2.06	2.79
5	是	1.40	2.20
7	是	1.46	1.98
