Research on LED Hybrid Dimming Control Strategy Based on LLC Resonant Converter

doi:10.16628/j.cnki.2095-8188.2023.05.006

Abstract

Abstract:

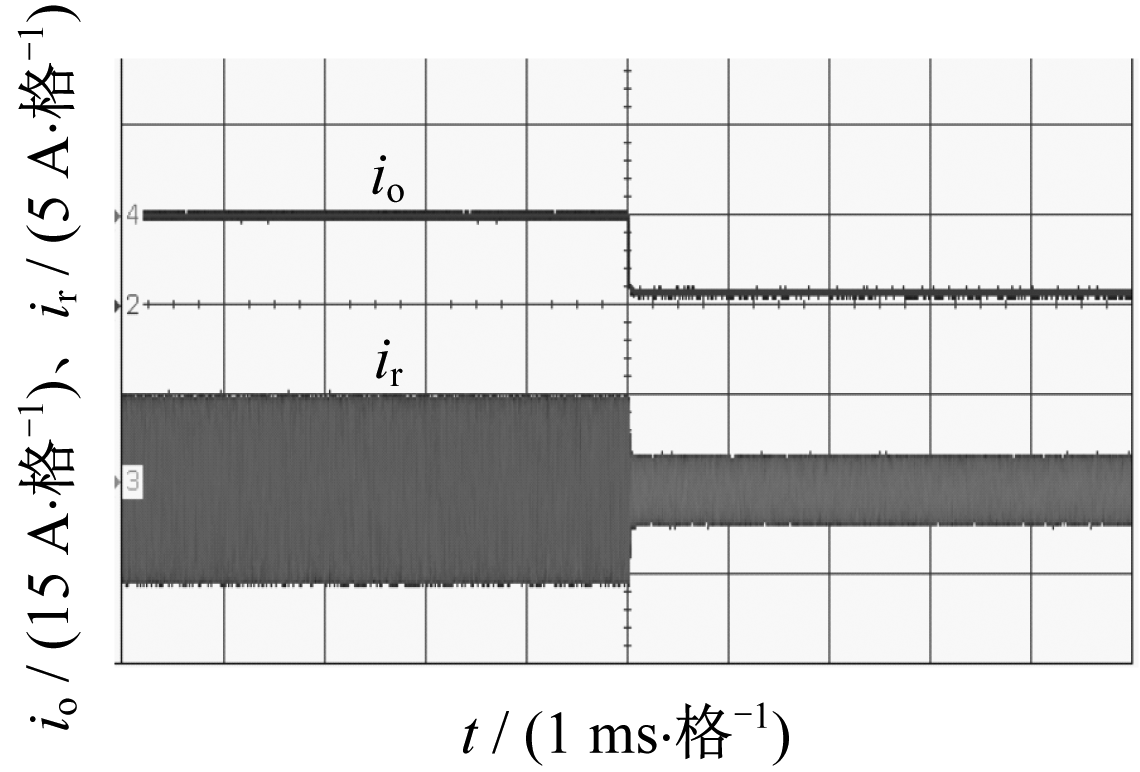

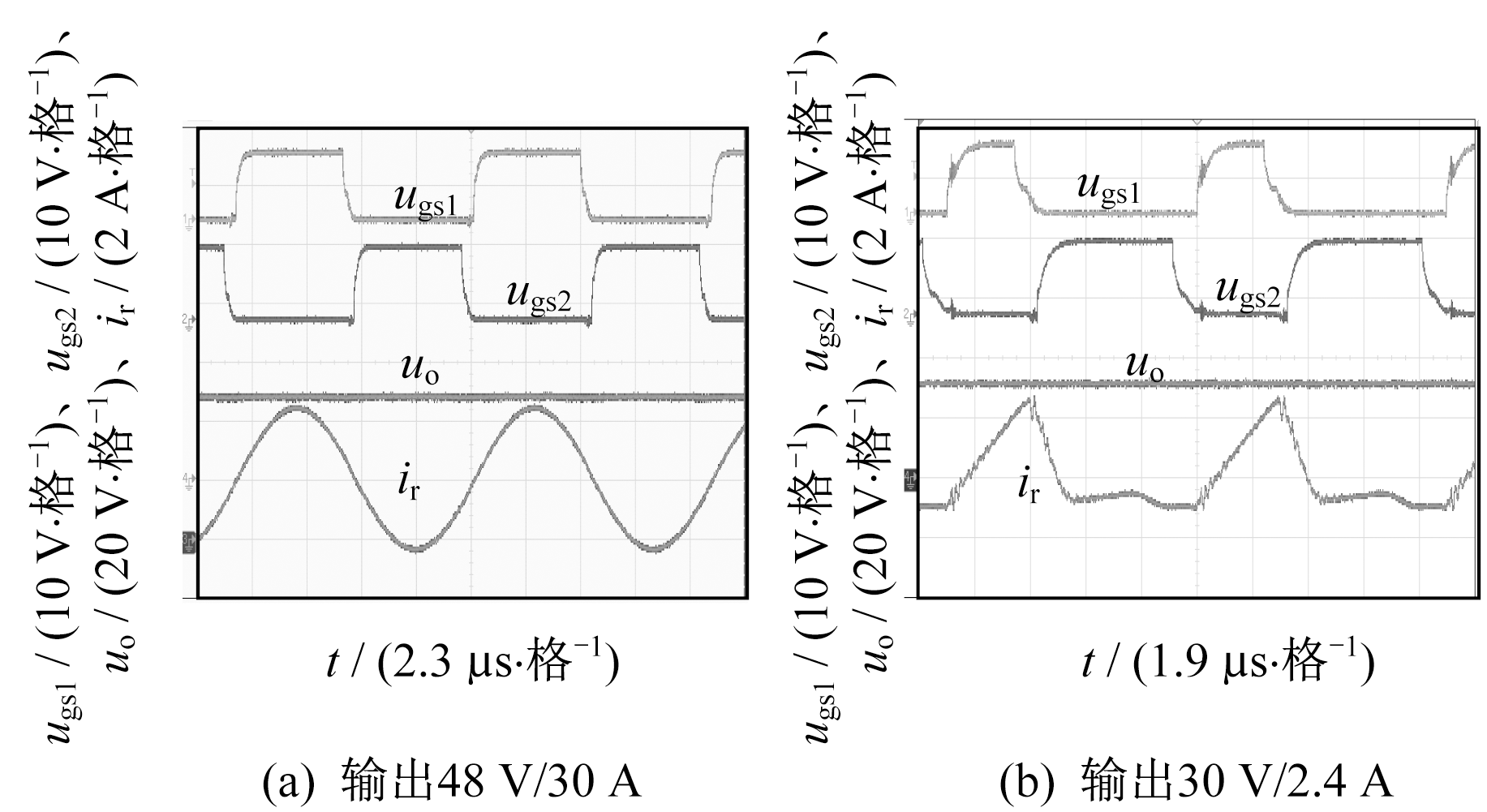

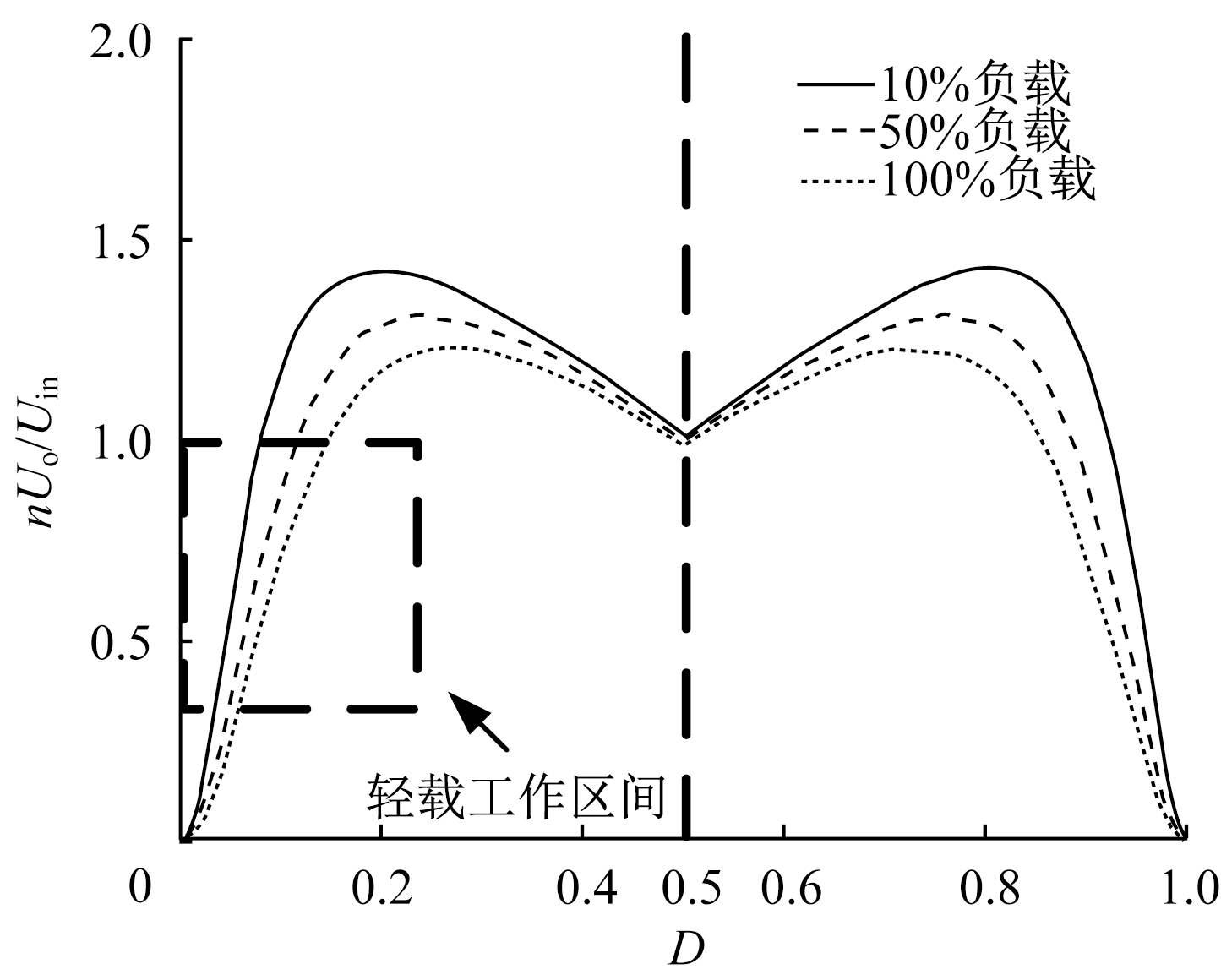

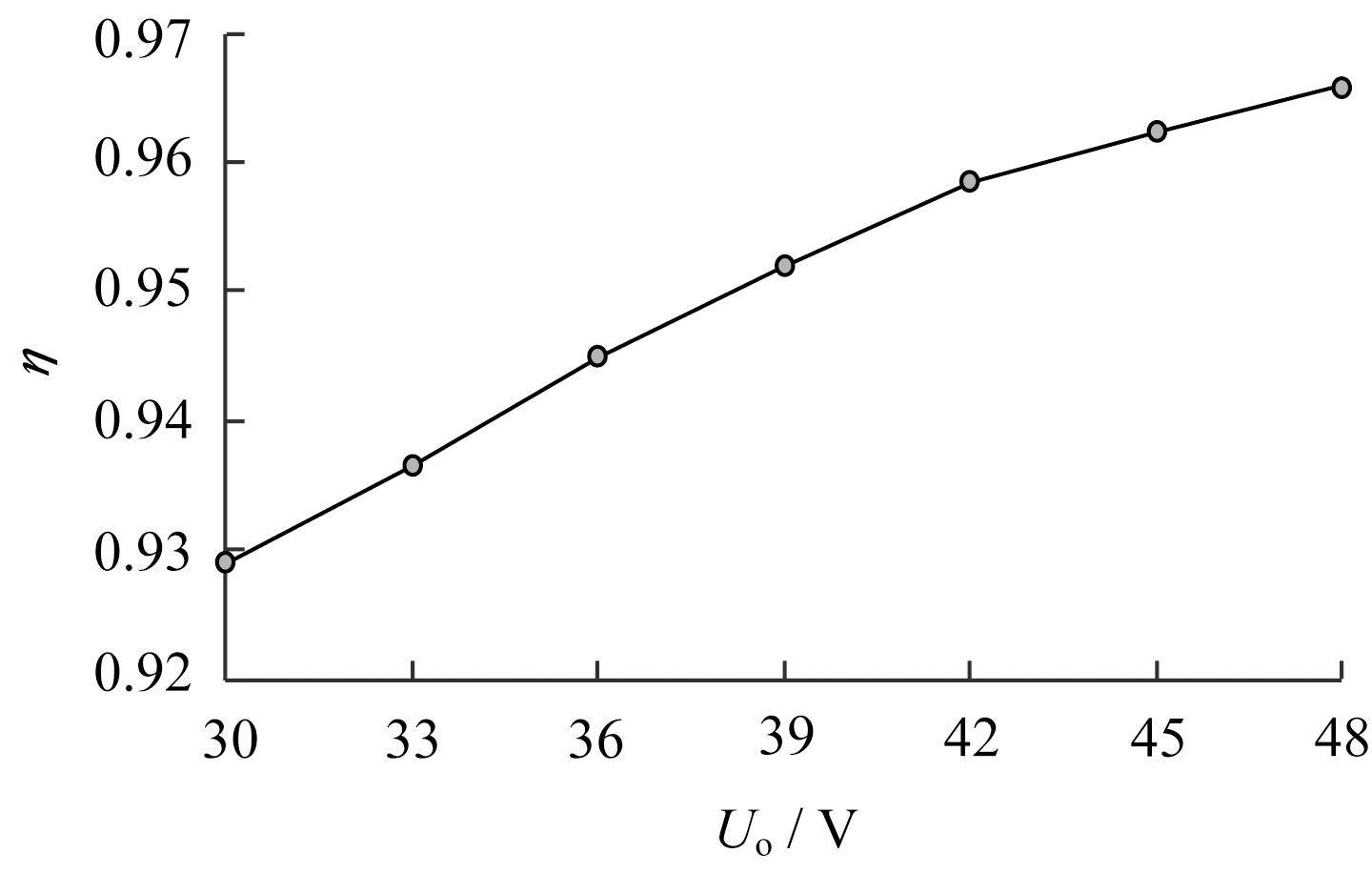

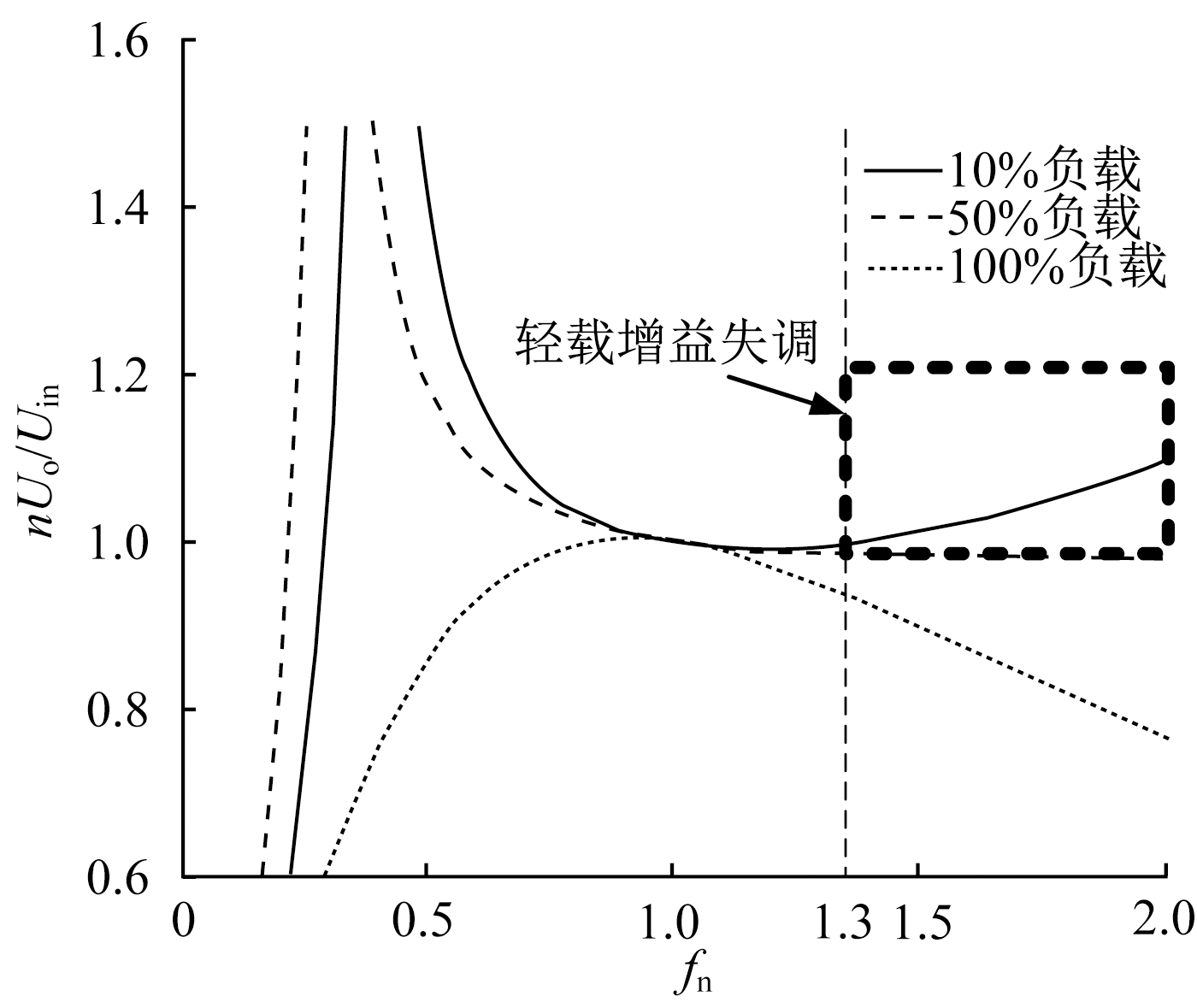

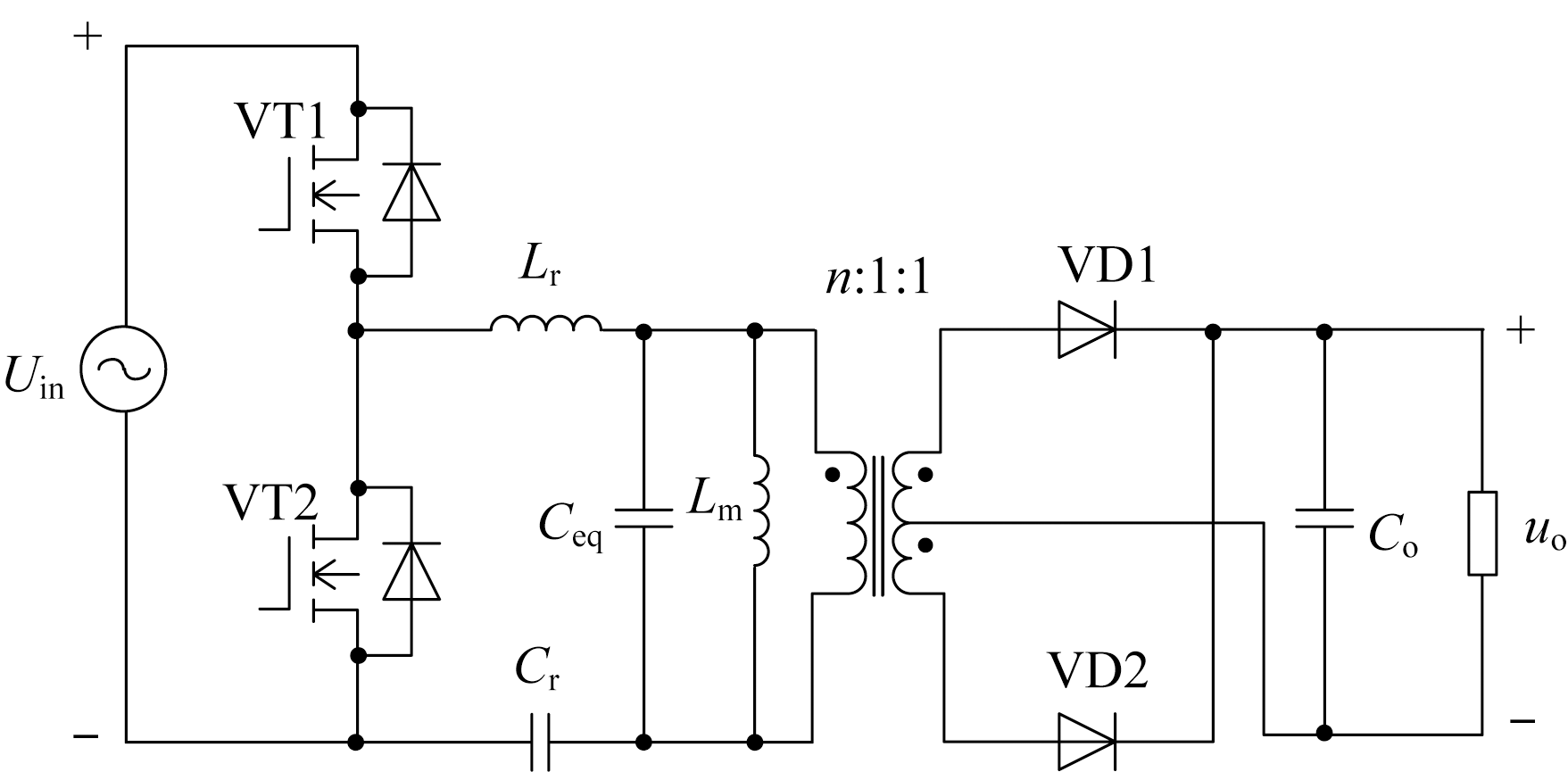

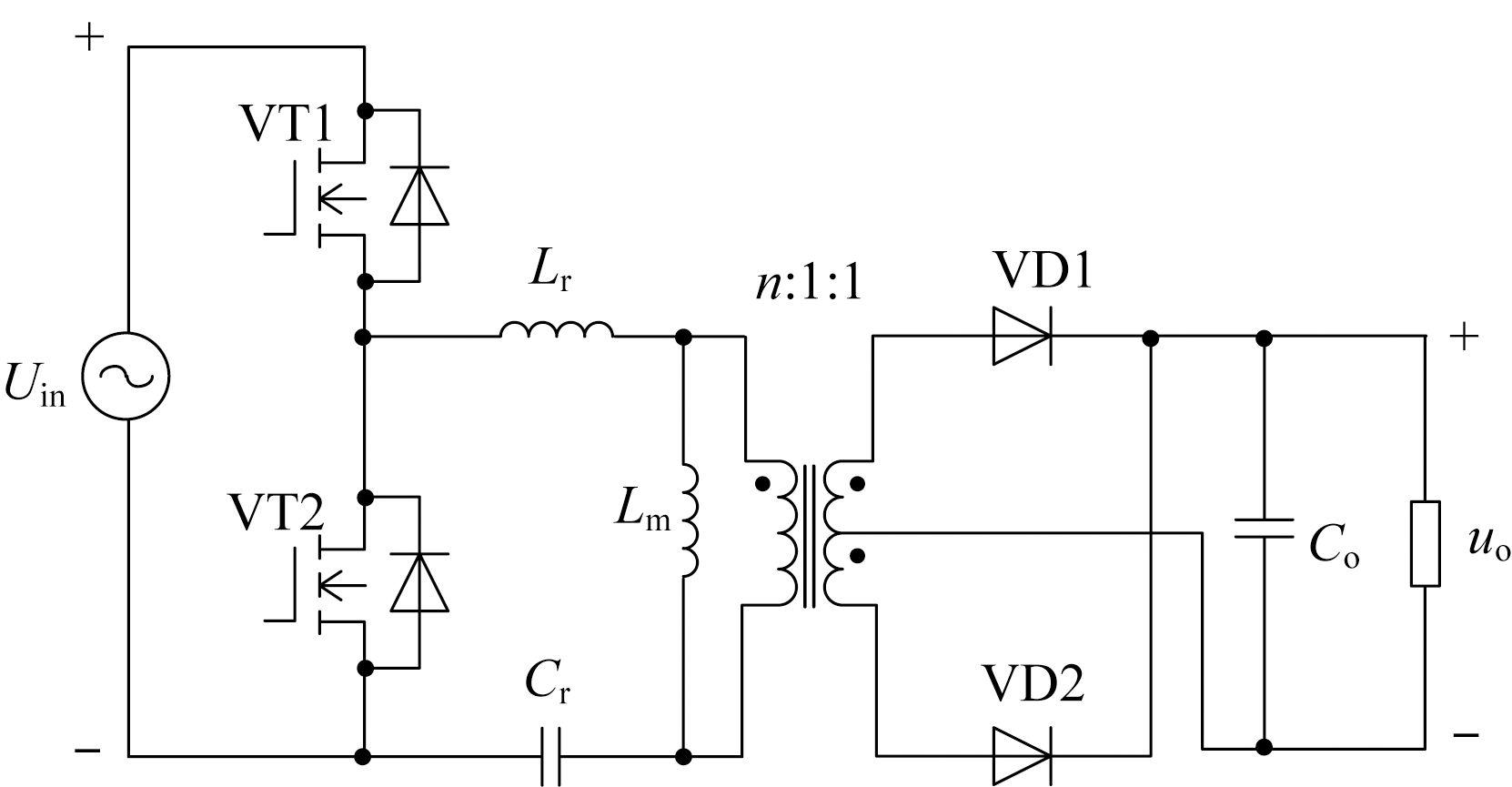

In order to achieve wide range dimming of high power LED driver power supplies,the gain offset problem of LLC resonant converters under light load needs to be solved.A novel segmented hybrid control dimming strategy is proposed,which combines the characteristics of the LLC resonant converter controlled by the constant frequency variable duty cycle asymmetric pulse width modulation (APWM) with the voltage reduction control region.When heavy load,pulse frequence modulation (PFM ) control is adopted for LLC resonant converter.When light load,APFM control with duty cycle less than 0.5 is adopted for LLC resonant converter.A high power LED driving power supply prototype with a rated output power of 1 440 W and an output voltage of 30~48 V is built.The experiments show that the prototype had a wide dimming range,fast dimming speed,small current ripple at light load,and stable work,which can verify the correct effectiveness of the new strategy.

Key words: LED dimming, asymmetric pulse width modulation (APWM), segmented hybrid control, pulse frequence modulation (PFM)

CLC Number:

TM46

CHEN Jiayong, MAO Xingkui. Research on LED Hybrid Dimming Control Strategy Based on LLC Resonant Converter[J]. LOW VOLTAGE APPARATUS, 2023, 0(5): 37-40.

Figures/Tables 8

References 9

[1]	徐心靖, 林国庆, 汪福林. 基于CLL谐振网络的单级高功率因素LED驱动电源研究[J]. 电器与能效管理技术, 2018(7):9-15.
[2]	马创明, 黄海宏, 常文婧. LLC谐振变换器谐振参数优化设计[J]. 电器与能效管理技术, 2021(7):67-72.
[3]	俞珊, 徐志望, 董纪清. 寄生电容对LLC谐振变换器的影响分析[J]. 电源学报, 2018, 16(2):124-130. doi: 10.13234/j.issn.2095-2805.2018.2.124
[4]	马伟中. 基于LLC谐振变换器的大功率LED驱动电源的研究[D]. 杭州: 杭州电子科技大学, 2017.
[5]	石林, 刘邦银, 段善旭. 一种基于Burst-PWM混合控制的LLC谐振变换器宽电压范围输出策略[J]. 电工技术学报, 2019, 34(22):4772-4780.
[6]	许伟, 赵争鸣, 姜齐荣. 高频变压器分布电容计算方法[J]. 清华大学学报(自然科学版), 2021, 61(10):1088-1096.
[7]	王付胜, 江冯林, 汪学胜, 等. 半桥三电平LLC谐振变换器的轻载控制策略[J]. 电器与能效管理技术, 2019(16):28-32.
[8]	陈桂涛, 王宇鹏, 任碧莹, 等. 双向LLC谐振变换器混合控制策略研究[J]. 电力电子技术, 2021, 55(5):1-3,44.
[9]	KIM B C, PARK K B, MOON G W. Asymmetric PWM control scheme during hold-up time for LLC resonant converter[J]. IEEE Transactions on Industrial Electronics, 2012, 59(7):2992-2997. doi: 10.1109/TIE.2011.2166237

参数	参数值
输入电压/V	450
输出电压/V	30~48
输出电流/A	2.4~30
额定输出功率/W	1 440
谐振频率/kHz	100
谐振电感/μH	40
谐振电容/nF	66
励磁电感/μH	200
变压器匝比	14∶3∶3
