Study on Frequency Splitting in Wireless Power Transfer System

doi:10.16628/j.cnki.2095-8188.2023.02.010

Abstract

Abstract:

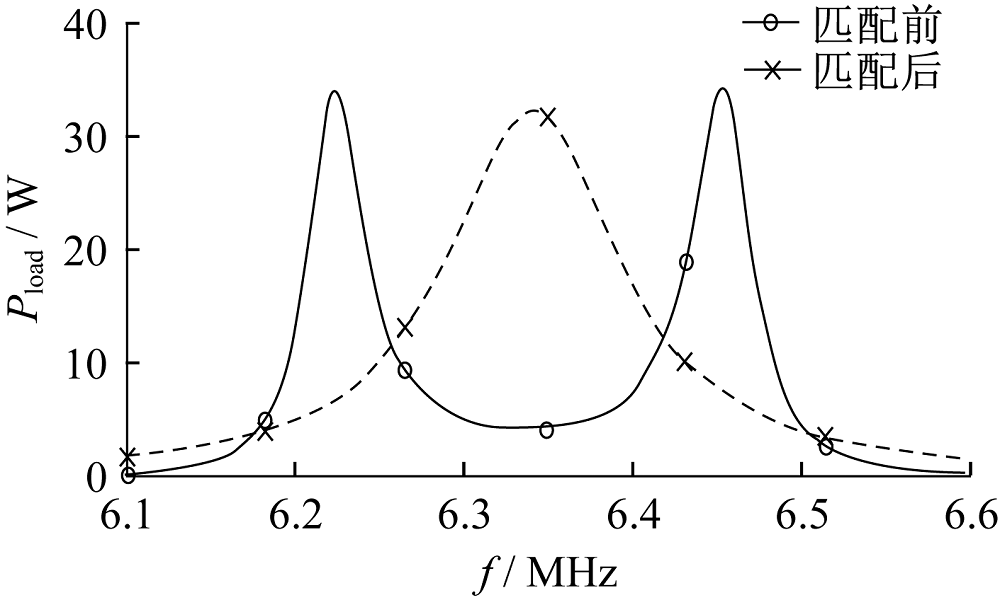

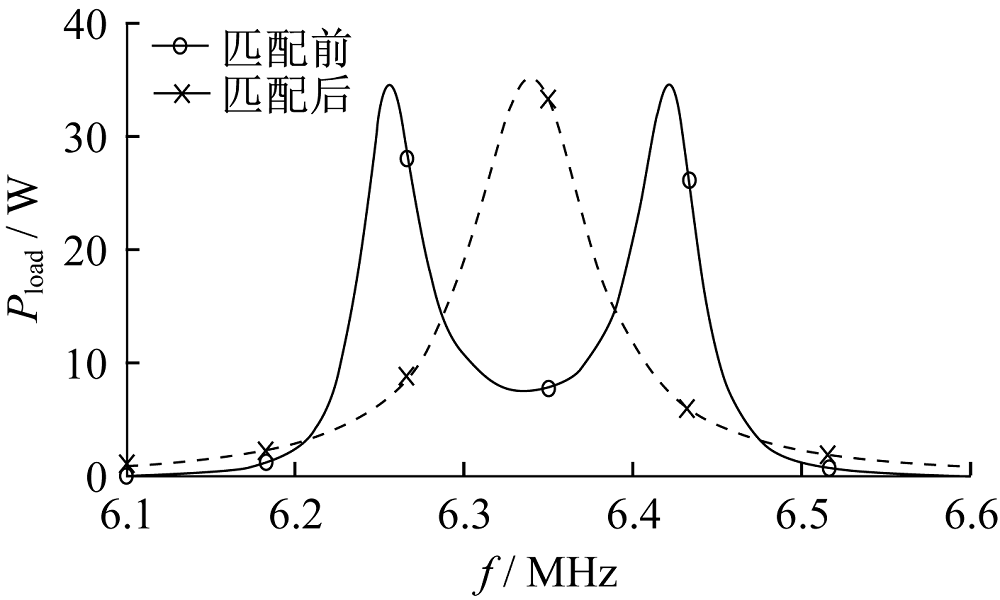

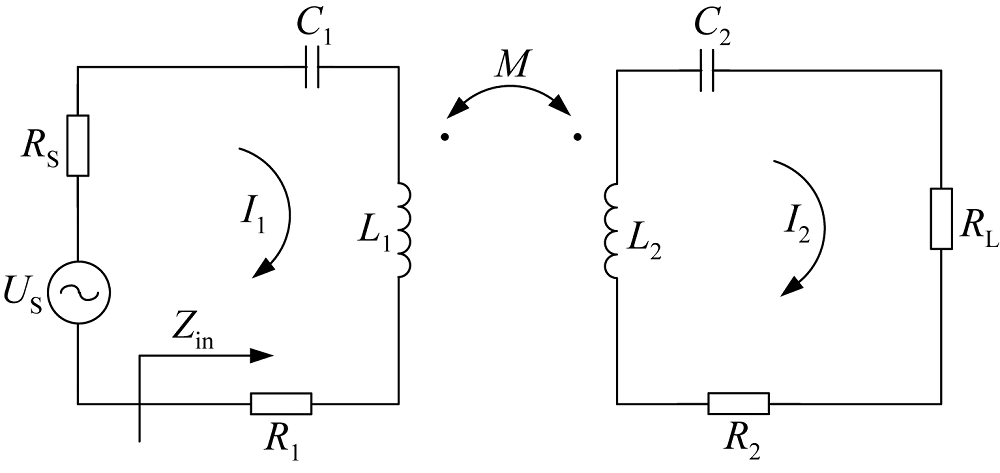

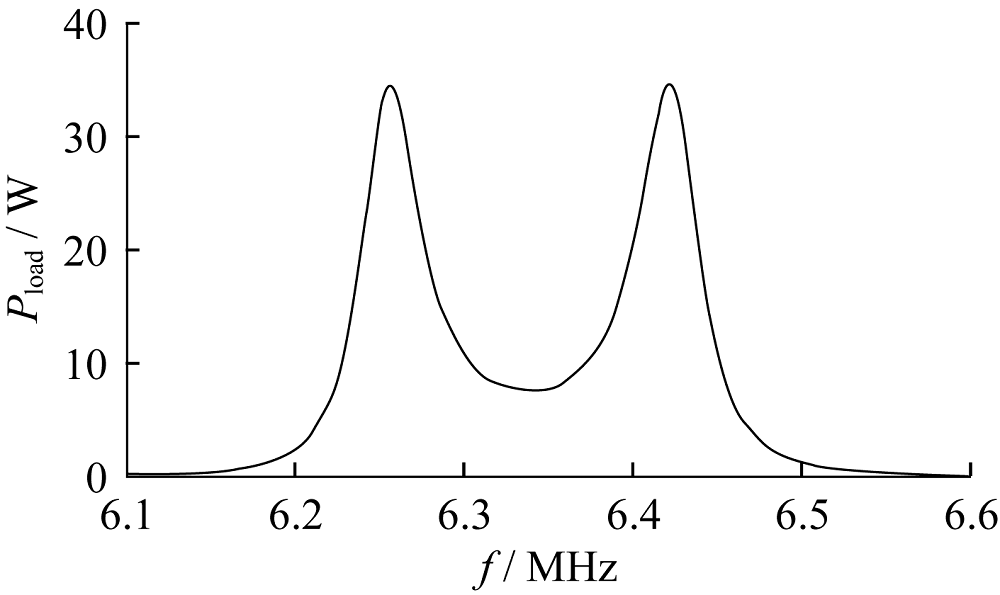

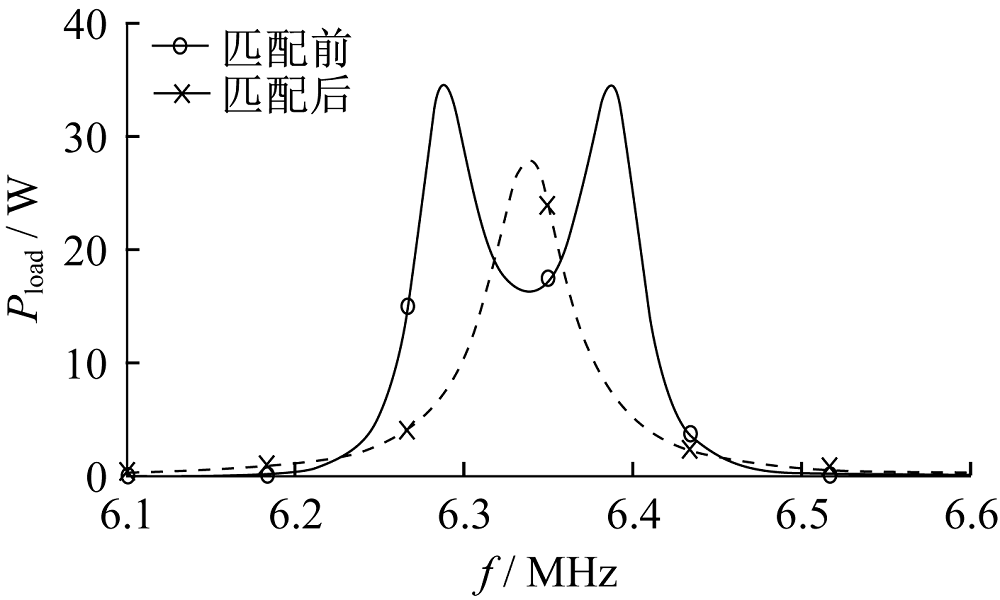

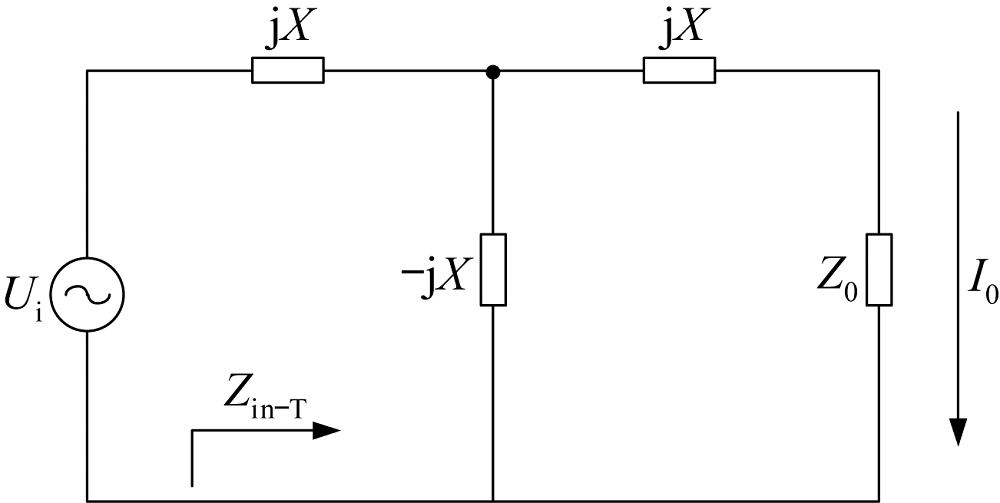

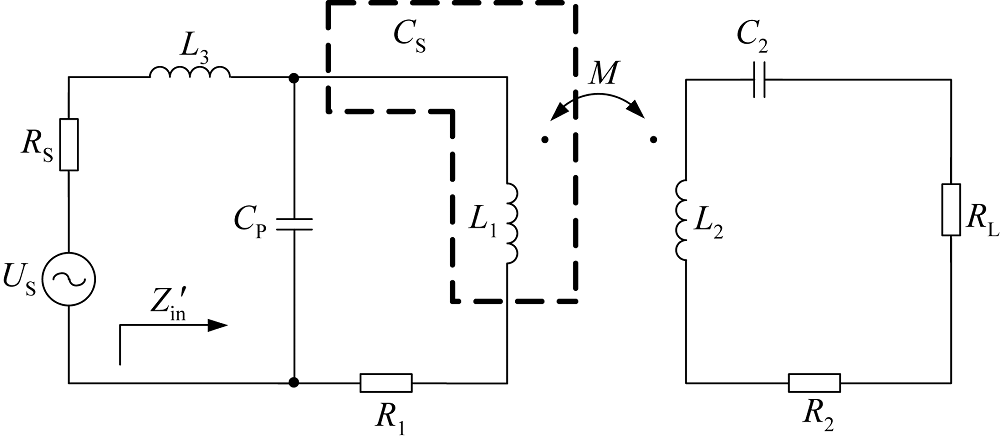

Aiming at the output power decreases of the magnetically-coupled wireless power transfer (WPT) system at the natural frequency in the over-coupled state,combining with the mutual inductance coupling theory and introducing the detuning factor and coupling factor,the theoretical analysis of the simplified WPT system is carried out.It is concluded that the reason for the reduction of the output power of the system is the impedance mismatch.The LCC compensation circuit based on symmetrical T-type compensation circuit is used for impedance matching to improve the output power.Finally,the effectiveness of the compensation circuit is verified by simulation experiments,which provides an effective reference for solving the frequency splitting problem.

Key words: wireless power transfer(WPT), frequency splitting, impedance matching, maximum power transfer, coupled magnetic resonances

CLC Number:

TM724

LI Jinyang, WANG Yingjie, FENG Jianhui, CUI Chengcheng. Study on Frequency Splitting in Wireless Power Transfer System[J]. LOW VOLTAGE APPARATUS, 2023, 0(2): 53-57.

Figures/Tables 12

References 16

[1]	谢文燕, 陈琪琅, 陈为. 无线电能传输磁耦合系统综述[J]. 通信电源技术, 2013(1):9-12.
[2]	杨庆新, 章鹏程, 祝丽花, 等. 无线电能传输技术的关键基础与技术瓶颈问题[J]. 电工技术学报, 2015, 30(5):5-12.
[3]	薛明, 杨庆新, 章鹏程, 等. 无线电能传输技术应用研究现状与关键问题[J]. 电工技术学报, 2021, 36(8):1547-1568.
[4]	肖静, 吴宁, 冯玉斌, 等. 电动汽车无线电能传输系统中Buck电路非理想模型及其效率优化[J]. 电器与能效管理技术, 2020(4):77-82,112.
[5]	牛王强. 水下无线电能传输研究进展[J]. 南京信息工程大学学报:自然科学版, 2017, 9(1):46-53.
[6]	吴旭升, 孙盼, 杨深钦, 等. 水下无线电能传输技术及应用研究综述[J]. 电工技术学报, 2019, 34(8):1559-1568..
[7]	程时杰, 陈小良, 王军华, 等. 无线输电关键技术及其应用[J]. 电工技术学报, 2015, 30(19):68-84.
[8]	KURS A, KARALIS A, MOFFATT R, et al. Power transfer via strongly coupled magnetic resonances[J]. Science, 2007, 317:83-86. doi: 10.1126/science.1143254
[9]	邓其军, 肖亦沈. 磁耦合谐振式无线电能传输频率分裂现象研究综述[J]. 电器与能效管理技术, 2019(17):8-14.
[10]	李阳, 张雅希, 杨庆新, 等. 磁耦合谐振式无线电能传输系统最大功率效率点分析与实验验证[J]. 电工技术学报, 2016, 31(2):18-24.
[11]	狄东照, 张开如, 顾华利, 等. 小功率磁耦合谐振式无线电能传输频率分裂的研究[J]. 科学技术与工程, 2016, 16(31):188-191,228.
[12]	HUANG R, BO Z, QIU D, et al. Frequency splitting phenomena of magnetic resonant coupling wireless power transfer[J]. IEEE Transactions on Magnetics, 2014, 50(11):1-4.
[13]	SAMPLE A P, MEYER D A, SMITH J R. Analysis,experimental results,and range adaptation of magnetically coupled resonators for wireless power transfer[J]. IEEE Transactions on Industrial Electronics, 2011, 58(2):544-554. doi: 10.1109/TIE.2010.2046002
[14]	梁阗. 基于LCC/S补偿拓扑的感应耦合无线电能传输研究[D]. 哈尔滨: 哈尔滨工业大学, 2017.
[15]	ZHU Q, WANG L, GUO Y, et al. Applying LCC compensation network to dynamic wireless EV charging system[J]. IEEE Transactions on Industrial Electronics, 2016, 63(10):6557-6567. doi: 10.1109/TIE.2016.2529561
[16]	徐天昊. 非接触电能传输系统电容补偿机理研究[J]. 电子技术应用, 2013(5):58-60.

参数	数值
参数	发射线圈	接收线圈
电感L/ uH	15.20	15.20
电容C/ pF	41.50	41.50
电阻R/Ω	0.08	0.08
