IPOP Double Resonant LLC Converter Based on Coupled Resonant Inductance

doi:10.16628/j.cnki.2095-8188.2022.07.002

Abstract

Abstract:

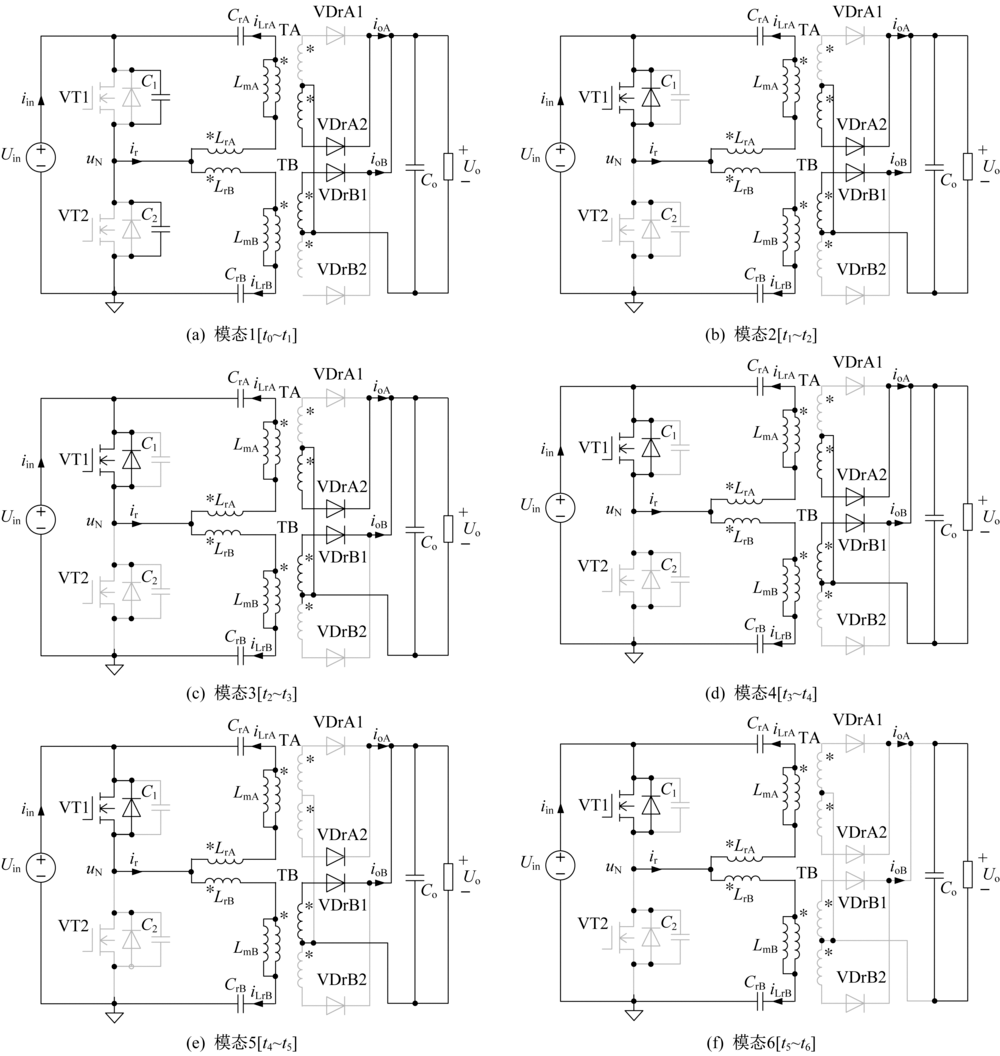

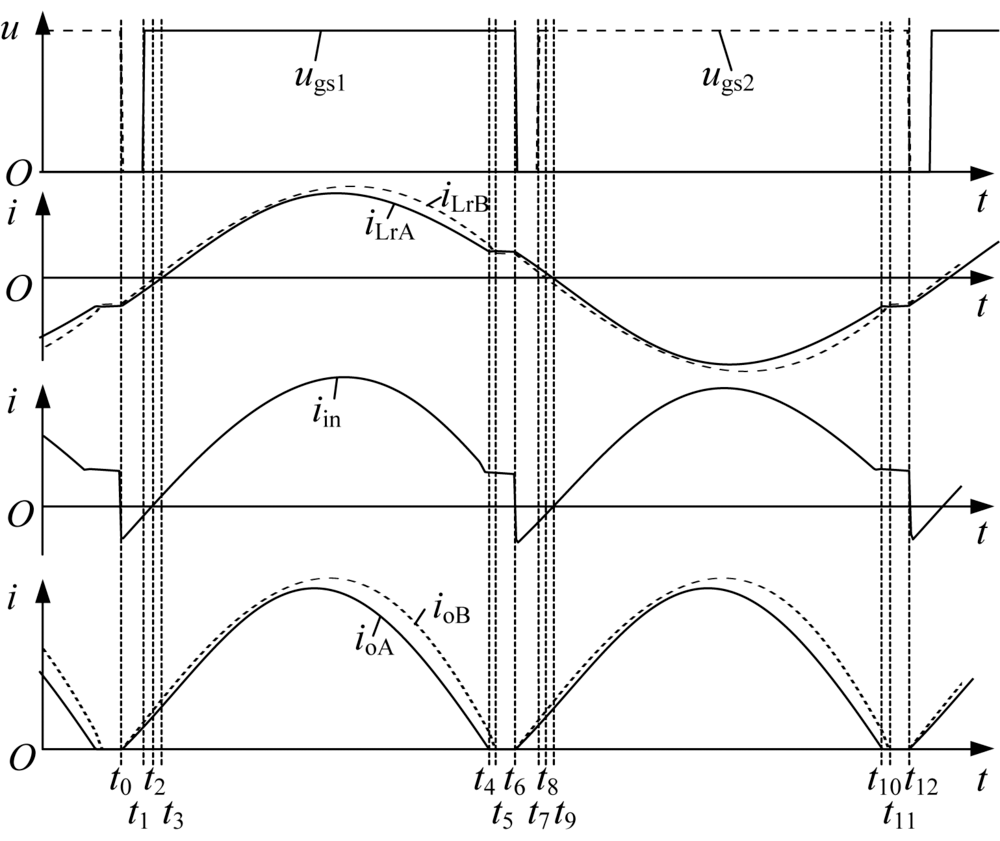

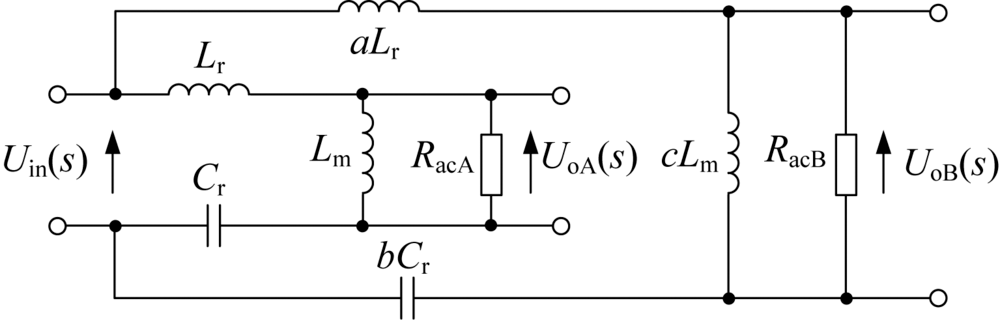

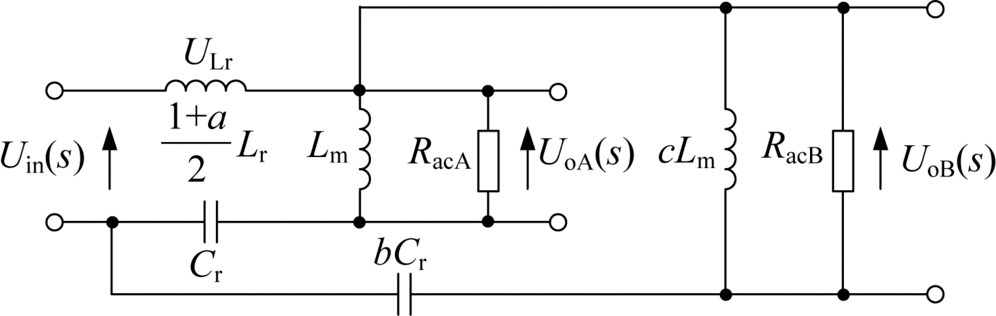

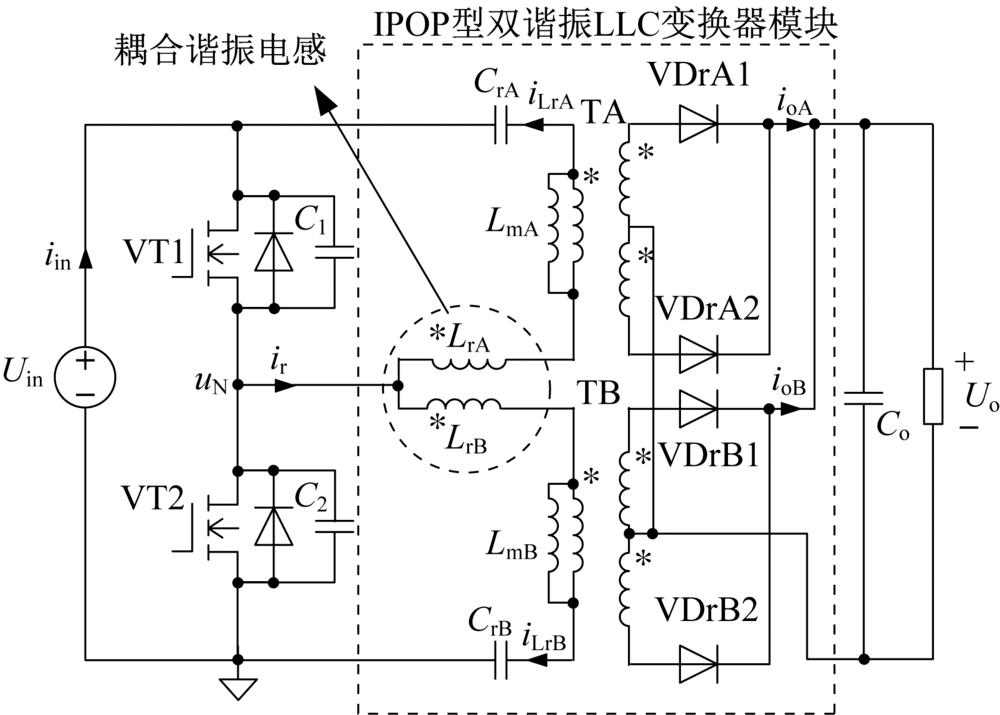

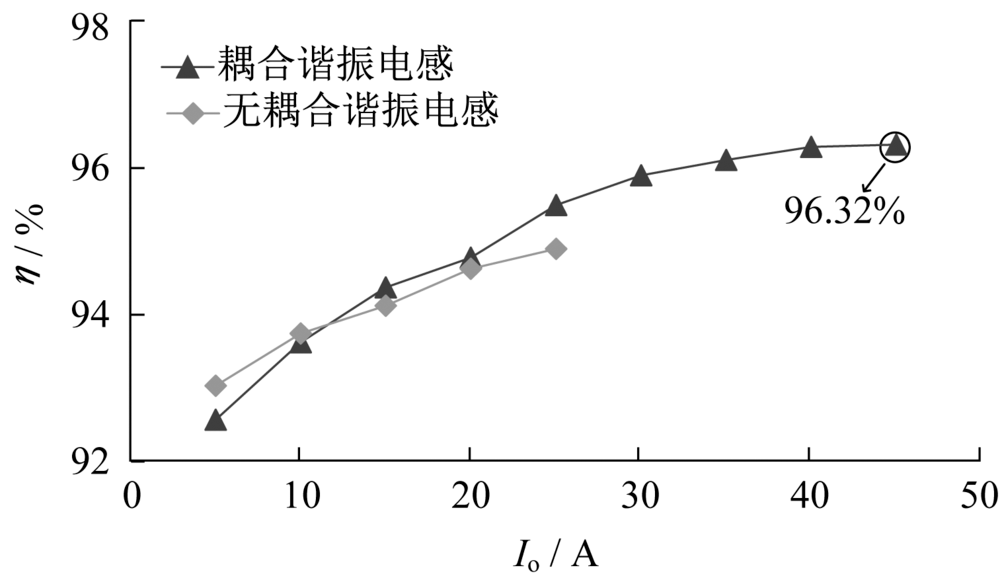

In low-voltage and high-power occasions,the system efficiency and reliability can be improved by the parallelled multiplexers.Aiming reducing the reliability of the system and limiting the application rang of the traditional double resonant LLC converter with the searies secondary winding of the transformer,an IPOP double resonant LLC converter with the parallel secondary windings of the converter is proposed.In order to solve the current sharing problem caused by inconsistent device parameters in the IPOP double resonant LLC converter,the two-phase resonant inductance is coupled to realize the automatic current sharing of the converter output.By establishing the FHA model and simulation analysis of the converter,the current sharing error distribution characteristics are studied when the resonance parameters are asymmetric,and the comparative experiments are verified the correctness of the theoretical analysis by building a 2.16 kW prototype.

Key words: dual resonant LLC converter, coupling inductance, IPOP, current sharing error

CLC Number:

TM46

TIAN Jian, XU Yuzhen. IPOP Double Resonant LLC Converter Based on Coupled Resonant Inductance[J]. LOW VOLTAGE APPARATUS, 2022, 0(7): 7-15.

Figures/Tables 21

References 11

[1]	任兴强, 夏添, 江洪伟. 高效率LLC谐振变换器参数设计研究[J]. 电器与能效管理技术, 2020(3):83-87.
[2]	苏两河, 林菁, 刘毅, 等. 应急充电装置LLC谐振变换器设计及优化[J]. 电器与能效管理技术, 2019(4):46-51.
[3]	KIM E, KIM J, Lee K, et al. LLC resonant converter with two resonant tanks[C]//2010 Twenty-Fifth Annual IEEE Applied Power Electronics Conference and Exposition (APEC), 2010:1949-1956.
[4]	CHUNG B, YOON K, PHUM S, et al. A novel LLC resonant converter for wide input voltage and load range[C]//8th International Conference on Power Electronics- ECCE Asia, 2011:2825-2830.
[5]	LIN B, WU R, CHAO C, et al. Interleaved double series resonant converter[C]//2011 6th IEEE Conference on Industrial Electronics and Applications, 2011:1815-1820.
[6]	KIM B, PARK K, MOON G. Analysis and design of two-phase interleaved LLC resonant converter considering load sharing[C]//2009 IEEE Energy Conversion Congress and Exposition, 2009:1141-1144.
[7]	KIM B, PARK K, KIM C, et al. Load sharing characteristic of two-phase interleaved LLC resonant converter with parallel and series input structure[C]//2009 IEEE Energy Conversion Congress and Exposition, 2009:750-753.
[8]	IQBAL S. Double LLC resonant tanks based DC-DC converter with integrated dual transformers for PV power systems[C]//2016 IEEE Power and Energy Conference at Illinois (PECI), 2016:1-6.
[9]	WANG Y, GAO S, GUAN Y, et al. A single-stage LED driver based on double LLC resonant tanks for automobile headlight with digital control[J]. IEEE Transactions on Transportation Electrification, 2016, 2(3):357-368. doi: 10.1109/TTE.2016.2571781
[10]	刘文军, 易俊宏, 马红波. 同步整流双谐振LLC-DCX悬浮控制电源研究[J]. 电机与控制学报, 2018, 38(22):6671-6683.
[11]	AHMAD U, CHA H, NASEEM N. Integrated current balancing transformer based input-parallel output-parallel LLC resonant converter modules[J]. IEEE Transactions on Power Electronics, 2021, 36(5):5278-5289. doi: 10.1109/TPEL.2020.3026929

参数	数值	参数	数值
输入电压范围U_in/V	370~420	谐振电感L_r/μH	50
输出电压U_o/V	48	谐振电容C_r/nF	53
输出满载功率P_o/kW	2.16	变比n	4.37
谐振频率f_r/kHz	98	励磁电感L_m/μH	210

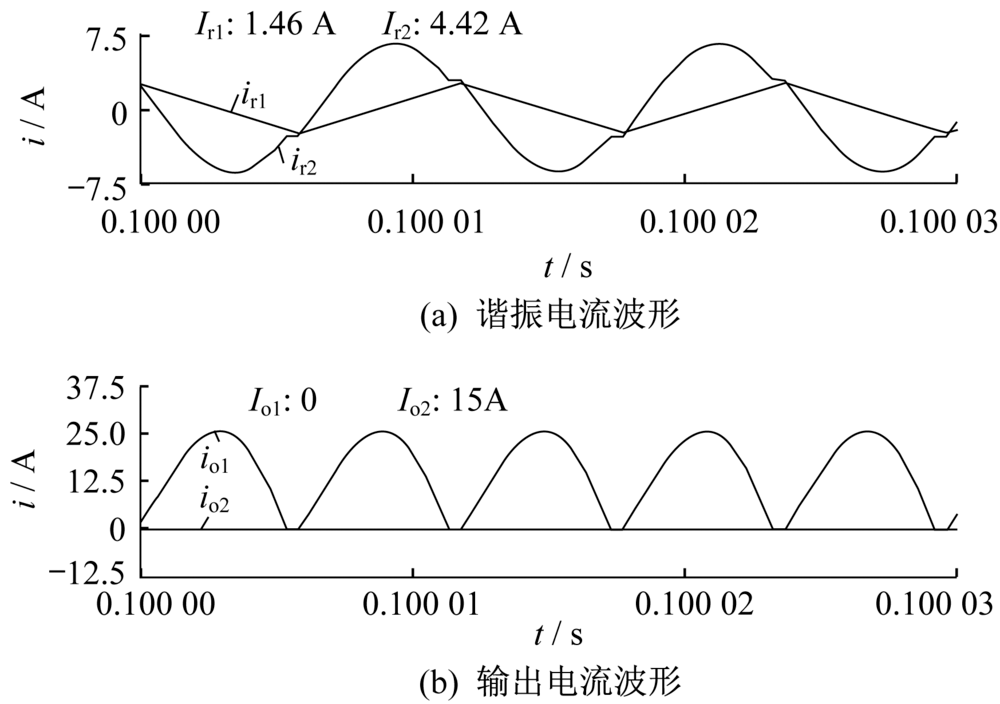

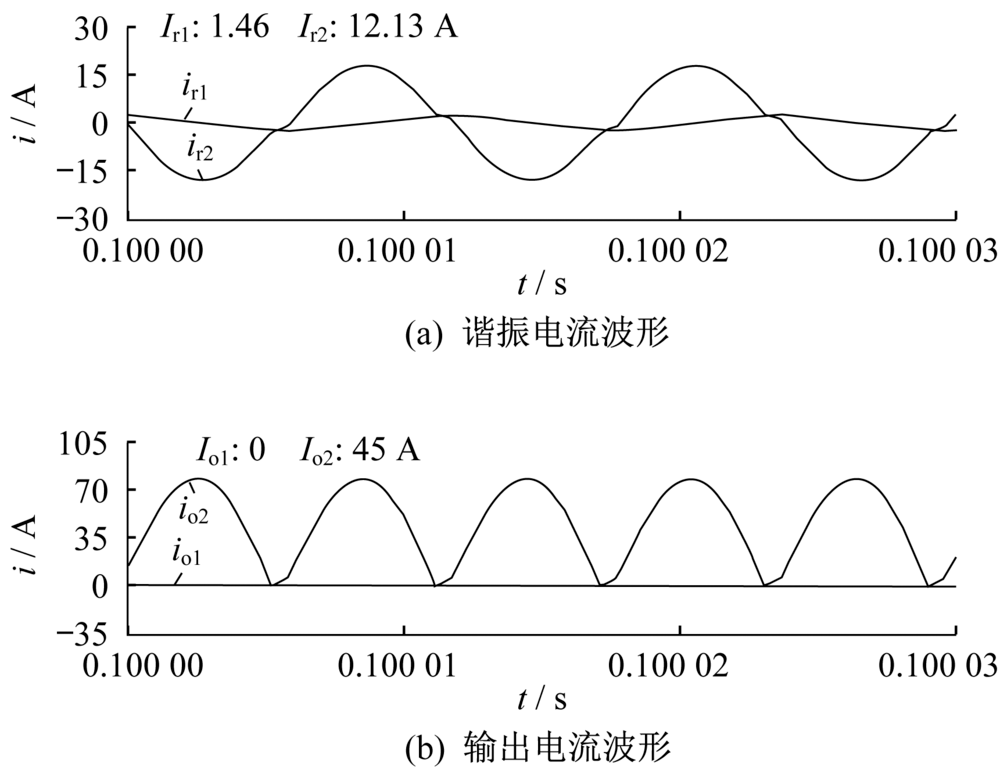

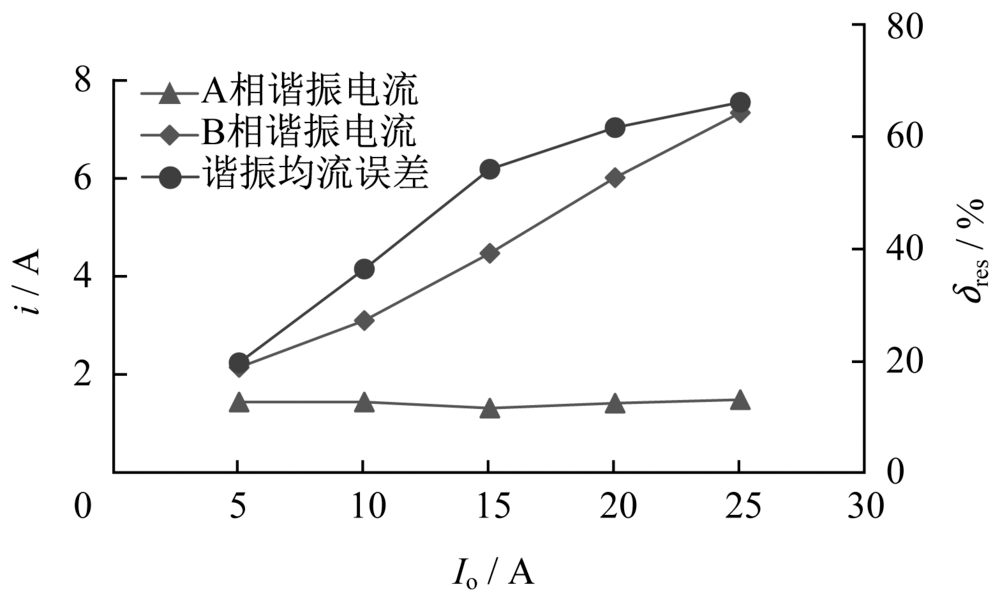

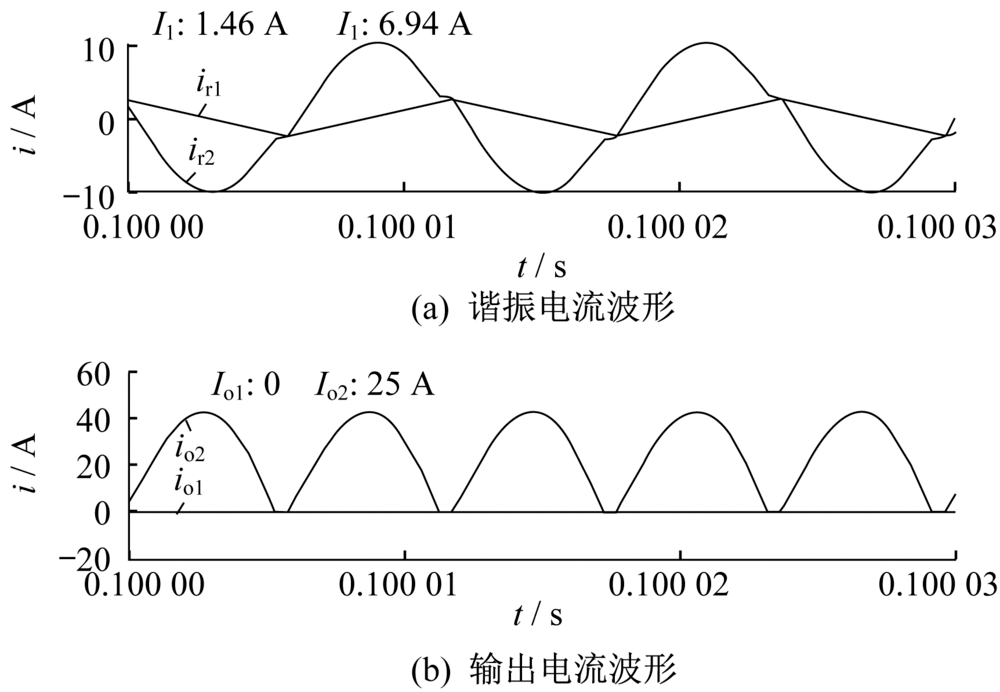

负载电流/A	谐振电流/A		输出电流/A		均流误差/%
负载电流/A	A相	B相	A相	B相	δ_res	δ_load
15	4.42	1.46	15	0	50.34	100
25	6.94	1.46	25	0	65.24	100

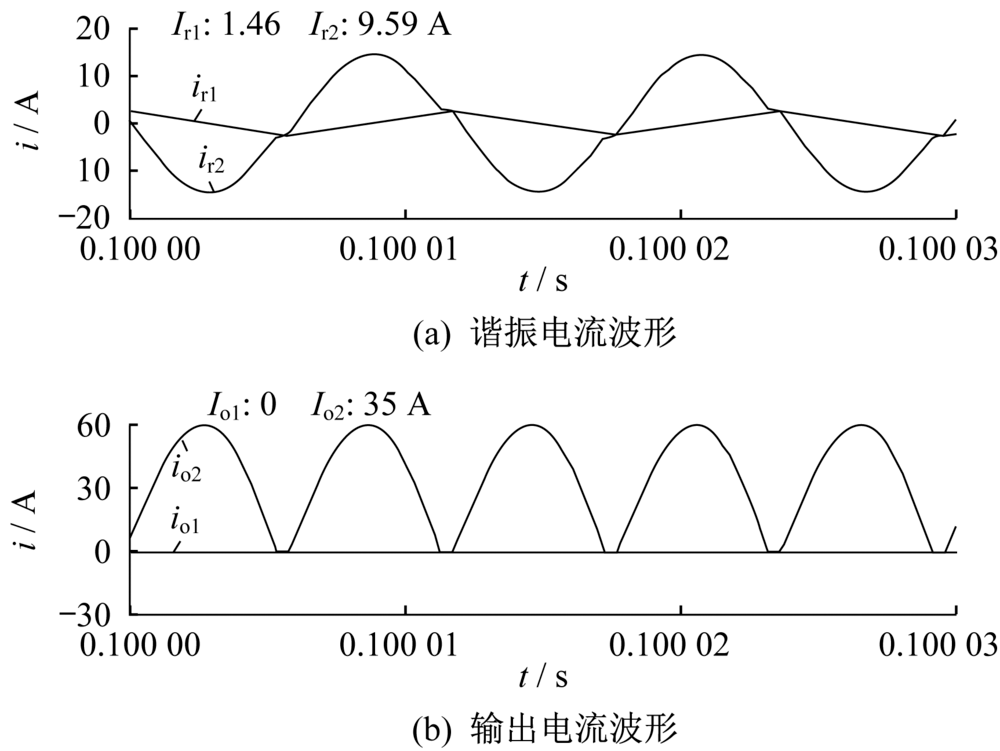

35	9.59	1.46	35	0	73.57	100
45	12.13	1.46	45	0	78.51	100

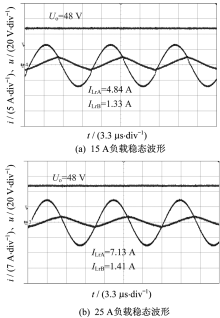

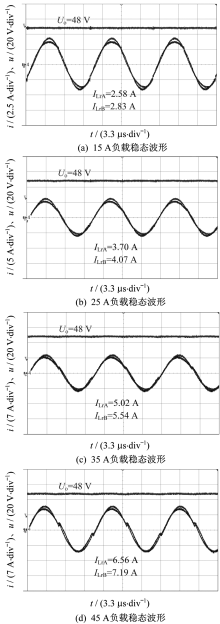

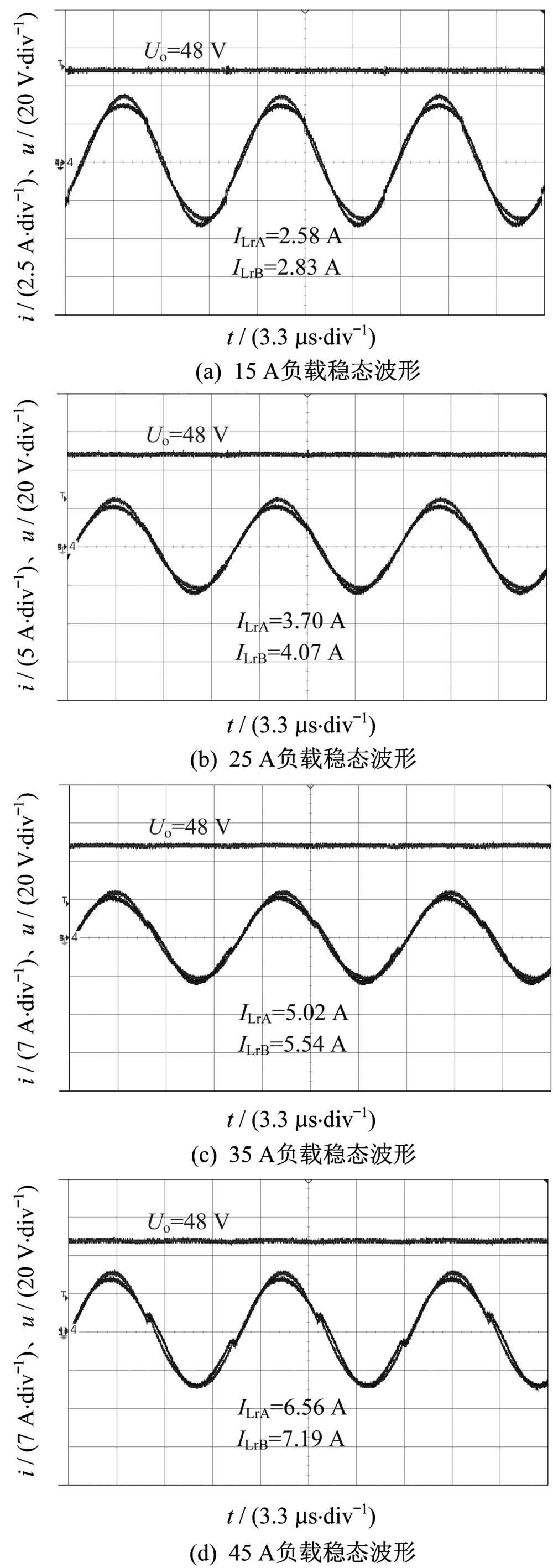

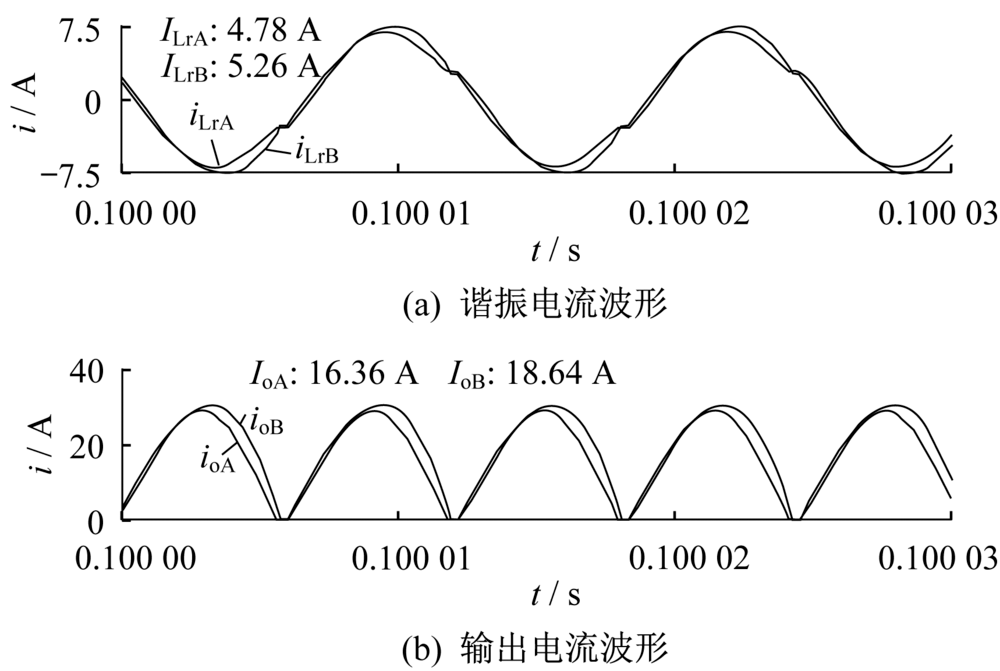

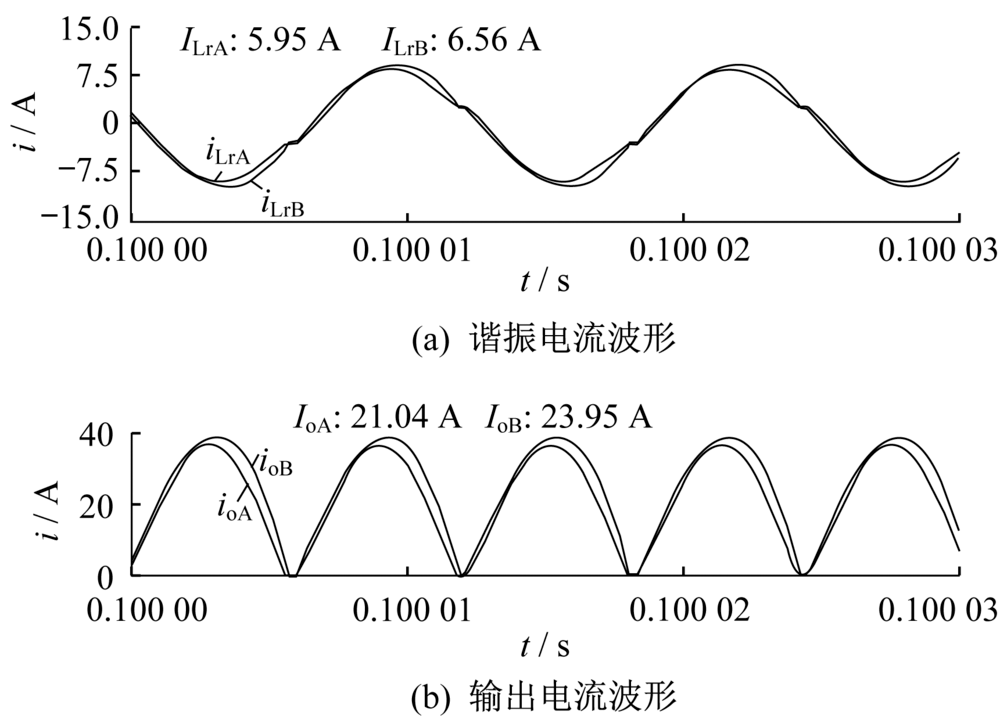

负载电流/A	谐振电流/A		输出电流/A		均流误差/%
负载电流/A	A相	B相	A相	B相	δ_res	δ_load

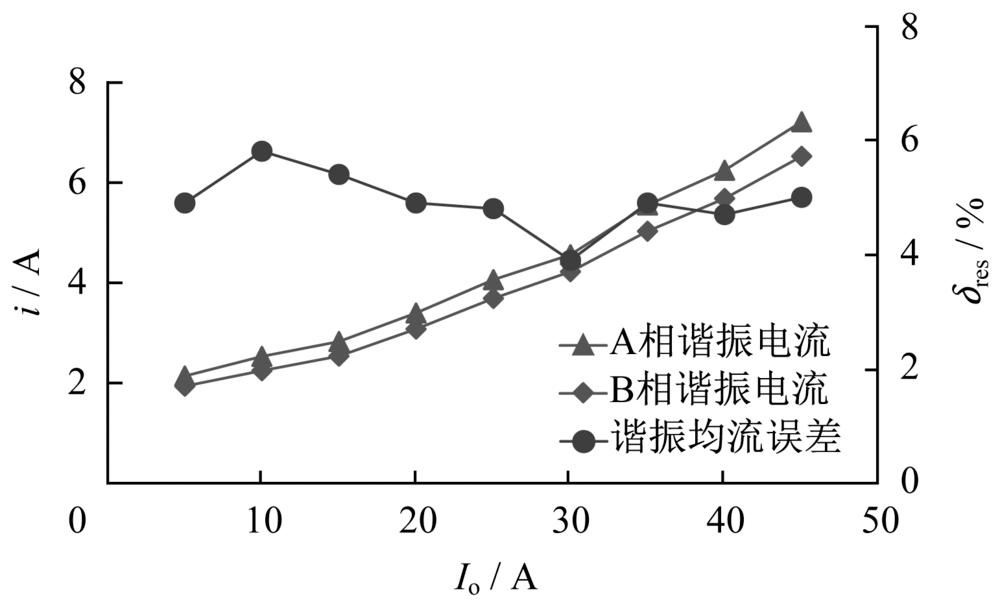

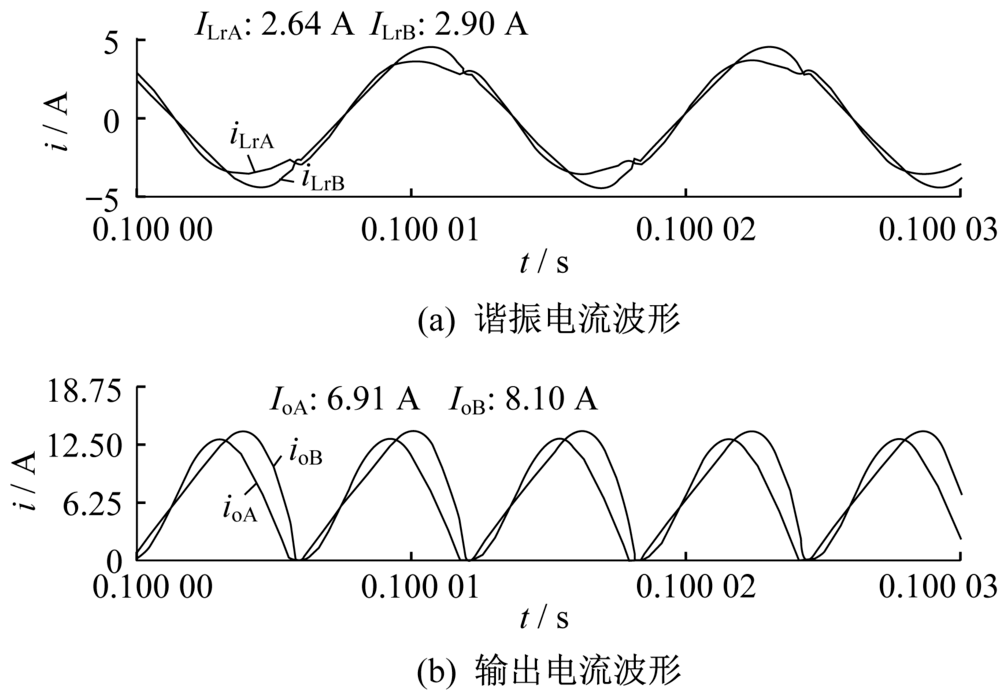

15	2.64	2.90	6.91	8.10	4.69	7.93

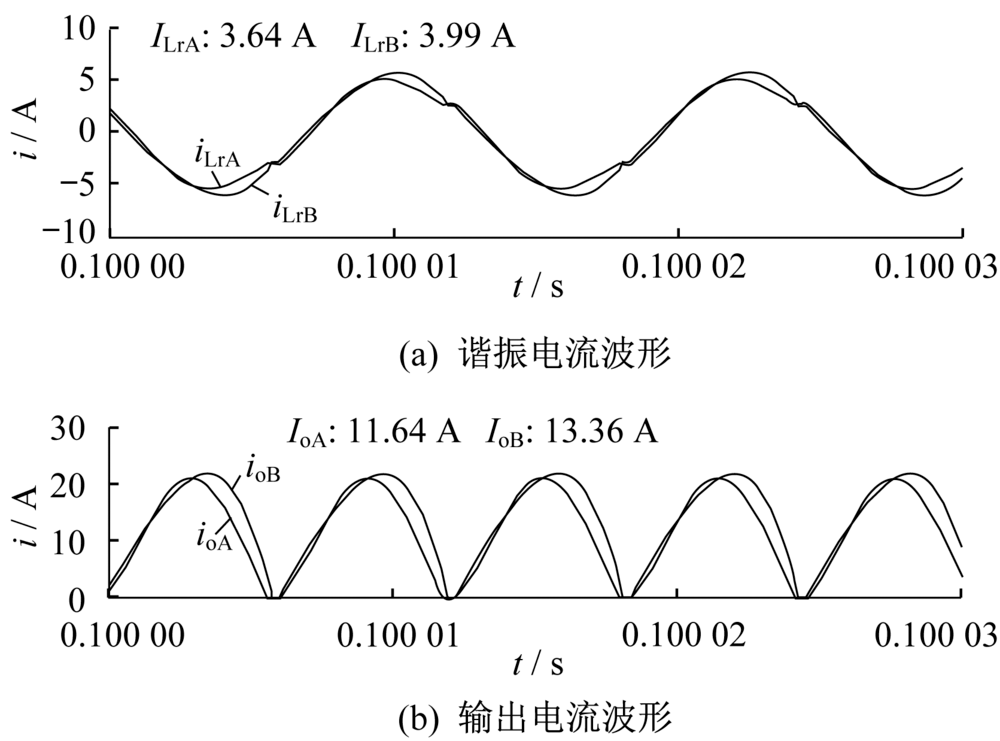

25	3.64	3.99	11.64	13.36	4.59	6.88
35	4.78	5.26	16.36	18.64	4.78	6.51
45	5.99	6.61	21.04	23.92	4.95	6.31
