Multi-Energy Storage Power Station Planning Method Based on Overload Ratio of Main Transformer

doi:10.16628/j.cnki.2095-8188.2021.12.006

Abstract

Abstract:

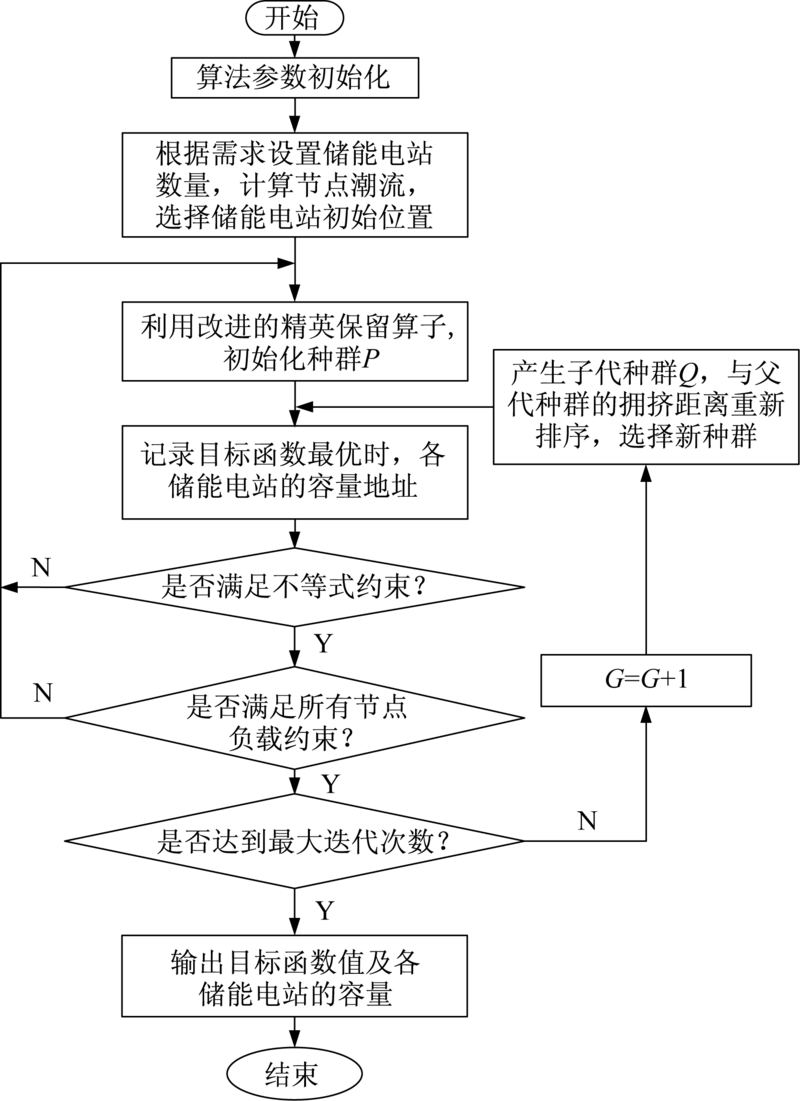

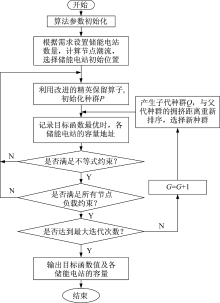

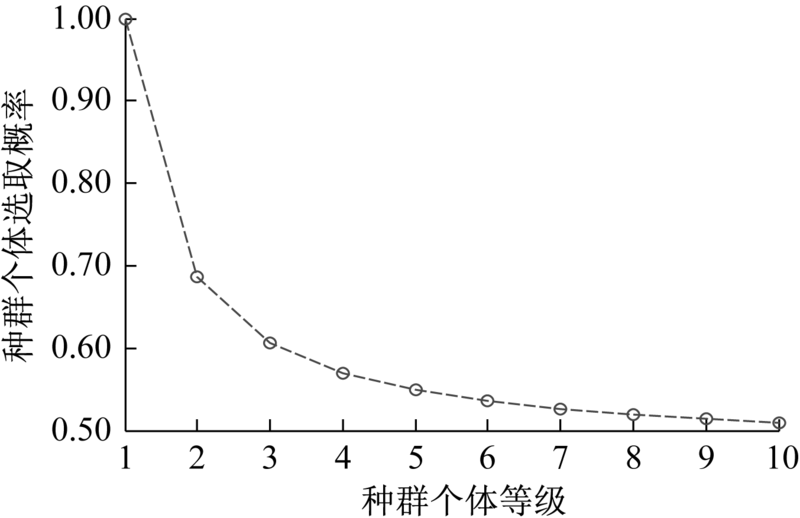

To effectively relieve the overload and peak regulation pressure of the main transformer in the power grid.A planning method of the multi-energy storage power station is proposed,which is constrained by the heavy load ratio of the main transformer.While satisfying the operating constraints of the system,this method builds an optimization objective of maximizing the net present value (NPV) of economic benefit and dynamic life cycle cost for the operating cycle of the energy storage power station to optimize the installation location and capacity of the energy storage power station as well as the installation number.The improved NSGA-Ⅱ algorithm is used to solve the problem.Finally,taking a demonstration project as an example,this planning method is used to plan multiple energy storage power stations.The simulation results show that this planning method can effectively reduce the peak-valley error rate and the overload rate of the main transformer,and improve the stable operation ability of the system.

Key words: main transformer heavy load, peak shaving, dynamic full life cycle, improved NSGA-II algorithm

CLC Number:

TM615

YANG Jun, HUANG Jiyuan, HUANG Keli, ZENG Linjun. Multi-Energy Storage Power Station Planning Method Based on Overload Ratio of Main Transformer[J]. LOW VOLTAGE APPARATUS, 2021, 0(12): 34-41.

Figures/Tables 8

References 33

[1]	区允杰, 孙景涛, 陈刚. 一种含抽水蓄能电站的可再生能源系统综合优化调度方法[J]广东电力, 2019, 32(10):79-88.
[2]	郜宁, 张慧媛, 王子琪, 等. 区域电网分布式储能选址定容规划[J]. 高压电器, 2020, 56(8):52-58.
[3]	尚瑨, 邰能灵, 刘琦, 等. 采用区间控制的蓄电池储能电站调峰运行控制策略[J]. 电工技术学报, 2015, 30(16):221-229.
[4]	鲍谚, 贾利民, 姜久春, 等. 电动汽车移动储能辅助频率控制策略的研究[J]. 电工技术学报, 2015, 30(11):115-126.
[5]	李欣然, 黄际元, 陈远扬, 等. 大规模储能电源参与电网调频研究综述[J]. 电力系统保护与控制, 2016, 44(7):145-153.
[6]	黄涛, 许志鹏, 葛乐. 考虑风电出力随机特性的氢储能综合能源系统优化调度[J]. 电器与能效管理技术, 2020(5):72-77.
[7]	全慧, 杨水丽, 李相俊, 等. 改善配电网末端电压的分布式储能容量配置研究[J]. 电器与能效管理技术, 2020(10):64-70.
[8]	LEOU R C. An economic analysis model for the energy storage system applied to a distribution substation[J]. Electrical Power and Energy Systems, 2012, 34:132-137. doi: 10.1016/j.ijepes.2011.09.016
[9]	LEOU R C. An economic analysis model for the energy storage systems in a deregulated market[C]// IEEE International Conference on Sustainable Energy Technologies, 2008:744-749.
[10]	WONG T K, MAK C M, CHUNG T S. Co-ordination of transformer tap and capacitor operation for reactive power voltage control in a distribution primary substation[C]// International Conference on Advances in Power System Control,Operation and Management,IET, 2000, 2:479-485.
[11]	SETLHAOLO D, XIA X. Optimal scheduling of household appliances with a battery storage system and coordination[J]. Energy & Buildings, 2015, 94:61-70.
[12]	JOHNSON M P, BAR-NOY A, LIU O, et al. Energy peak shaving with local storage[J]. Sustainable Computing Informatics & Systems, 2011, 1(3):177-188.
[13]	汤杰, 李欣然, 黄际元, 等. 以净效益最大为目标的储能电池参与二次调频的容量配置方法[J]. 电工技术学报, 2019, 34(5):963-972.
[14]	黄际元, 李欣然, 曹一家, 等. 考虑储能参与快速调频动作时机与深度的容量配置方法[J]. 电工技术学报, 2015, 30(12):454-464.
[15]	黄际元, 李欣然, 常敏, 等. 考虑储能电池参与一次调频技术经济模型的容量配置方法[J]. 电工技术学报, 2017, 32(21):112-121.
[16]	杨炼, 范春菊, 邰能灵, 等. 基于继电保护与改进算法的储能电站选址定容[J]. 电工技术学报, 2015, 30(3):53-60.
[17]	韦肖燕, 李欣然, 钱军, 等. 采用储能电源辅助的暂态稳定紧急控制方法[J]. 电工技术学报, 2017, 32(18):286-300.
[18]	翟世涛, 刘泽槐, 杨家豪, 等. 考虑多时段并网点电压控制的光储容量匹配及优化运行[J]. 电网技术, 2017, 41(6):1855-1863.
[19]	黄小庆, 杨夯, 陈颉, 等. 基于LCC和量子遗传算法的电动汽车充电站优化规划[J]. 电力系统自动化, 2015, 39(17):176-182.
[20]	刘秋华, 吴玲. 电力技术经济分析[M]. 北京: 中国电力出版社, 2012.
[21]	FARES R L, MEYERS J P, WEBBER M E. A dynamic model-based estimate of the value of a vanadium redox flow battery for frequency regulation in Texas[J]. Applied Energy, 2014, 113:189-198. doi: 10.1016/j.apenergy.2013.07.025
[22]	王菲菲. 火力发电企业环境成本核算方法研究[D]. 济南:山东财经大学, 2015.
[23]	陈长青. 考虑风能接入量的并网微电网安全经济调度[D]. 湖南:湖南大学, 2016.
[24]	MIRANDA V, HANG P S. Economic dispatch model with fuzzy wind constraints and attitudes of dispatchers[J]. IEEE Transactions on Power Systems, 2005, 20(4):2143-2145. doi: 10.1109/TPWRS.2005.857930
[25]	张雪雯, 李艳君. 基于自调节粒子群算法的电力系统经济负荷分配[J]. 电网技术, 2006, 30(18):8-13.
[26]	SRINIVAS N, KALYANMOY D. Multiobjective optimization using nondominated sorting in genetic algorithm[J]. Evolutionary Computation, 1994, 2(3):221-248. doi: 10.1162/evco.1994.2.3.221
[27]	DHANALAKSHMI S, KANNAN S, MAHADEVAN K, et al. Application of modified NSGA-2 algorithm to combined economic and emission dispatch problem[J]. International Journal of Electrical Power and Energy Systems, 2011, 33(4):992-1002. doi: 10.1016/j.ijepes.2011.01.014
[28]	JEYADEVI S, BASKAR S, BABULAL C K, et al. Solving multi-objective optimal reactive power dispatch using modified NSGA-2[J]. International Journal of Electrical Power and Energy Systems, 2011, 33(2):219-228. doi: 10.1016/j.ijepes.2010.08.017
[29]	张伯明, 吴文传, 郑太一, 等. 消纳大规模风电的多时间尺度协调的有功调度系统设计[J]. 电力系统自动化, 2011, 35(1):1-6.
[30]	何俊峰, 葛延峰, 葛维春, 等. 大容量储能电站的等值仿真模型及并网运行特性研究[J]. 电力电容器与无功补偿, 2020, 41(4):221-227.
[31]	王元凯, 周家华, 潘郁, 等. 电网侧储能电站综合评价[J]. 浙江电力, 2020, 39(5):3-9.
[32]	胡胜, 卢铃, 罗勇, 等. 电池储能变电站噪声特性及控制技术研究[J]. 高压电器, 2019, 55(11):283-289.
[33]	叶飞, 顾晨. 基于合作博弈的微网储能容量优化配置[J]. 电力需求侧管理, 2019, 21(5):11-16.

参数	数值	参数	数值
C_f/(元·h^-1)	500	T_f/h	42
N₁	3	r/%	6.5
T_m/h	8	λ	0.5

序号	站址	电压等级/kV	选址说明
1	榔云	220	榔云变负载率达95.44%,10 kV负荷达73 MW;位于该地区最中心位置
2	延里	220	延里2017年负载率达91%,10 kV负荷达105 MW;220 kV艾家冲-延里断面供电压力大
3	芙清	220	芙清变位于该地区最中心位置,最大负载率达95%,10 kV负荷达124 MW
4	金山	110	终期2台规模,2017年接近满载
5	宁渡	110	玉潭-茆田-宁渡-通益的单线结构接入系统,可靠性较低;宁渡境内风电、小水电规模较多,净负荷波动较大
6	望坡	110	220 kV艾家冲-延里断面供电压力大;现有主变2台,主变重载,围墙内无法扩建第三台主变
7	永塘	110	位于电网末端,负载较重;110 kV线路供带负荷超过100 MW
8	江坪	110	110 kV网络结构薄弱;主变重载
9	沙岭	110	2017年负载率89.5%
10	木槿冲	110	最大负荷88.4 MW,负载率88.4%
11	安兴	110	主变重载;110 kV网络结构薄弱
12	雷潭	110	主变重载;负荷发展较快

项目	芙清	榔云	延里	总计
容量/MW	50.2	34.7	40.6	93.5
收益/万元	32 002.5	22 121.2	25 882.5	59 606.2
成本/万元	18 383.2	12 707.1	14 867.7	34 239.7
NPV/万元	13 619.3	9 414.1	11 014.8	28 279.1

项目	芙清	榔云	延里	宁渡	总计
容量/MW	47.5	32.7	39.6	8.2	128
效益/万元	30 281.3	20 846.3	2 524.5	5 227.5	81 600.0
成本/万元	17 394.5	11 974.7	1 450.2	3 002.8	46 873.6
NPV/万元	12 886.8	8 871.5	10 743.5	2 224.6	34 726.4

项目	芙清	榔云	延里	宁渡	木槿冲	总计
容量/MW	45.5	30.7	36.6	5.2	5.0	123.0
效益/万元	29 006.3	19 571.3	23 332.5	3 315.0	3 187.5	78 412.5
成本/万元	16 662.1	11 242.3	13 402.9	1 904.2	1 831.0	45 042.6
NPV/万元	12 344.2	8 328.9	9 929.6	1 410.8	1 356.5	33 369.9
