Design and Simulation of Phase-Shifted Full-Bridge Converter Based on TSK Fuzzy Adaptive PI Control

doi:10.16628/j.cnki.2095-8188.2021.04.013

Abstract

Abstract:

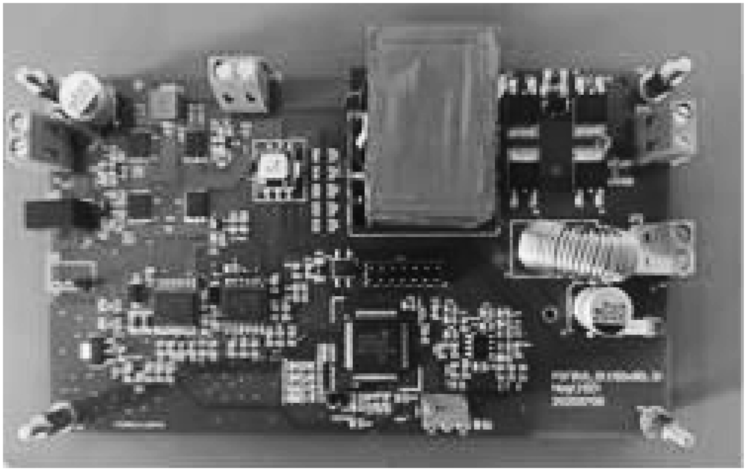

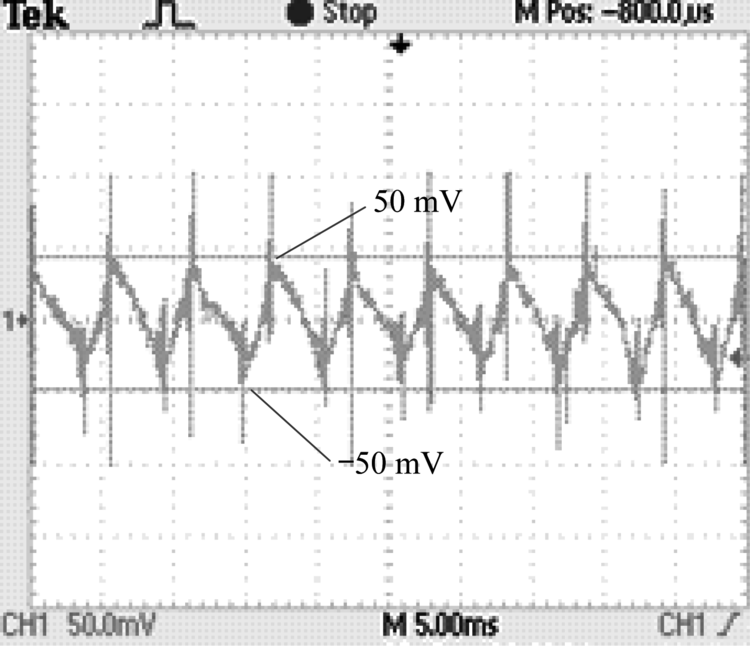

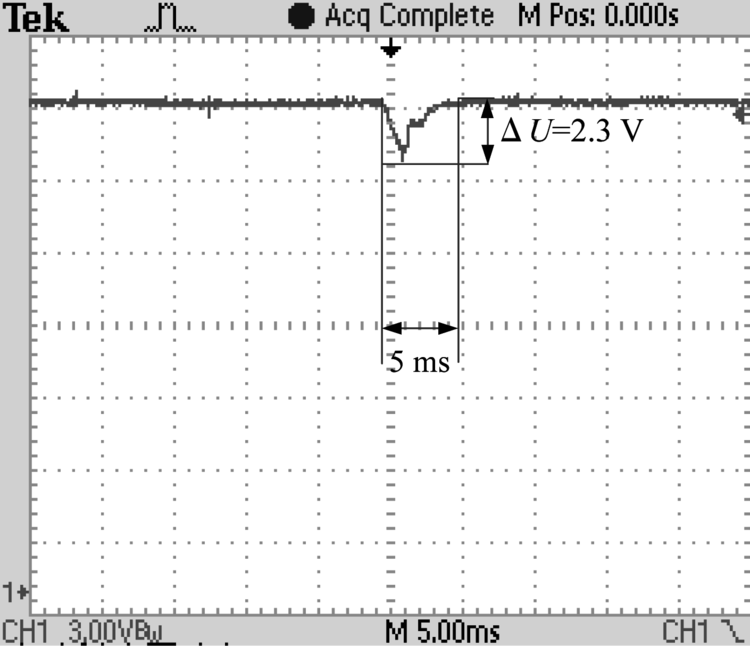

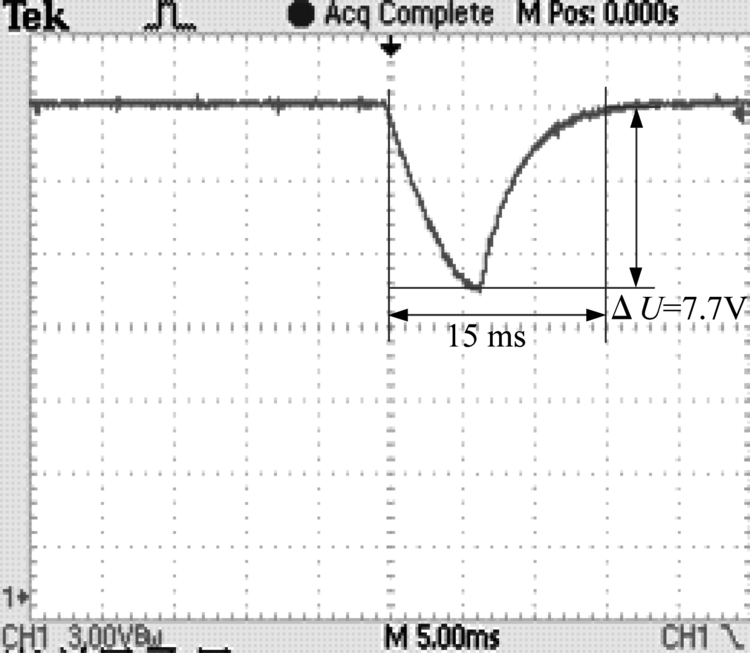

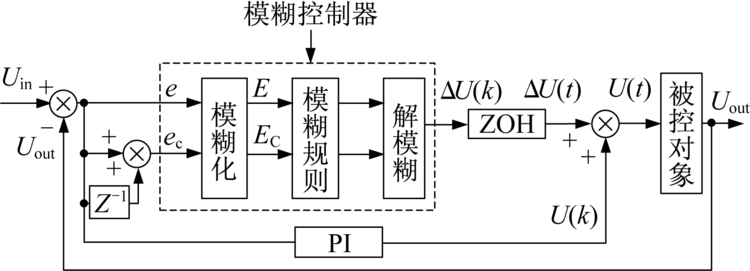

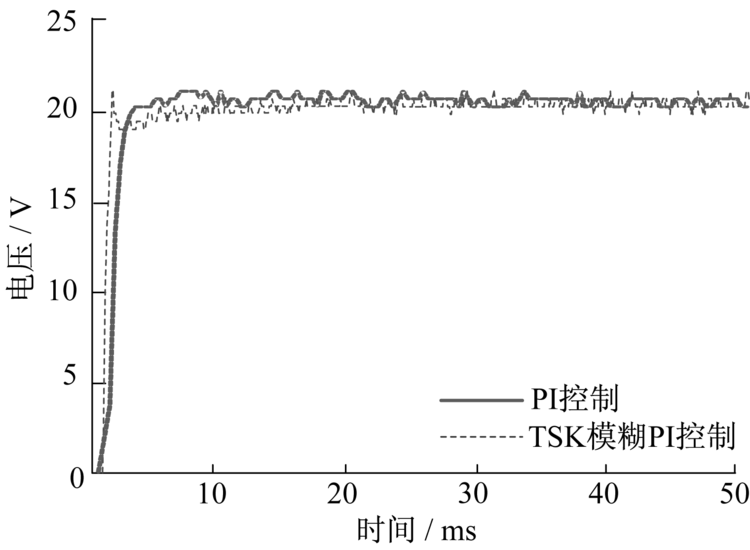

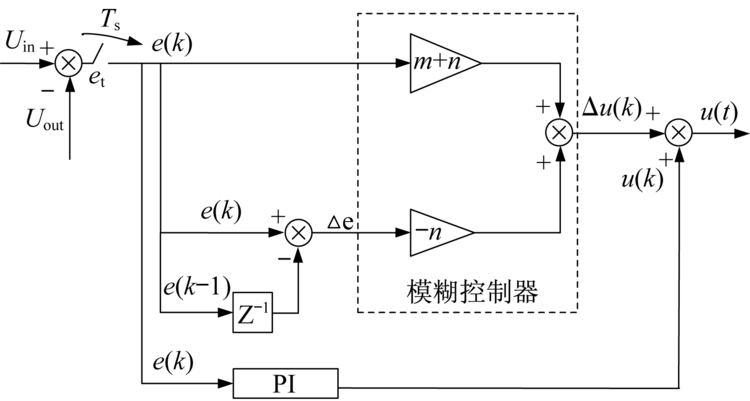

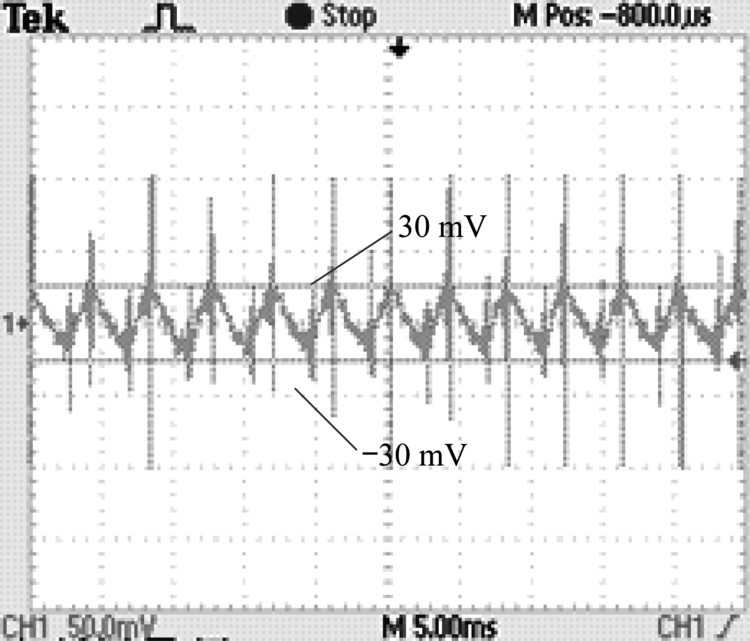

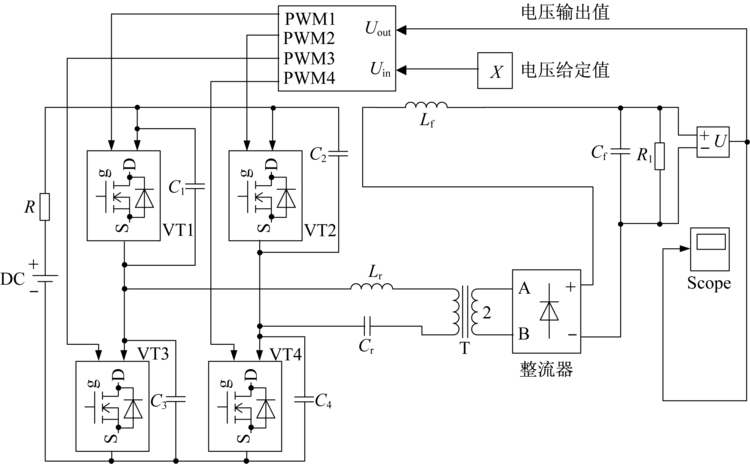

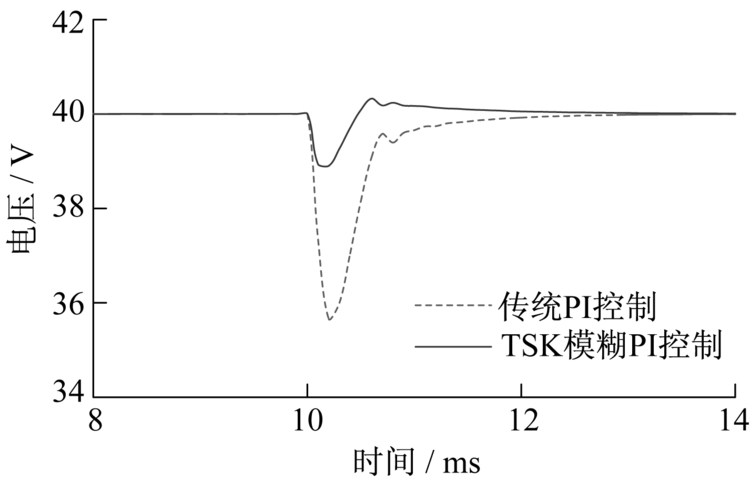

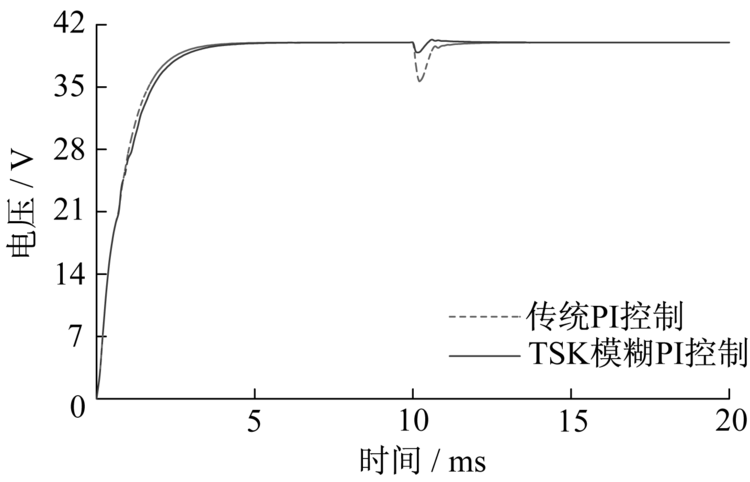

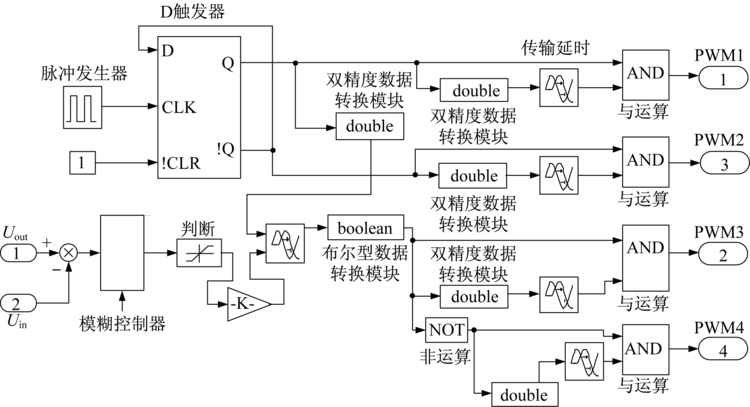

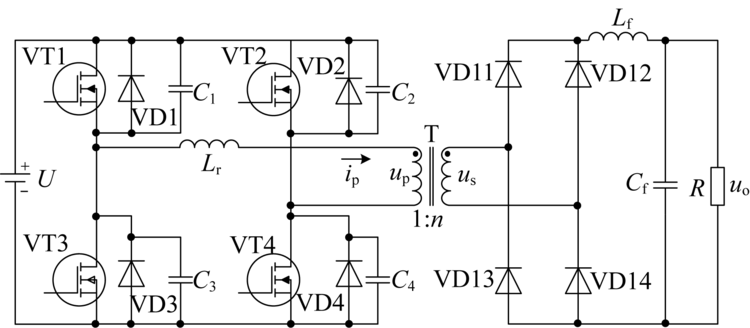

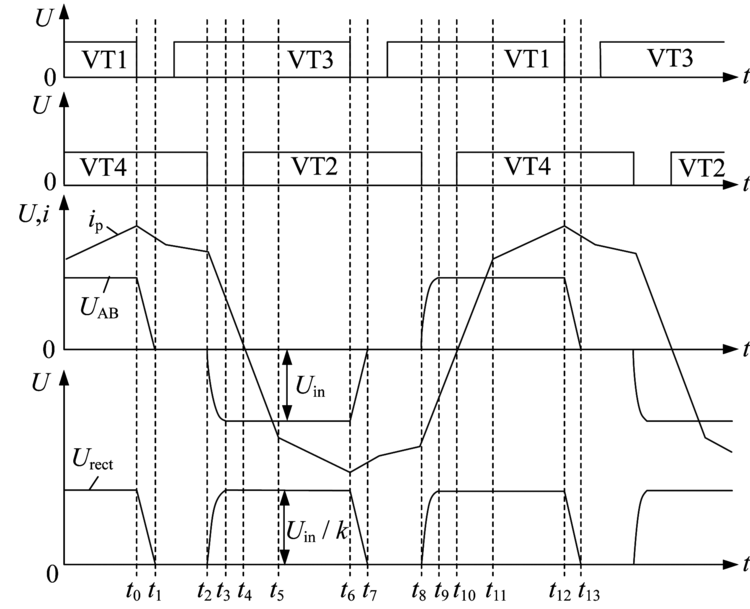

Phase shifted full bridge DC-DC converters are the core device of DC charging system.Aiming at the problems of long dynamic response time and large output ripple in the traditional proportional-integral (PI) control scheme,a control scheme combining a PI control with a Takagi-Sugeno-Kang(TSK)fuzzy control is proposed.Based on the PI control of the error signal,a compound control strategy with TSK fuzzy control as the core is constructed to speed up the dynamic response of the system on the basis of improving the performances of the steady-state error and the accuracy.The simulation model along with the prototype of the converter is built to verify the effectiveness of the proposed algorithm.The experimental results show that compared with the traditional control scheme,the performances of the dynamic response and the ripple coefficient can be improved by up to 66% and less than 40%,respectively.

Key words: phase-shifted full-bridge, fuzzy control, PI control, DC-DC converter

CLC Number:

TM46

HONG Bangguang, CHEN Wei, ZHANG Haigen. Design and Simulation of Phase-Shifted Full-Bridge Converter Based on TSK Fuzzy Adaptive PI Control[J]. LOW VOLTAGE APPARATUS, 2021, 0(4): 70-76.

Figures/Tables 19

References 19

[1]	罗敏, 梁晖. LC串联谐振型双向DC/DC变换器研究[J]. 电器与能效管理技术, 2020(2):30-40,46.
[2]	蔡宣三, 龚绍文. 高频功率电子学[M]. 北京: 中国水利水电出版社, 2009.
[3]	罗明. 移相全桥DC/DC变换器研究[D]. 广州:华南理工大学, 2010.
[4]	王翀, 刘文生. 开关电源模糊PID控制器的设计与仿真[J]. 通信电源技术, 2011,28(2):40-43.
[5]	赵文春, 王博, 刘胜道, 等. 模糊自适应PI控制的移相全桥变换器设计与仿真[J]. 现代电子技术, 2015,38(19):110-113.
[6]	谢勇, 孟杰, 黄丽娟, 等. 倍流整流移相全桥DC/DC变换器模糊PI控制[J]. 电力电子技术, 2012,46(7):28-30.
[7]	李大勇, 都明亮, 王长胜, 等. 基于Takagi-Sugeno型模糊控制的储能容量优化配置[J]. 电器与能效管理技术, 2017(23):71-75.
[8]	徐兵, 程旭德, 王宏利, 等. 基于MATLAB的Mamdani与Sugeno型模糊推理研究[J]. 计算机应用, 2006,26(增刊2):223-224.
[9]	陈桂鹏, 邓焰, 董洁, 等. 基于移相全桥的串联升压式部分功率DC/DC变换器[J]. 电工技术学报, 2015,30(19):128-135.
[10]	游颖敏, 王景芹, 舒亮, 等. 断路器保护特性测试电流的自适应控制策略[J]. 电工技术学报, 2020,35(15):3203-3213.
[11]	阮新波. 脉宽调制DC/DC全桥变换器的开关技术[M]. 北京: 科学出版社, 2013.
[12]	张博彦, 齐铂金, 周阳. 基于模糊PID算法的半桥DC/DC控制器的优化设计[J]. 电力电子技术, 2018,52(9):74-77.
[13]	丁奇, 杨海涛, 刘聪. 平均电流控制型移相全桥DC/DC变换器设计方法的研究[J]. 电气工程学报, 2018,13(9):32-37.
[14]	刘金坤. 智能控制[M]. 北京: 电子工业出版社, 2012.
[15]	PERRY A G, FENG G, LIU Y F, et al. A design method for PI-like fuzzy logic controllers for DC-DC converter[J]. IEEE Transactions on Industrial Electronics, 2007,54(5):2688-2696. doi: 10.1109/TIE.2007.899858
[16]	金宁德, 王海欣, 黄海宏. 移相全桥逆变器-同步整流变换器系统的研究[J]. 电器与能效管理技术, 2020(11):65-69.
[17]	丁峰, 王辉, 李圣乾, 等. 一种基于DCM单元的高升压非隔离型DC/DC变换器[J]. 广东电力, 2020,33(1):43-52.
[18]	段宛宜, 王辉. 一种Boost级联式高增益DC/DC变换器[J]. 电器与能效管理技术, 2020(2):54-60.
[19]	王军章, 兰征. 虚拟同步发电机用双向直流变换器研究[J]. 浙江电力, 2019,38(4):20-27.

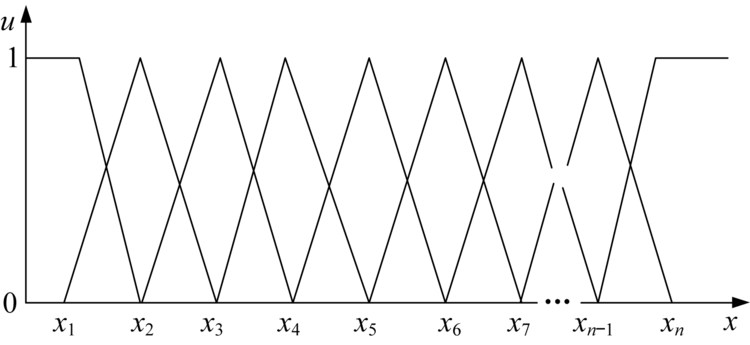

各模糊维数值	模糊化值	各模糊维数值	模糊化值
A₁/B₁	-1	A₆/B₆	0.016
A₂/B₂	-0.3	A₇/B₇	0.05
A₃/B₃	-0.05	A₈/B₈	0.3
A₄/B₄	-0.016	A₉/B₉	1
A₅/B₅	0

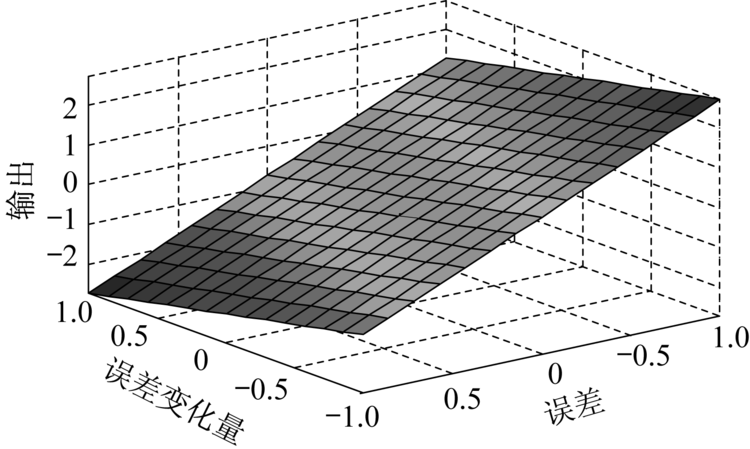

e	e_c
e	B₁	B₂	B₃	B₄	B₅	B₆	B₇	B₈	B₉
A₁	-1.280	-1.784	-1.964	-1.988	-2.000	-2.011	-2.036	-2.216	-2.720
A₂	0.120	-0.384	-0.564	-0.588	-0.600	-0.611	-0.636	-0.816	-1.320
A₃	0.620	0.116	-0.064	-0.088	-0.100	-0.111	-0.136	-0.316	-0.820
A₄	0.688	0.184	0.004	-0.020	-0.032	-0.043	-0.068	-0.248	-0.752
A₅	0.720	0.216	0.036	0.012	0	-0.011	-0.036	-0.216	-0.720
A₆	0.752	0.248	0.068	0.043	0.032	0.020	-0.004	-0.184	-0.688
A₇	0.820	0.316	0.136	0.111	0.100	0.088	0.064	-0.116	-0.620
A₈	1.320	0.816	0.636	0.651	0.600	0.588	0.564	0.384	-0.120
A₉	2.720	2.216	2.036	2.011	2.000	1.988	1.964	1.784	1.280
