Zero Ripple High-Gain DC/DC Converter with Coupled Inductor

doi:10.16628/j.cnki.2095-8188.2021.02.016

Abstract

Abstract:

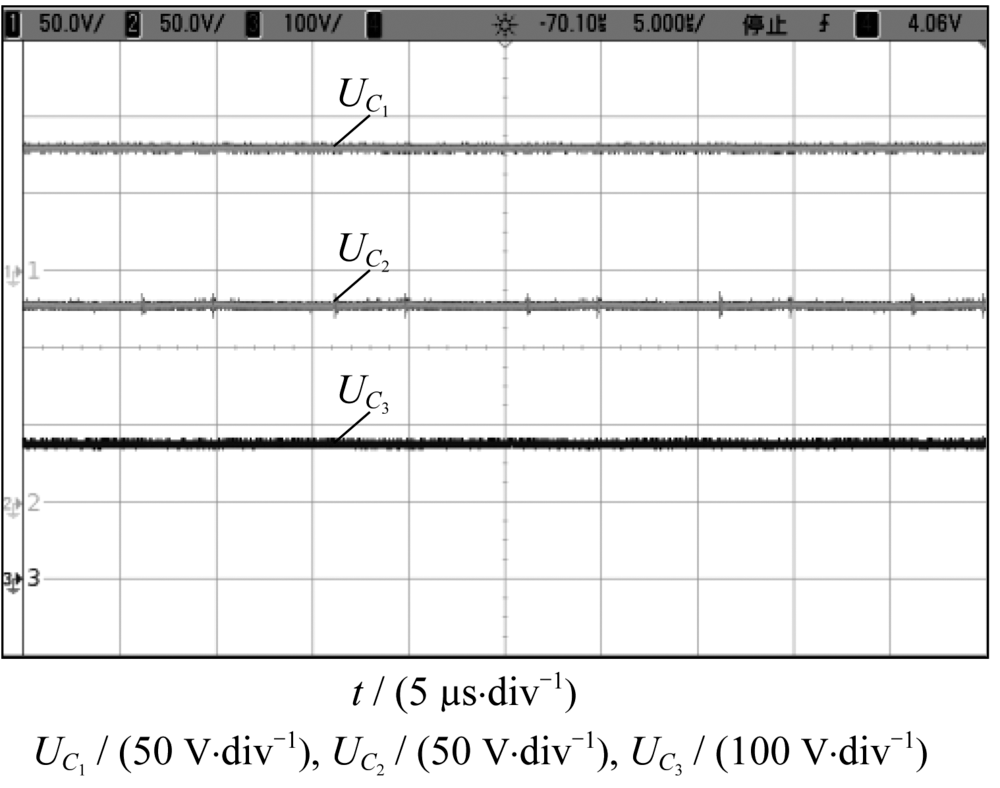

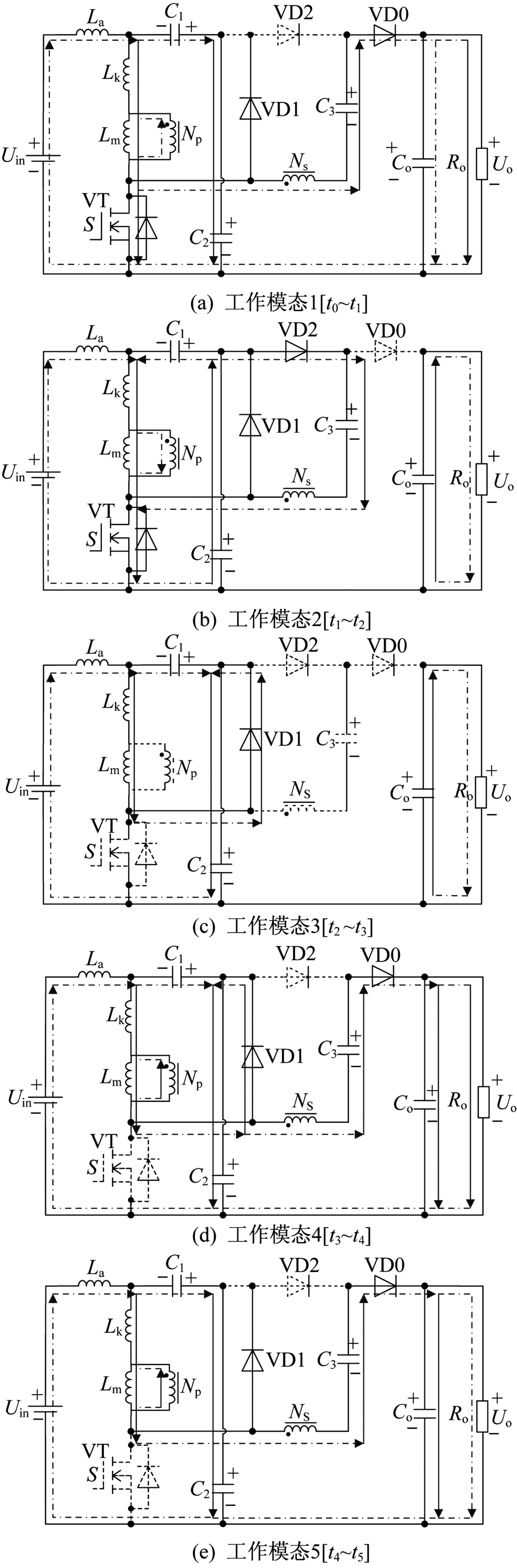

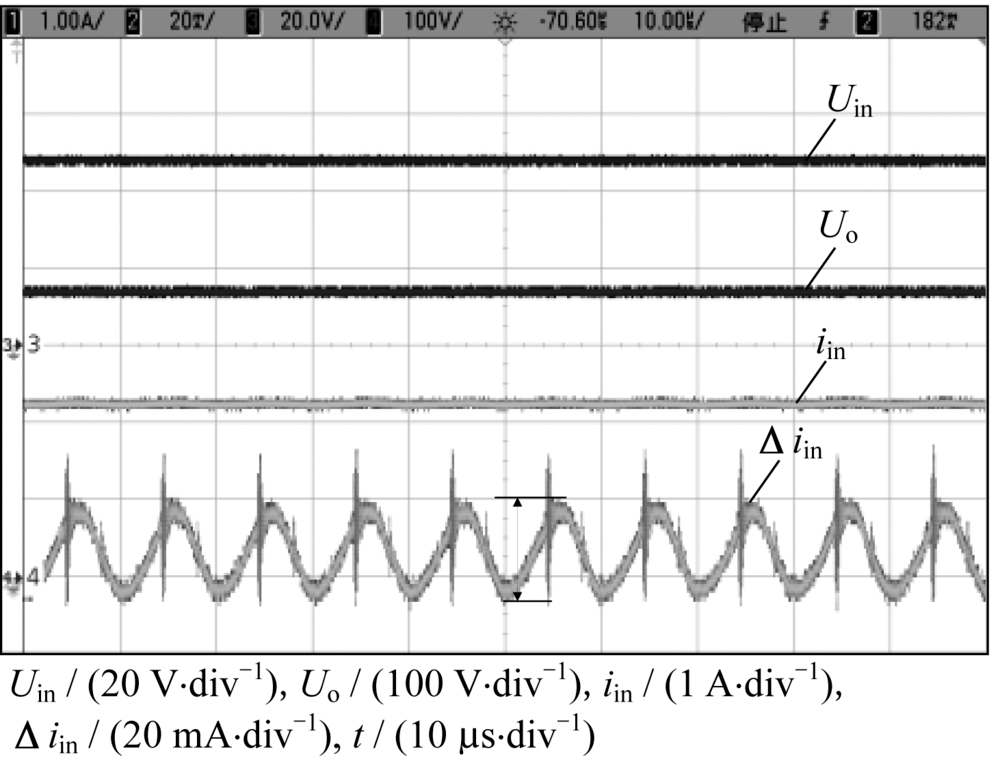

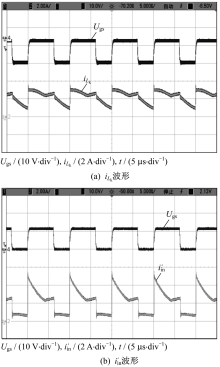

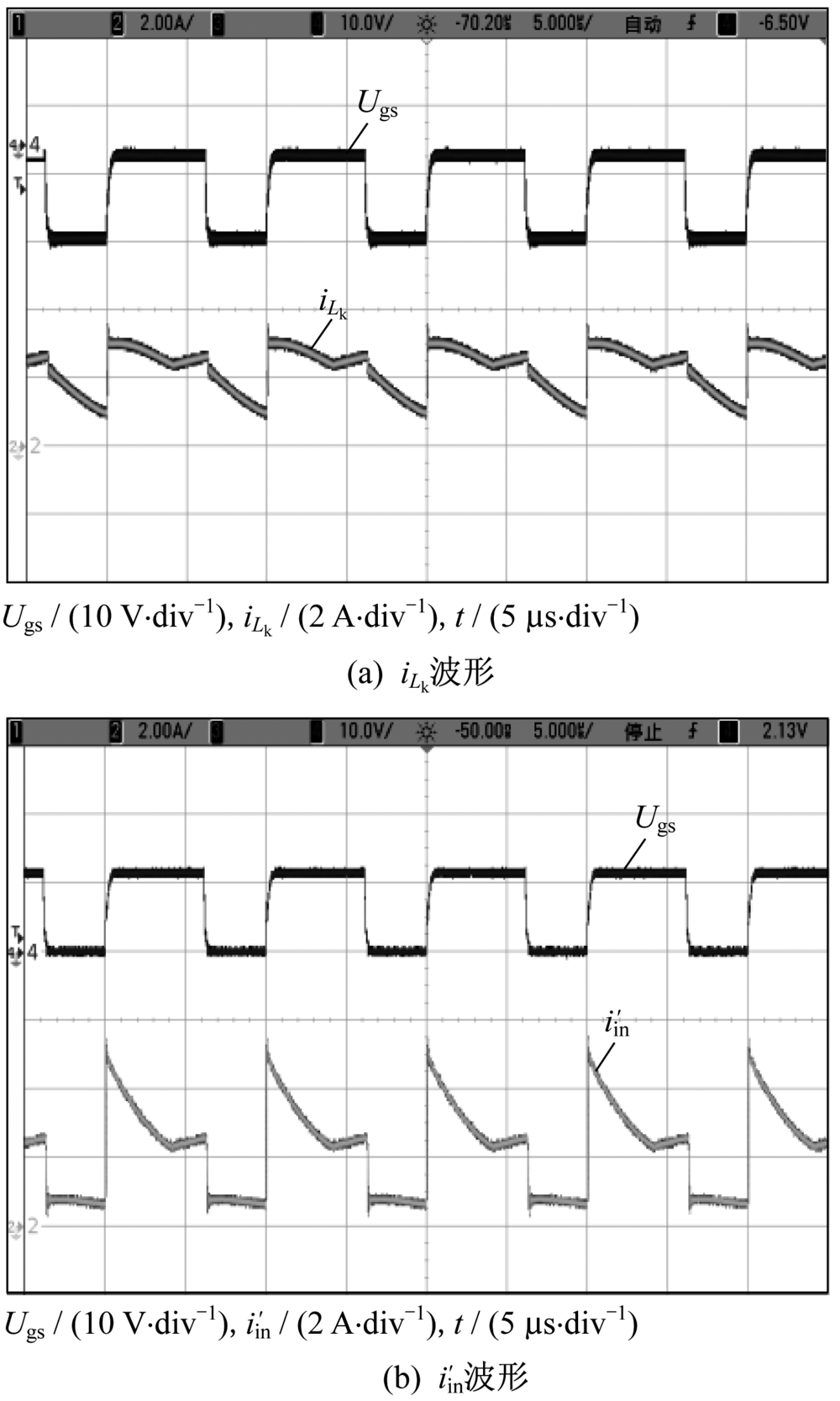

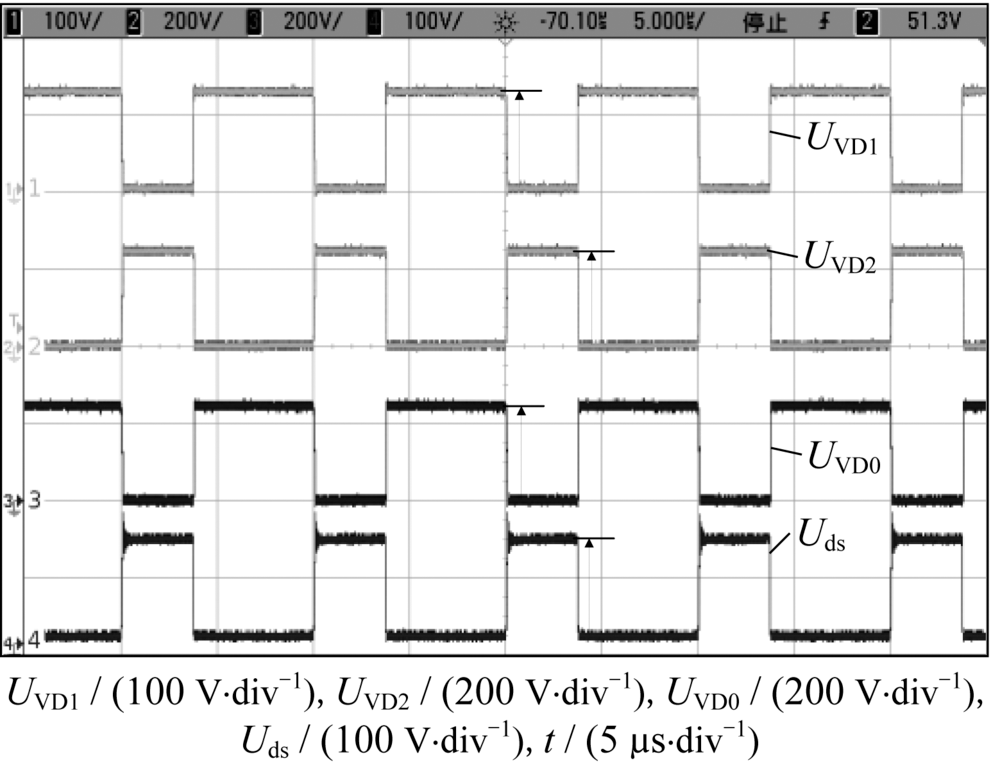

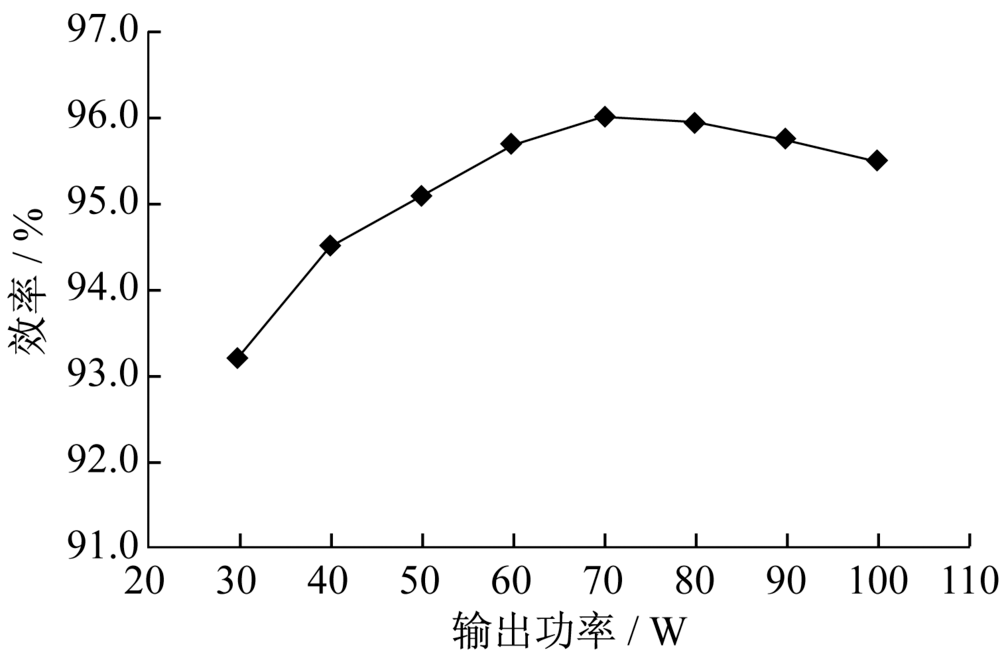

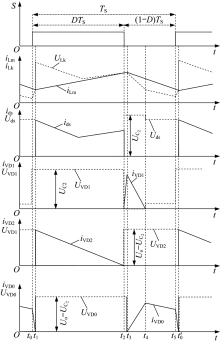

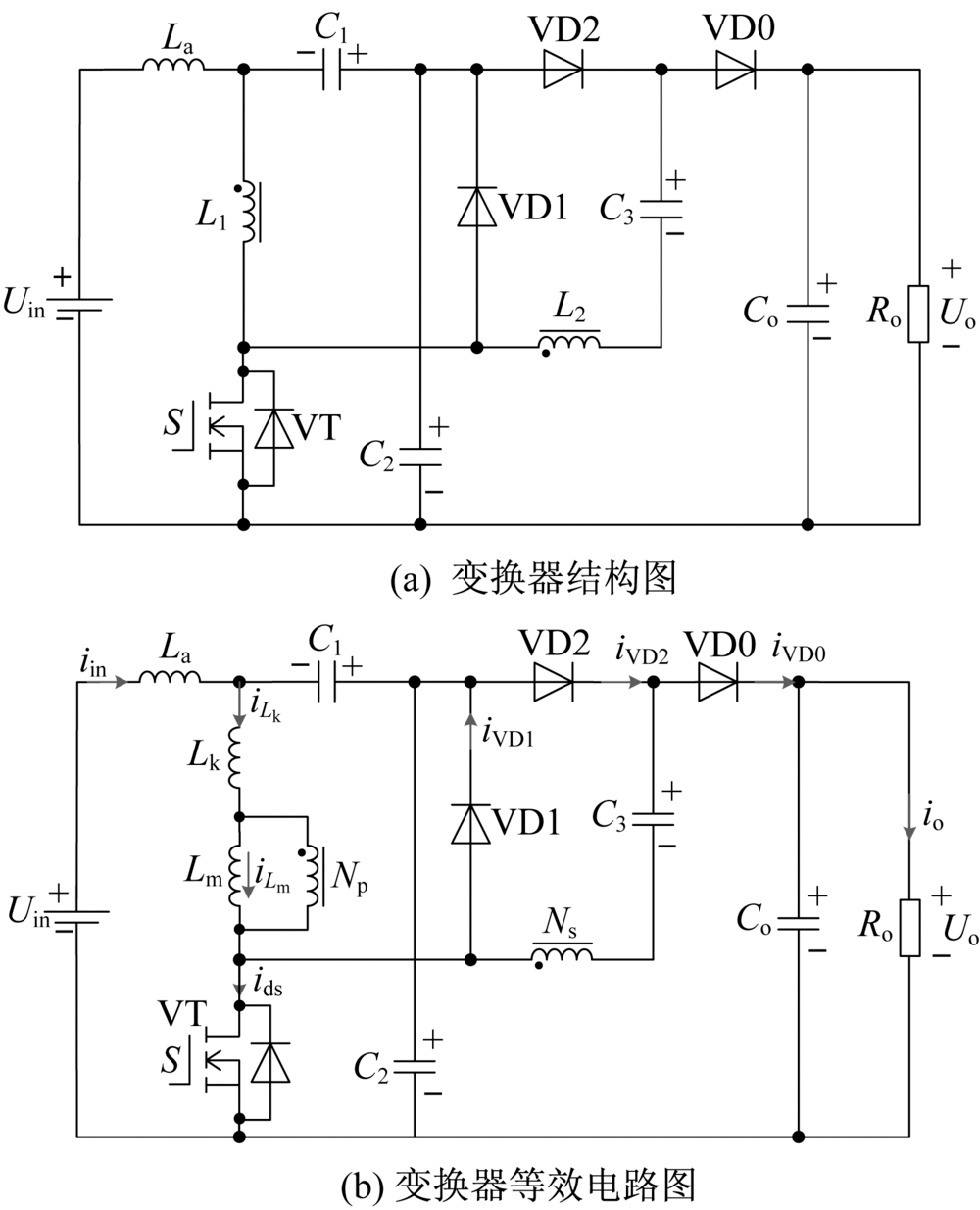

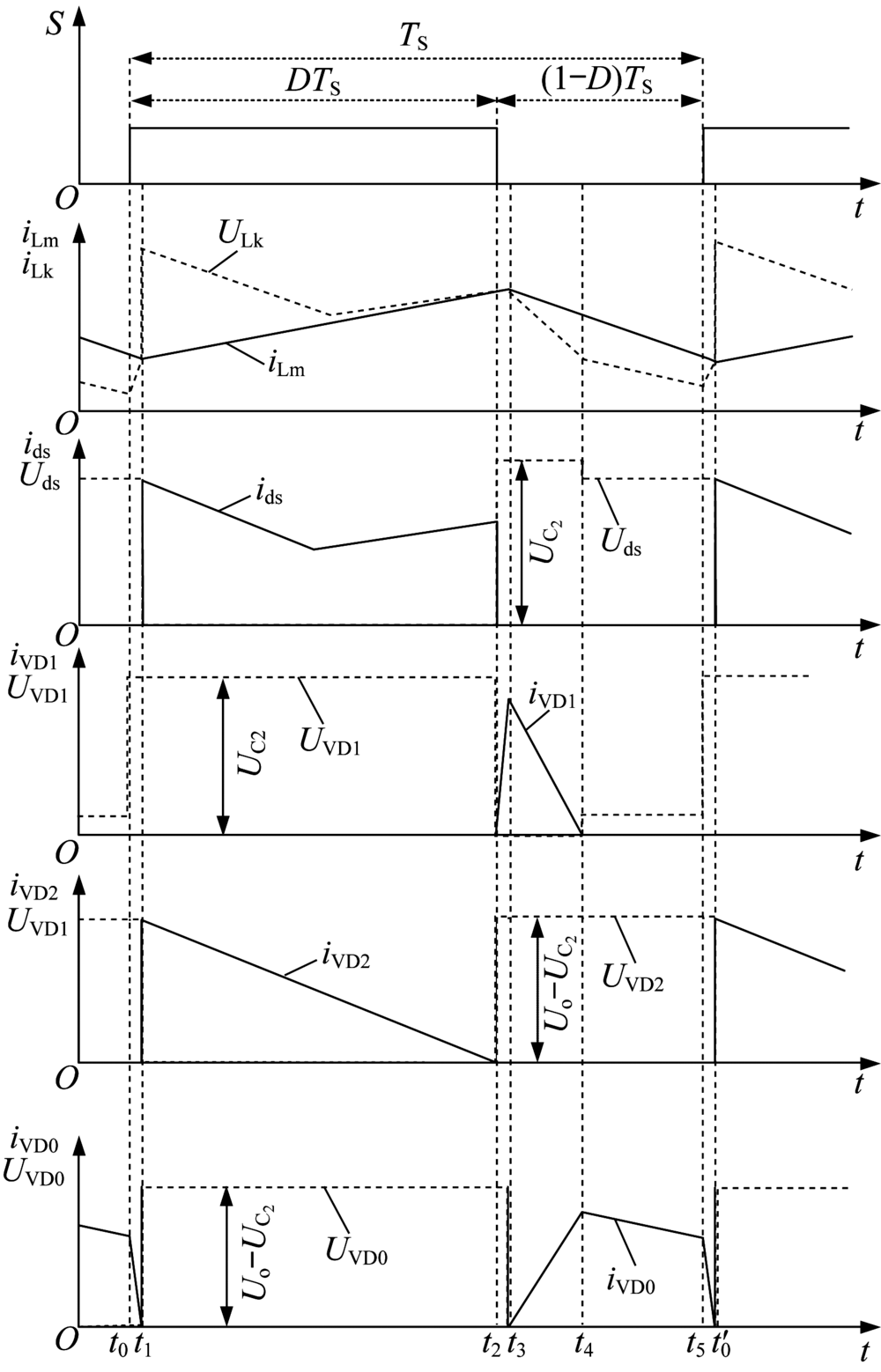

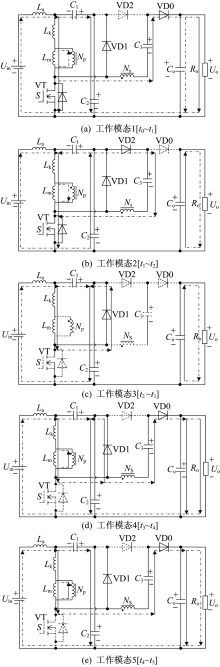

For the problem of large input current ripple of boost DC/DC converter in new energy power generation system,a zero ripple high gain DC/DC converter with coupled inductor was proposed.The converter,based on the boost converter,introduces coupled inductor and diode capacitor boost unit to improve the voltage gain.At the same time,the input current ripple achieves zero in theory,which is beneficial to improve the efficiency of power generation.The operational principle of the converter and its steady-state characteristics were analyzed in detail.Finally,a 100W prototype was built to verify the zero input current ripple of the converter and high-gain characteristics.

Key words: new energy power generation, zero ripple, high-gain, coupled inductor

CLC Number:

TM46

HONG Jianchao, LIN Guoqing. Zero Ripple High-Gain DC/DC Converter with Coupled Inductor[J]. LOW VOLTAGE APPARATUS, 2021, 0(2): 88-93.

Figures/Tables 9

变换器性能	文献 [8]	文献 [9]	文献 [15]	文献 [16]	本文变换器
电压增益	$n + 2 - D 1 - D$	$1 + nD 1 - D$	$n + 1 1 - D$	$n + 1 1 - D$	$n + 2 1 - D$
开关管应力	$U o n + 2 - D$	$U o 1 + nD$	$U o n + 1$	$U o n + 1$	$U o n + 2$
开关管数量	2	1	1	1	1
二极管数量	3	4	3	3	3
电容数量	4	4	4	5	4
电感数量	1	1	2	3	2
是否零纹波	否	否	是	是	是

References 18

[1]	李新强. 新能源领域电力电子技术应用及其检测评价技术新发展[J]. 电器与能效管理技术, 2019(4):1-8.
[2]	段宛宜, 王辉. 一种Boost级联式高增益DC/DC变换器[J]. 电器与能效管理技术, 2020(2):54-60.
[3]	黄杨, 王辉, 李晟, 等. 非隔离型高增益DC/DC变换器的研究[J]. 电器与能效管理技术, 2019(16):15-21.
[4]	GAO S S, WANG Y J, GUAN Y S, et al. A high-frequency high voltage gain modified SEPIC with integrated inductors[J]. IEEE Transactions on Industry Applications, 2019,55(6):7481-7490. doi: 10.1109/TIA.28
[5]	YAN Z X, ZENG J, LIN W J, et al. A novel interleaved nonisolated bidirectional DC-DC converter with high voltage-gain and full-range ZVS[J]. IEEE Transactions on Power Electronics, 2020,35(7):7191-7203. doi: 10.1109/TPEL.63
[6]	HU R J, ZENG J, LIU J F, et al. An ultra high step-up quadratic Boost converter based on coupled-inductor[J]. IEEE Transactions on Power Electronics, 2020,35(12):13200-13209. doi: 10.1109/TPEL.63
[7]	KUMAR A, WANG Y, PAN X W, et al. A high voltage gain DC-DC converter with common grounding for fuel cell vehicle[J]. IEEE Transactions on Vehicular Technology, 2020,62(8):8290-8304.
[8]	屈克庆, 冯苗苗, 赵晋斌. 基于耦合电感的新型高增益软开关直流变换器[J]. 电机与控制学报, 2017,21(8):25-32.
[9]	BERKOVICH Y, BECK Y, AXELORD B. High step-up DC-DC converter based on the switched-coupled-inductor boost converter and diode-capacitor multiplier:steady stateand dynamics[J]. IET Power Electronics, 2015,8(8):1420-1428. doi: 10.1049/pel2.v8.8
[10]	KUMAR A, SENSARMA P. Ripple-free input current high voltage gain DC-DC converters with coupled inductors[J]. IEEE Transactions on Power Electronics, 2019,34(4):3418-3428. doi: 10.1109/TPEL.2018.2854778
[11]	WANG F, WANG Y B, Su B, et al. A three-phase interleaved high step-up bidirectional DC-DC converter[J]. IET Power Electronics, 2020,13(12):2469-2480. doi: 10.1049/pel2.v13.12
[12]	LI Q, HUANGFU Y G, XU L C, et al. An improved floating interleaved Boost converter with the zero-ripple input current for fuel cell applications[J]. IEEE Transactions on Energy Conversion, 2019,34(4):2168-2179. doi: 10.1109/TEC.60
[13]	高伟, 罗全明, 张阳, 等. 一种零输入电流纹波高增益 DC-DC变换器[J]. 电工技术学报, 2018,33(2):284-292.
[14]	杨杰, 于东升, 朱虹, 等. 双耦合电感零输入纹波高增益QBC-VMU集成变换器[J]. 中国电机工程学报, 2016,36(23):6501-6510,6617.
[15]	胡雪峰, 李永超, 李琳鹏, 等. 具有高增益、低输入电流纹波的Boost变换器研究[J]. 高电压技术, 2017,43(1):16-22.
[16]	陈孟科, 侯圣, 朱旺, 等. 含耦合电感倍压单元的高增益DC/DC变换器[J]. 电力电子技术, 2018,52(3):11-14.
[17]	樊潇, 潘本仁, 胡斯登, 等. 直流电力电子变换器的嵌入式仿真平台研究[J]. 电器与能效管理技术, 2020(9):63-67.
[18]	王军章, 兰征. 虚拟同步发电机用双向直流变换器研究[J]. 浙江电力, 2019,38(4):20-27.
