SHEPWM Design Method for Mid-Point Clamped Three Level Inverter Based on Many Objective Population Extremal Optimization Algorithm

doi:10.16628/j.cnki.2095-8188.2020.07.005

Abstract

Abstract:

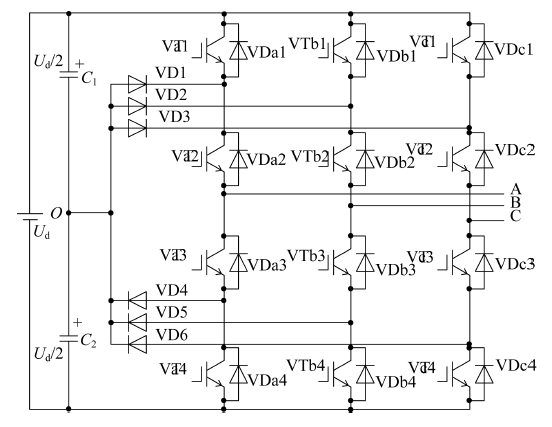

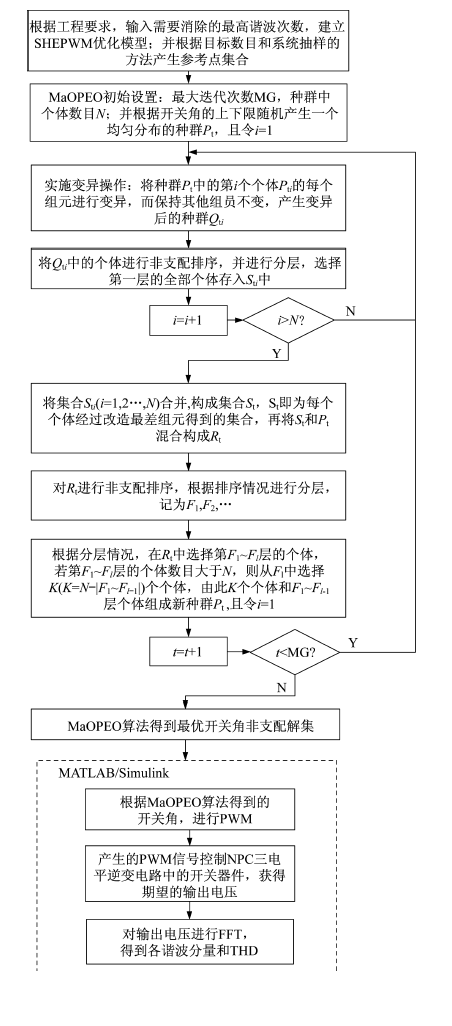

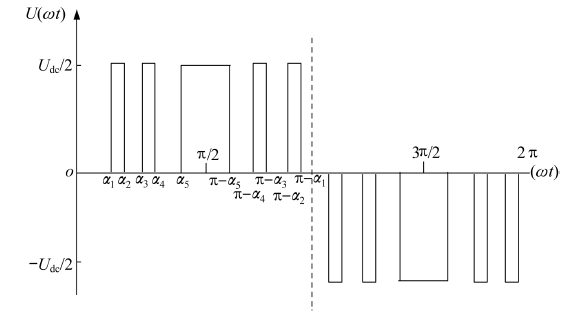

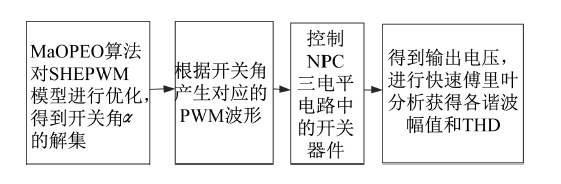

The specific harmonic elimination technology (SHEPWM) plays an important role in reducing DC-side current ripple and improving power quality.The SHEPWM problem is essentially a high-dimensional multi-objective constraint optimization problem that takes into account multiple performance indicators.Therefore,the three-level SHEPWM technology based on the high-dimensional multi-objective extremal optimization algorithm (MaOPEO) is proposed,which overcomes the problems that the single-objective intelligent optimization algorithm performance evaluation function is too simple and the weight coefficient is difficult to determine accurately.The proposed method first establishes a high-dimensional multi-objective optimization function by minimizing specific order harmonics and THD minimization of the output voltage waveform,and then designs an efficient MaOPEO to solve it.Select the 1/4 period 3 angle SHEPWM equation system as the test.The simulation is compared with predator strategy genetic algorithm multi-objective genetic algorithm-based SHEPWM to verify the effectiveness of the proposed method.

Key words: SHEPWM, three-level, many-objective optimization, extremal optimization

CLC Number:

TM46

LI Minying, CHEN Yu, DAI Yuxing. SHEPWM Design Method for Mid-Point Clamped Three Level Inverter Based on Many Objective Population Extremal Optimization Algorithm[J]. LOW VOLTAGE APPARATUS, 2020, 592(7): 29-35.

Figures/Tables 11

References 23

[1]	赵争鸣, 贺凡波, 袁立强, 等. 大容量电力电子系统电磁瞬态分析技术及应用[J]. 中国电机工程学报, 2014,34(18):3013-3019. doi: 10.13334/j.0258-8013.pcsee.2014.18.019
[2]	周彬, 徐靖楠, 郭旋. 一种模块化多电平电力电子变压器及其控制策略研究[J]. 电器与能效管理技术, 2020(1):71-77.
[3]	刘梦轩, 范栋琦, 金成. 基于模块化多电平变换器的混合型电力电子变压器及其控制策略的研究[J]. 电器与能效管理技术, 2020(1):64-70.
[4]	王蕊, 王斌, 万杰星. 模块化多电平换流器(MMC)调制方法综述[J]. 电器与能效管理技术, 2017(8):43-47.
[5]	ZABALETA M, BURGUETE E, MADARIAGA D, et al. LCL grid filter design of amultimegawatt medium-voltage converter for offshore wind turbine using SHEPWM modulation[J]. IEEE Transactions on Power Electronics, 2016,31(3):1993-2001. doi: 10.1109/TPEL.2015.2442434
[6]	DEBNATH S, QIN J, BAHRANI B, et al. Operation,control,and applications of the modular multilevel converter[J]. A review IEEE Transactions on Power Electronics, 2015,30(1):37-53.
[7]	杨晓峰, 林智钦, 郑琼林, 等. 模块组合多电平变换器的研究综述[J]. 中国电机工程学报, 2013,33(6):1-14.
[8]	DAHIDAH M S A, KONSTANTINOU G, AGELIDIS V. A review of multilevel selective harmonic elimination PWM:formulations,solving algorithms,implementation and applications[J]. IEEE Transactions on Power Electronics, 2015,30(8):4091-4106. doi: 10.1109/TPEL.2014.2355226
[9]	林崇, 陈佳桥, 王金友, 等. 新型混合储能功率变换器及控制策略研究[J]. 电器与能效管理技术, 2019(20):26-31.
[10]	GUAN B, DOKI S. A current harmonic minimum PWM for three-level converters aiming at the low-frequency fluctuation minimum of neutral-point potential[J]. IEEE Transactions on Industrial Electronics, 2019,66(5):3380-3390. doi: 10.1109/TIE.2018.2851995
[11]	FAN S F, ZHANG K, XIONG J, et al. An improved control system for modular multilevel converters with new modulation strategy and voltage balancing control[J]. IEEE Transactions on Power Electronics, 2015,30(1):358-371. doi: 10.1109/TPEL.2014.2304969
[12]	YANG K, ZHANG Q, YUAN R, et al. Selective harmonic elimination with Groebner bases and symmetric polynomials[J]. IEEE Transactions on Power Electronics, 2016,31(4):2742-2752. doi: 10.1109/TPEL.2015.2447555
[13]	LEE S, CHU B, IDRIS N, et al. Switched-battery Boost-multilevel inverter with GA optimized SHEPWM for standalone application[J]. IEEE Transactions on Industrial Electronics, 2016,63(4):2133-2142. doi: 10.1109/TIE.2015.2506626
[14]	ETESAMI M H, FAROKHNIA N, FATHI S H. Colonial competitive algorithm development toward harmonic minimization in multilevel inverters[J]. IEEE Transactions on Industrial Informatics, 2015,11(2):459-466.
[15]	王应德, 王树林, 苏琴 .基于 NSGAⅢ 多目标优化算法的并网逆变器LLCL滤波器参数优化设计[J]. 电器与能效管理技术, 2018(24):53-59,90.
[16]	严盛雄, 窦克勤, 李保进, 等. 基于多目标优化算法的滤波器参数设计研究[J]. 电器与能效管理技术, 2019 (10):51-56.
[17]	杨东升. 基于帕莱托最优的多目标并网型微电网经济运行方法研究[J]. 电器与能效管理技术, 2017 (12):21-25,30.
[18]	梁慧敏, 廖晓宇, 陈昊, 等. 基于实测误差补偿的含永磁电磁结构多目标优化方法[J]. 电器与能效管理技术, 2018(23):19-23.
[19]	曲锐, 刘若愚, 罗毅初, 等. 基于需求响应的电动汽车最优分时电价策略研究[J]. 电器与能效管理技术, 2019 (19):101-107.
[20]	武洪基. 基于PSO算法的多电平逆变器谐波抑制研究[D]. 成都:西南交通大学, 2012.
[21]	CHEN M R, ZENG G Q, LU K D. A many-objective population extremal optimization algorithm with an adaptive hybrid mutation operation[J]. Information Sciences, 2019,498:62-90. doi: 10.1016/j.ins.2019.05.048
[22]	陈磊, 符仕浩, 成佳斌, 等. 分布式发电系统并网逆变器高稳态性能重复控制策略[J]. 浙江电力, 2019,38(10):6-11.
[23]	肖力元, 张伊洁, 李云涛. 三相并网逆变器无差拍双闭环控制方法[J]. 浙江电力, 2019,38(4):28-33.

算法	N	MG	其他
MaOPEO算法	56	200	b=random(2,5)
NSGA-II算法	56	1 500	P_c=2/Nv;P_m=2/Nv
PSGA算法	20	10 000	P_c=0.3~0.9;P_m=0.1~0.9

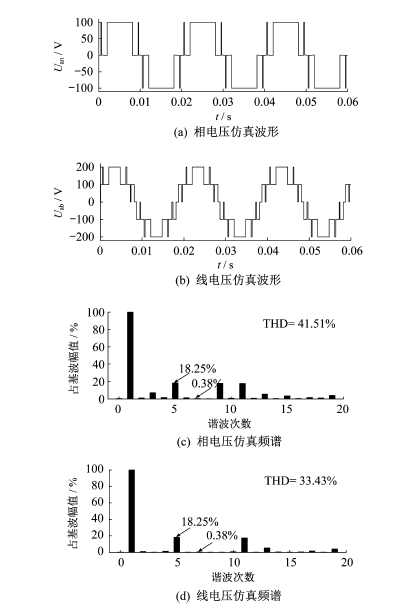

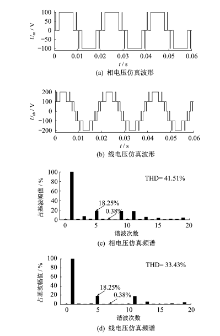

算法	α₁/(°)	α₂/(°)	α₃/(°)	THD/%	HV (平均)	t_average /s
MaOPEO	18.15	33.90	39.08	36.77	23.97	37.38
MaOPEO	18.24	33.90	39.15	36.83	23.97	37.38
NSGA-II	7.611	11.29	35.13	40.91	23.90	56.14
NSGA-II	6.87	18.72	31.93	44.29	23.90	56.14
SPGA	29.63	39.48	52.74	55.71	—	—
SPGA	12.09	68.94	84.19	81.15	—	—

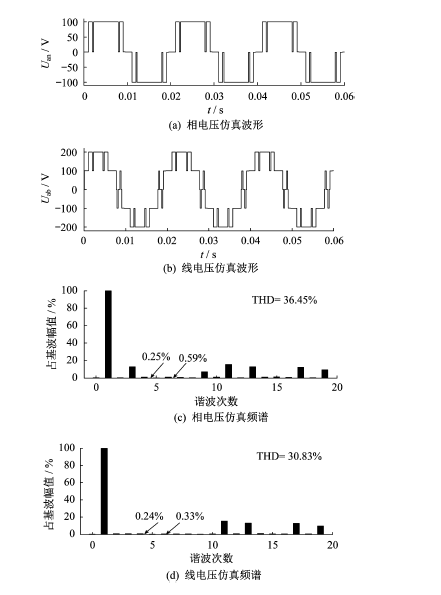

算法	α₁/(°)	α₂/(°)	α₃/(°)	THD/%	HV (平均)	t_average /s
MaOPEO	2.297	12.97	24.79	44.08	23.96	40.63
MaOPEO	16.71	33.52	37.67	35.87	23.96	40.63
NSGA-II	11.88	83.70	85.04	38.94	23.69	55.21
NSGA-II	11.30	72.29	74.24	41.10	23.69	55.21
SPGA	26.78	38.89	50.74	50.85	—	—
SPGA	12.64	70.44	83.51	73.80	—	—

算法	α₁/(°)	α₂/(°)	α₃/(°)	THD/%	HV (平均)	t_average /s
MaOPEO	13.58	24.17	29.00	34.99	21.15	42.84
MaOPEO	13.61	24.03	30.17	35.81	21.15	42.84
NSGA-II	8.39	15.58	24.46	36.81	21.15	55.36
NSGA-II	1.13	10.36	19.79	43.28	21.15	55.36
SPGA	19.35	35.63	41.59	38.78	—	—
SPGA	14.29	77.49	82.18	48.24	—	—

算法	α₁/(°)	α₂/(°)	α₃/(°)	THD/%	HV (平均)	t_average /s
MaOPEO	15.08	25.45	28.60	33.20	19.23	41.59
MaOPEO	13.81	23.91	29.61	35.26	19.23	41.59
NSGA-II	14.37	85.55	89.70	46.67	19.15	57.97
NSGA-II	16.83	30.57	35.51	35.66	19.15	57.97
SPGA	17.13	31.60	36.38	36.06	—	—
SPGA	15.23	81.90	85.20	43.46	—	—
