Mode Combination of Fault Limiting Operation Based on Multiple Resistance Superconducting Fault Current Limiter

doi:10.16628/j.cnki.2095-8188.2021.01.005

Abstract

Abstract:

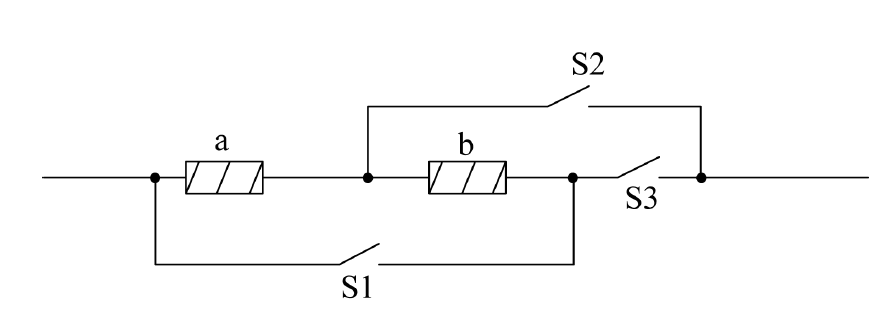

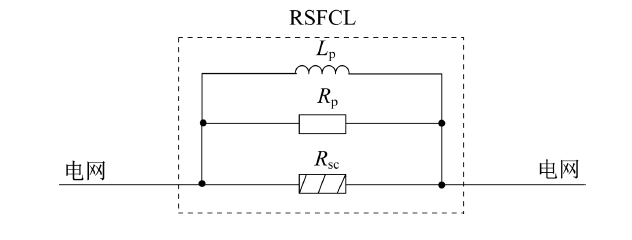

Based on a brief analysis of the quenching mechanism and basic model of conventional resistance superconducting fault current limiters,and in order to alleviate the inherent defects of conventional resistance superconducting fault current limiters,a combination of fault current limiting operation modes based on multiple resistance superconducting fault current limiters was proposed.A custom model of resistance superconducting fault current limiter was built on the PSCAD/EMTDC simulation platform,and based on the Nan’ao 160 kV multi-terminal flexible DC transmission system,the influence of the superconducting fault current limiter on the power system during system failure was preliminarily studied to show the correctness and necessity of the custom model.The advantages and disadvantages of conventional resistance superconducting fault current limiters was compared to the mode combination under the same current limiting effect,which provides a theoretical basis for the selection of superconducting fault current limiters in flexible DC transmission systems.

Key words: superconducting fault current limiter, fault current limiting, short-circuit current, model, mode combination

CLC Number:

TM73

CAO Langheng, WANG Dongpeng. Mode Combination of Fault Limiting Operation Based on Multiple Resistance Superconducting Fault Current Limiter[J]. LOW VOLTAGE APPARATUS, 2021, 0(1): 29-35.

Figures/Tables 13

References 16

[1]	BATHURST G, BORDIGNAN P. Delivery of the Nan’ao multi-terminal VSC-HVDC system[C]// 11th IET International Conference on AC and DC Power Transmission.Birmingham UK,IET, 2015:1-6.
[2]	信赢, 田波, 魏子镪. 超导限流器基本概念和发展趋势[J]. 电工电能新技术, 2017,36(10):1-7.
[3]	朱金保. 从应用场所需求谈低压直流断路器[J]. 电器与能效管理技术, 2019(22):23-29.
[4]	施源. 400 V/450 A混合式限流断路器阶段分析及参数设计[J]. 电器与能效管理技术, 2018(7):23-27.
[5]	梁飞, 宋萌. 电阻型超导限流器的研究综述[J]. 云南电力技术, 2018,46(6):127-133.
[6]	刘路昕, 张京业, 戴少涛, 等. 电阻型超导限流器研发现状及所面临的技术瓶颈[J]. 低温与超导, 2016,44(7):1-5,9.
[7]	刘清峰. 分裂电抗型超导限流器的限流暂态特性研究[D]. 北京:中国科学院大学, 2018.
[8]	刘师卓, 夏东, 邱清泉, 等. 磁通耦合型饼式线圈短时直流冲击特性研究[J]. 电工电能新技术, 2019,38(1):47-53.
[9]	姚磊, 郑建勇, 梅军, 等. 基于+MgB₂的新型电阻型超导故障限流器的研制和性能分析[J]. 电力系统自动化, 2014(14):106-112.
[10]	XIA D, QIU Q, ZHANG Z, et al. Magnetic field and characteristic analysis of the superconducting fault current limiter for DC applications[J]. IEEE Transactions on Applied Superconductivity, 2018,28(3):1-5.
[11]	贺开华, 吕思雨, 赵鹏, 等. 液态金属限流器并联限流特性的试验研究[J]. 电器与能效管理技术, 2018(24):13-19.
[12]	缪希仁, 唐玲玲, 庄胜斌, 等. 低压配电系统短路故障保护方法综述[J]. 电器与能效管理技术, 2019(15):21-29.
[13]	雷冉, 戚连锁, 庄劲武, 等. 混合型直流限流断路器用晶闸管开通过程的瞬态温度场分析[J]. 电器与能效管理技术, 2019(2):14-18,53.
[14]	龚珺, 诸嘉慧, 方进, 等. 电阻型高温超导限流器暂态电阻特性分析[J]. 电工技术学报, 2018,33(9):2130-2138.
[15]	段晚晴, 傅明利, 罗兵, 等. YBCO双面薄膜失超电阻与失超回复特性研究[J]. 低温与超导, 2018,46(6):53-59.
[16]	董建民, 李东晶, 赵翠霞. 饱和铁心型高温超导故障限流器的仿真分析[J]. 低压电器, 2013(14):8-11.

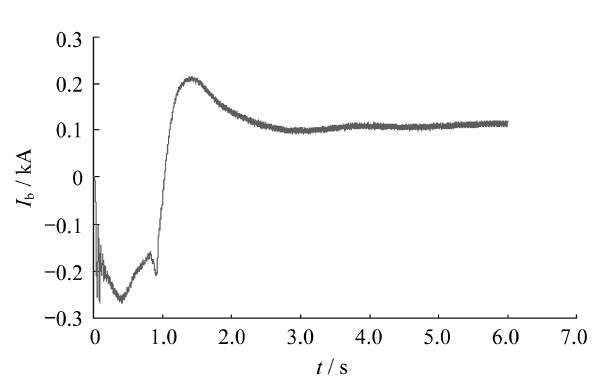

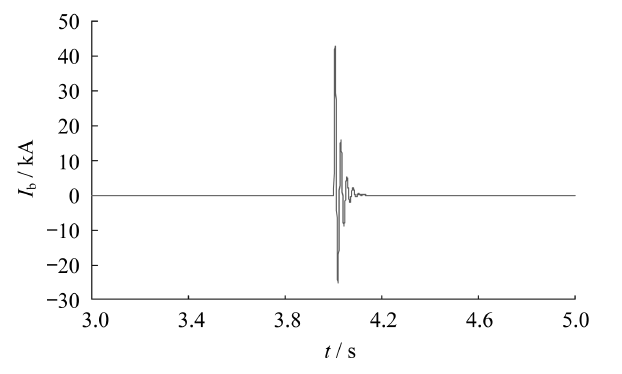

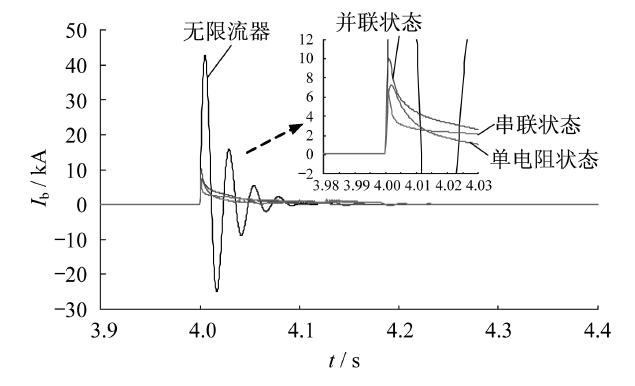

状态	电流最大值/kA	电流最小值/kA
不加限流器	42.702	-25.006
接并联状态限流器	17.159	-0.037
接单电阻状态限流器	10.562	0.061
接串联状态限流器	5.926	-0.139

过渡电阻/Ω	状态	电流最大值/kA	电流最小值/kA
5	不加限流器	17.869	-2.878
	接并联状态限流器	10.167	0.091
	接单电阻状态限流器	7.194	0.091
	接串联状态限流器	4.583	0.091
10	不加限流器	10.670	-0.999
	接并联状态限流器	7.082	0.091
	接单电阻状态限流器	5.412	0.091
	接串联状态限流器	3.725	0.091
15	不加限流器	7.579	-0.482
	接并联状态限流器	5.469	0.091
	接单电阻状态限流器	4.382	0.091
	接串联状态限流器	3.195	0.091

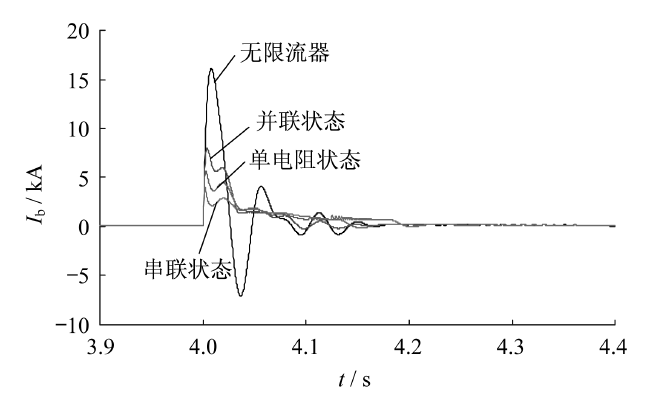

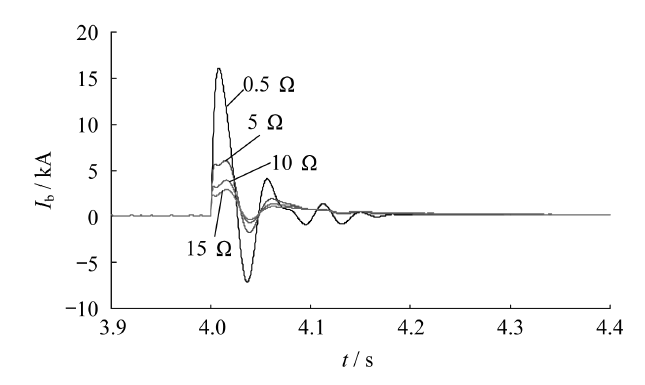

状态过渡电阻/Ω	短路电流/kA
状态过渡电阻/Ω	不加限流器	接并联状态限流器	接单电阻状态限流器	接串联状态限流器
0.5	16.094	9.474	6.776	4.365
5	6.070	4.336	3.451	2.551
10	3.927	2.859	2.292	1.846
15	2.915	2.096	1.760	1.491

状态过渡电阻/Ω	短路电流/kA
状态过渡电阻/Ω	不加限流器	接并联状态限流器	接单电阻状态限流器	接串联状态限流器
0	54.271	26.285	17.006	9.831
0.5	49.472	24.718	16.219	9.500
2	38.922	20.970	14.254	8.659

状态过渡电阻/Ω	短路电流/kA
状态过渡电阻/Ω	不加限流器	接并联状态限流器	接单电阻状态限流器	接串联状态限流器
0	26.535	15.611	10.970	6.832
0.5	23.509	14.090	10.038	6.366
2	17.378	10.956	8.097	5.377
