Optimal Operation Method of CCHP System Based on Improved Following Thermal Load Mode

doi:10.16628/j.cnki.2095-8188.2023.06.004

Abstract

Abstract:

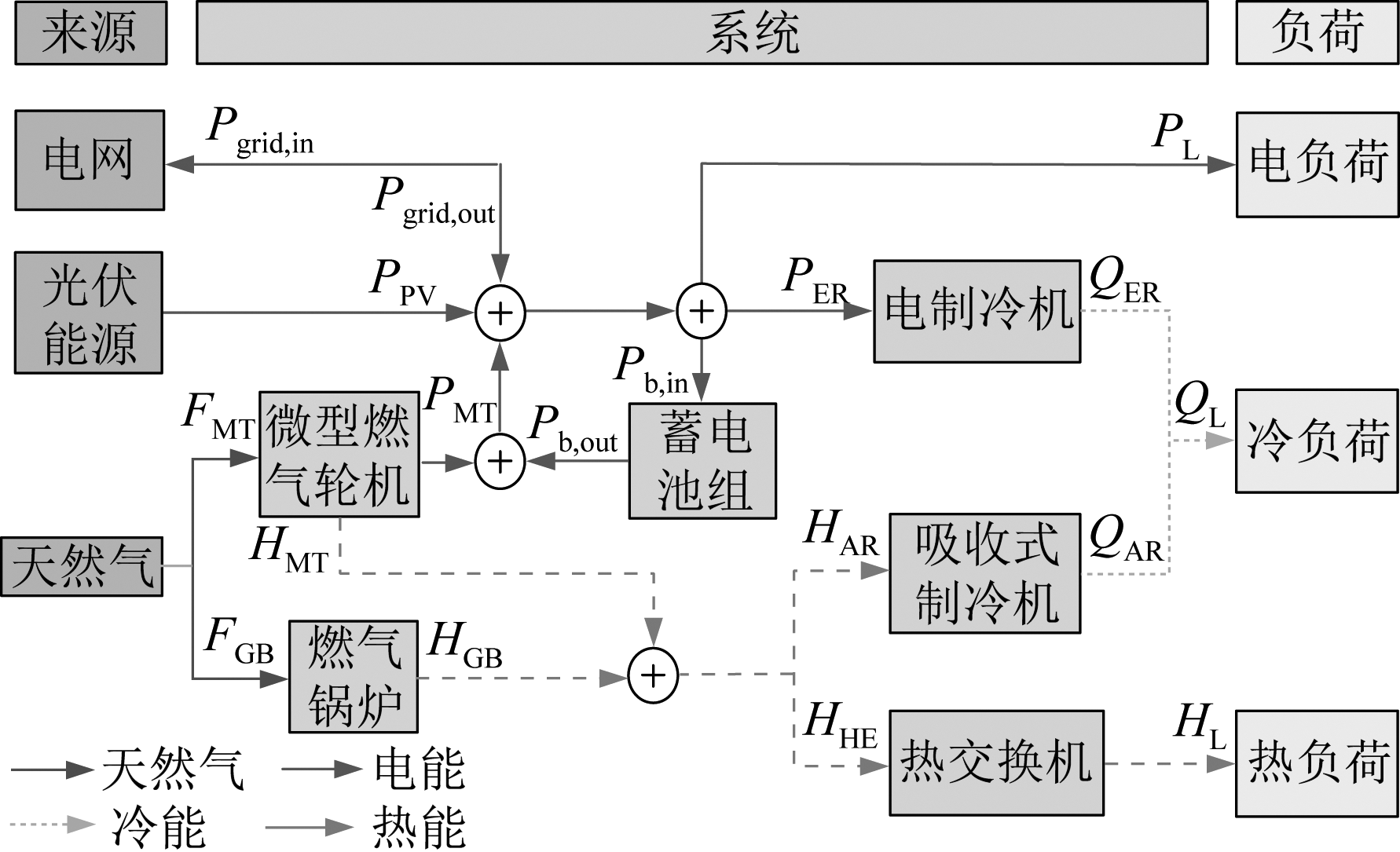

The combined cooling heating and power (CCHP) is an important way to improve the efficiency of energy intensive, deepen the transformation of energy system, and achieve the goal of “double carbon”goal. A CCHP system model including micro gas turbines, photovoltaic power supply, gas boilers and battery is simulated. Based on the common following thermal load mode and following electric load mode, an improved following thermal load mode is proposed. The proposed operation mode can effectively improve the cost-effectiveness and energy-effectiveness of system, and achieve a higher energy saving rate.

Key words: combined cooling heating and power (CCHP) system, improved following thermal load mode, photovoltaic power supply, energy saving rate

CLC Number:

TM732

YIN Guangzhi, GUO Zhen. Optimal Operation Method of CCHP System Based on Improved Following Thermal Load Mode[J]. LOW VOLTAGE APPARATUS, 2023, 0(6): 23-32.

Figures/Tables 15

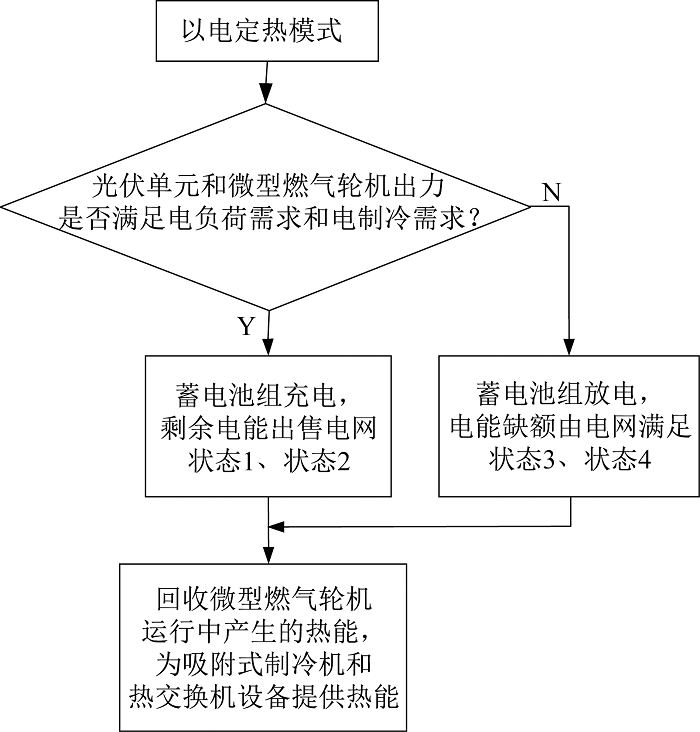

状态		设备热能输出
状态1	(P_L+P_ER)<(P_PV+P_MT)<[(P_L+P_ER)+P_b,in]	$(1) H M T < (H H E + H A R) < (H G B + H M T) H M T = P M T η M T · (1 - η M T) · η r H G B = H H E + H A R - H M T$ $(2) H G B + H M T < H H E + H A R H M T = P M T η M T · (1 - η M T) · η r H G B = N G B H v a c a n c y = H H E + H A R - (H G B + H M T)$ $(3) H H E + H A R < H M T H w a s t e = H M T - (H H E + H A R)$
	P_grid=0,P_b,in=P_PV+P_MT-(P_L+P_ER)
状态2	(P_L+P_ER+P_b,in)<(P_PV+P_MT)
	P_grid>0,P_b,in=0.4N_b
状态3	(P_L+P_ER)<(P_PV+P_b,out+P_MT)
	P_grid=0,P_b,out=P_L+P_ER-(P_PV+P_MT)
状态4	(P_PV+P_b,out+P_MT)<(P_L+P_ER)<(P_grid+P_PV+P_b,out+P_MT)
	$P b, o u t = 0.4 N b P g r i d = P L + P E R - P P V + P M T + P b, o u t$

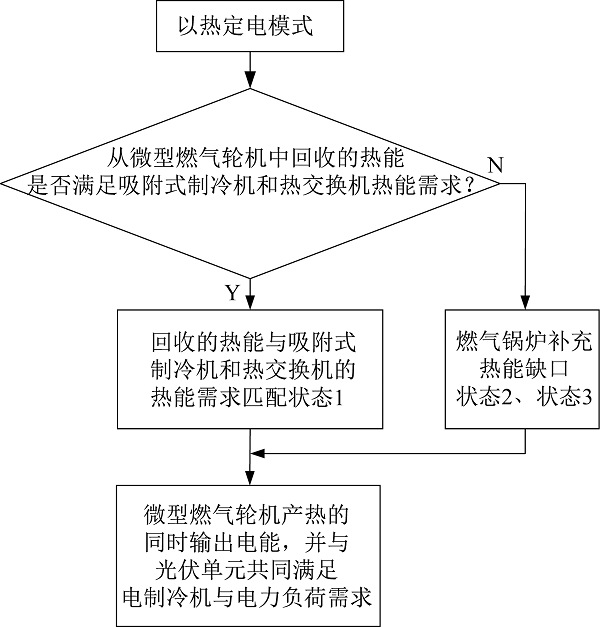

状态	设备热能输出	设备电能输出
状态1	$(H H E + H A R) < H M T H G B = 0, H M T = H H E - H H R$	$(1) (P M T + P P V) < (P L + P E R) < (P M T + P P V + P b, o u t) P M T = H M T (1 - η M T) · η r · η M T, P g r i d = 0 P b, o u t = P L + P E R - (P M T + P P V)$ $(2) (P M T + P P V + P b, o u t) < (P L + P E R) < (P M T + P P V + P b, o u t + P g r i d) P g r i d = P L + P E R - (P M T + P P V + P b, o u t) P b a t, o u t = 0.4 N b a t$ $(3) (P L + P E R) < (P M T + P P V) < (P L + P E R + P b, i n) P g r i d = 0, P b, i n = P M T + P P V - (P L + P E R)$ $(4) (P L + P E R + P b, i n) < (P M T + P P V) P g r i d = P M T + P P V - (P b, i n + P L + P E R) P b, i n = 0.4 N b, P M T = N M T$
状态2	$H M T < (H H E + H A R) < (H M T + H G B) H M T = N M T, H G B = H H E + H H R - H M T$
状态3	$(H M T + H G B) < (H H E + H A R) H M T = N M T, H G B = N G B H v a c a n c y = H H E + H A R - (H M T + H G B)$

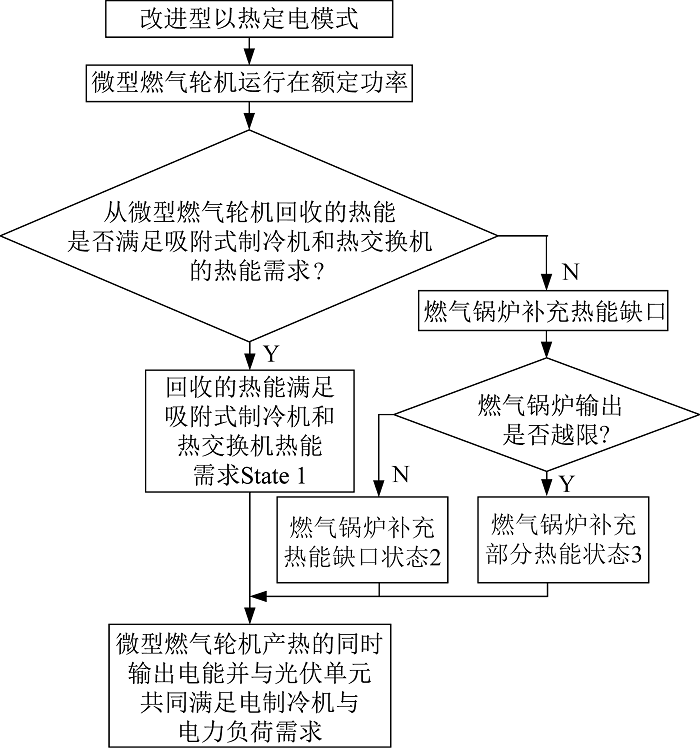

状态	设备热能输出	设备电能输出
相关状态	H_MT=H_MT.rate= $N M T η M T$ ·(1-η_MT)·η_r	$(1) (P M T + P P V) < (P L + P E R) < (P M T + P P V + P b, o u t) P g r i d = 0, P b, o u t = P L + P E R - (P M T + P P V)$
状态1	$H M T < (H H E + H H R) < (H M T + H G B) H M T = H M T . r a t e, H G B = H H E + H H R - H M T$	$(2) (P M T + P P V + P b, o u t) < (P L + P E R) < (P M T + P P V + P b, o u t + P g r i d) P b, o u t = 0.4 N b a t P g r i d = P M T + P P V + P b, o u t - (P L + P E R)$ P_b,in≥0,P_MT=P_MT.rate=N_MT
状态2	$(H M T + H G B) < (H H E + H H R) H M T = H M T . r a t e, H G B = N G B H v a c a n c y = H H E + H A R - (H M T + H G B)$	$(3) (P M T + P P V) < (P L + P E R + P b, i n) P g r i d = 0, P b, i n = P M T + P P V - (P L + P M T)$
状态3	$(H H E + H H R) < H M T H G B = 0, H w a s t e = H M T - (H H E + H H R)$	$(4) (P L + P E R + P b, i n) < (P M T + P P V) < (P L + P E R + P b, i n + P g r i d) P g r i d = P M T + P P V - (P b, i n + P L + P E R) P b, i n = 0.4 N b a t$

References 20

[1]	刘中民. 绿色发展的必由之路[N/OL]. http://paper.com.cn/rmrb/html/2021-08/13/nw.
[2]	魏大钧, 张承慧, 孙波. 计及变负荷特性的小型冷热电联供系统经济优化运行研究[J]. 电网技术, 2015, 39(11):38-44.
[3]	张抗, 于洋. 对于非常规天然气补贴“新政”的几点认识[J]. 天然气工业, 2019. 39(11):126-131.
[4]	林顺富, 刘持涛, 李东东, 等. 考虑电能交互的冷热电区域多微网系统双层多场景协同优化配置[J]. 中国电机工程学报, 2020. 40(5):1409-1421.
[5]	DOLARA A, LAZAROIU G C, LEVA S. Experimental investigation of partial shading scenarios on PV (photovoltaic) modules[J]. Energy, 2013. 55:466-475. doi: 10.1016/j.energy.2013.04.009
[6]	GU W, TANG Y, PENG S, et al. Optimal configuration and analysis of combined cooling,heating,and power microgrid with thermal storage tank under uncertainty[J]. Journal of Renewable & Sustainable Energy, 2015, 7(1):2125-2141.
[7]	管霖, 陈鹏, 唐宗顺, 等. 考虑冷热电存储的区域综合能源站优化设计方法[J]. 电网技术, 2016, 40(10):2934-2943.
[8]	GHADIMI P, KARA S, KORNFELD B. The optimal selection of on-site CHP systems through integrated sizing and operational strategy[J]. Applied Energy, 2014. 126:38-46. doi: 10.1016/j.apenergy.2014.03.085
[9]	NIAZI K A K, YANG Y, NASIR M, et al. Evaluation of interconnection configuration schemes for PV modules with switched-inductor converters under partial shading conditions[J]. Energies, 2019, 12(14):2802. doi: 10.3390/en12142802
[10]	荆有印, 白鹤, 张建良. 太阳能冷热电联供系统的多目标优化设计与运行策略分析[J]. 中国电机工程学报, 2012, 32(20):82-87,143.
[11]	付中洲, 袁铁江, 皮霞. 含储热的电热联合系统优化调度模型[J]. 电器与能效管理技术, 2018(14):63-68,78.
[12]	LI Z G, WU W C, SHAHIDEHPOUR M, et al. Combined heat and power dispatch considering pipeline energy storage of district heating network:2017 IEEE Power & Energy Society General Meeting (PESGM)[C]. 2017.
[13]	李默涵, 毛李帆, 郑从镇, 等. 微电网多能协调互补优化模型设计及评估分析[J]. 电器与能效管理技术, 2019(19):49-53,90.
[14]	孙浩, 陈永华, 吴维宁, 等. 区域综合能源仿真分析系统的开发与研制[J]. 电器与能效管理技术, 2022(9):18-25,44.
[15]	马春艳, 段青, 沙广林, 等. 考虑平抑电网峰谷的综合能源园区系统优化研究[J]. 电器与能效管理技术, 2021(9):19-26,31.
[16]	王成山, 洪博文, 郭力, 等. 冷热电联供微网优化调度通用建模方法[J]. 中国电机工程学报, 2013, 33(31):26-33.
[17]	熊焰, 吴杰康, 王强, 等. 风光气储互补发电的冷热电联供优化协调模型及求解方法[J]. 中国电机工程学报, 2015, 35(14):3616-3625.
[18]	徐青山, 曾艾东, 王凯, 等. 基于Hessian内点法的微型能源网日前冷热电联供经济优化调度[J]. 电网技术, 2016, 40(6):1657-1665.
[19]	王守相, 吴志佳, 袁霜晨, 等. 区域多微网系统的多目标优化调度方法[J]. 电力系统及其自动化学报, 2017, 29(5):14-20.
[20]	王守相, 吴志佳, 庄剑. 考虑微网间功率交互和微源出力协调的冷热电联供型区域多微网优化调度模型[J]. 中国电机工程学报, 2017, 37(24):7185-7194,7432.

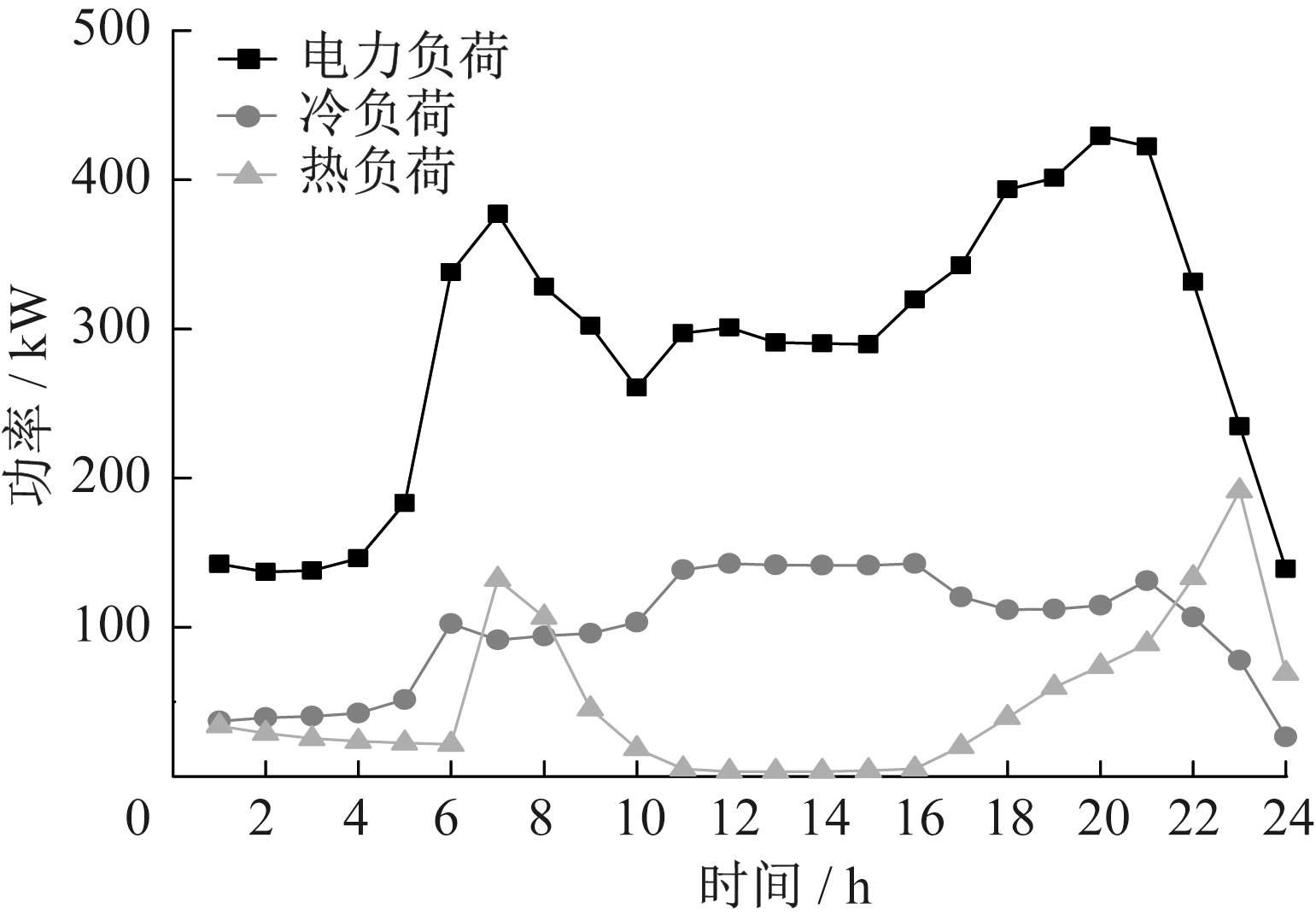

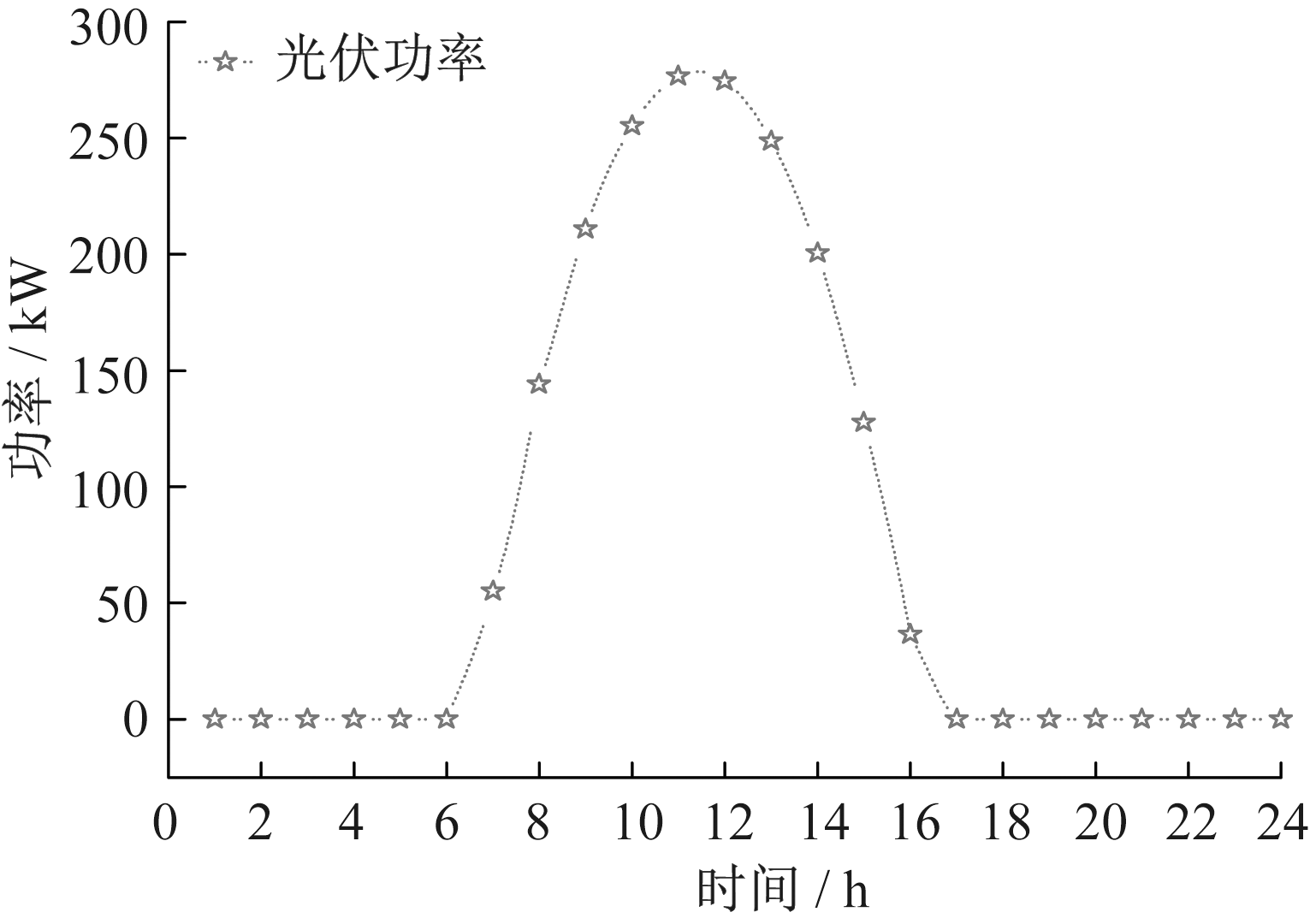

设备类型	设备安装单价/ (美元·kW^-1)	折旧年限/ a	K_om,_i/ (美元·kWh^-1)
光伏发电单元	1 500	20	0.002 05
微型燃气轮机	1 133	15	0.026
燃气锅炉	50	10	0.002 7
电制冷机	162	10	0.001 6
吸附式制冷机	200	10	0.002 4
蓄电池组	200	5	0.001 06
热交换机	33	10	0.001

约束类型	单位	范围
光伏系统的容量约束	kW	(0,400)
微型燃气轮机的容量约束	kW	(0,500)
CCHP与电网的电能交换约束	kW	(0,400)
电池的容量约束	kW	(0,max(E_l))
燃气锅炉的容量约束	kW	(0,500)
电池的充放电约束	kW	(0,0.4N_bat)

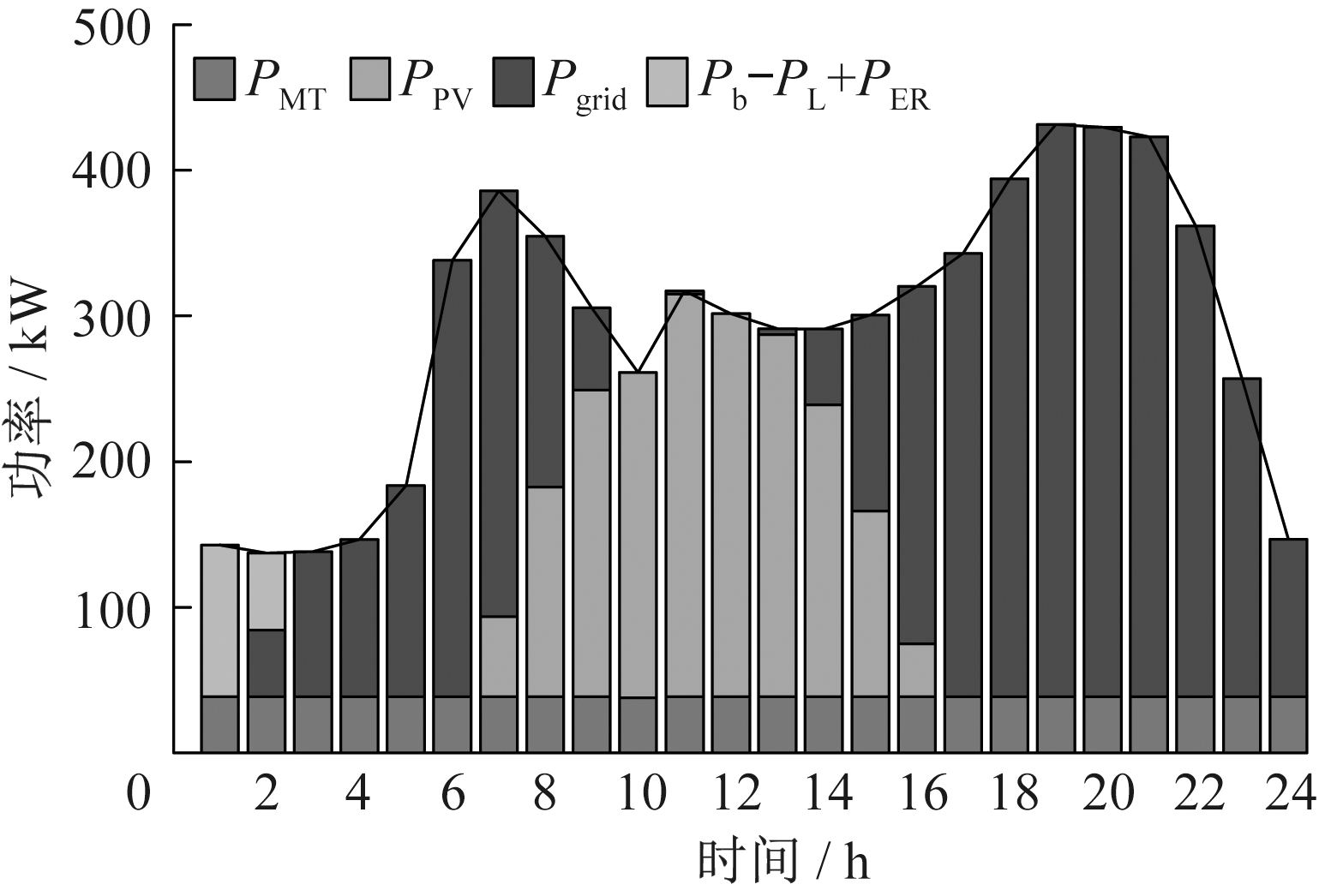

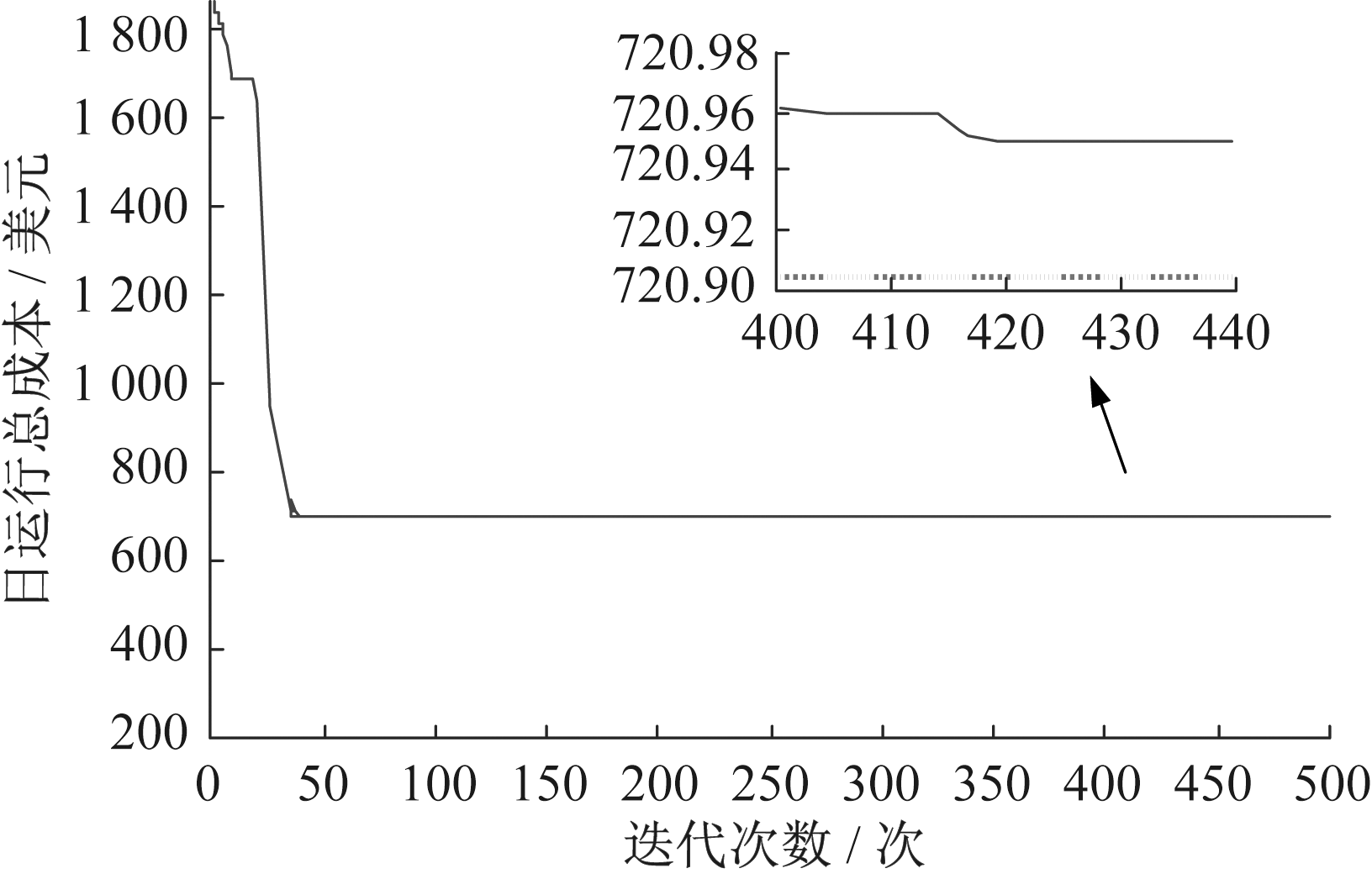

运行模式	日运行总成本/美元
以电定热	755.68
以热定电	746.83
改进型以热定电	720.95

运行模式	R_ATCS	R_EIS	R_PES
以电定热	-20.812 6	0.445 2	0.248 5
以热定电	-23.337 4	0.564 0	0.331 2
改进型以热定电	-23.337 0	0.618 5	0.361 1
