Research on Automatic Measurement Method of Pick-Up Voltage and Release Voltage for Railway Signal Relay

doi:10.16628/j.cnki.2095-8188.2022.12.005

LOW VOLTAGE APPARATUS ›› 2022, Vol. 0 ›› Issue (12): 28-31.doi: 10.16628/j.cnki.2095-8188.2022.12.005

• Electrical Design & Discussion • Previous Articles Next Articles

Research on Automatic Measurement Method of Pick-Up Voltage and Release Voltage for Railway Signal Relay

ZHANG Yinnan¹, WANG Jing², MENG Yuan¹, REN Wanbin¹

1. School of Electrical Engineering and Automation,Harbin Institute of Technology, Harbin 150001, China
2. Ankang Communication and Signal Division,China Raiway Xi'an Group Co.,Ltd., Ankang 725000, China

Received:2022-04-17 Online:2022-12-30 Published:2023-01-16

Abstract

Abstract:

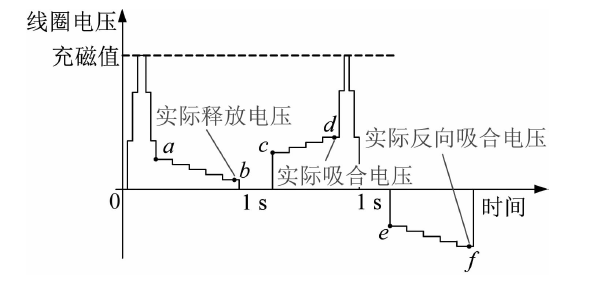

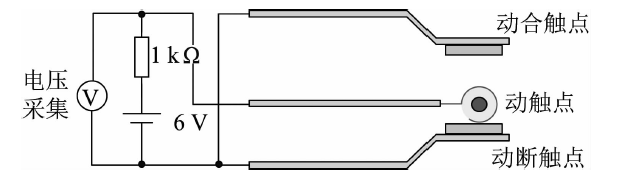

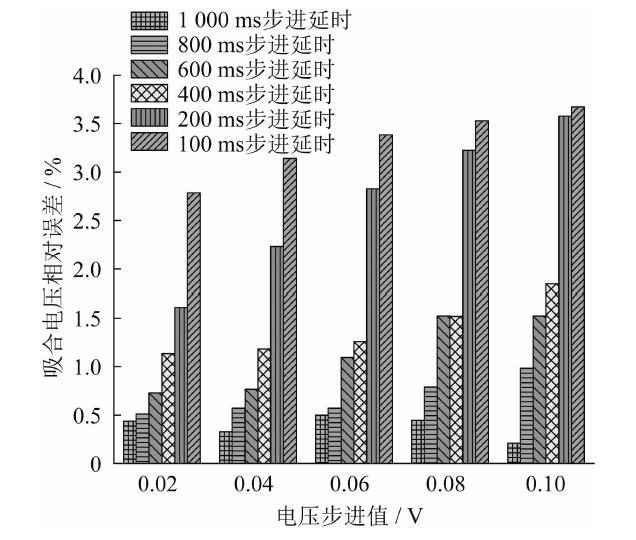

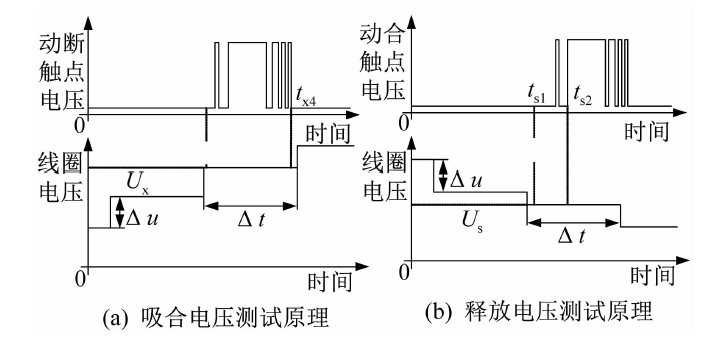

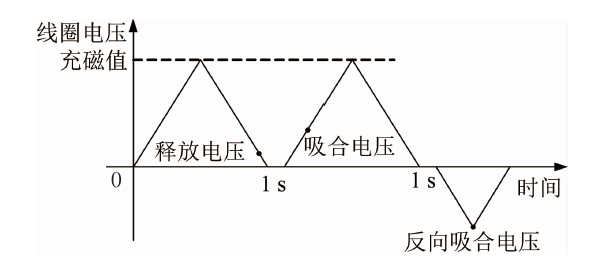

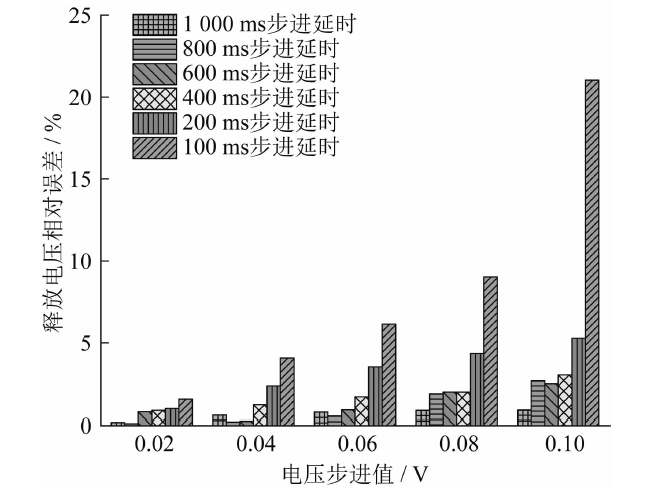

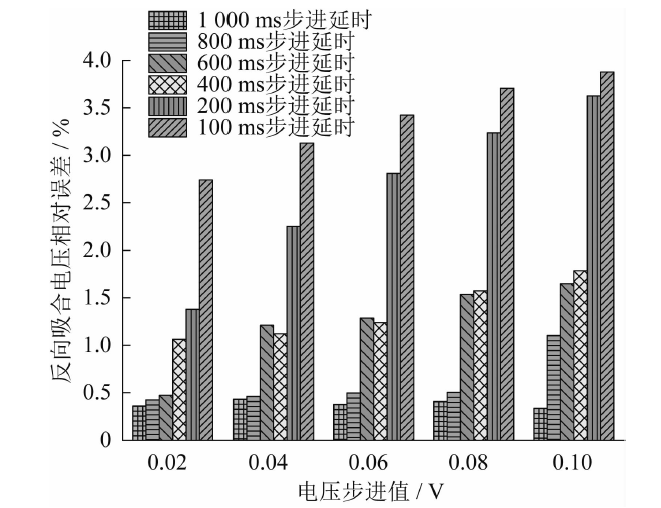

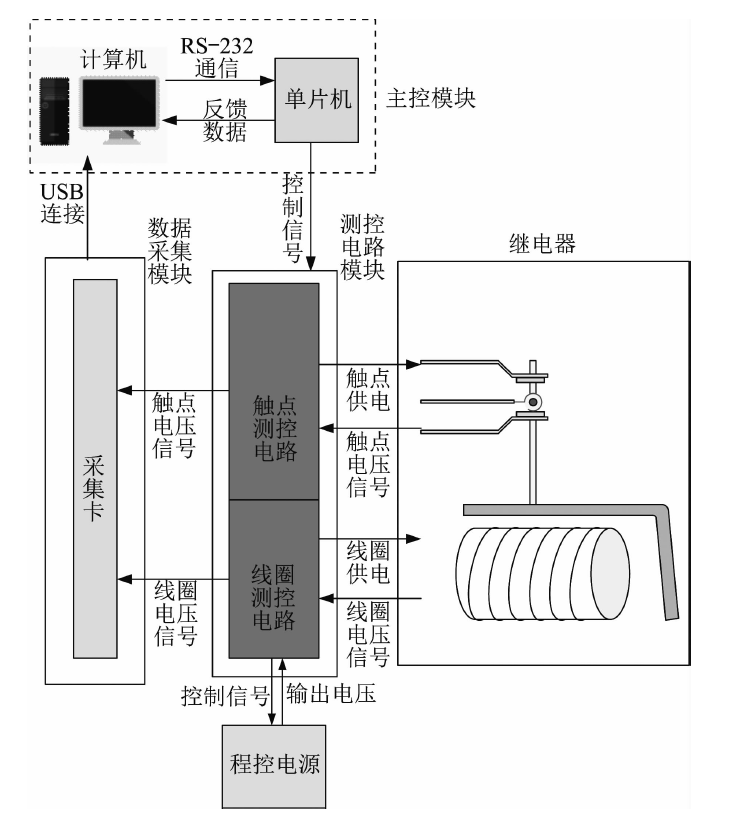

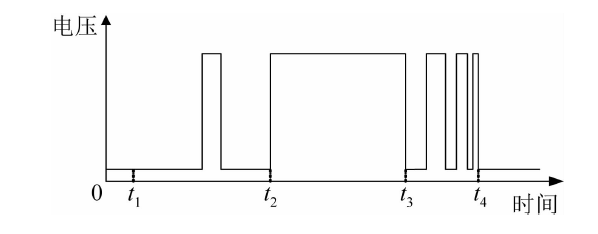

The accurate determination of the pick-up voltage and release voltage of railway signal relay is directly related to the products reliability evaluation.Firstly,The measurement principle of pick-up voltage and release voltage is described.Then the measurement system with the function of programming coil exciting voltage and capturing the contact voltage waveform is developed.The pick-up voltage,release voltage and reverse pick-up voltage parameters of railway signal relay are measured automatically.Taking a voltage-type relay as an example,the effects of coil voltage step and coil voltage step delay on the results are analyzed.Finally the measurement method considering both measurement accuracy and efficiency is ascertained.

Key words: railway signal relay, release voltage, pick-up voltage, automatic test

CLC Number:

TM581

ZHANG Yinnan, WANG Jing, MENG Yuan, REN Wanbin. Research on Automatic Measurement Method of Pick-Up Voltage and Release Voltage for Railway Signal Relay[J]. LOW VOLTAGE APPARATUS, 2022, 0(12): 28-31.

Figures/Tables 12

References 8

[1]	陆俭国, 李志刚. 电器试验技术与试验方法[M]. 北京: 机械工业出版社, 2004.
[2]	翟国富, 崔行磊, 杨文英. 电磁继电器产品及研究技术发展综述[J]. 电器与能效管理技术, 2016(2):1-8.
[3]	陈白帆, 李野川, 李江红, 等. 先进制造技术与模式对电磁继电器生产的意义——电磁继电器制造技术特征分析与创新思路[J]. 机电元件, 2017, 37(4):44-51.
[4]	王珊珊, 王成娟. 铁路信号继电器工作原理及特性分析[J]. 机电元件, 2021, 41(2):61-64.
[5]	西安全路通号器材研究所. 铁路信号继电器试验方法:GB/T 6902—2010[S]. 北京: 中国标准出版社, 2011.
[6]	石磊, 谢林炜, 安仕清. 电磁继电器吸合电压一致性分析[J]. 中国航天, 2020(增刊):99-103.
[7]	KIRSCHBAUM L, ROBU V, SWINGLER J, et al. Prognostics for electromagnetic relays using deep learning[J]. IEEE Access, 2022, 10:4861-4895 doi: 10.1109/ACCESS.2022.3140645
[8]	张钦. 铁路继电器自动测试装置的研究[D] .沈阳: 沈阳工业大学. 2015.

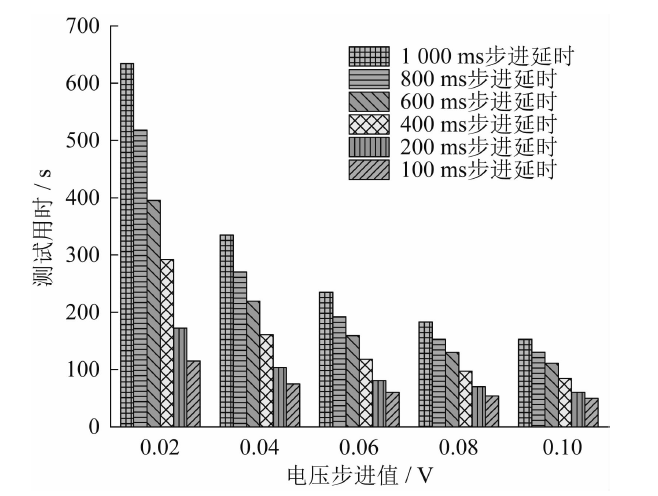

电压步进值/ V	步进延时/ms
0.02	1 000
0.04	800
0.06	600
0.08	400
0.10	200
	100

参数	第一次	第二次	第三次	平均值
释放电压/ V	5.61	5.60	5.60	5.603
吸合电压/ V	12.45	12.46	12.45	12.453
反向吸合电压/ V	12.89	12.90	12.90	12.897
