Flexible Grounding Arc Suppression Method of Distribution Network Based on Discrete Domain Double Closed Loop Control

doi:10.16628/j.cnki.2095-8188.2021.12.013

Abstract

Abstract:

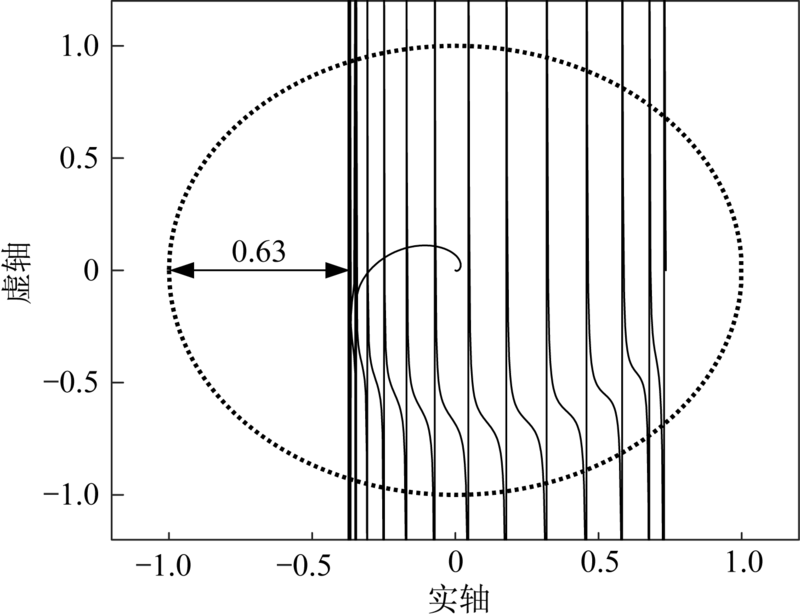

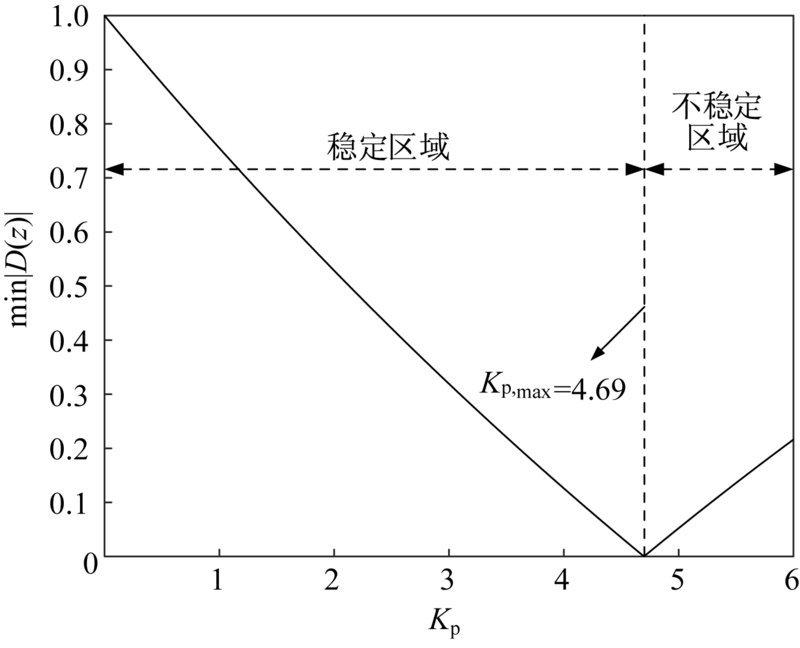

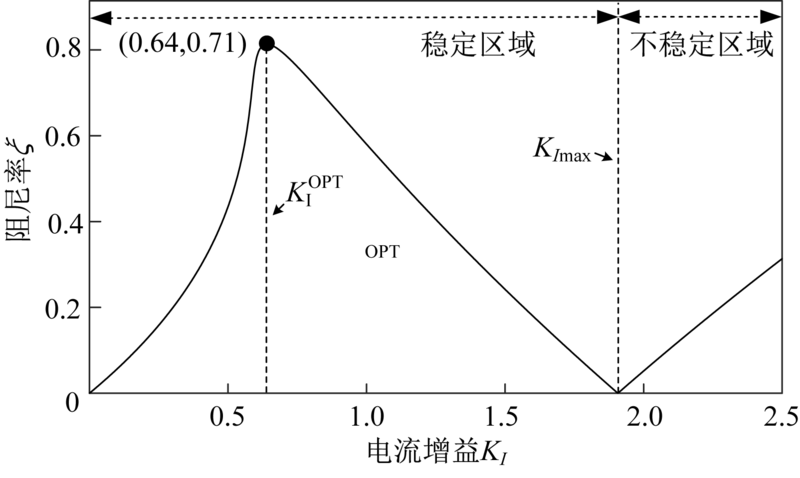

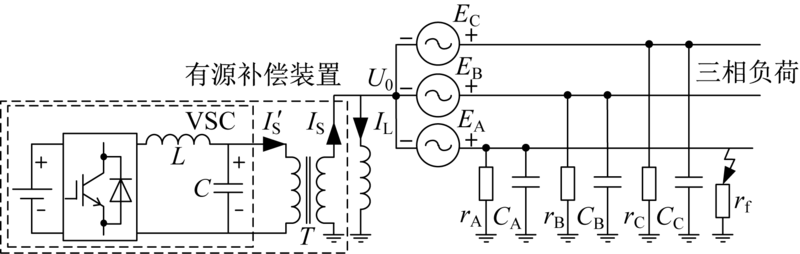

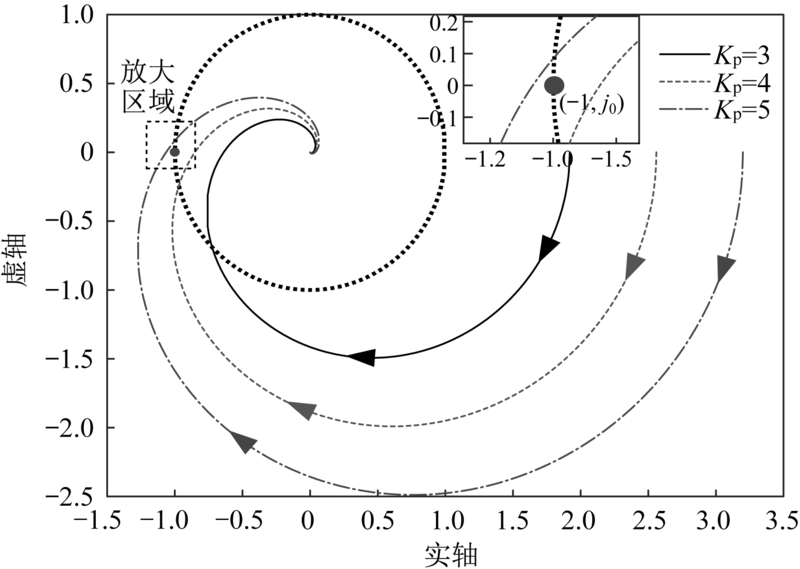

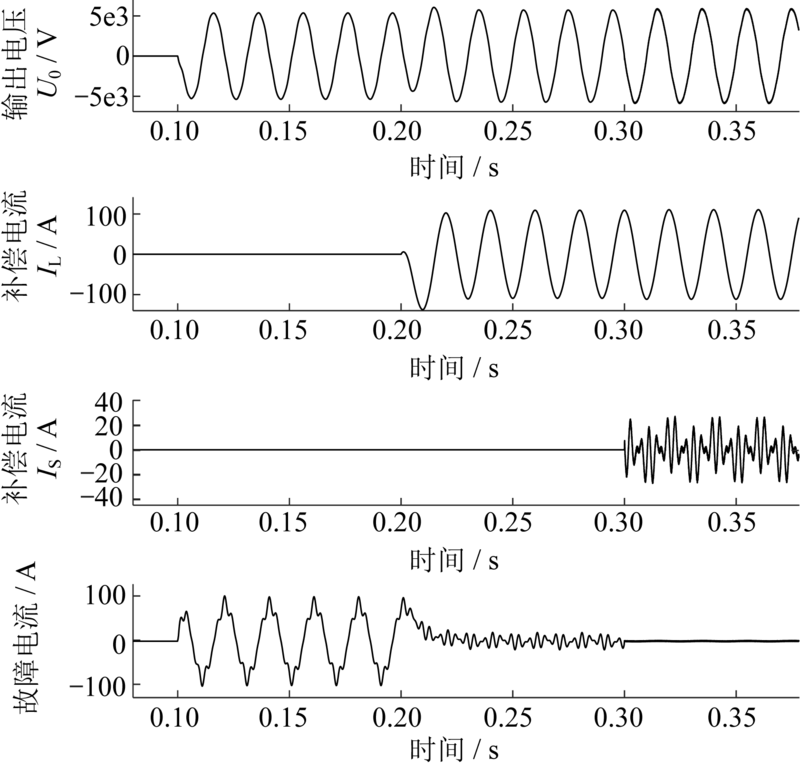

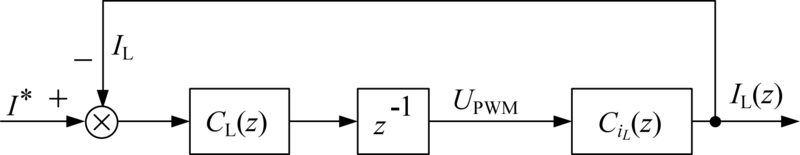

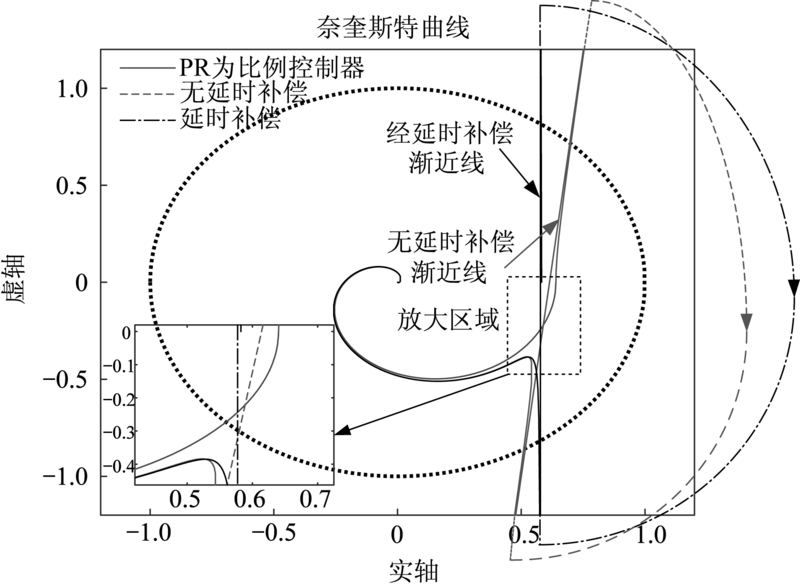

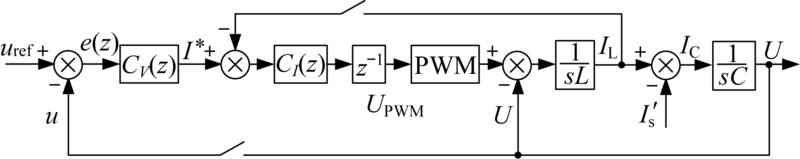

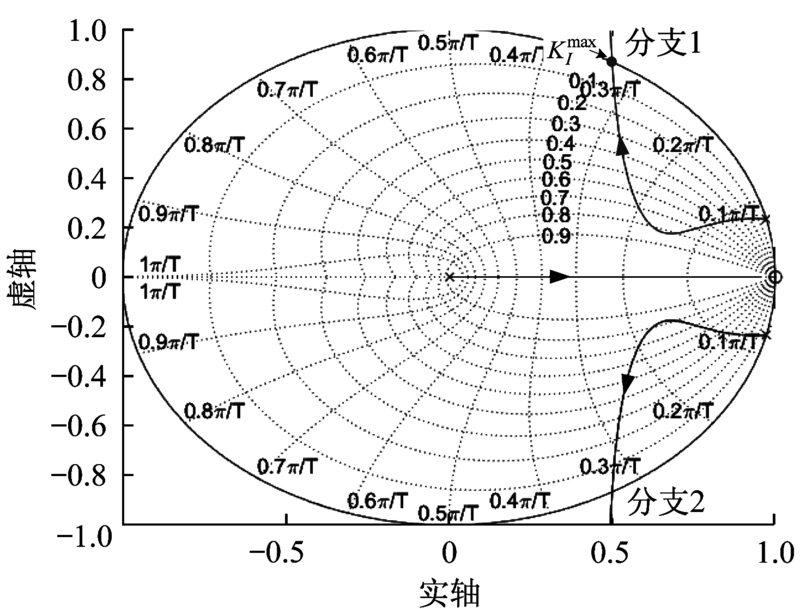

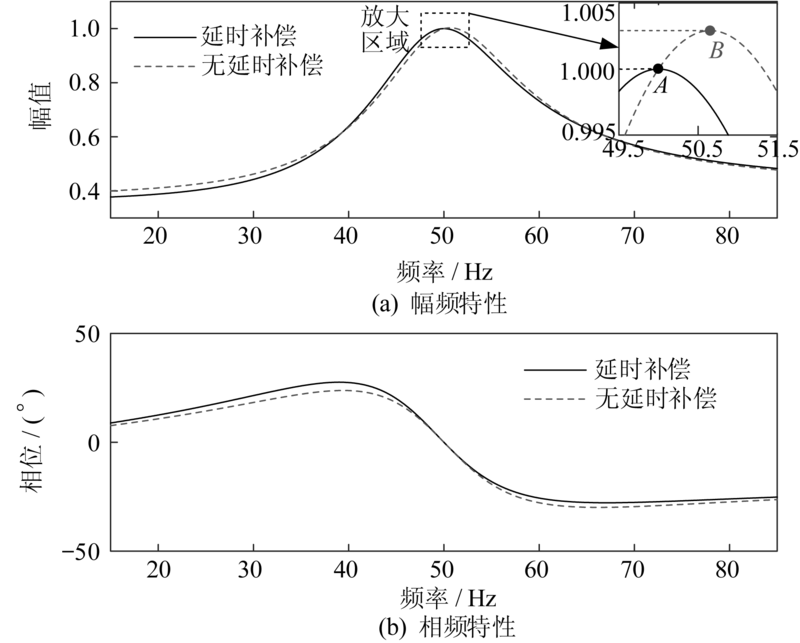

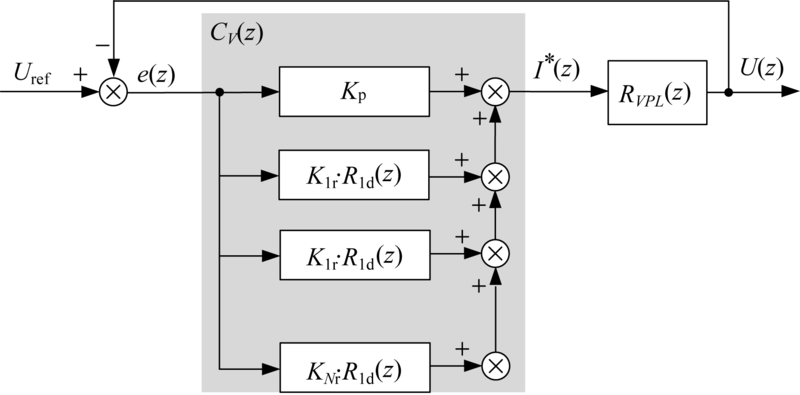

When a single-phase grounding fault occurs in a neutral point non-effectively grounded distribution network,the traditional arc suppression coil can only compensate for the reactive components of the grounding current,but not the active and harmonic components.In this paper,by analyzing the mechanism of active arc suppression for single-phase grounding faults,an active arc suppression method based on double closed-loop control in the discrete domain is proposed.The inner current loop provides virtual damping for the system,and the optimal gain design method of the current inner loop is proposed based on root locus analysis.The voltage outer loop adopts a resonant controller to realize the non-static adjustment of the AC voltage,and a delay compensation method is proposed to improve the stability of the system.The simulation results verify the effectiveness of the proposed discrete domain double closed-loop control strategy.When a single-phase grounding fault occurs in the distribution network,the ground current can be fully compensated to ensure the safe and reliable operation of distribution network.

Key words: active compensation, double closed-loop control, single-phase ground fault, arc suppression

CLC Number:

TM615

LU Yang, PAN Yifan, YANG Yajun, WU Jiaheng. Flexible Grounding Arc Suppression Method of Distribution Network Based on Discrete Domain Double Closed Loop Control[J]. LOW VOLTAGE APPARATUS, 2021, 0(12): 71-77.

Figures/Tables 16

References 21

[1]	缪希仁, 唐玲玲, 庄胜斌, 等. 低压配电系统短路故障保护方法综述[J]. 电器与能效管理技术, 2019(15):21-29.
[2]	琚泽立, 朱跃, 蒲路, 等. 配电网电压综合补偿方法研究[J]. 高压电器, 2020, 56(4):235-240.
[3]	陈启, 许鹏程, 石道桂, 等. 多电压等级电网可靠性-经济性协调评估[J]. 电器与能效管理技术, 2020(6):82-88.
[4]	郭胜辉, 李程, 张健, 等. 基于NSGA Ⅱ算法的配电网串联补偿装置参数的多目标优化[J]. 电力电容器与无功补偿, 2020, 41(1):30-37.
[5]	涂小涛, 高仕龙, 陈锐, 等. 多端柔性交直流混合配电网建模及仿真分析[J]. 电器与能效管理技术, 2020(1):58-63.
[6]	刘宝稳, 马宏忠, 沈培锋, 等. 新型接地故障基波电流全补偿柔性控制系统[J]. 中国电机工程学报, 2016, 36(9):2322-2330.
[7]	李新泉, 齐郑, 杨以涵. 一种新型消弧方法的研究及其实现[J]. 电力系统保护与控制, 2008, 36(24):83-87.
[8]	曾祥君, 王媛媛, 李健, 等. 基于配电网柔性接地控制的故障消弧与馈线保护新原理[J]. 中国电机工程学报, 2012, 32(16):137-143.
[9]	曾祥君, 胡京莹, 王媛媛, 等. 基于柔性接地技术的配电网三相不平衡过电压抑制方法[J]. 中国电机工程学报, 2014, 34(4):678-684.
[10]	曾祥君, 黄明玮, 王文, 等. 配电网三相不平衡过电压有源抑制方法研究[J]. 电工技术学报, 2015, 30(9):61-69.
[11]	陈锐, 周丰, 翁洪杰, 等. 基于双闭环控制的柔性接地装置消弧方法[J]. 电力科学与技术学报, 2015, 30(4):63-70.
[12]	彭沙沙, 曾祥君, 喻琨, 等. 基于二次注入的配电网接地故障有源电压消弧方法[J]. 电力系统保护与控制, 2018, 46(20):142-149.
[13]	陈锐, 陈朵红, 张健, 等. 配电网柔性接地装置电压控制方法研究[J]. 电力科学与技术学报, 2018, 33(2):3-10.
[14]	吴俊, 诸军, 沈海平, 等. 配电网三相不平衡度近似计算方法简析[J]. 高压电器, 2019, 55(12):211-214.
[15]	WANG W, ZENG X, YAN L, et al. Principle and control design of active ground-fault arc suppression device for full compensation of ground current[J]. IEEE Transactions on Industrial Electronics, 2017, 64(6):4561-4570. doi: 10.1109/TIE.2017.2652400
[16]	郭谋发, 陈静洁, 张伟骏, 等. 基于单相级联H桥变流器的配电网故障消弧与选线新方法[J]. 电网技术, 2015, 39(9):2677-2684.
[17]	QIU W Q, GUO M F, YANG G J, et al. Model-predictive-control-based flexible arc-suppression method for earth fault in distribution networks[J]. IEEE Access, 2019, 7:16051-16065. doi: 10.1109/ACCESS.2019.2893661
[18]	郭谋发, 游建章, 张伟骏, 等. 基于三相级联H桥变流器的配电网接地故障分相柔性消弧方法[J]. 电工技术学报, 2016, 31(17):11-22.
[19]	邱伟强, 郭谋发, 郑泽胤. 基于单一直流源级联H桥变流器的配电网接地故障柔性消弧方法[J]. 电网技术, 2019, 43(10):3848-3858.
[20]	YEPES A G, FREIJEDO F D, LOPEZ O, et al. Analysis and design of resonant current controllers for voltage-source converters by means of Nyquist diagrams and sensitivity function[J]. IEEE Transactions on Industrial Electronics, 2011, 58(11):5231-5250. doi: 10.1109/TIE.2011.2126535
[21]	代少君, 李建会, 刘健犇, 等. 金属冶炼厂谐波抑制与无功补偿方法[J]. 电力电容器与无功补偿, 2020, 41(5):12-16,22.

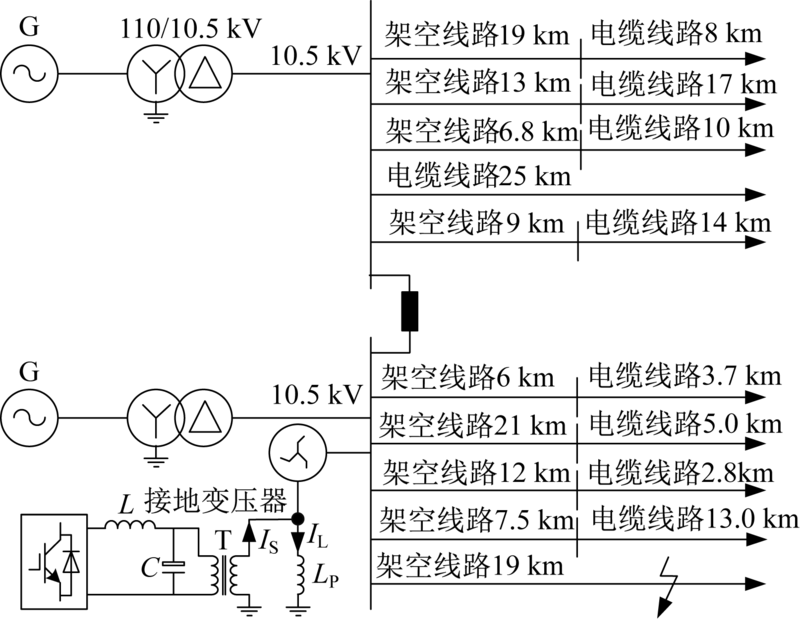

线路类型	相序	线路电阻/ (Ω·km^-1)	线路电感/ (mH·km^-1)	对地电容/ (μF·km^-1)
架空线路	正序	0.125 0	1.300 0	0.009 6
架空线路	零序	0.275 0	4.600 0	0.005 4
电缆线路	正序	0.270 0	0.255 0	0.339 0
电缆线路	零序	2.700 0	1.019 0	0.280 0

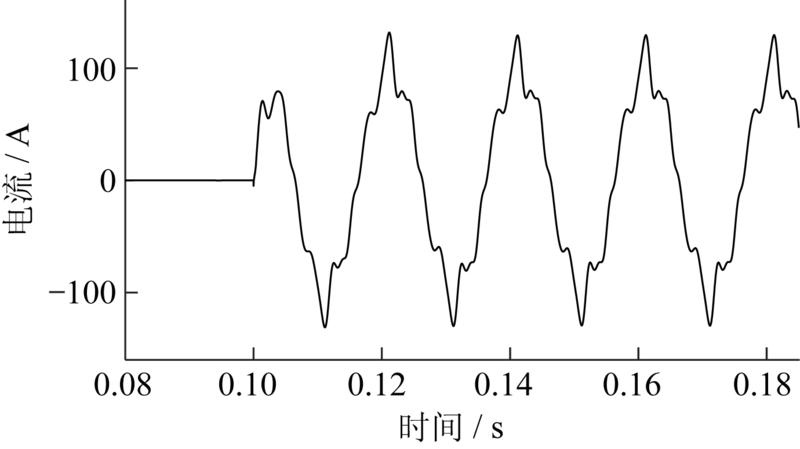

电流成分	有效值/A	电流成分	有效值/A
基波无功	72.14	9次谐流	0.27
基波有功	3.83	11次谐流	2.90
3次谐流	0.66	13次谐流	2.05
5次谐流	9.19	15次谐流	0.12
7次谐流	7.28	17次谐流	0.09
