Design of Novel Electrical Endurance Experimental System for AC Contactor

doi:10.16628/j.cnki.2095-8188.2021.02.010

Abstract

Abstract:

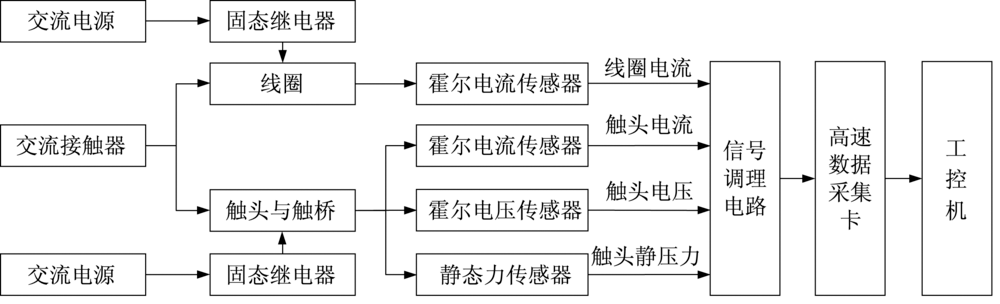

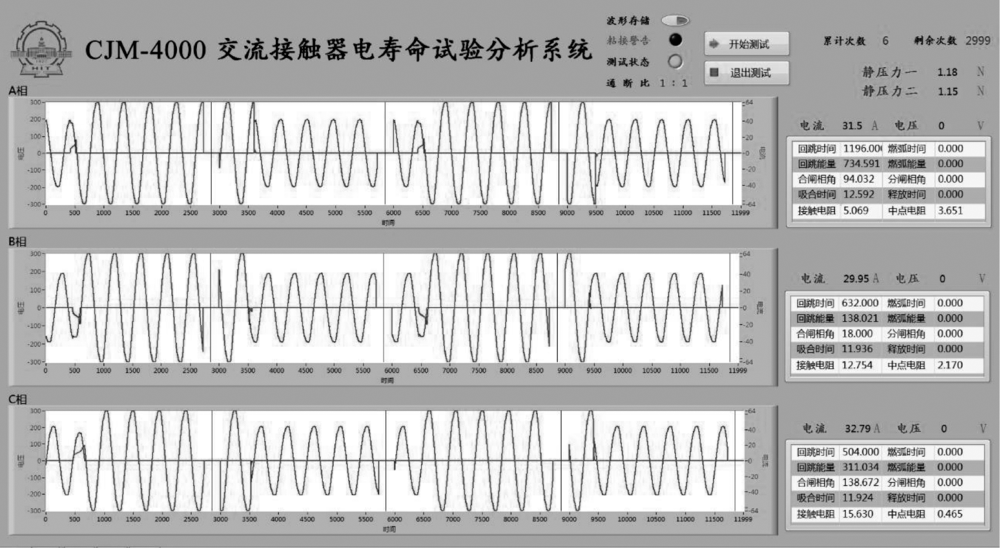

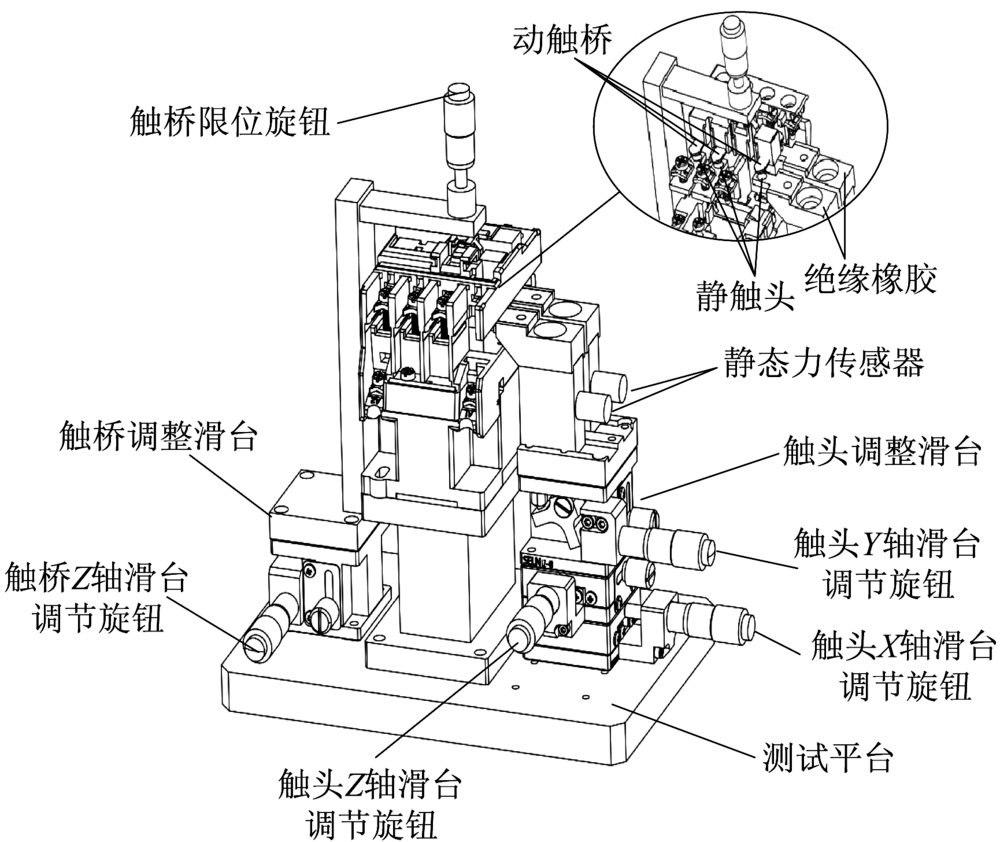

The accuracy of assessment in switching load capacity and reliability of AC contactor greatly depends on the electrical lifetime test method and system.Considering the optimization of contact materials,this paper introduced a novel electrical endurance experimental system for AC contactor,which is able to monitor the operating characteristic parameters of contactor.Moreover,the contact gap and magnetic gap can be flexibly adjusted.The system was used in analyzing the influence of contact gap on the operating characteristics,and the variations in electrical performance parameters.

Key words: AC contactor, electrical lifetime, contacts, failure analysis

CLC Number:

TM572.2

WANG Tianyang, ZHENG Zhe, ZHANG Xu, REN Wanbin. Design of Novel Electrical Endurance Experimental System for AC Contactor[J]. LOW VOLTAGE APPARATUS, 2021, 0(2): 48-53.

Figures/Tables 12

References 20

[1]	许志红. 电器理论基础[M]. 北京: 机械工业出版社, 2014.
[2]	PANDA R K, VEERAMALLA . High power hybrid contactor for electrical test application[C]// Proceedings of 60th IEEE Holm Conference on Electrical Contacts, 2014: 1-6.
[3]	周聪哲. 交流接触器寿命试验技术及数据处理[D]. 天津:河北工业大学, 2017.
[4]	焦通. 交流接触器电寿命监测研究[D]. 沈阳:沈阳工业大学, 2015.
[5]	CINAROGLU H, BEHRENS V, HONIG T. Application of a new Ag/SnO₂ contact material in AC-contactors[C]// Proceedings of IEEE Holm Conference on Electrical Contacts, 2017: 215-220.
[6]	任万滨, 姜楠, 满思达, 等. 交流接触器触头材料电性能模拟试验研究[J]. 电工材料, 2018(1):3-6,11.
[7]	RAY N, KEMPF B, MUTZEL T. Effect of WC particle size and Ag volume fraction on electrical contact resistance and thermal conductivity of Ag-WC contact materials[J]. Materials & Design, 2015,85:412-422.
[8]	YOSHIDA K, SAWA K, SUZUKI K. Influence of nickel content on various characteristics of AgNi contacts for electromagnetic contactors[C]// Proceeding of 60th IEEE Holm Conference on Electrical Contacts, 2014: 261-265.
[9]	LI J F, ZHENG X F, SU X P, et al. AC contactor dynamic characteristics testing system with contacts contact pressure dynamic test function[C]// Proceedings of International Conference on Mechatronic Sciences,Electric Engineering and Computer, 2013: 465-468.
[10]	郑淑梅, 牛峰, 黄少坡, 等. 交流接触器电应力特征参数监测及处理方法研究[J]. 电器与能效管理技术, 2017(20):1-5,17.
[11]	高筱婷. 交流接触器电寿命试验技术的研究[C]// 第十二届沈阳科学学术年会论文集(理工农医), 2015: 812-815.
[12]	高雪. 交流接触器智能控制系统的设计与实现[D]. 北京:北京交通大学, 2019.
[13]	Biyik S, Aydin M. A new life-test equipment designed for medium-duty electromagnetic contactors[C]// Proceedings of 15th International Conference on Thermal,Mechanical and Mulit-Physics Simulation and Experiments in Microelectronics and Microsyste, 2014: 1-7.
[14]	刘文涛, 荣命哲, 刘定新, 等. 触头电接触性能测试装置及实验研究[J]. 电器与能效管理技术, 2013(19):17-21.
[15]	GONZALEZ D, HOPFELD M, BERGER F, et al. Investigation on contact resistance behavior of switching contacts using a newly developed model switch[C]// Proceedings of IEEE Transactions on Components,Packaging and Manufacturing Technology, 2018: 939-949.
[16]	低压开关设备和控制设备第1部分总则:GB 140481—2012[S].
[17]	刘成学, 黄棋悦, 严楠. 基于接触器控制的电容电抗器组投切方案[J]. 浙江电力, 2020,39(9):44-49.
[18]	李伟全. 新一代接触器智能控制模块的设计[J]. 电器与能效管理技术, 2020(8):33-38.
[19]	肖斌, 刘洋, 翟国富. 基于径向基函数神经网络的接触器性能快速算法[J]. 电器与能效管理技术, 2020(1):40-45.
[20]	桂存兵, 陈章宝, 刘洋. 交、直流控制新型智能交流接触器的研制[J]. 广东电力, 2011,24(11):74-77.

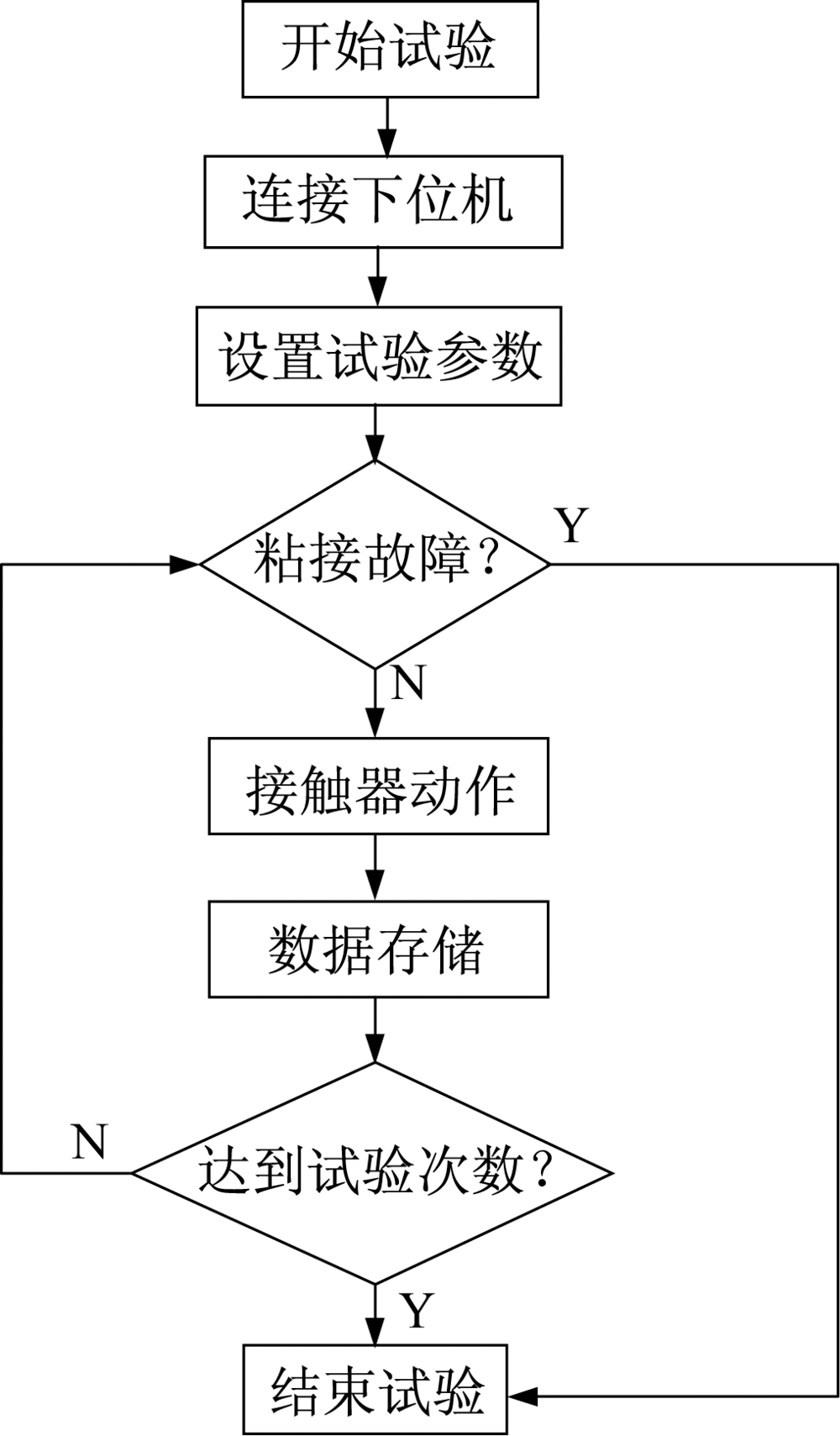

试验参数	备注
试验环境	温度为19~22 ℃
触头材料	银氧化锡
线圈电压	AC 380 V
触头电压/电流	AC 380 V/16 A
负载条件	AC1
触头开距	5 mm(A相)、4 mm(B、C相)
动作频率	1.5 s通/1.5 s断

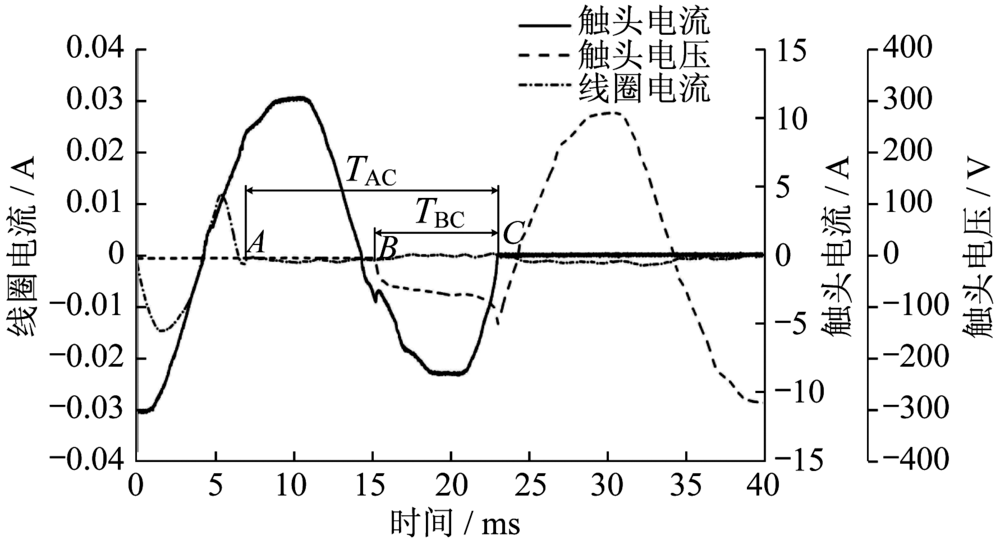

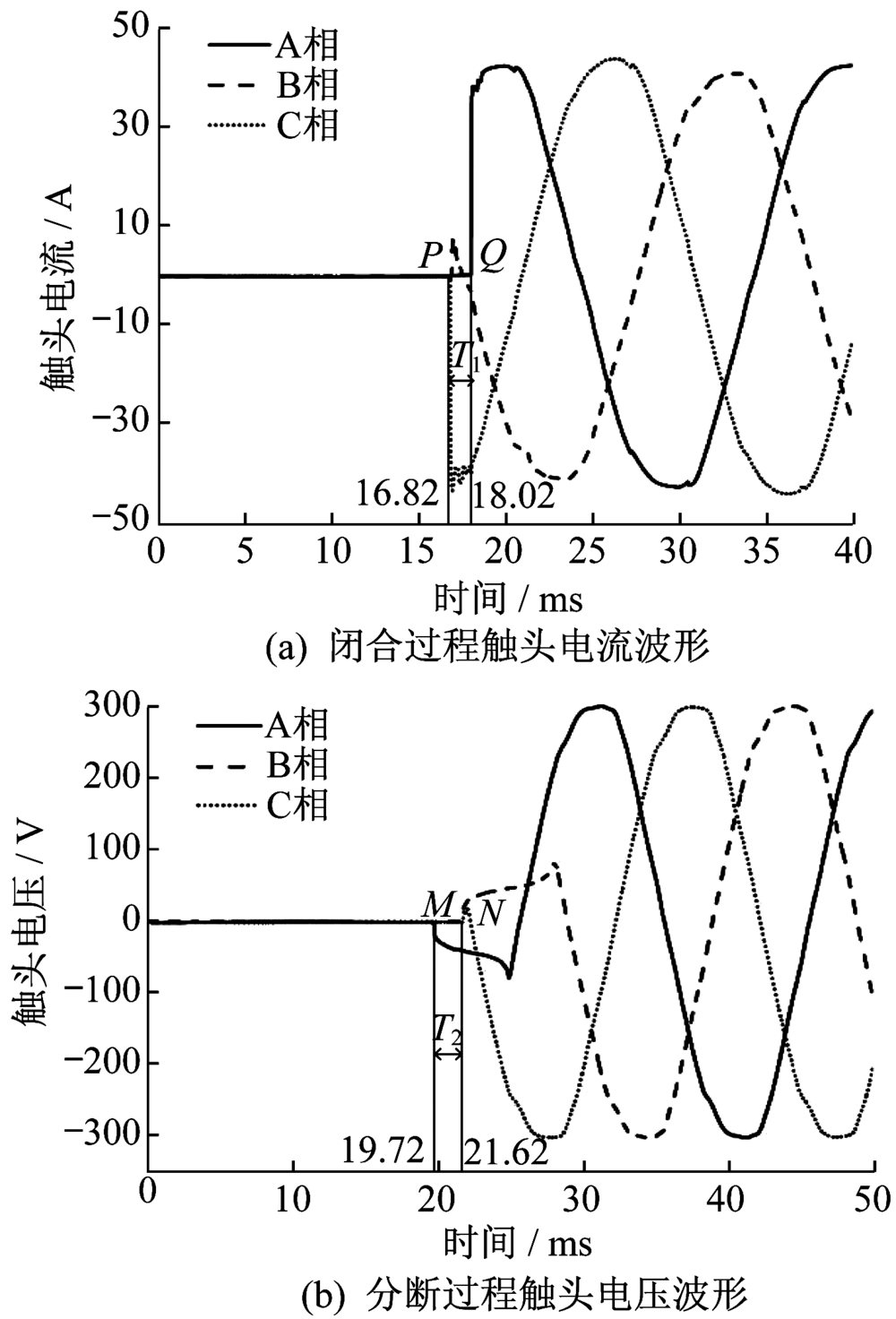

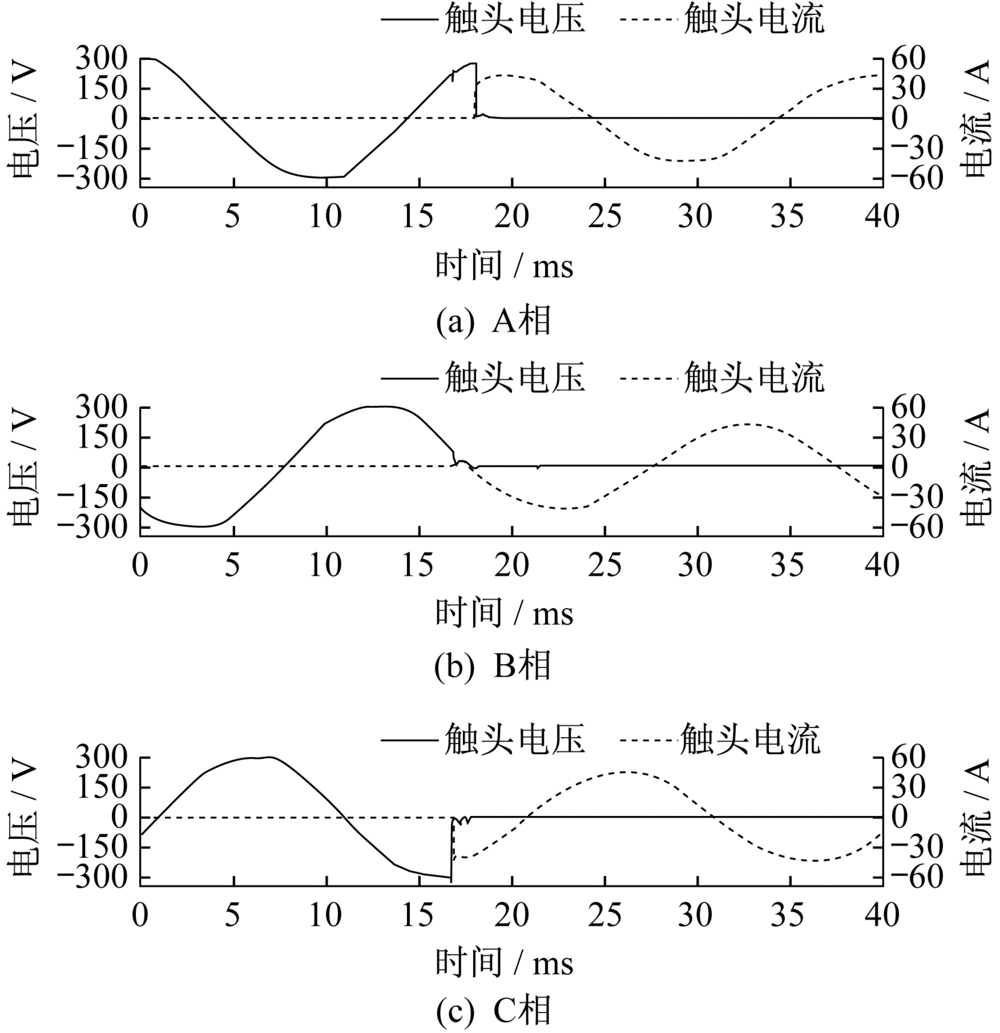

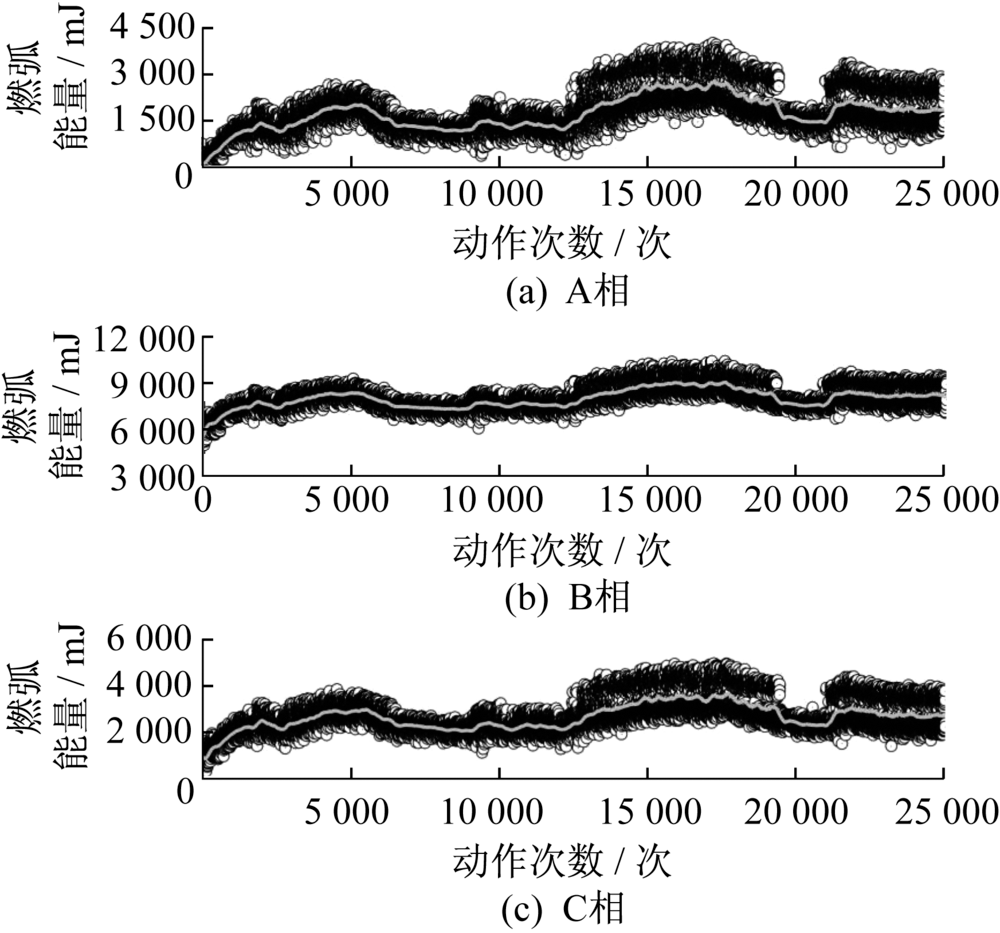

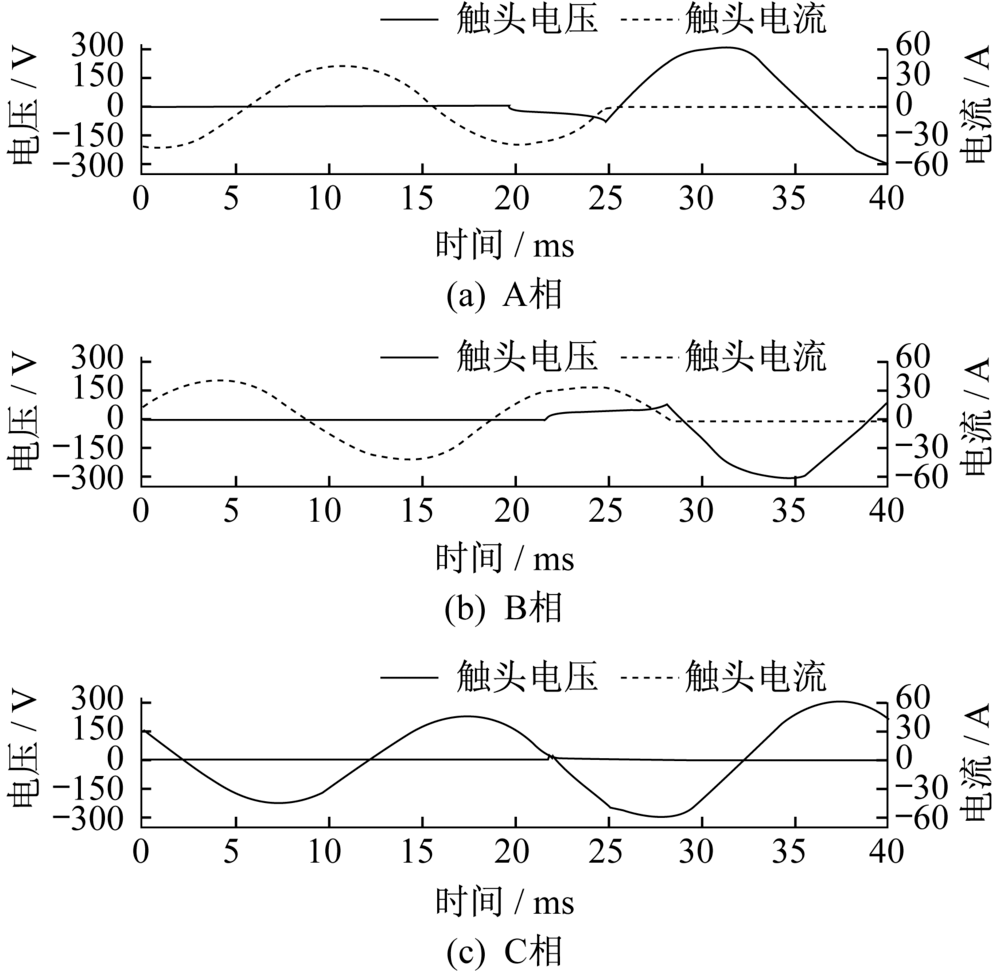

参量	A相	B相	C相
燃弧能量/mJ	1 719.01	7 796.08	2 623.59
燃弧时间/ms	2.526	6.704	3.177
